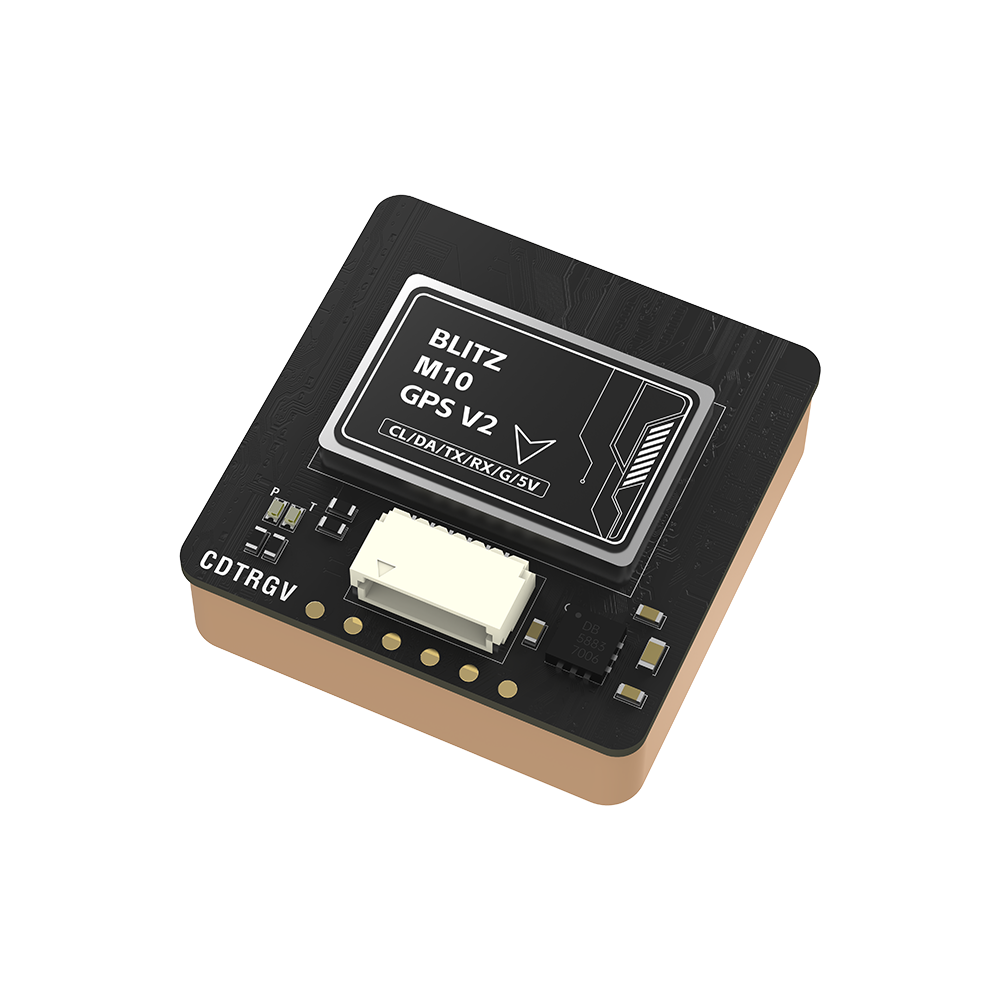

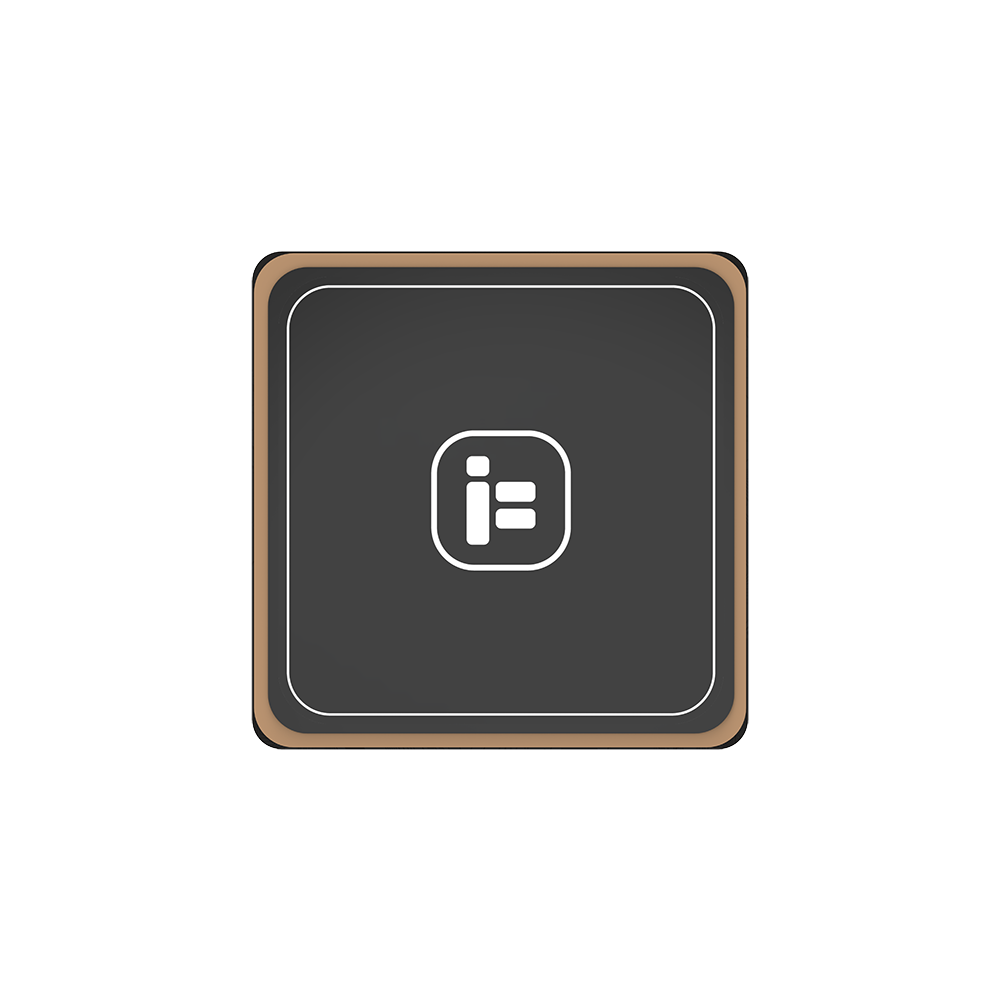

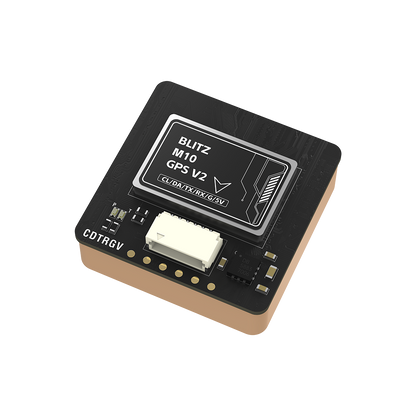

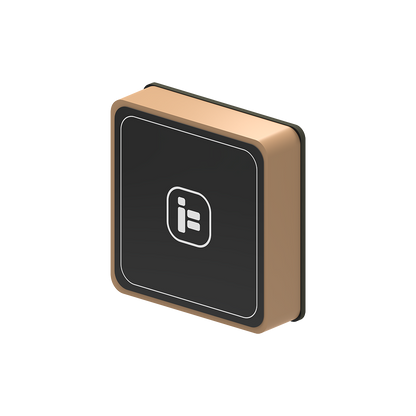

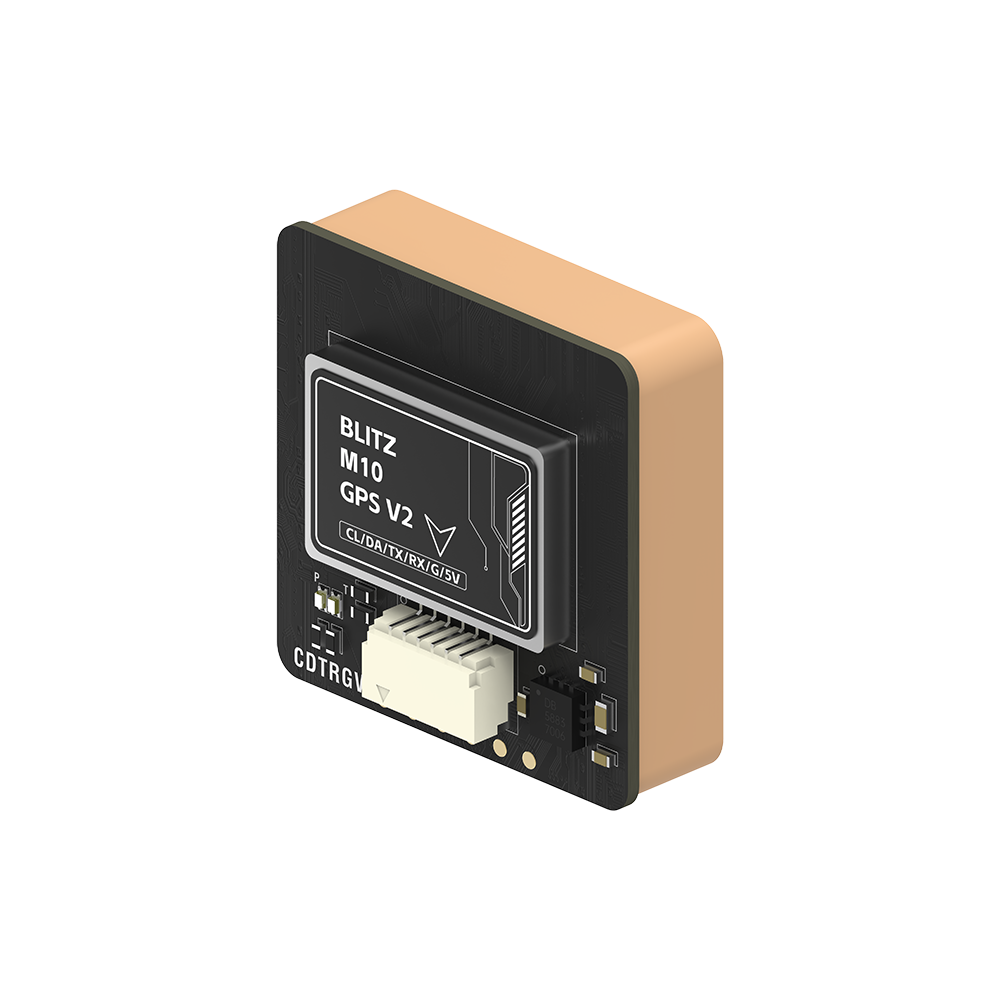

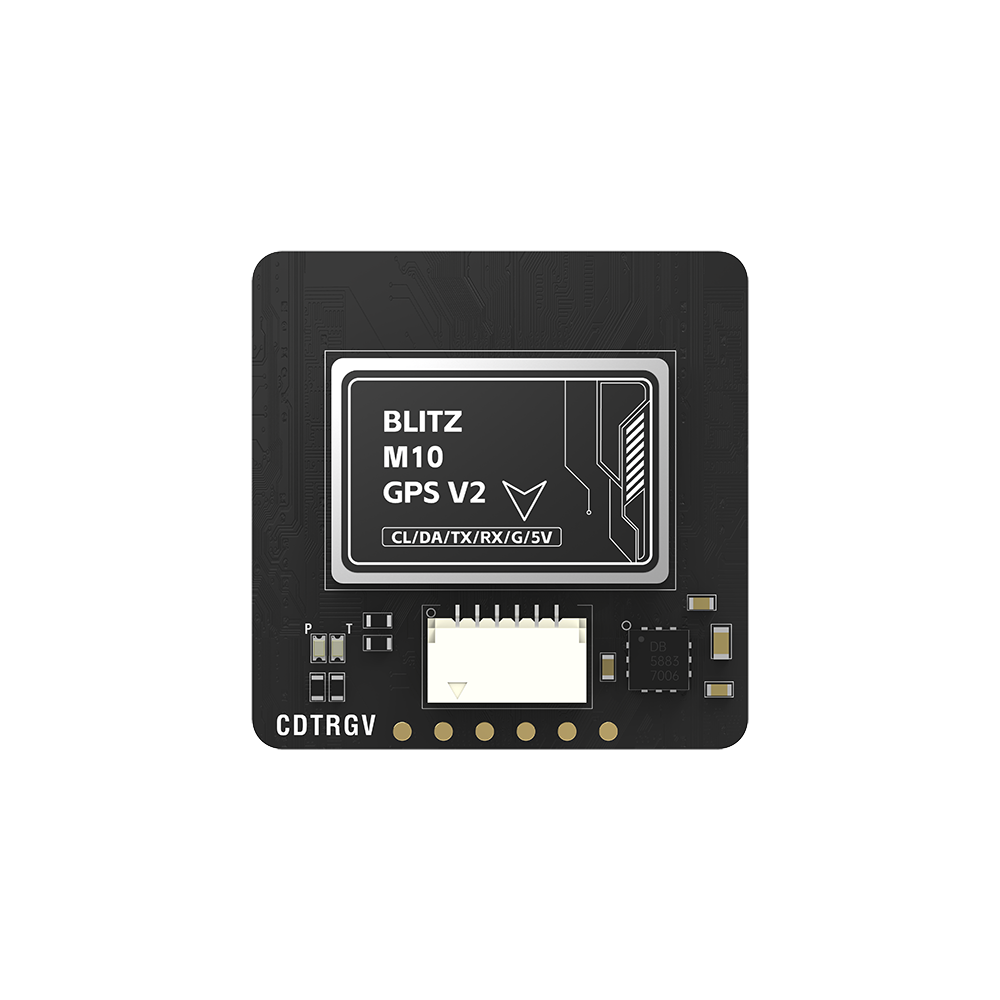

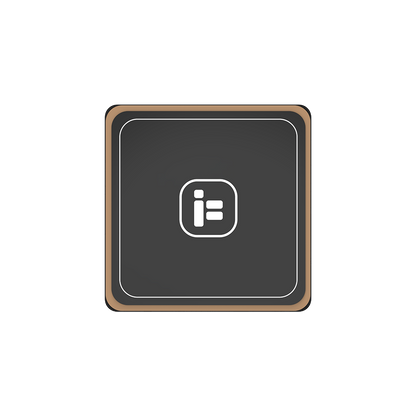

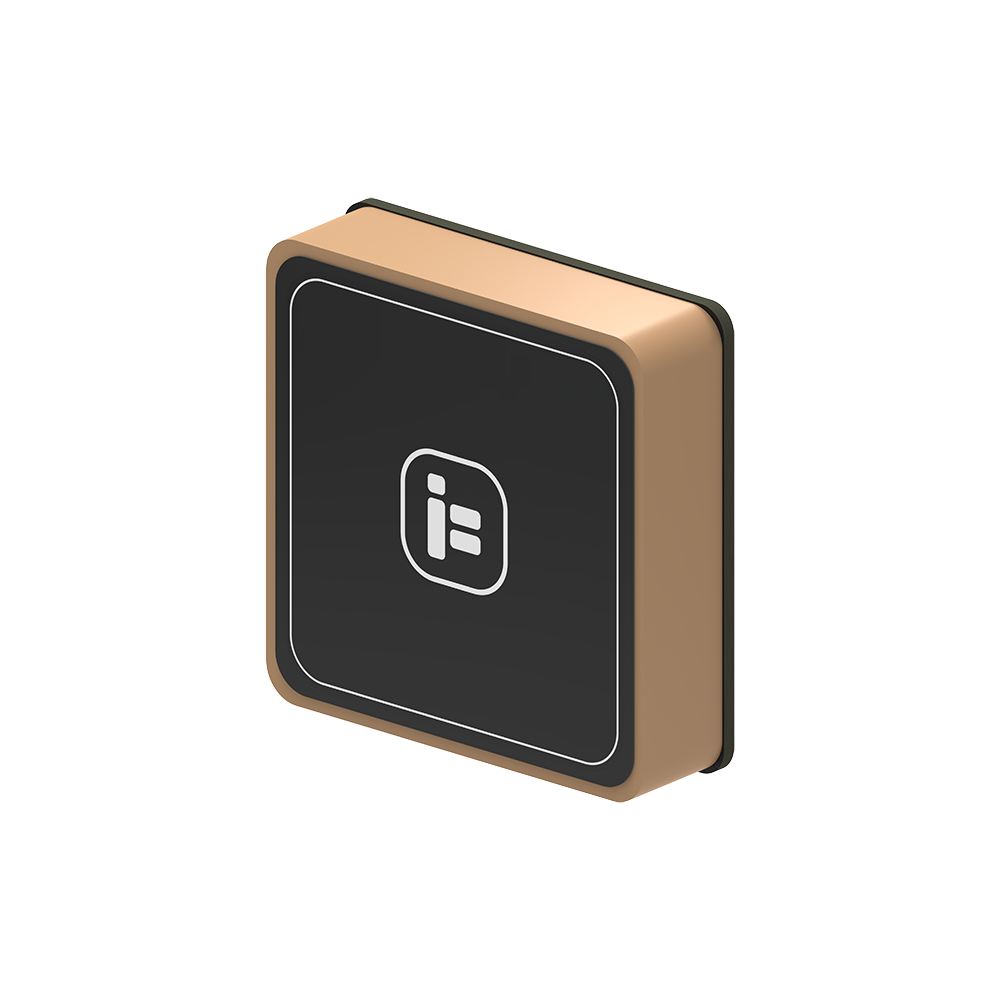

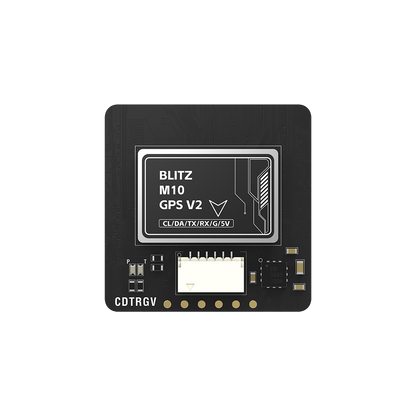

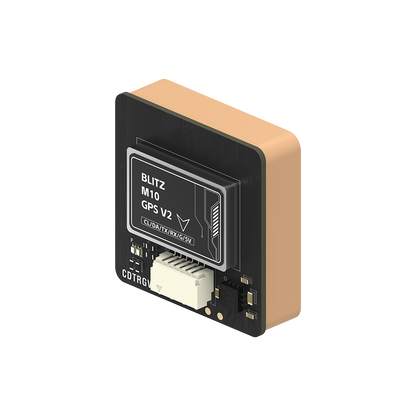

iFlight BLITZ M10 GPS V2 with QMC5883 Compass
iFlight BLITZ M10 GPS V2 with QMC5883 Compass
Brand: iFlight
sku: SKU:B015342
Out of stockCouldn't load pickup availability
- Description
The iFlight BLITZ M10 GPS V2 is a high-performance GPS module designed for FPV drones, multirotors, and professional UAVs. Equipped with the UBLOX M10 chipset, it delivers fast satellite acquisition, low power consumption, and high-precision positioning.
This V2 version comes with an integrated QMC5883L compass and a built-in Farad capacitor, allowing for a faster hot start and improved signal stability in challenging environments. The module features LNA (Low Noise Amplifier), RF filter, and TCXO for precise positioning even in high-dynamic or high-interference scenarios. With a 10 Hz refresh rate, it provides reliable real-time positioning for high-speed flights and racing drones.
Compact and lightweight, the BLITZ M10 GPS V2 is easy to integrate into any UAV frame, making it an excellent choice for pilots who require precision, reliability, and robust performance.
Key Features
- GNSS Support: GPS + SBAS + Galileo + QZSS + GLONASS
- Compass: Integrated QMC5883L for precise heading
- High Precision: Positioning accuracy with speed accuracy 0.05 m/s
- Advanced Design: Built-in Farad capacitor, LNA, RF filter, and TCXO
- Refresh Rate: 10 Hz for real-time navigation
- Baud Rate: Adjustable 9600-460800 / 4800-921600 (default 115200)
- Operating Specs: Max height 80,000 m, max speed 500 m/s, max acceleration ≤4G
- Compact Antenna: 25×25×6 mm, overall size 25×25×11 mm
- Input Voltage: 3.3-5.5 V
- Lightweight: 16 g
Package Includes
- 1 × iFlight BLITZ M10 GPS V2
- 1 × Set of connection cables
