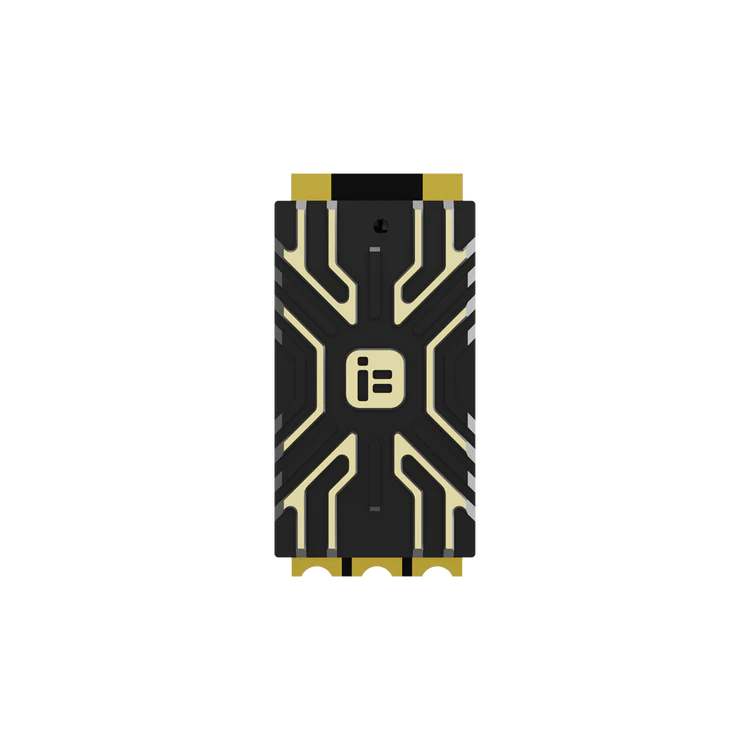

iFlight BLITZ E80 Single ESC
iFlight BLITZ E80 Single ESC
Brand: iFlight
Regular price
€83,01Taxes included.
Regular price
€83,01
Sale price
€83,01
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:BE16588
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ E80 BLHeli Dshot600 Single ESC has been designed to provide the motors with smooth performance with excellent stability and durability. The 32-bit 48MHz G071 MCU coupled with 11 TDK MLCC capacitors with a total capacity of 240UF Low ESR ensures faster response and a smoother flight experience.
Main advantages:
- 2-8S input (max 8S)
- 80A, 8-layer 4OZ copper PCB for better load
- 11 TDK MLCC capacitors with a total capacity of 420UF Low ESR to reduce ripple and increase stability
- High-end NTMFS5C430NL MOSFET for stability and reliability
- 1 * 3528 LED for power on display
- Rational layout with large solder pads, countersunk holes and semi-circular holes to ensure power supply to each layer after power-up
Specifications:
- Product name: BLITZ E80 Single ESC
- Input voltage: 2-8S
- Max. continuous current: 80A
- Max. peak current: 100A
- MCU: G071
- BEC: No
- Firmware: BLHeli32
- Current sensor: Yes
- Telemetry: Supported
- Target: IFLIGHT_BLITZ_G2
- Dimensions: L40 x W17 x W10mm
- Weight: 14.5g(±2)
- Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
Support:
- Current sensor
- Telemetry output
- Engine Timing
- Stopping brake
The package contains:
- 1 x BLITZ E80 Single ESC
- 1 x 50V 470UF capacitor
- 1 x Power cables and ESC signal wires
