    Holybro M10 GPS Module - Standard with Compass

    Holybro M10 GPS Module - Standard with Compass

    Brand: Holybro

    €58,56
    €53,23 €58,56
    --10% View Product

    sku: 12040

    In stock (74)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

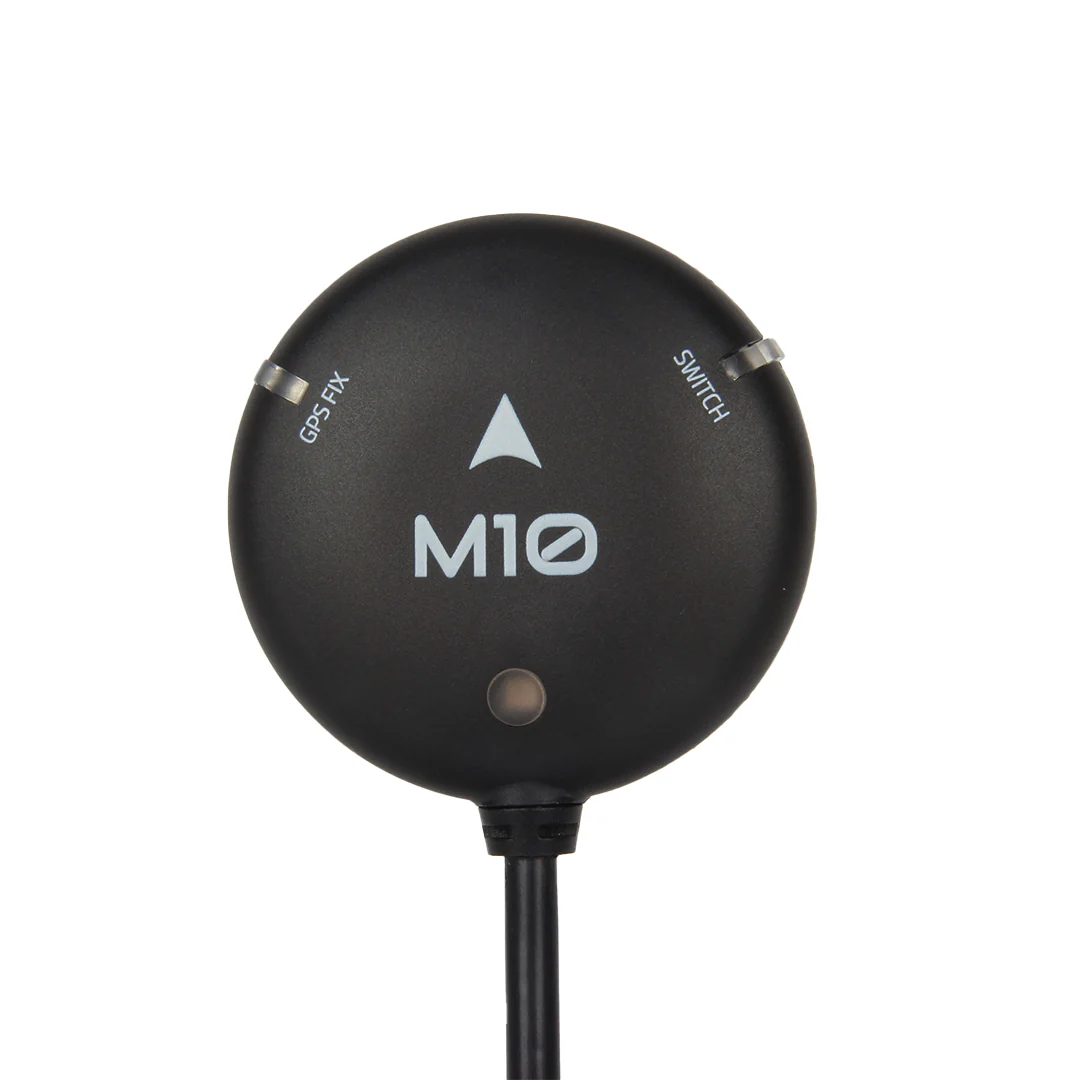

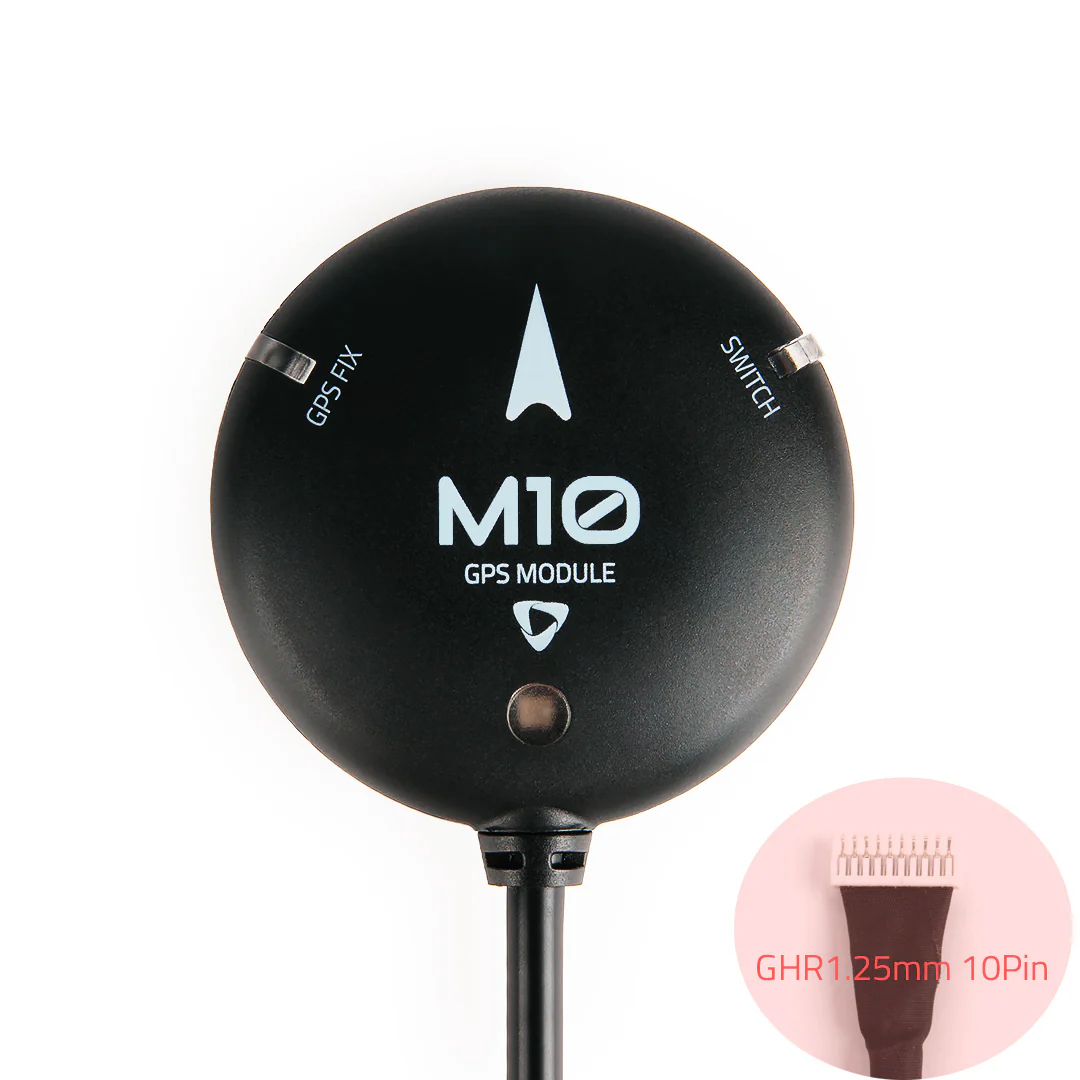

    The Holybro M10 GPS Module - Standard is a high-performance navigation module for UAVs and drones, featuring multi-constellation GNSS with the u-blox M10 receiver. It can simultaneously track GPS, GLONASS, Galileo, and BeiDou, providing robust positioning even in challenging environments.

    Equipped with an IST8310 compass, a high-gain ceramic patch antenna, and a rechargeable backup capacitor, the M10 ensures fast startup and precise navigation. The module also features a tri-color LED, buzzer, and safety switch for convenient monitoring and secure operation. Its multi-band RF front-end architecture guarantees reliable reception and improved signal accuracy.

    Ideal for professional UAVs and Pixhawk-compatible flight controllers, the M10 GPS module offers centimeter-level reliability and smooth integration into advanced navigation systems.

    Key Features

    • GNSS Receiver: u-blox M10, multi-constellation
    • Simultaneous GNSS Tracking: GPS, GLONASS, Galileo, BeiDou (up to 4 simultaneously)
    • Compass: IST8310 integrated
    • Position Accuracy: 2.0 m CEP
    • Navigation Update Rate: Up to 25 Hz (single GNSS), 10 Hz (4 GNSS)
    • GNSS Augmentation: EGNOS, GAGAN, MSAS, WAAS, QZSS L1S
    • Output Protocol: UBX (u-blox), NMEA
    • Baud Rate: 115200
    • Input Voltage: 4.7 - 5.2 V
    • Antenna: Ceramic patch 25 × 25 × 4 mm with active circuitry
    • Power Consumption: <200 mA @ 5V
    • Operating Temperature: -40°C to +80°C
    • Dimensions: 50 × 50 × 14.4 mm | Weight: 32 g
    • Cable Length: 26 cm (optional 42 cm available)
    • Additional Features: Tri-color LED, buzzer, safety switch, LNA + RF amplifier, rechargeable capacitor, low-noise 3.3V regulator

    Package Includes

    • 1 × Holybro M10 GPS Module - Standard
    • 1 × Fixed carbon fiber GPS holder
