    Holybro H-RTK F9P Helical GPS Module

    Holybro H-RTK F9P Helical GPS Module

    Brand: Holybro

    €395,31
    €359,36 €395,31
    --10% View Product

    sku: 12018

    In stock (13)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The Holybro H-RTK F9P Helical GPS Module is a high-precision positioning system designed for UAVs and drones, supporting both Rover and Base Station configurations. Equipped with the u-blox ZED-F9P GNSS module and a helical spiral antenna with 36 dB LNA, this module ensures real-time RTK corrections and centimeter-level accuracy, even in challenging environments.

    With support for GPS, GLONASS, Galileo, BeiDou, and QZSS, and a built-in magnetometer (BMM150 or IST8310), the H-RTK F9P Helical provides reliable orientation and navigation data. Its DroneCAN protocol enables easy integration with modern UAV systems, while its compact design and efficient power usage make it ideal for long-duration flights.

    This module is perfect for drone pilots seeking precise positioning, stable flight, and enhanced navigation in areas with limited satellite visibility.

    Key Features

    • GNSS Receiver: u-blox ZED-F9P high-precision
    • Supported Constellations: GPS/QZSS, GLONASS, Galileo, BeiDou
    • GNSS Bands: B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
    • Antenna: Helical spiral with LNA 36 dB
    • Magnetometer: BMM150 or IST8310
    • Position Accuracy: 3D FIX: 1.5 m / RTK: 0.01 m
    • Communication Protocol: DroneCAN 1 Mbit/s
    • Navigation Update Rate: RAW: 20 Hz | RTK: 8 Hz | RTK moving base: 5 Hz
    • Time to First Fix: Warm start ≤1 s | Cold start ≤25 s
    • Antenna Connection: SMA (board: female, antenna: male)
    • Operating Voltage: 4.75-5.25 V | Current Consumption: ~250 mA
    • Dimensions: Board 51.1 × 35 × 22.9 mm | Antenna height 59 mm
    • Weight: 58 g
    • Operating Temperature: -20℃ to 85℃

    Package Includes

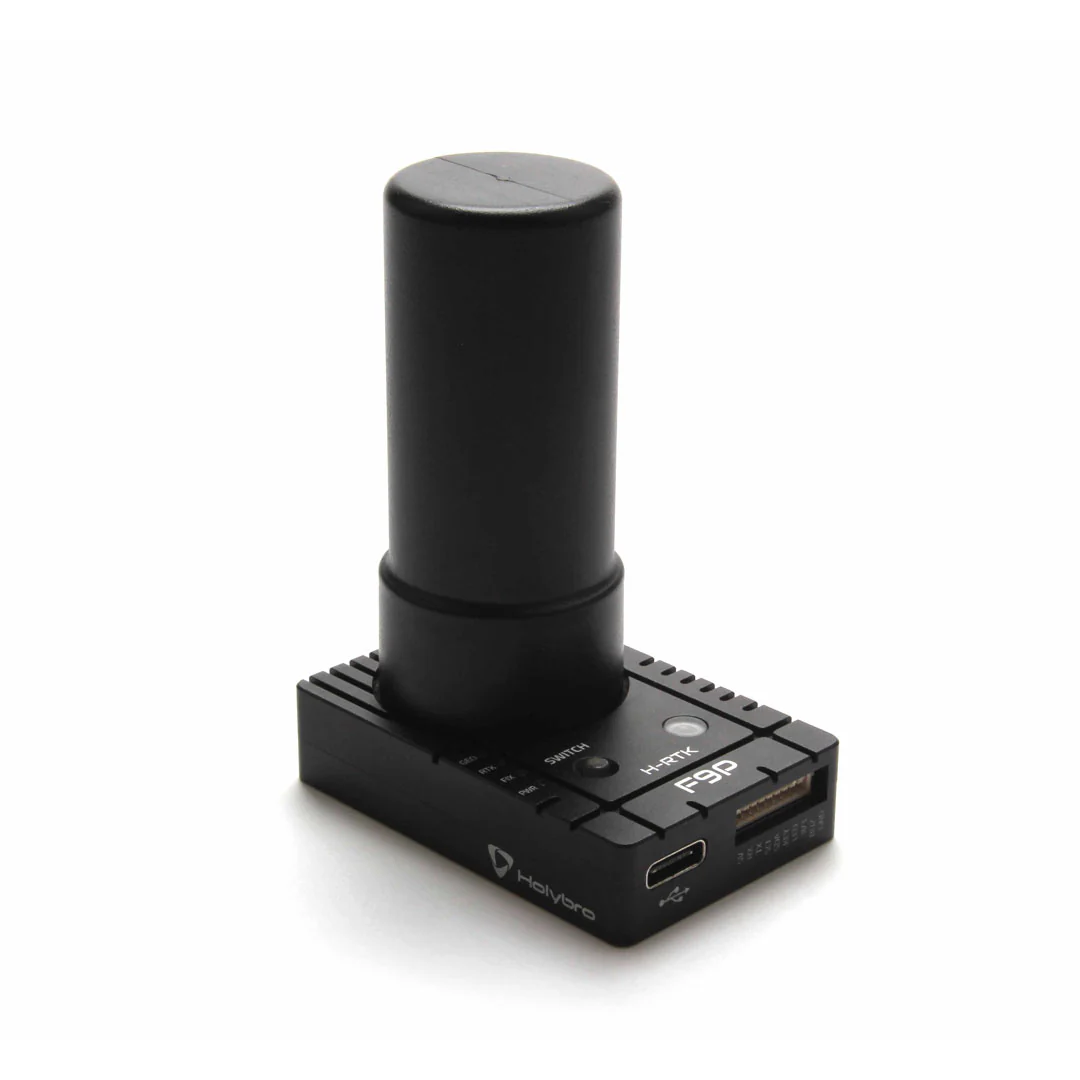

    • 1 × Holybro H-RTK F9P Helical GPS Module (Board + Helical Antenna)
