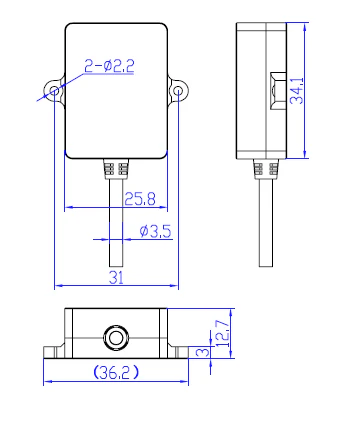

    • DroneCAN RM3100 Dimension 480x480
    1 7

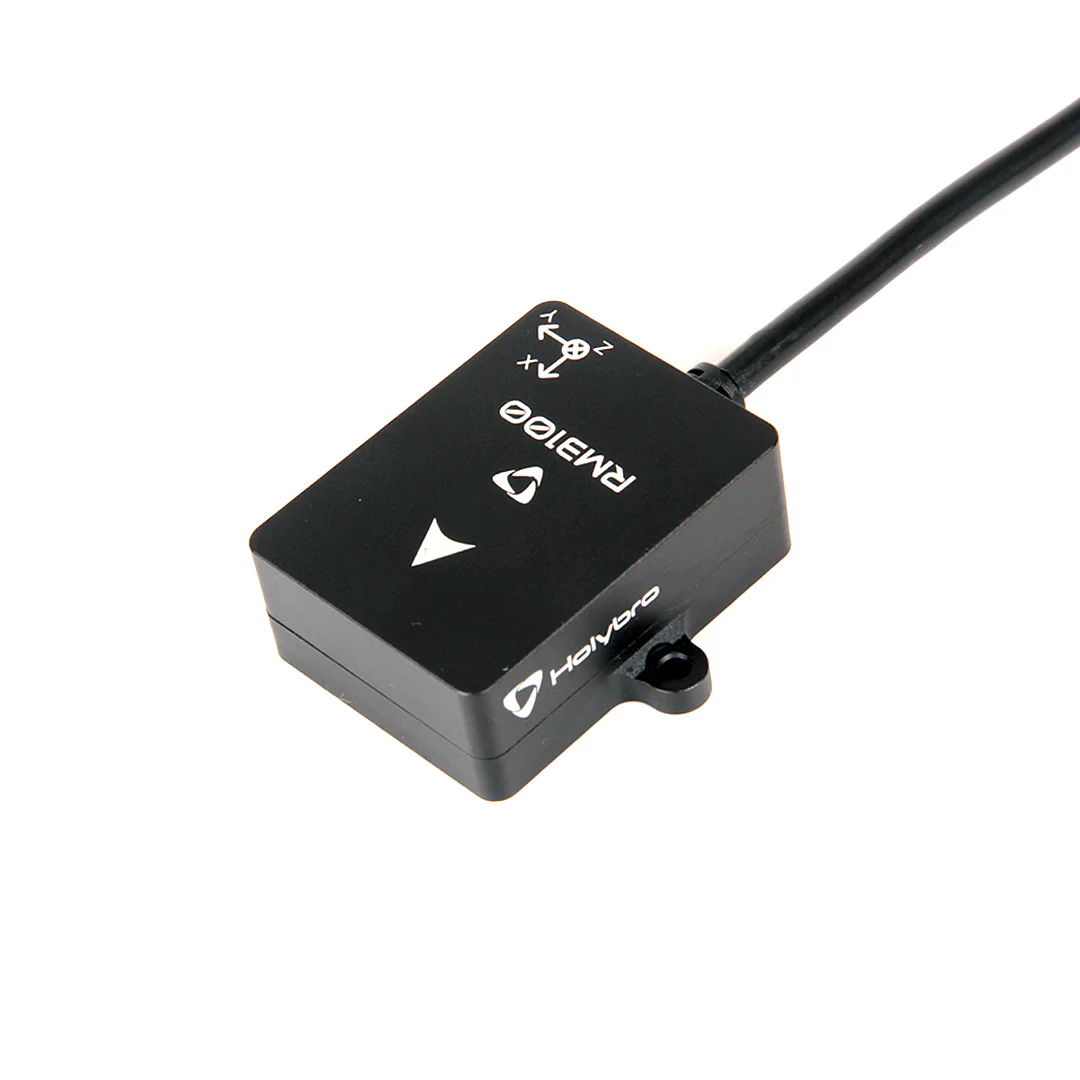

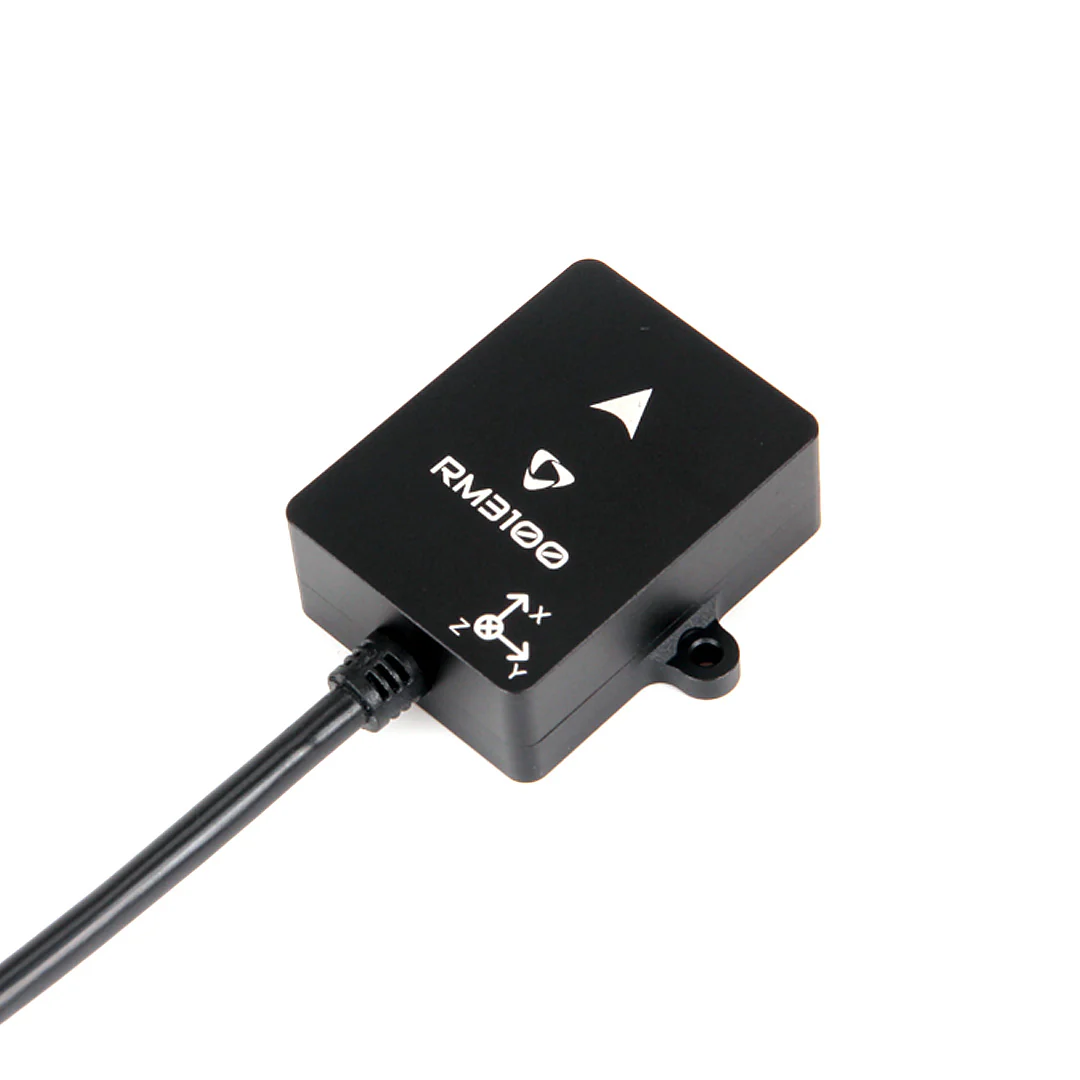

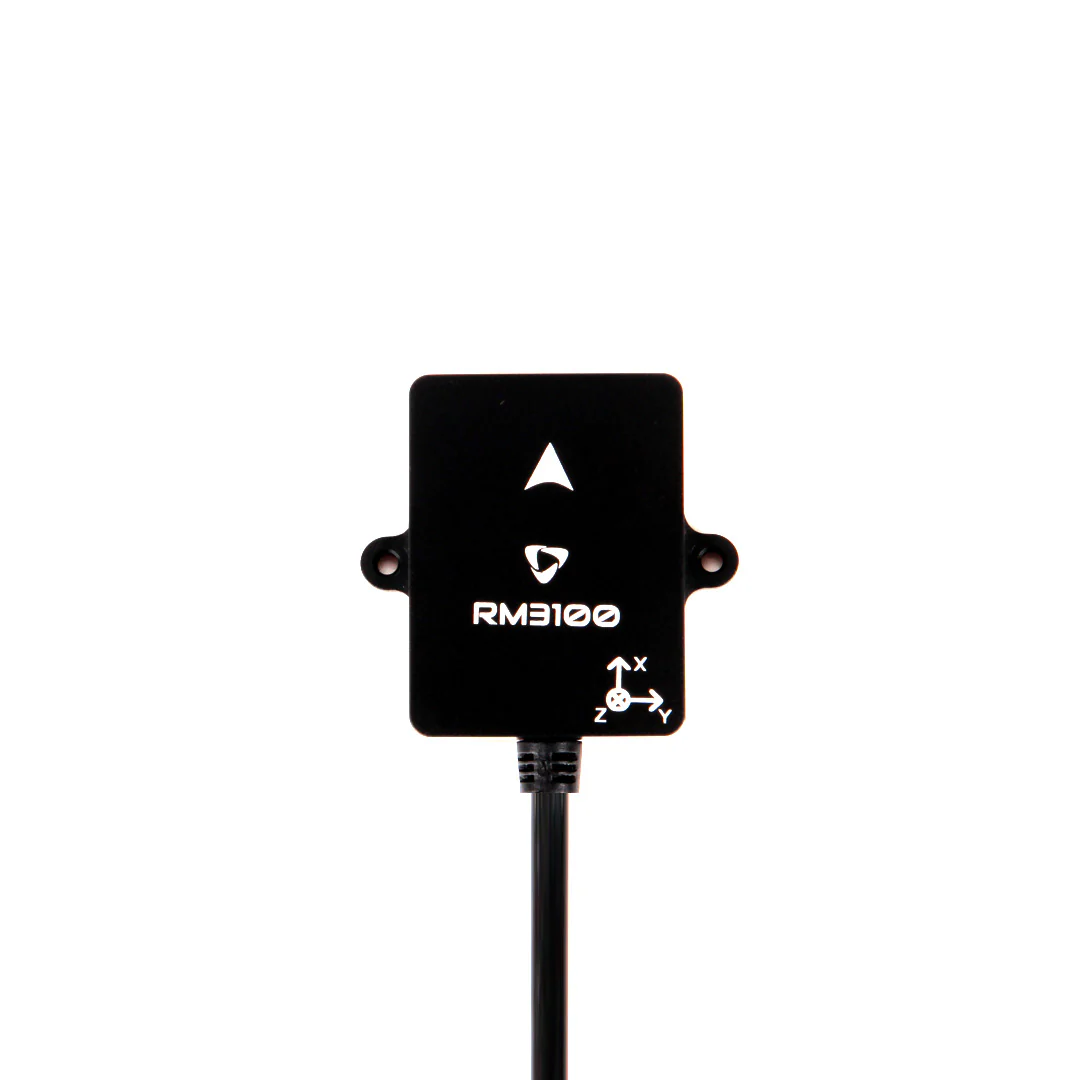

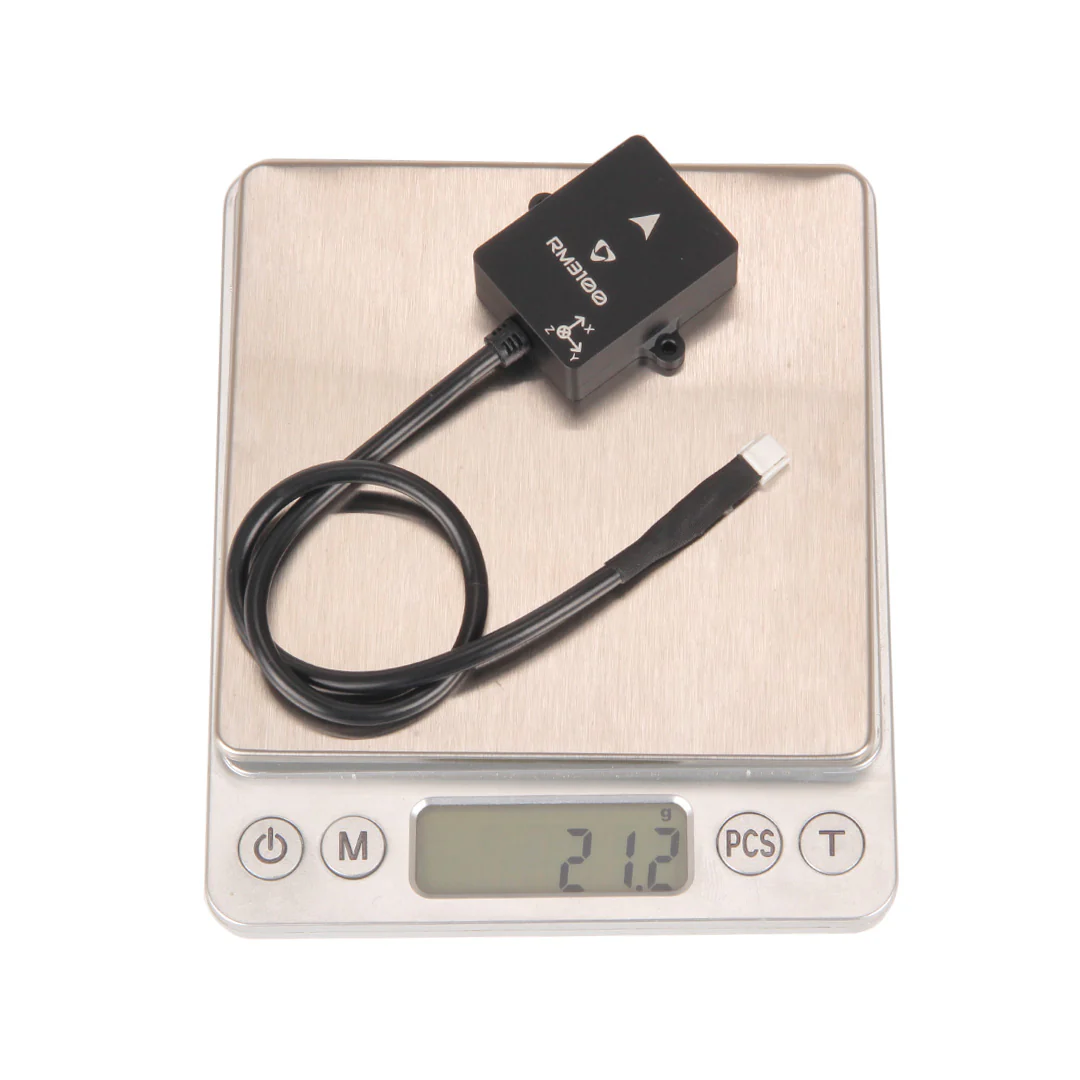

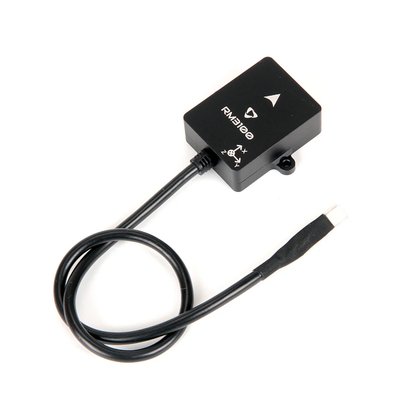

    Holybro DroneCAN RM3100 Compass Module (42cm)

    Holybro DroneCAN RM3100 Compass Module (42cm)

    Brand: Holybro

    €87,85
    €79,85 €87,85
    --10% View Product

    sku: 18098

    In stock (5)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The Holybro DroneCAN RM3100 Compass Module is a high-performance 3-axis magnetometer designed for professional UAV navigation and precise orientation. Utilizing PNI’s proprietary magneto-inductive measurement technology, this compass provides ultra-high resolution (10 nT) and low magnetic hysteresis, ensuring accurate routing and minimal interference from motor coils or metal components.

    Thanks to the DroneCAN output protocol, the RM3100 offers a robust connection over long distances, simplifies cabling by connecting multiple peripherals on a single bus, and does not occupy serial ports on your flight controller. Ideal for waypoint navigation and high-precision applications.

    Key Features

    • Professional 3-Axis Magnetometer - Accurate magnetic field measurement with ultra-low drift.
    • High Resolution & Repeatability - 10 nT resolution with minimal magnetic hysteresis.
    • DroneCAN Interface - Reliable communication over long distances; simplifies cabling.
    • Minimal Magnetic Interference - Optimized for placement away from motor coils and metal parts.
    • Enhanced Navigation Accuracy - Ideal for waypoint missions and complex routing.

    Specifications

    • Model: RM3100
    • Bus Protocol: DroneCAN
    • Cable Length: 42 cm
    • Dimensions: Compact module for easy integration
    • Compatible with: DroneCAN-enabled flight controllers

    Package Includes

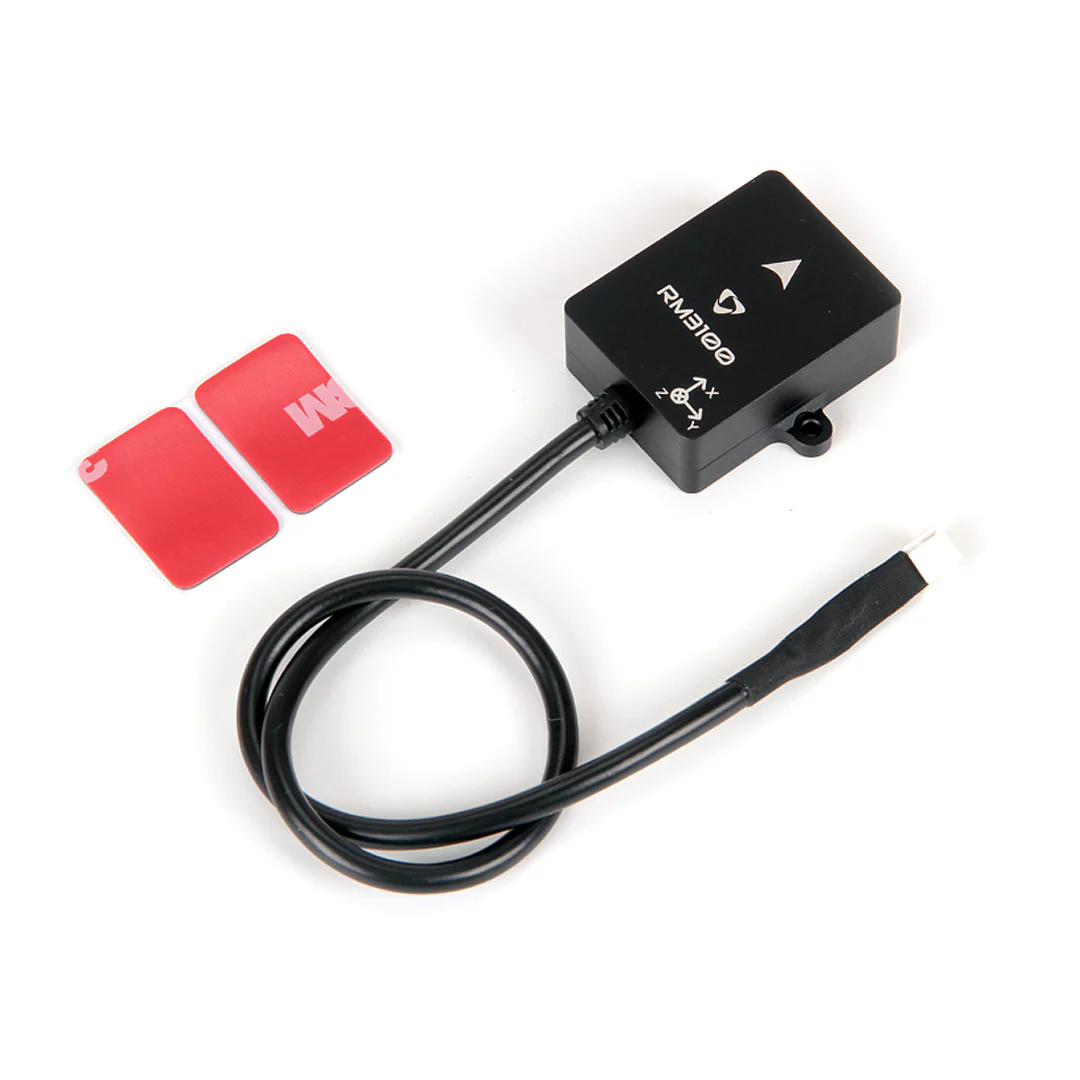

    • 1 × Holybro DroneCAN RM3100 Compass Module
