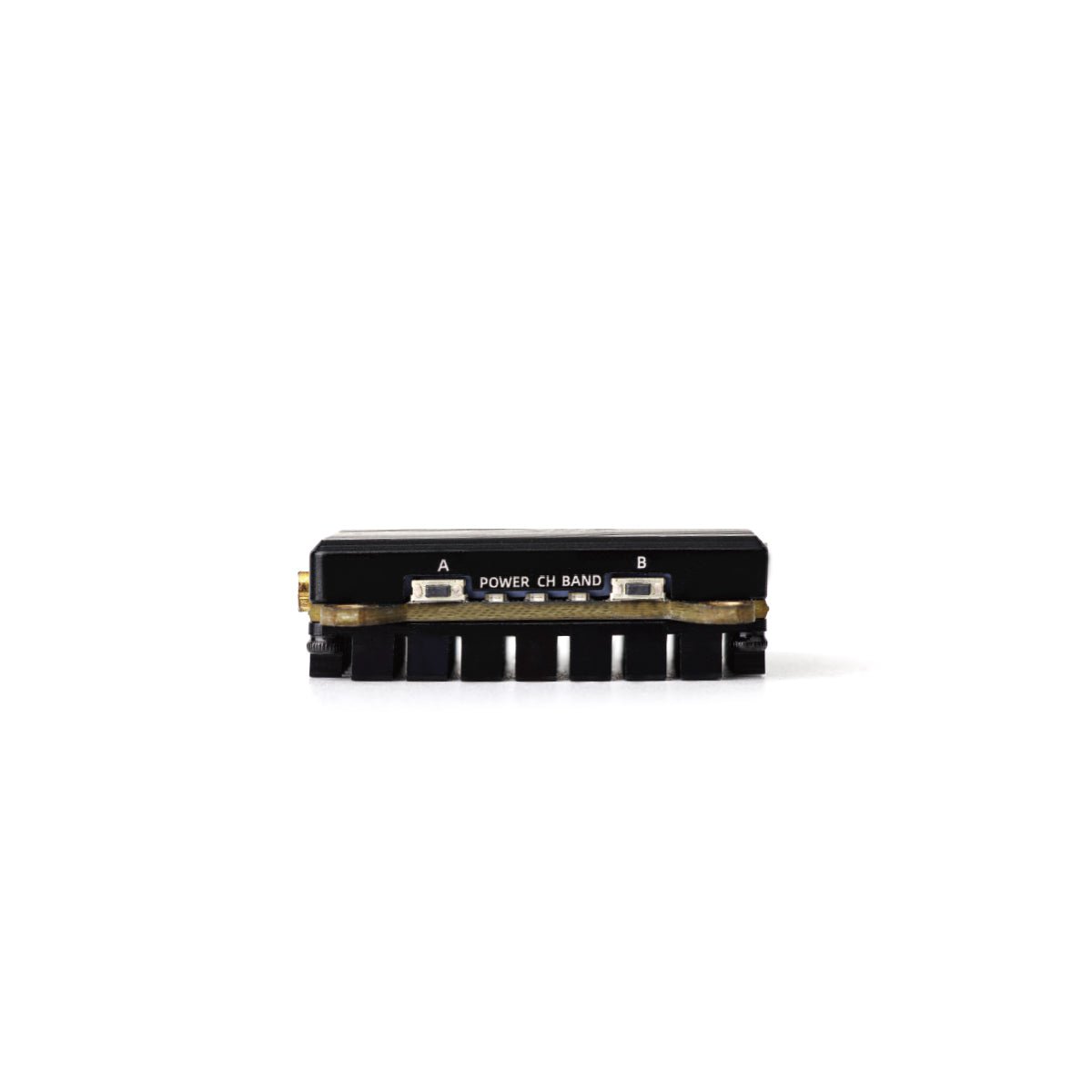

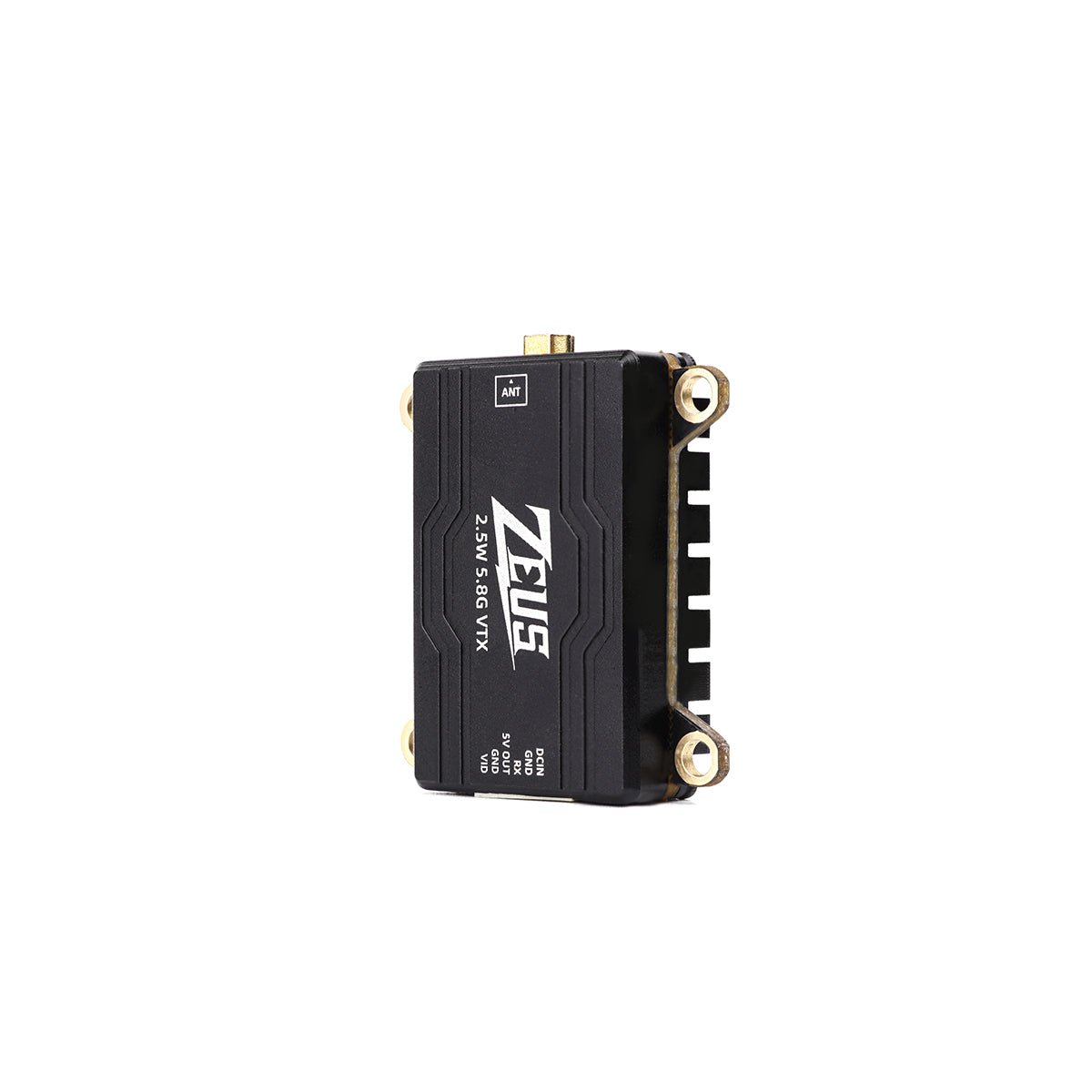

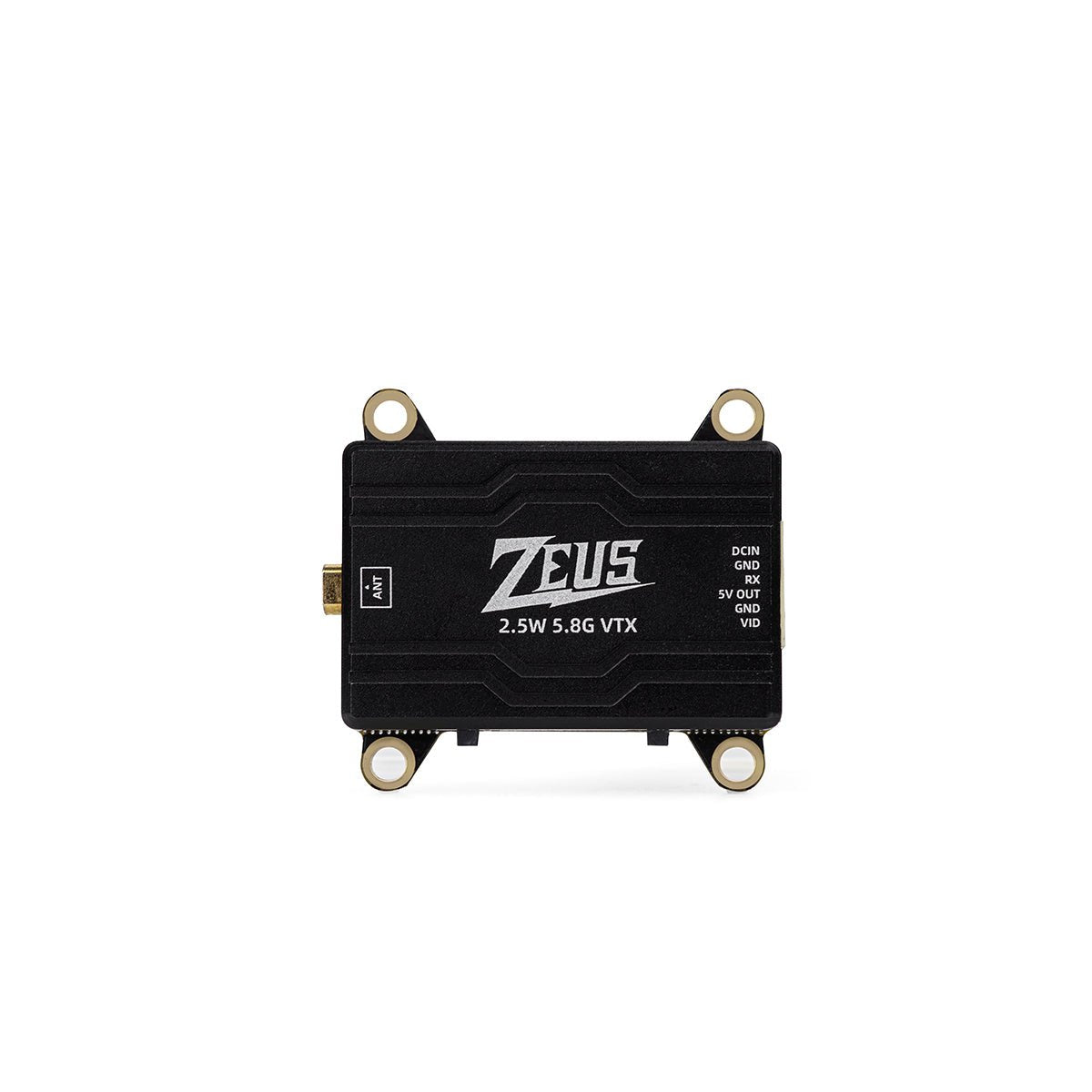

HGLRC ZEUS 5.8G 2.5W VTX
HGLRC ZEUS 5.8G 2.5W VTX
Brand: HGLRC
Regular price
€60,50
Regular price
€61,61
Sale price
€60,50
Unit price
per
sku: SKU:3874
Out of stock We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
- Description
The HGLRC ZEUS 5.8G 2.5W VTX is a high-power FPV video transmitter designed for long-range and ultra long-range flights. With up to 2.5W output and advanced cooling, it delivers stable video transmission over distances exceeding 9 km in urban environments and more than 10 km in suburban or mountainous terrain. Featuring IRC Tramp protocol support, dual-function buttons, and clear LED indicators, it provides convenient OSD control and flexible configuration.
Key Features
- Output Power: PIT / 25mW / 200mW / 800mW / 1600mW / 2500mW
- Frequency Channels: Standard 40CH (A/B/E/F/R)
- Input Voltage: 7-26V (2-6S)
- BEC Output: 5V @ 800 mA for camera or accessories

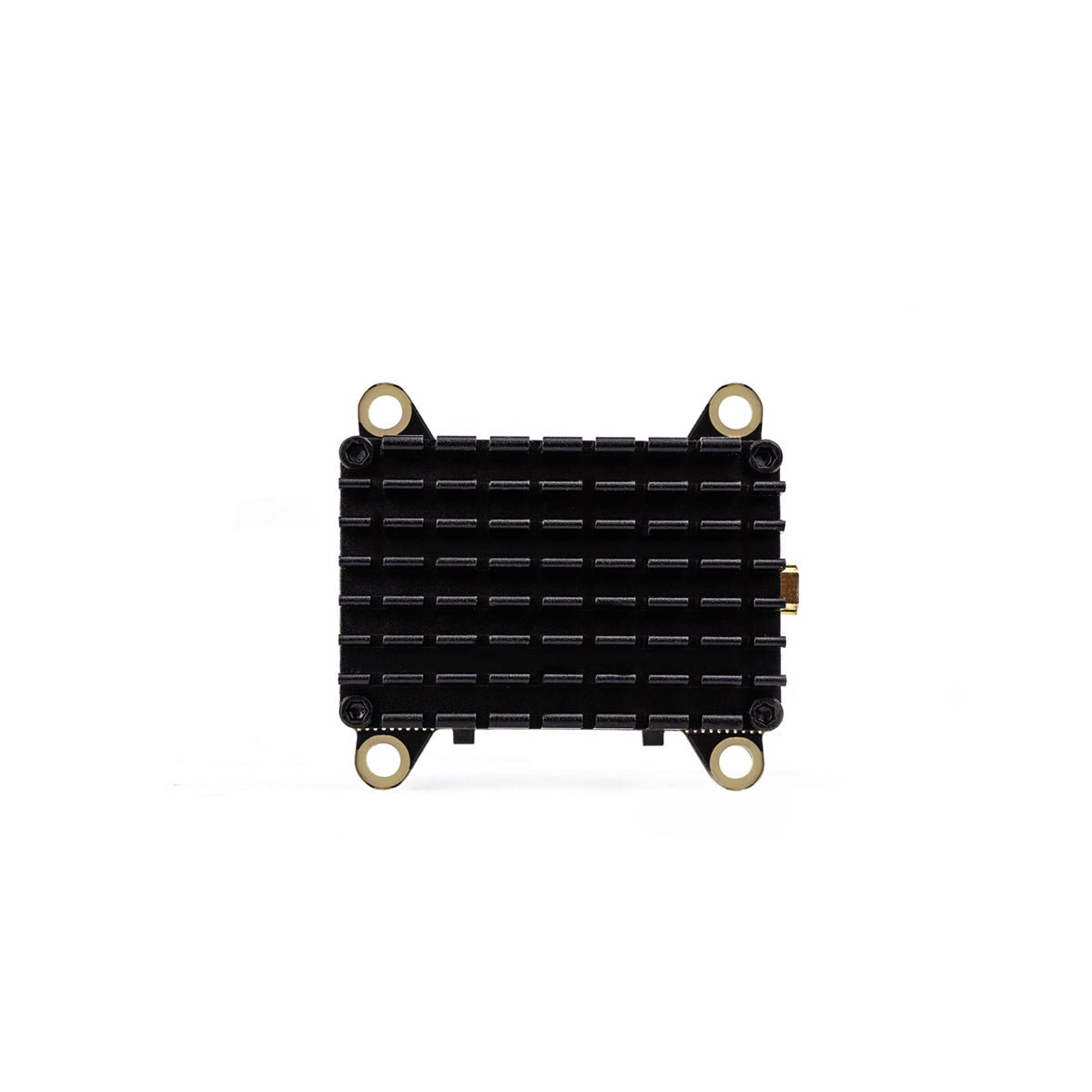

- Cooling: CNC integrated upper and lower cover for efficient heat dissipation
- Mounting: 30.5 × 30.5 mm (M3)
- Protocol: IRC Tramp (supports OSD configuration)
- Dimensions: 40 × 35 × 11.8 mm
- Weight: 19.6 g
- Antenna Connector: MMCX
- Cable Interface: GH1.25 6P
PIT / Power Output Levels
- PIT / 0 dBm
- 25 mW / 13.95 dBm
- 200 mW / 23.01 dBm
- 800 mW / 29.03 dBm
- 1.6 W / 32.04 dBm
- 2.5 W / 33.98 dBm

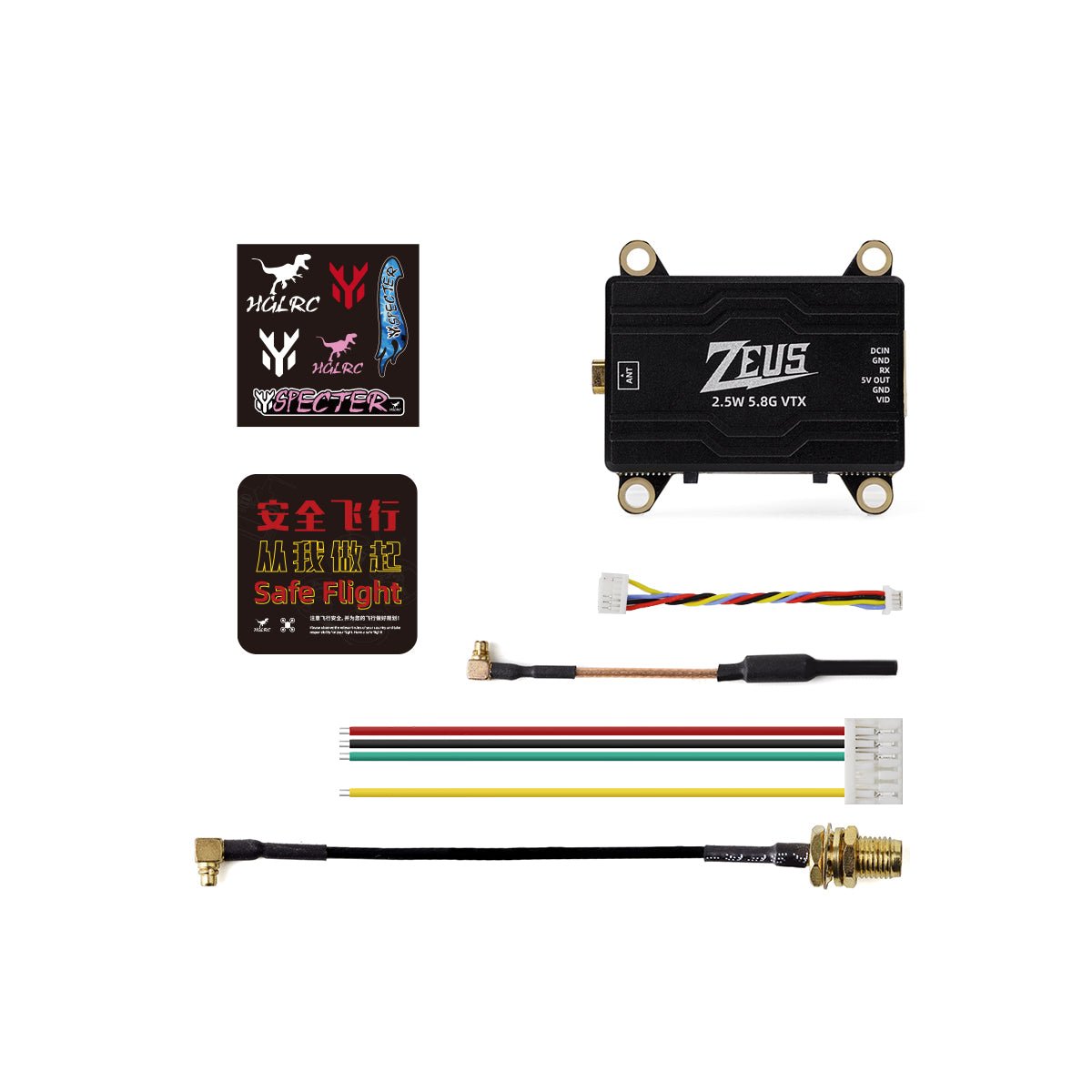

Package Includes
- 1 × HGLRC ZEUS 5.8G 2.5W VTX
- 1 × MMCX 80 mm copper tube antenna
- 1 × MMCX to SMA 100 mm adapter
- 1 × GH1.25 6P 100 mm single-sided cable
- 1 × SH1.0 4P - GH1.25 6P 60 mm double-ended cable
