    HDZero Race V3 VTX 5.8G 25-200mW

    HDZero Race V3 VTX 5.8G 25-200mW

    Brand: HDZero

    €84,69
    €84,69 €84,69
    -0% View Product

    sku: HDZ3143

    In stock (12)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The HDZero Race V3 VTX is a third-generation digital FPV video transmitter designed for high-performance racing and freestyle drones. Compact, lightweight, and robust, this VTX delivers crisp HD video transmission in 540p90, 720p60, and 1080p30 resolutions, while maintaining low latency and high reliability for competitive pilots.

    Built for durability, the HDZero Race V3 features a 1.6mm thick PCB, reinforced with large housing components and adhesive layers to enhance impact resistance. Its compact dimensions (32 × 28 × 5 mm) and low weight (5.5 g) make it compatible with most HD-ready flight controllers, fitting seamlessly into tight builds without compromising performance.

    With plug-and-play integration, the pre-soldered harness allows for fast installation on compatible FCs, while the antenna is secured with a metal rod and screws, providing extra stability during high-speed maneuvers. The switchable transmission power (25–200 mW at 5.8GHz) ensures optimal range and signal quality for both indoor and outdoor racing.

    Key Features

    • Third-generation HDZero digital FPV transmitter
    • Video resolutions: 540p90, 720p60, 1080p30
    • Switchable power: 25–200 mW
    • Robust design with 1.6 mm PCB and reinforced components
    • Lightweight: 5.5 g, compact footprint: 32 × 28 × 5 mm
    • Plug-and-play installation with pre-soldered harness
    • Antenna secured with metal rod and screws for durability
    • Low power consumption: 5.0W @ 25 mW, 5.8W @ 200 mW
    • Mounting pattern: 20 × 20 mm with M4 on M3 rubber dampers

    Specifications

    • Power Input: BEC 4–12V
    • Operating Frequency: 5.725–5.850 GHz
    • Transmitter Power: 25 mW / 200 mW
    • Mounting Pattern: 20 × 20 mm (M4 on M3 rubber dampers)
    • Antenna Connector: Secured u.FL
    • Dimensions: 32 × 28 × 5 mm
    • Weight: 5.5 g
    • Cable Length: 40 mm

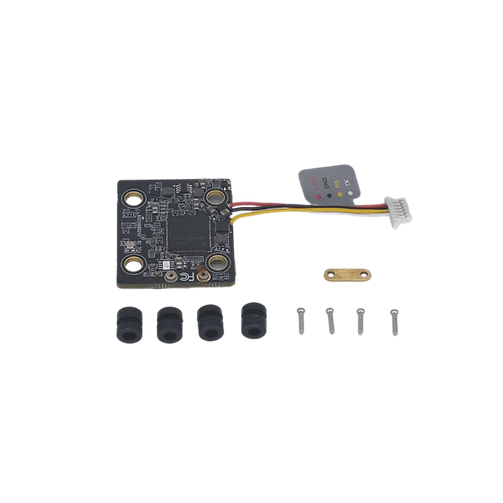

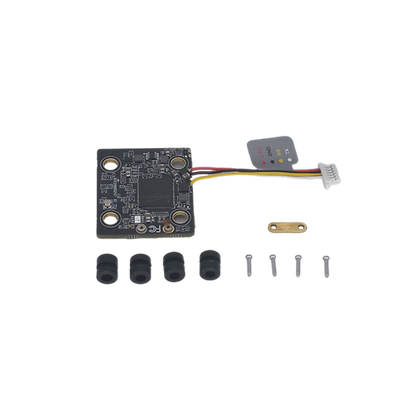

    Package Includes

    • 1 × HDZero Race V3 VTX board with pre-soldered harness
    • 4 × M4 to M3 rubber dampers
    • 4 × Screws
    • 1 × Metal rod
