GEPRC GEP-M8Q GPS Module (+ BDS)
GEPRC GEP-M8Q GPS Module (+ BDS)
Brand: GEPRC
sku: SKU:GP105784
Out of stockCouldn't load pickup availability
- Description
The GEPRC GEP-M8Q GPS module is a compact and multifunctional positioning module designed for FPV drones and RC aircraft. With support for GPS and BDS (BeiDou) satellite systems, it provides fast satellite acquisition, reliable connectivity, and accurate positioning during flight.
This module integrates advanced sensors including a QMC5883L compass (magnetometer) for precise heading information and an MS5611 high-precision barometer for accurate altitude measurement. These integrated sensors help improve navigation accuracy and overall flight stability.

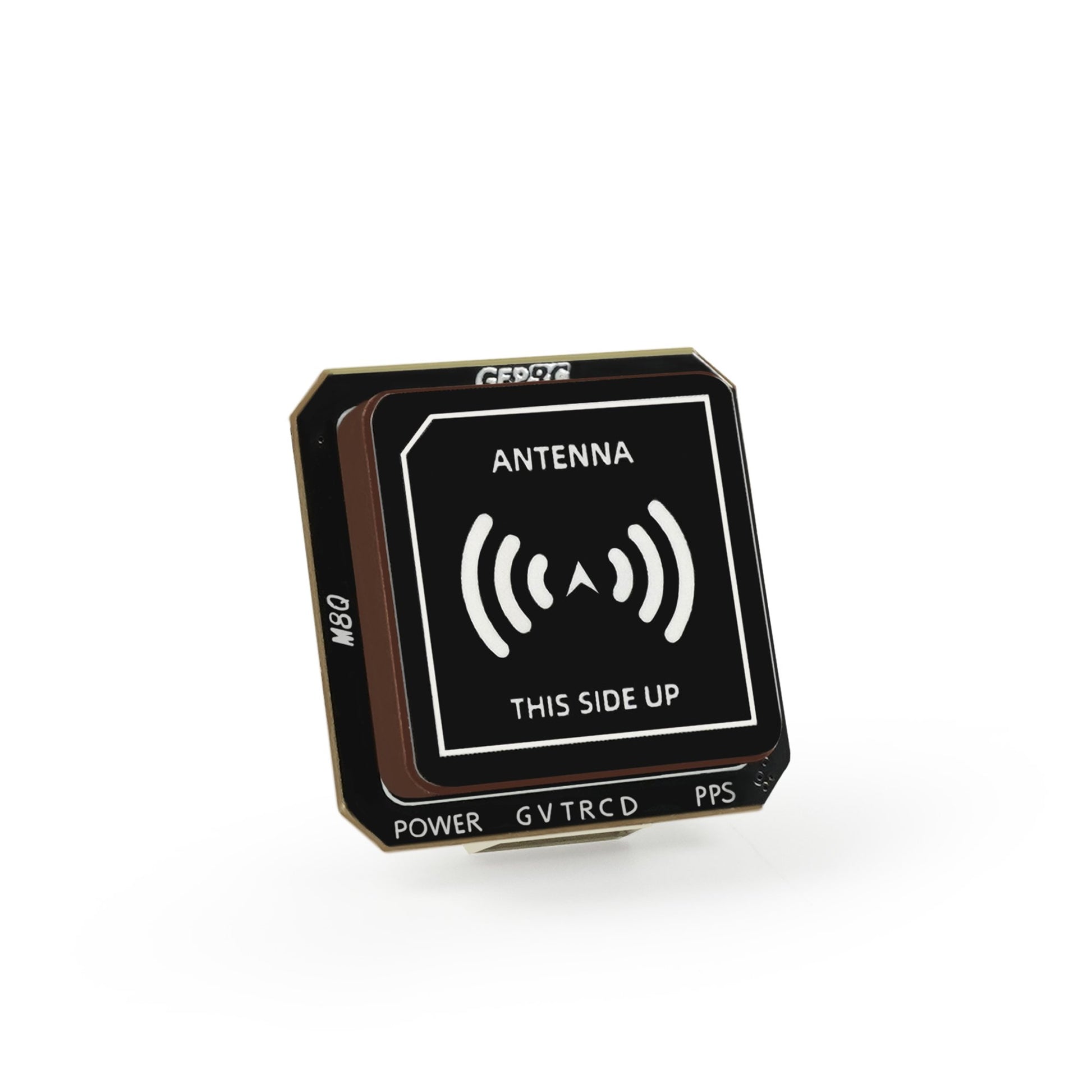

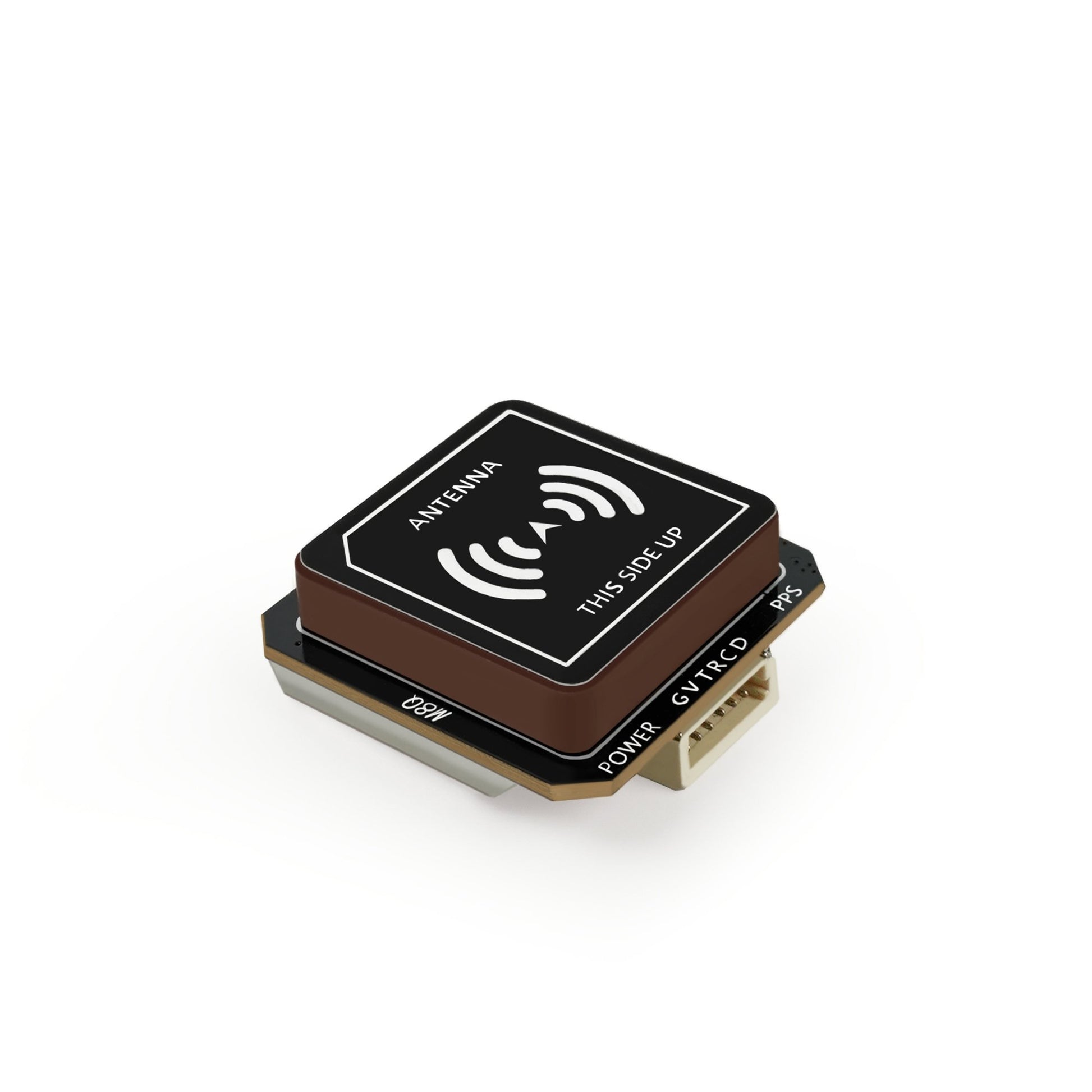

The right circularly polarized antenna ensures strong signal reception even in challenging environments. Combined with its lightweight and compact design, the GEP-M8Q is ideal for FPV drones, long-range quadcopters, multirotors, and fixed-wing aircraft.
Key Features
- Supports GPS + BDS (BeiDou) satellite positioning
- Integrated QMC5883L magnetometer (compass)
- Built-in MS5611 high-precision barometer
- Fast satellite lock and stable positioning
- Compact and lightweight design
- Suitable for FPV drones, multirotors, and fixed-wing aircraft
- Compatible with many Betaflight, INAV, and Ardupilot flight controllers

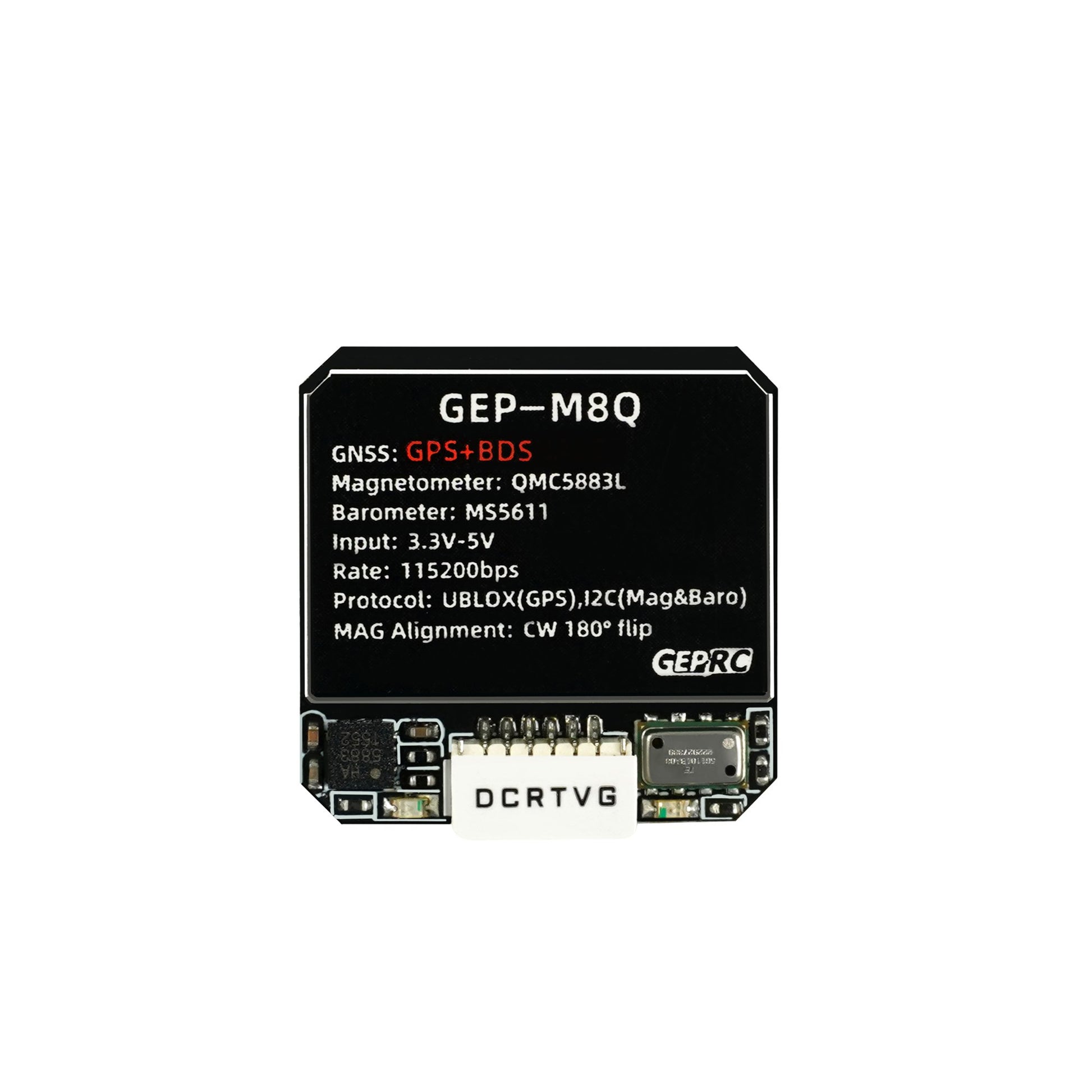

Specifications
- Model: GEP-M8Q
- Input Voltage: 3.3V – 5V
- Satellite Systems: GPS + BDS
- Channels: 72 channels
- Compass: QMC5883L
- Barometer: MS5611
- Baud Rate: 115200 bps
- Output Connector: SH1.0-6P
- Communication Protocol: UBLOX (GPS), I2C (Mag & Baro)
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal Positioning Accuracy: <2.5m (SBAS <2.0m)
- Timing Accuracy: 30 ns
- Reception Sensitivity: Trace -162dBm / Capture -160dBm
- Maximum Height: 50,000 m
- Maximum Speed: 500 m/s
- Maximum Acceleration: 4G
- Size: 22 × 22 × 8.5 mm
- Weight: 8 g
Package Includes
- 1 × GEPRC GEP-M8Q GPS Module
