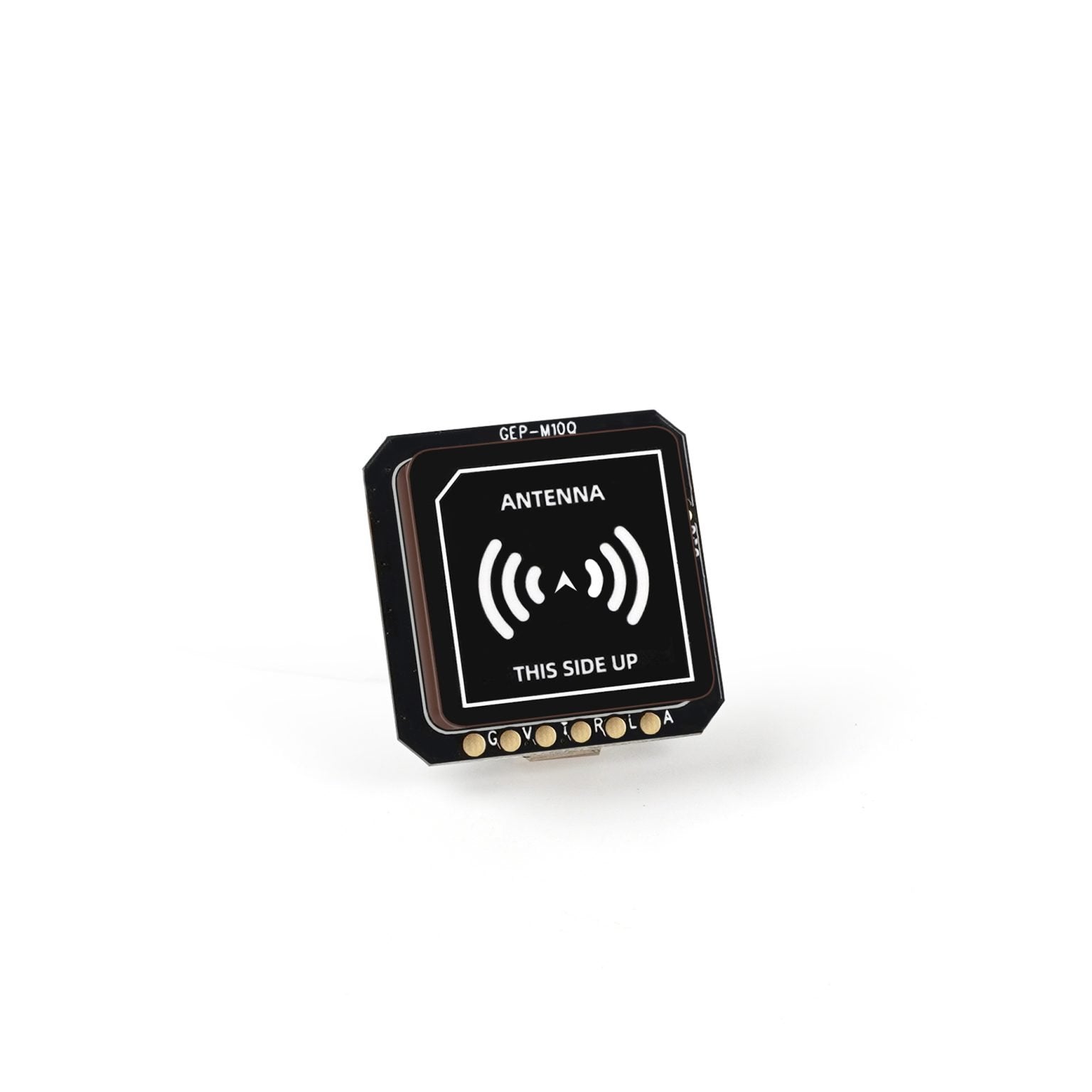

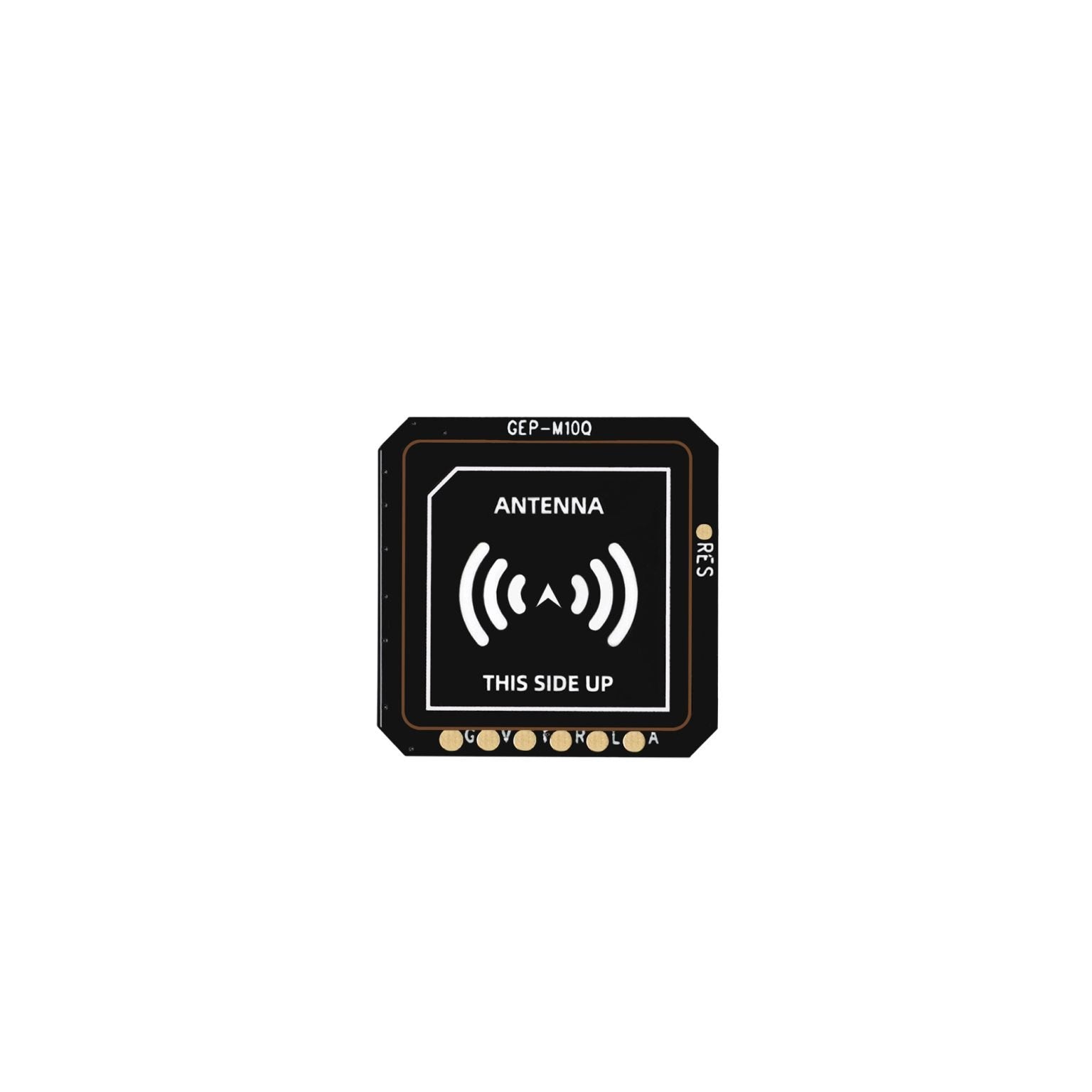

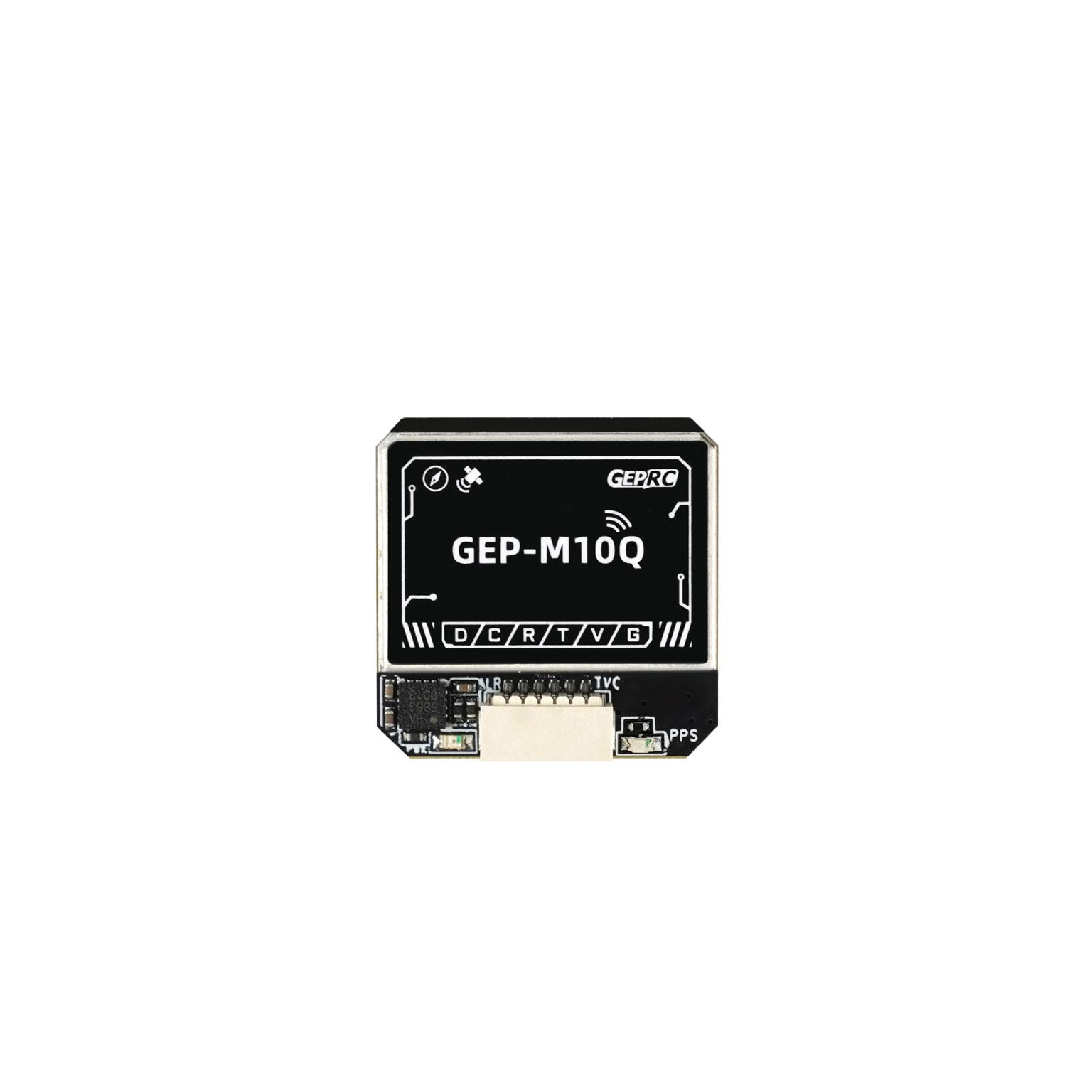

GEPRC GEP-M10Q GPS Module with QMC5883L Compass
GEPRC GEP-M10Q GPS Module with QMC5883L Compass
Brand: GEPRC
sku: SKU:GP105995
Out of stockCouldn't load pickup availability
- Description
The GEPRC GEP-M10Q GPS module is a high-performance positioning solution designed for FPV drones, multirotors and fixed-wing UAV platforms. Powered by the advanced u-blox M10 chipset, the module delivers fast satellite acquisition, stable signal reception and highly accurate positioning even in challenging environments.
Supporting multiple global navigation satellite systems including GPS, BDS, Galileo, QZSS and SBAS, the GEP-M10Q can connect to up to 32 satellites simultaneously, ensuring reliable navigation data and improved positioning accuracy during flight.
The module features an integrated QMC5883L magnetometer (compass) which enables precise heading information when used with compatible flight controllers. Its built-in Flash memory and farad capacitor allow configuration storage and provide faster hot-start performance after power cycling.
With its compact and lightweight design, the GEP-M10Q is suitable for a wide range of drone builds where reliable GPS functionality and efficient space usage are important.
Key Features
- u-blox M10 GNSS chipset for fast and reliable satellite positioning
- Multi-GNSS support: GPS, BDS, Galileo, QZSS and SBAS
- Connects to up to 32 satellites simultaneously for improved accuracy
- Integrated QMC5883L compass for heading and navigation data
- Built-in Flash memory for configuration storage
- Farad capacitor for faster hot starts after power loss
- Compact and lightweight design for FPV drones and UAV builds
- Stable signal reception and reliable navigation performance
Specifications
- Model: GEP-M10Q
- GPS Chip: u-blox M10
- Magnetometer: QMC5883L
- Barometer: Not included
- Input Voltage: 3.3V - 5V
Supported GNSS:
- GPS L1
- GLONASS L1
- BDS B1
- Galileo E1
- SBAS L1
- QZSS L1
- Navigation Satellites: Up to 32
- Channels: 72
- Output Protocol: UART (UBLOX) / I2C supported
- Baud Rate: 115200 bps
- Output Frequency: 10 Hz
- Speed Accuracy: 0.05 m/s
- Horizontal Position Accuracy: 2D ACC 1.5 m (open environment)
- Timing Accuracy: 30 ns
Receiver Sensitivity:
- Tracking: -162 dBm
- Capture: -160 dBm
- Dynamic Characteristics:
- Maximum altitude: 50,000 m
- Maximum speed: 500 m/s
- Maximum acceleration: 4G
- Dimensions: 22 × 22 × 8.2 mm
- Weight: 7.9 g
