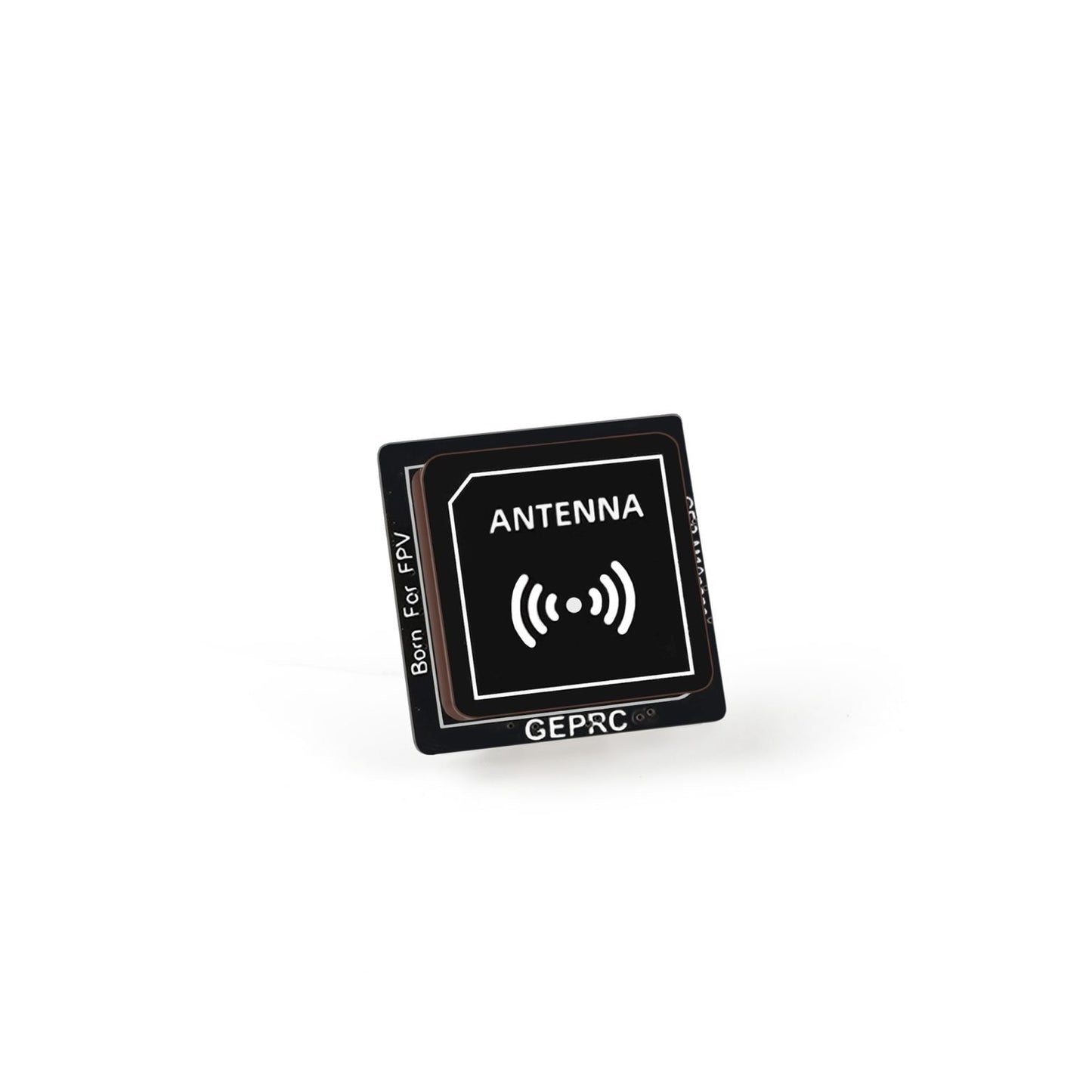

    GPS module GEPRC GEP-M10 NANO

    GPS module GEPRC GEP-M10 NANO

    Brand: GEPRC

    €20,33
    €20,33 €20,33
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: GP105912
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The GEPRC GEP-M10nano GPS module is a compact and lightweight positioning module designed specifically for FPV drones, multirotors and fixed-wing aircraft. Powered by the reliable u-blox M10 GPS chipset, it delivers fast satellite acquisition, stable positioning and high accuracy for modern FPV systems.

    With support for multiple satellite constellations including GPS, BDS, Galileo, QZSS and SBAS, the module can connect to up to 32 satellites simultaneously, ensuring reliable navigation and improved positioning accuracy. This makes it ideal for features such as Betaflight GPS Rescue, telemetry and flight logging.

    The GEP-M10nano includes a built-in Flash chip and Farad capacitor, allowing the module to store configuration settings and perform quick hot starts for faster satellite lock after powering on. Its small 15×15 mm footprint and ultra-light weight of only 2.5 g make it perfect for builds where space and weight are critical.

    An integrated LED indicator provides clear status feedback, making installation and setup easy for both beginners and experienced FPV pilots.

    Key Features

    • Reliable u-blox M10 GPS chipset
    • Supports GPS, BDS, Galileo, QZSS and SBAS
    • Connects to up to 32 satellites
    • Fast satellite acquisition and stable positioning
    • Built-in Flash memory for configuration storage
    • Farad capacitor for quick hot starts
    • Ultra-compact and lightweight design
    • LED indicator for status monitoring

    Specifications

    • Model: GEP-M10nano
    • GPS Chip: u-blox M10
    • Magnetometer: None
    • Barometer: None
    • Input Voltage: 3.3V – 5V
    • Reception Frequency: GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, QZSS L1
    • Operating Mode: GPS + BDS + Galileo + QZSS + SBAS
    • Channels: 72
    • Navigation Satellites: Up to 32
    • Output Protocol: UART (u-blox)
    • Baud Rate: 115200 bps
    • Output Frequency: 10Hz
    • Speed Accuracy: 0.05 m/s
    • Horizontal Position Accuracy: 1.5 m (2D ACC)
    • Timing Accuracy: 30 ns
    • Receiver Sensitivity: Trace -162 dBm / Capture -160 dBm
    • Maximum Height: 50,000 m
    • Maximum Speed: 500 m/s
    • Maximum Acceleration: 4G
    • Size: 15 × 15 × 5.5 mm
    • Weight: 2.5 g
