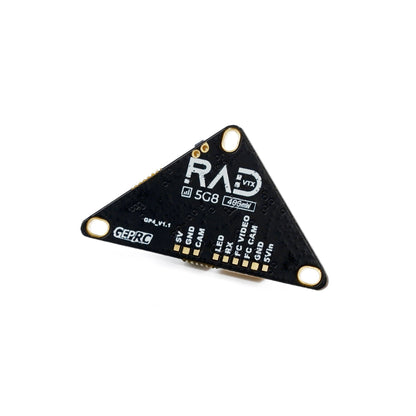

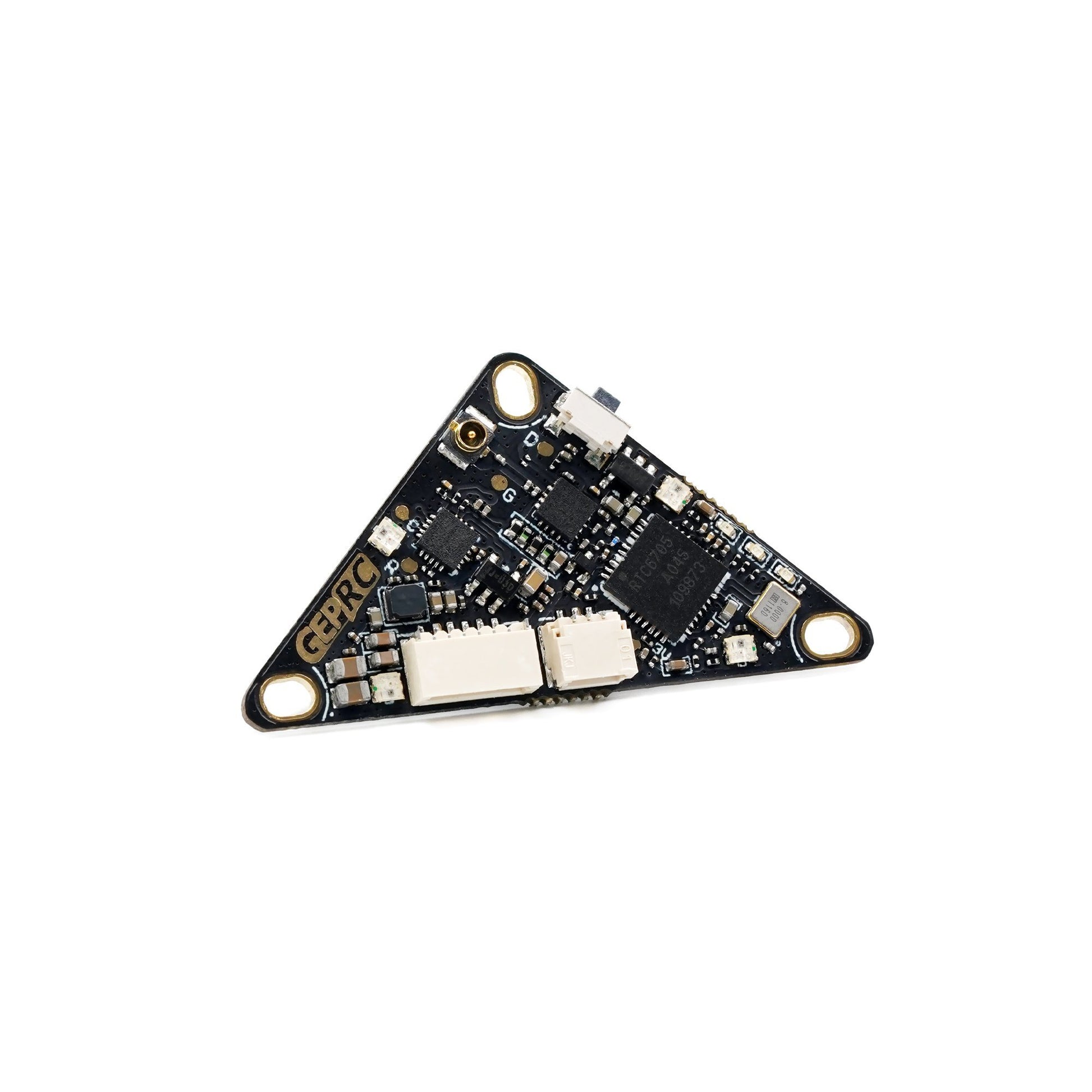

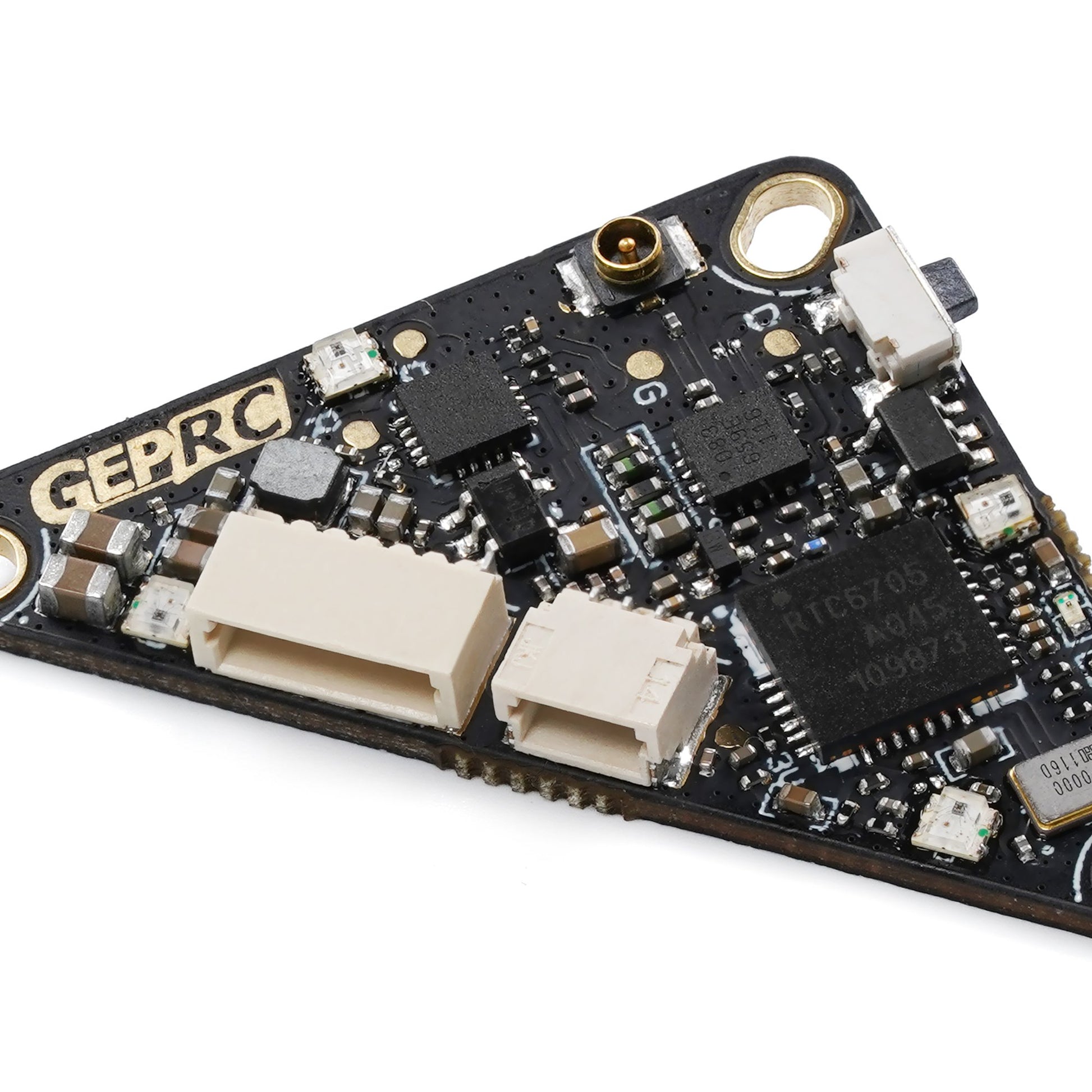

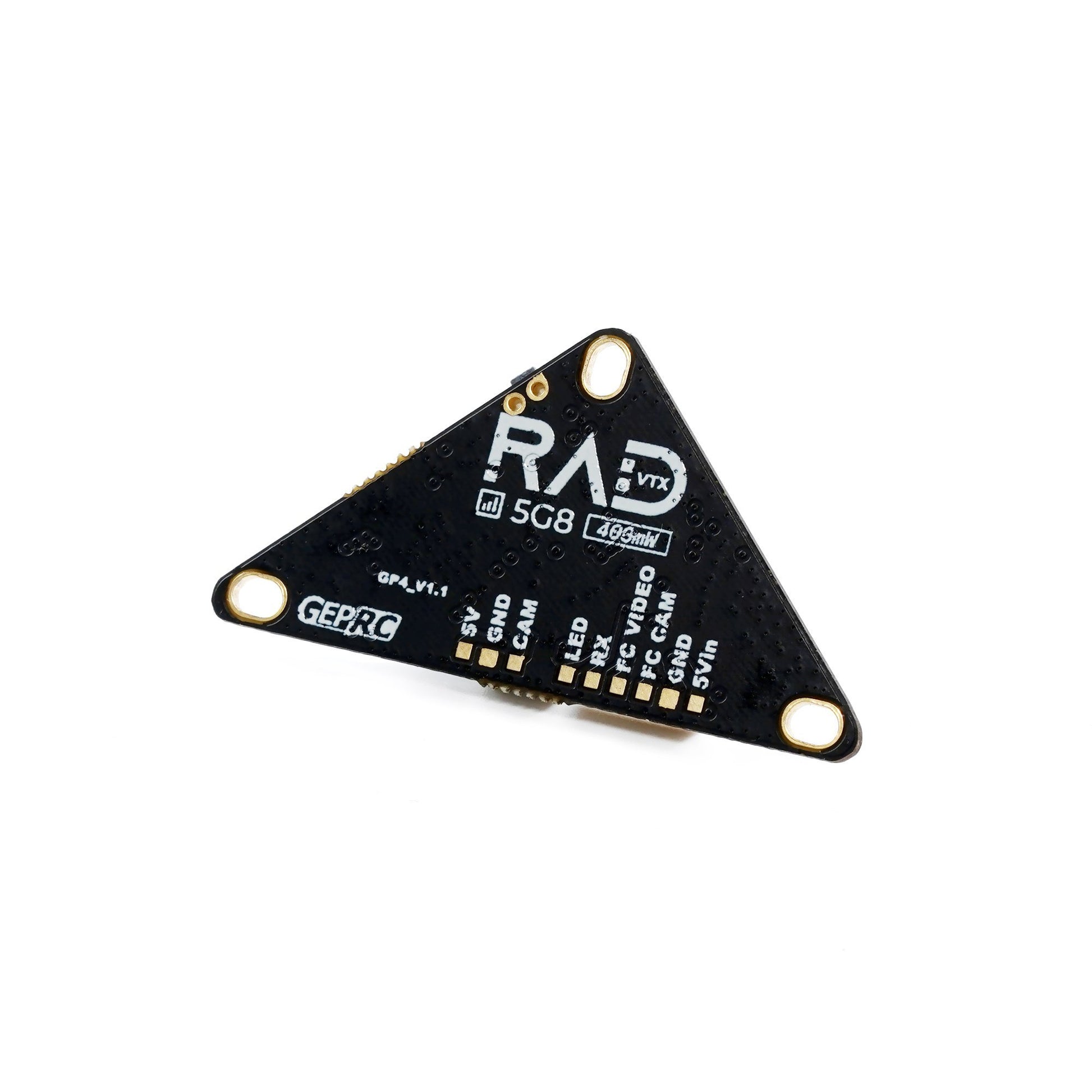

GEPRC RAD Whoop 5.8G VTX 400mW Adjustable Power for Micro Drones
GEPRC RAD Whoop 5.8G VTX 400mW Adjustable Power for Micro Drones
Brand: GEPRC
sku: SKU:GP105391
Out of stockCouldn't load pickup availability
- Description
The GEPRC RAD Whoop 5.8G VTX is a high-performance analog video transmitter designed for micro and whoop drones. With adjustable power levels up to 400mW, this VTX delivers stable video transmission for both short and medium-range flights while maintaining low heat generation.
Featuring IRC Tramp protocol support, the RAD Whoop VTX allows pilots to adjust OSD parameters quickly and easily. A built-in temperature control protection prevents overheating, ensuring long-lasting, safe operation.
Compact and lightweight (2 g without cables), the VTX can be powered directly from a 5V flight controller, and its dual mounting hole design (25.5-26.5 mm) ensures compatibility with most whoop-style drones.
Key Features
- Adjustable Output Power: PitMode / 25 / 200 / 400 mW
- Stable Transmission: 5.8 GHz, 40 channels, PAL/NTSC
- Temperature Control Protection: Prevents VTX burnout
- IRC Tramp Protocol: Quick OSD tuning via flight controller
- Compact & Lightweight: 2 g (without cables)
- DC 5V Input: Low power consumption, 400 mA

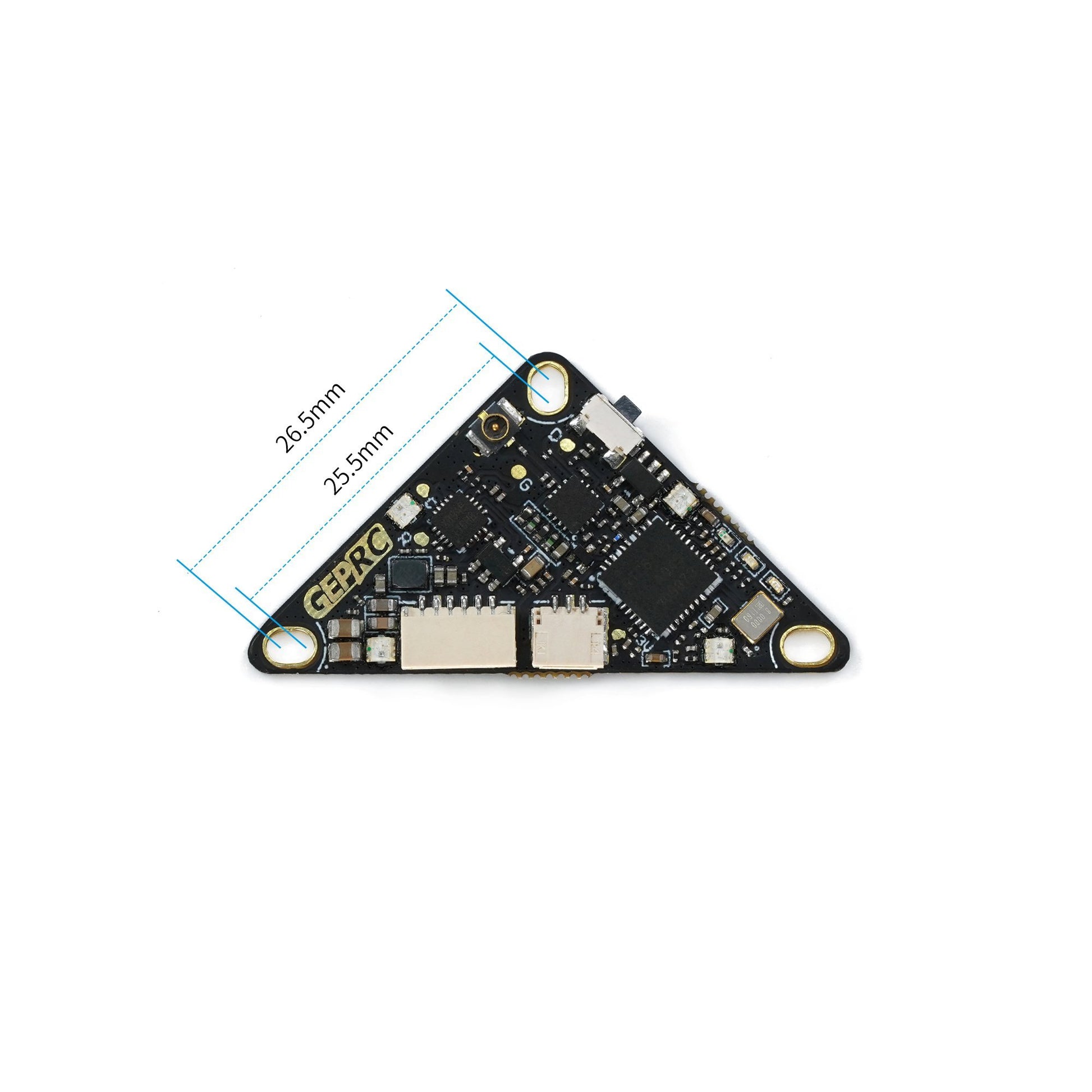

- Dual Mounting Hole Compatibility: 25.5-26.5 mm (M2)

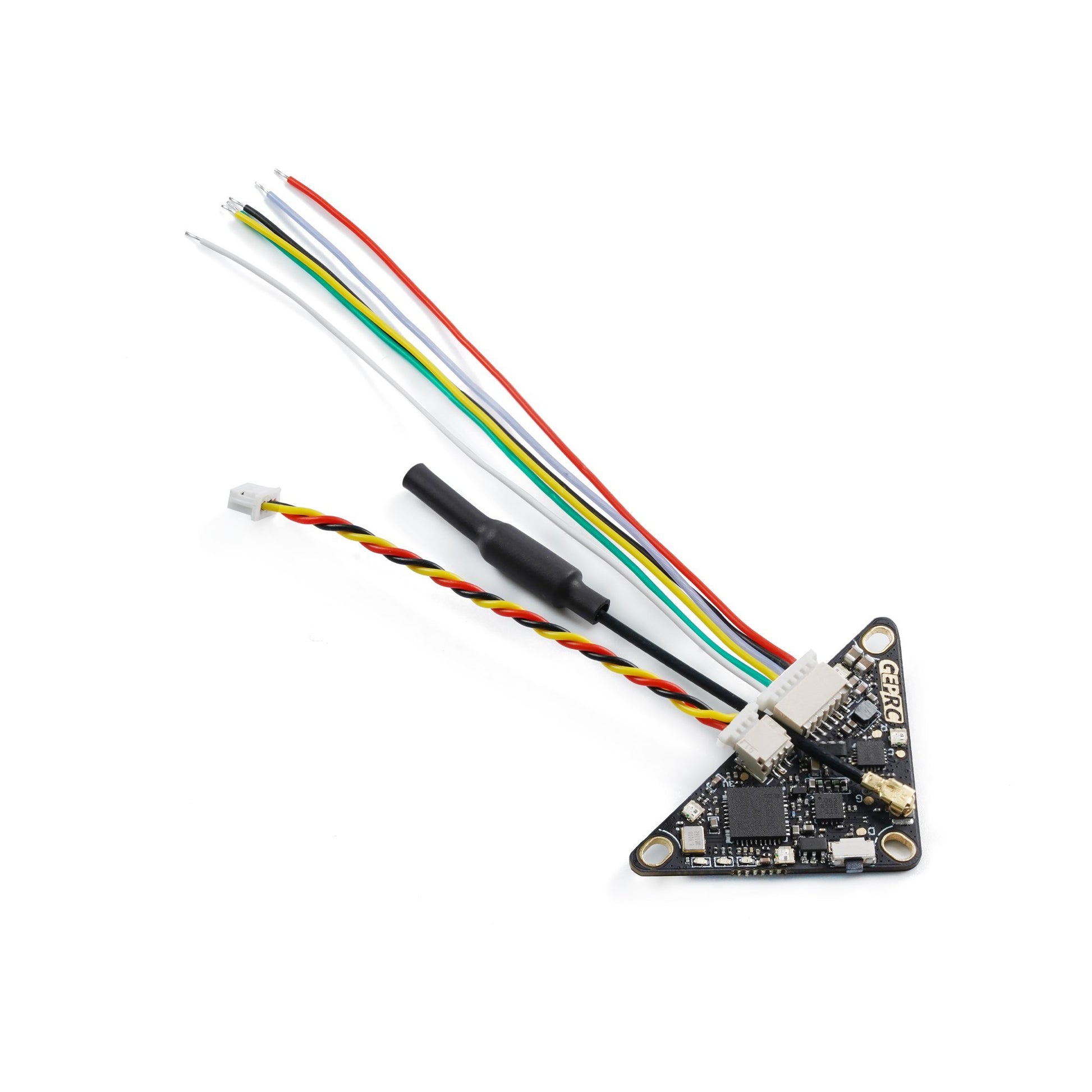

- Antenna Connector: UFL, Cable Connector: SH1.0
Specifications
- Brand: GEPRC
- Input Voltage: DC 5V
- Output Voltage: 5V @ 500 mA (camera)
- Input Impedance: 75Ω
- Video Format: PAL / NTSC
- Weight: 2 g (without cables)
- Mounting Holes: 25.5-26.5 mm
Ideal For
- Micro and whoop drones, including GEPRC RAD and similar builds
- Racing, freestyle, and indoor/outdoor FPV flying
- Pilots needing adjustable power with low heat and stable signal
