    GEPRC RAD Mini 5.8G 1W VTX Ultra-Light Aluminum for Micro Drones

    GEPRC RAD Mini 5.8G 1W VTX Ultra-Light Aluminum for Micro Drones

    Brand: GEPRC

    €50,31
    €50,31 €50,31
    -0% View Product

    sku: GP105524

    In stock (5)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

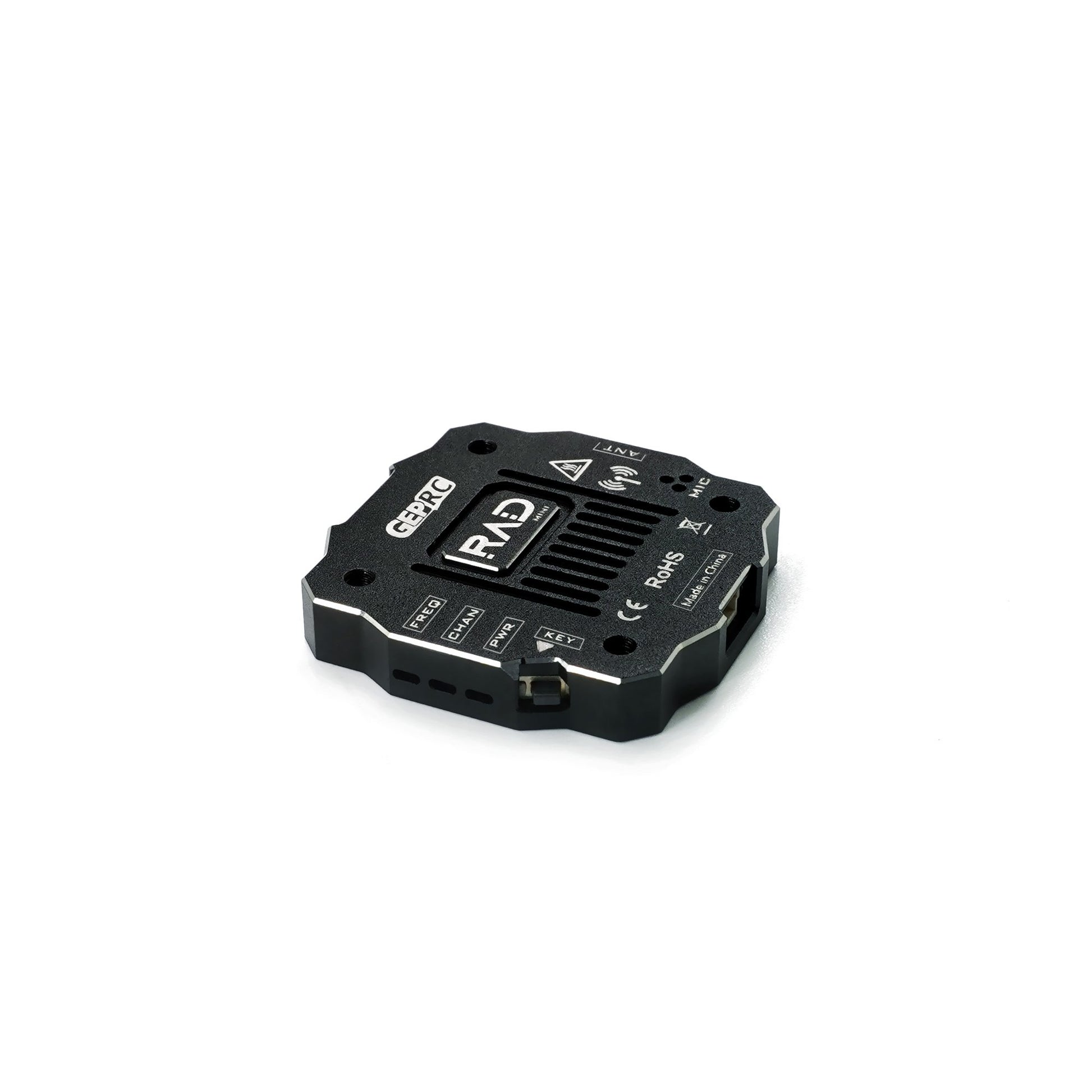

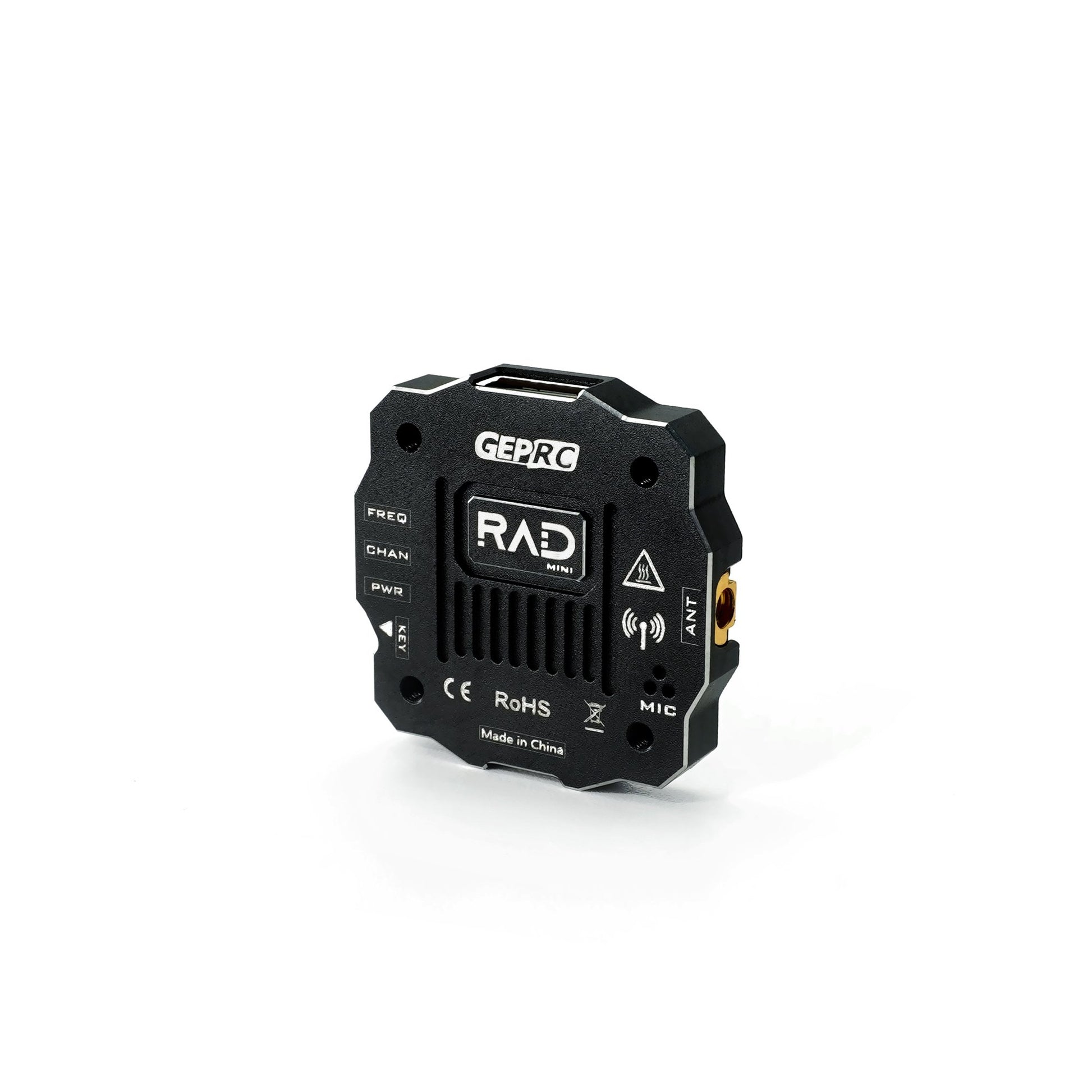

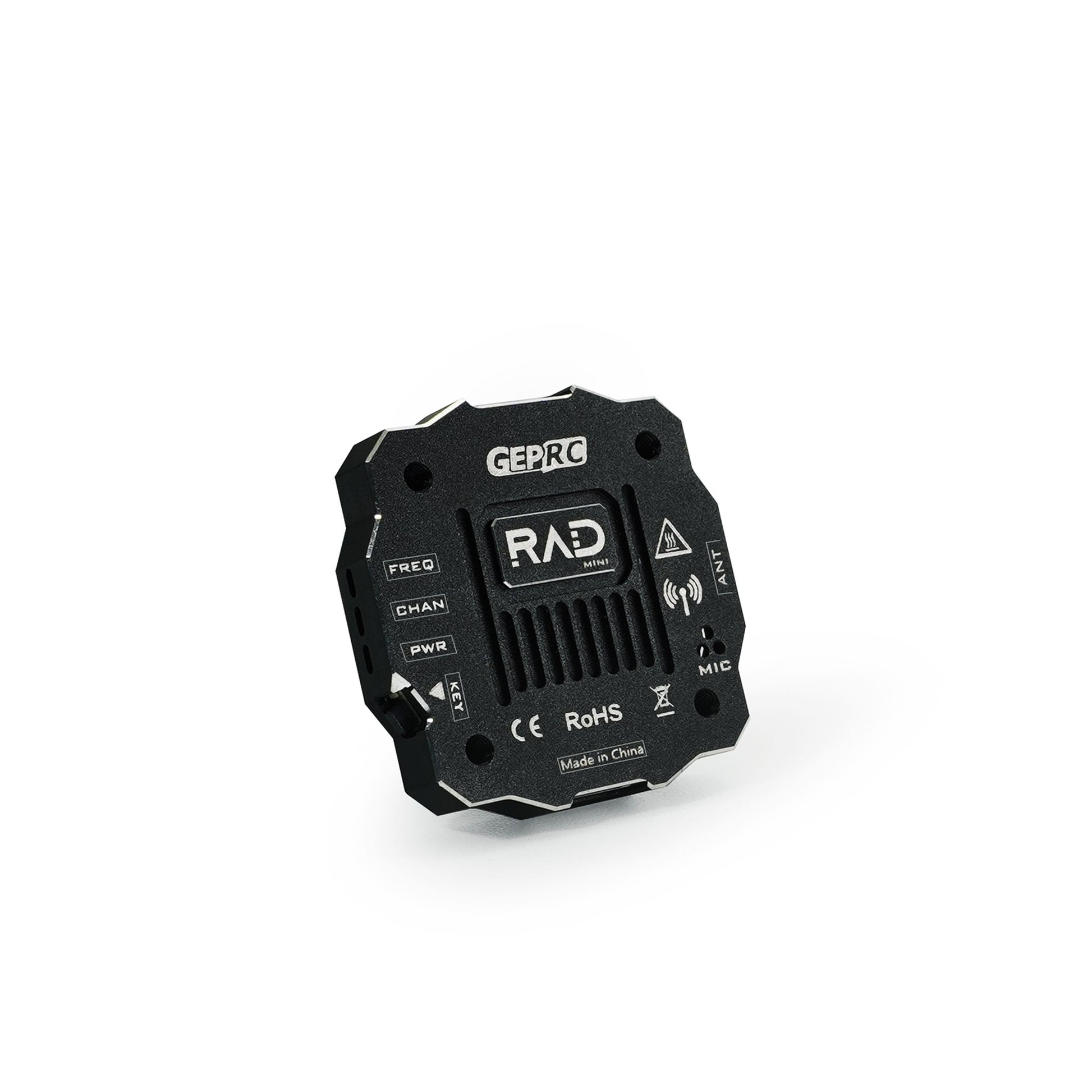

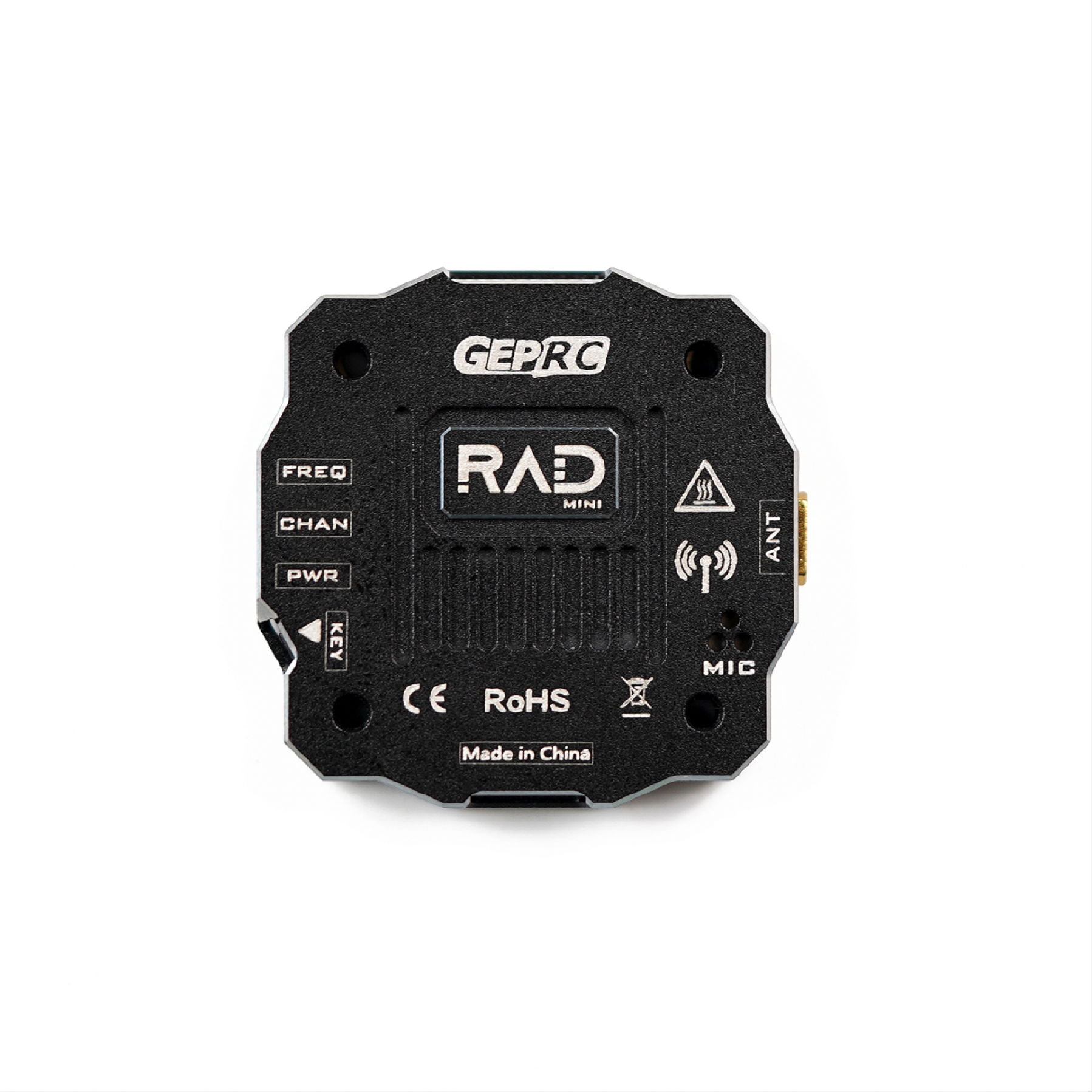

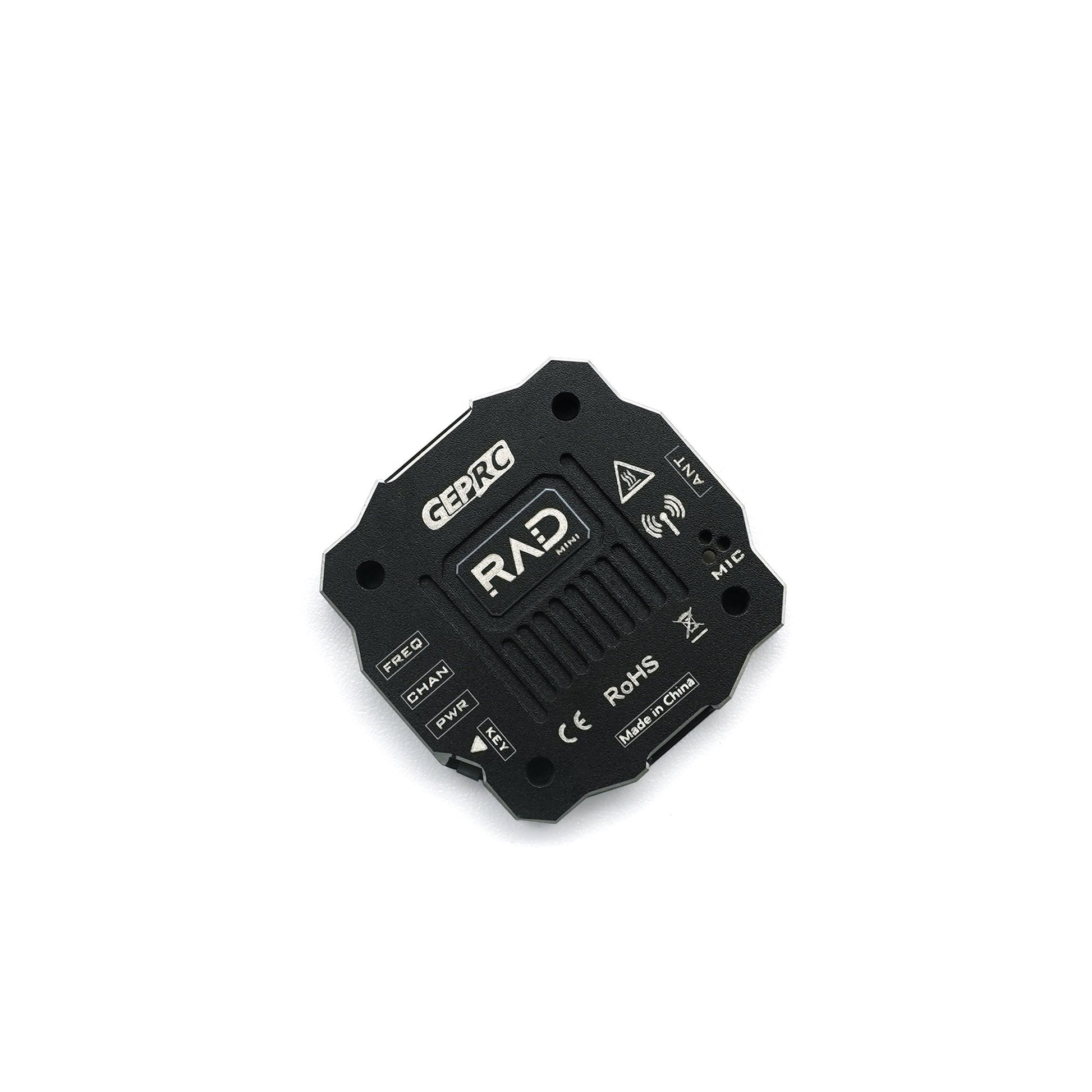

    The GEPRC RAD Mini 5.8G 1W VTX is a compact, ultra-light video transmitter designed for micro and mini FPV drones. Housed in a durable aluminum case, it supports switchable output power from PitMode to 1W, making it ideal for indoor, outdoor, and long-range flights.

    Equipped with IRC Tramp protocol, the RAD Mini allows easy tuning of OSD parameters through your flight controller. Its built-in microphone and MMCX antenna connector provide enhanced versatility, while the lightweight 8.4 g design keeps drones agile and responsive.

    With a 20×20 mm mounting hole layout, the RAD Mini fits most micro and mini FPV frames. The transmitter operates on 5.8 GHz with 40 channels, supporting multiple regional frequency groups (FCC, EU, US).

    Key Features

    • Switchable Output Power: PitMode / 25 / 200 / 500 / 1000 mW
    • Operating Voltage: 7-28V (2-6S Li-Po)
    • Channels: 40 channels, 5.8 GHz, supports regional groups (FCC/US/EU)
    • Control Protocol: IRC Tramp for OSD tuning
    • Built-in Microphone for audio transmission
    • Compact & Durable: Aluminum case, 30.8 × 30.8 mm, 8.4 g
    • Mounting: 20×20 mm (M2)

    Ideal For

    • Micro and mini FPV drones requiring high-power transmission
    • Long-range flights while maintaining low weight
    • Pilots needing reliable signal, easy OSD tuning, and robust construction
