GEPRC RAD 5.8G VTX 2.5W High-Power Video Transmitter for FPV Drones
GEPRC RAD 5.8G VTX 2.5W High-Power Video Transmitter for FPV Drones
Brand: GEPRC
sku: SKU:GP105998
Out of stockCouldn't load pickup availability
- Description
The GEPRC RAD 5.8G 2.5W VTX is a high-power, professional-grade video transmitter for FPV drones, designed to deliver long-range, stable, and reliable video transmission. With six adjustable power levels ranging from PitMode to 2500 mW, this VTX is perfect for pilots who demand maximum range and signal quality.
The RAD VTX supports three regional frequency bands (general, US FCC, EU) and comes with the IRC Tramp protocol for easy OSD parameter tuning. A built-in microphone adds audio capability, and the MMCX antenna connector ensures reliable connectivity.
Housed in a compact, lightweight 15 g frame, the VTX is suitable for a wide range of FPV drones and is compatible with 2-8S LiPo batteries. The 30.5×30.5 mm M3 mounting hole pattern makes installation straightforward on most frames.
Key Features
- Switchable Output Power: PitMode / 25 / 200 / 600 / 1600 / 2500 mW
- Operating Voltage: 7-36V (2-8S LiPo)
- Video Format: PAL / NTSC
- Frequency Groups: General / US FCC / EU
- IRC Tramp Protocol: OSD tuning via flight controller
- Built-in Microphone
- Antenna Interface: MMCX
- Mounting Holes: 30.5 × 30.5 mm (M3)

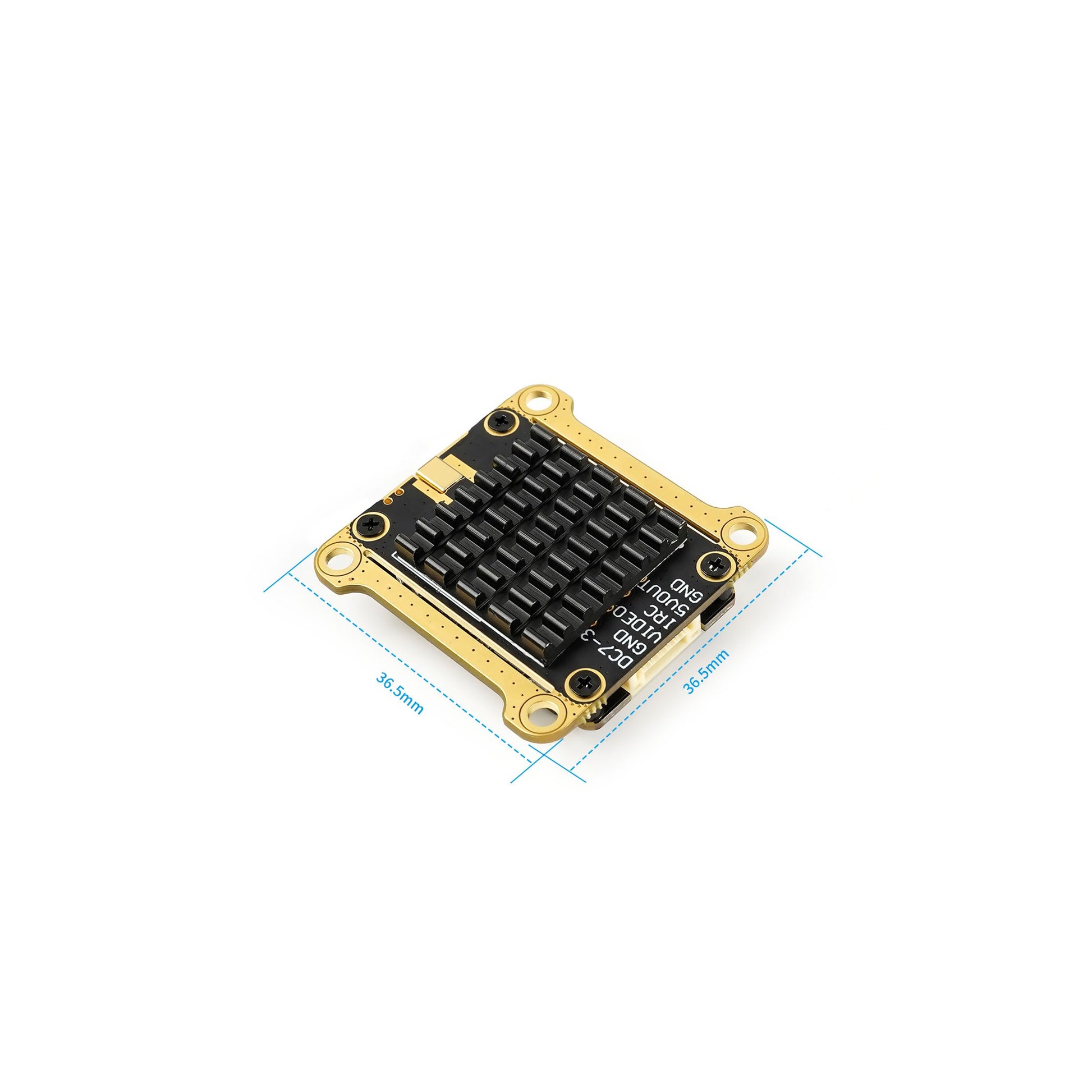

- Compact & Lightweight: 36.5 × 36.5 × 12 mm, 15 g (without wire)
Ideal For
- Long-range FPV flights requiring high-power transmission
- Professional and freestyle pilots needing adjustable output
- Drones compatible with 2-8S batteries and standard M3 mounting
