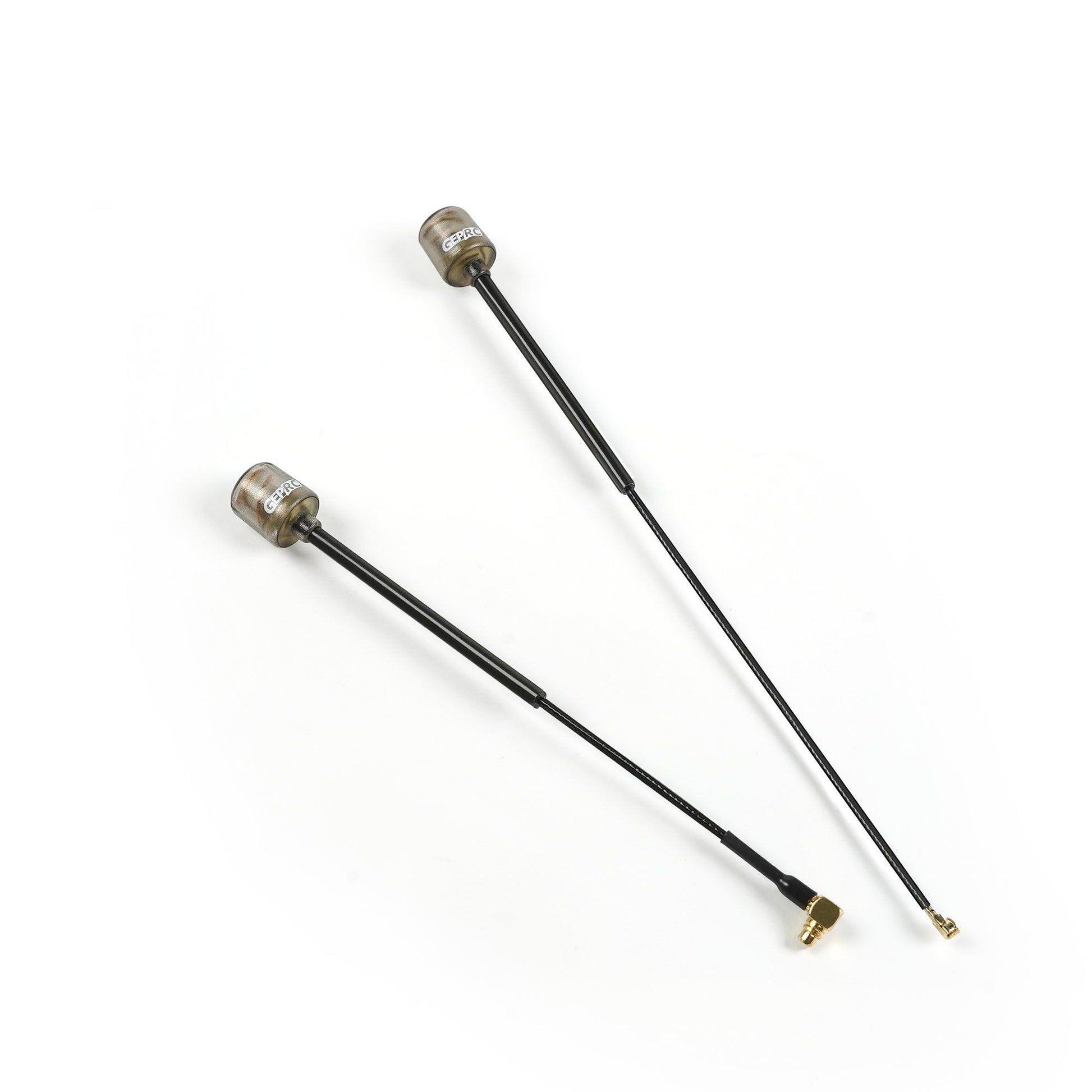

GEPRC Peano 5.8GHz LHCP Antenna (U.FL, 50mm)
GEPRC Peano 5.8GHz LHCP Antenna (U.FL, 50mm)
Brand: GEPRC
sku: SKU:GP105723
Out of stockCouldn't load pickup availability
- Description
The GEPRC Peano 5.8GHz LHCP antenna is an ultra-compact FPV video antenna designed for lightweight drone builds where minimal size and weight are essential. Despite its small footprint, it delivers stable and efficient signal performance in the 5.8GHz band, making it ideal for micro FPV drones and racing setups.
Operating across 5600–5950 MHz, this LHCP version helps reduce multipath interference and improves video clarity when paired with matching circularly polarized systems. Its high radiation efficiency and low VSWR ensure consistent and reliable video transmission performance.
The 50mm U.FL version is optimized for ultra-tight builds, offering the shortest and lightest configuration in the Peano series while maintaining stable RF performance.
Key Features:
- Ultra-compact 5.8GHz FPV antenna
- LHCP polarization for improved signal isolation
- High radiation efficiency (98%)
- Low VSWR (≤ 1.5) for stable transmission
- Extremely lightweight ABS construction
- 50mm micro design for tight builds

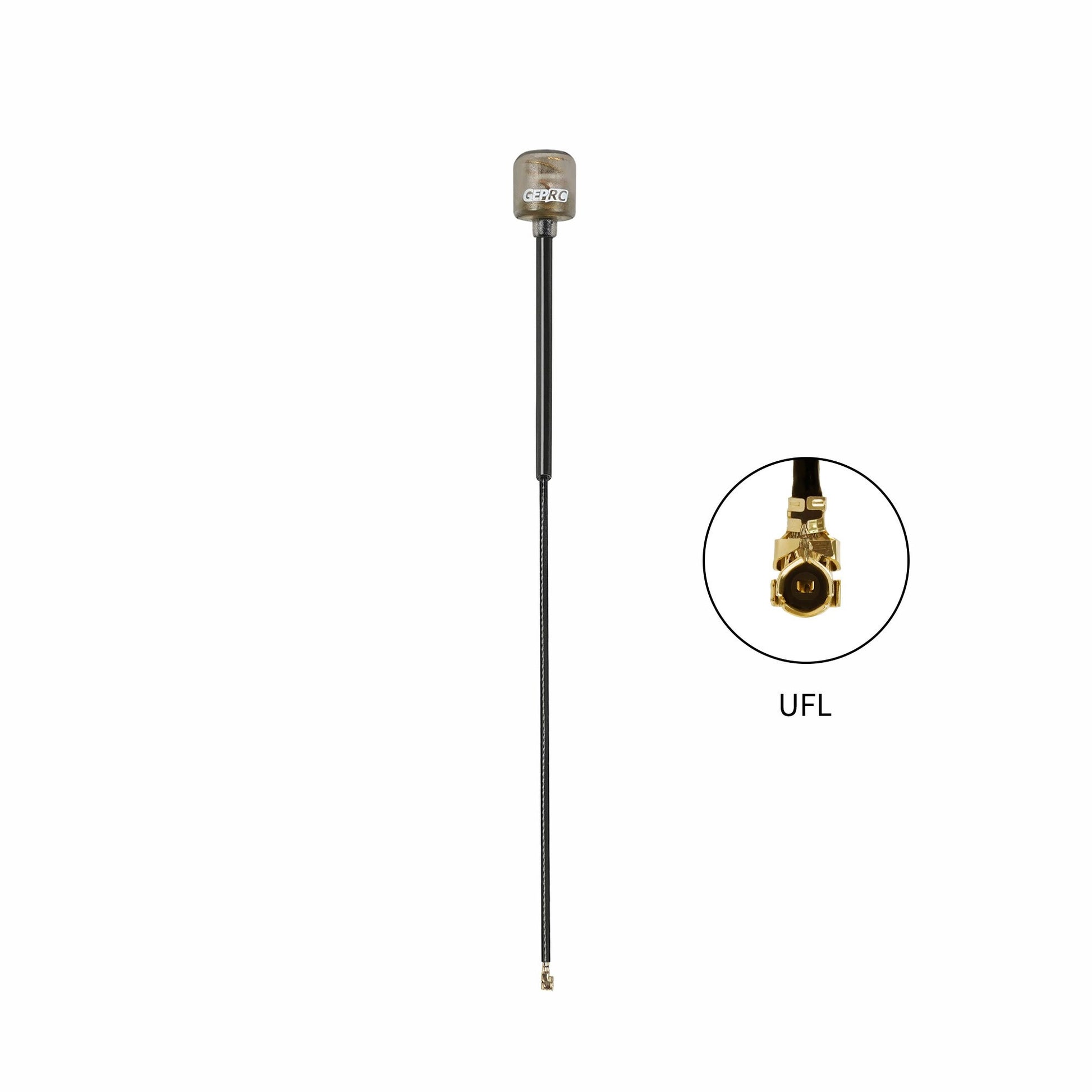

- U.FL connector for direct mounting
Specifications:
- Frequency Range: 5600 - 5950 MHz
- Gain: 2.5 dBi
- Polarization: LHCP / RHCP (variant dependent)
- Input Impedance: 50Ω
- VSWR: ≤ 1.5
- Radiation Efficiency: 98%
- Connector: U.FL / MMCX (variant dependent)
- Weight: 1.6 - 1.8 g
- Length: 50 mm
- Radome Material: ABS
- Cover Color: Transparent grey
Included:
- 2x GEPRC Peano 5.8GHz LHCP Antenna (U.FL, 50mm)
