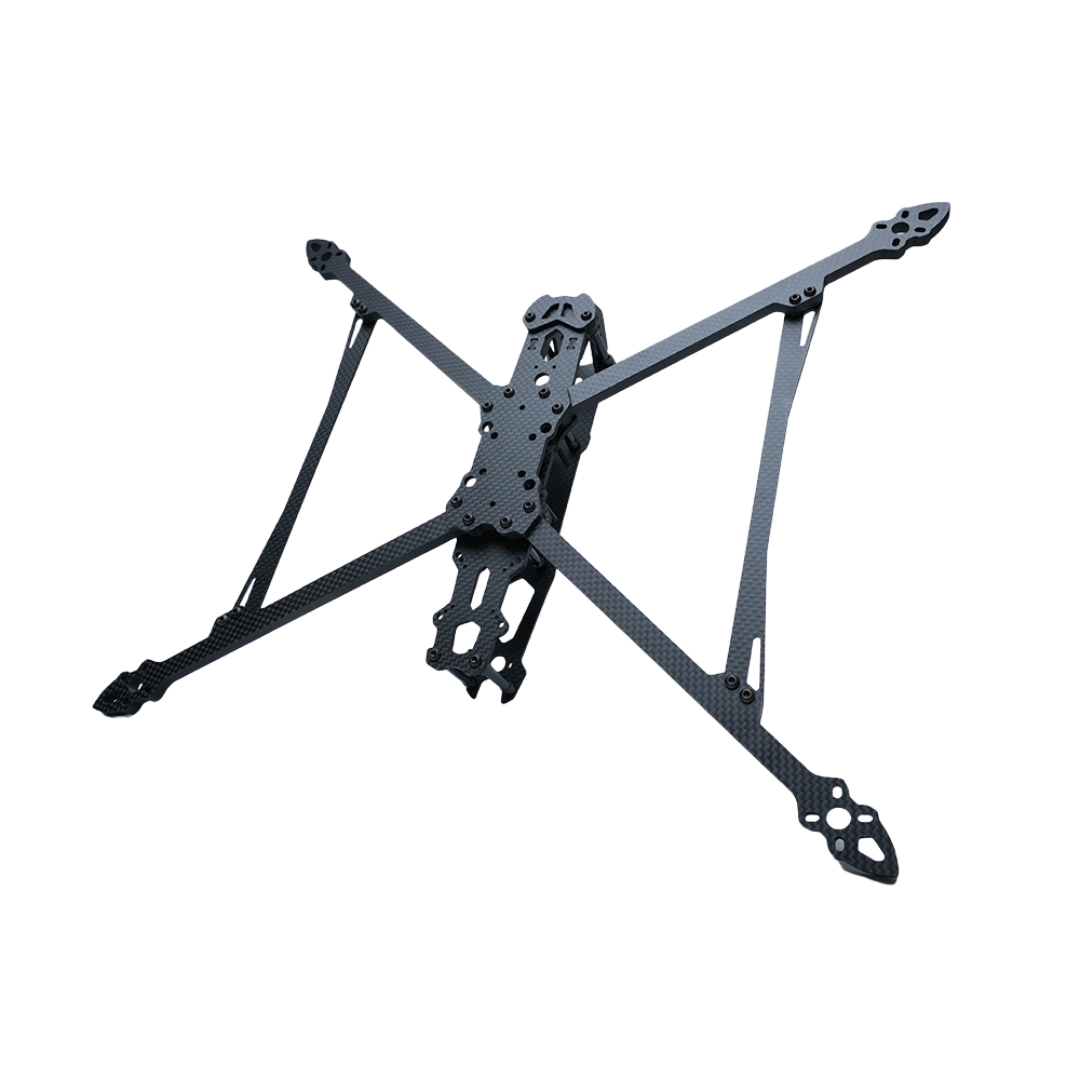

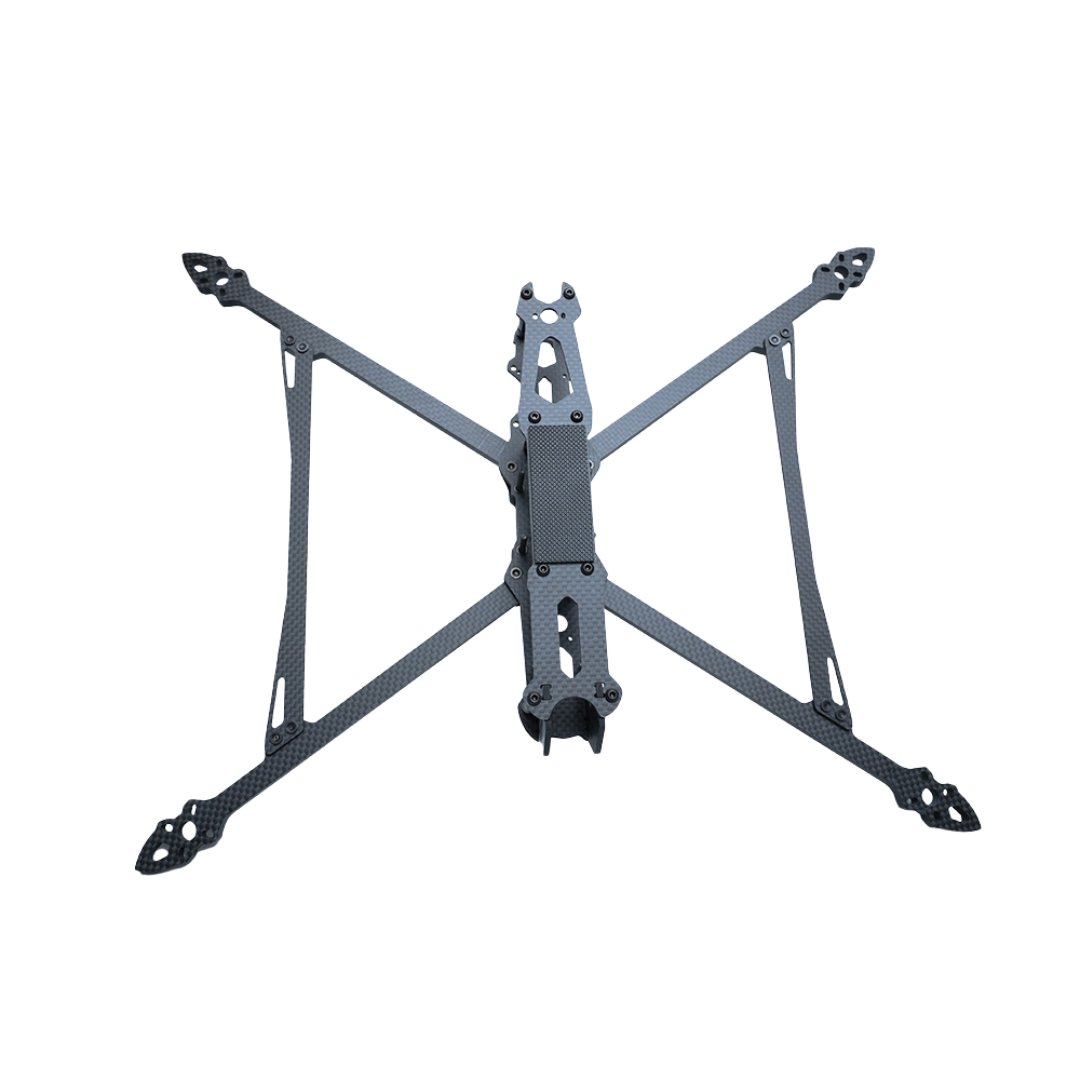

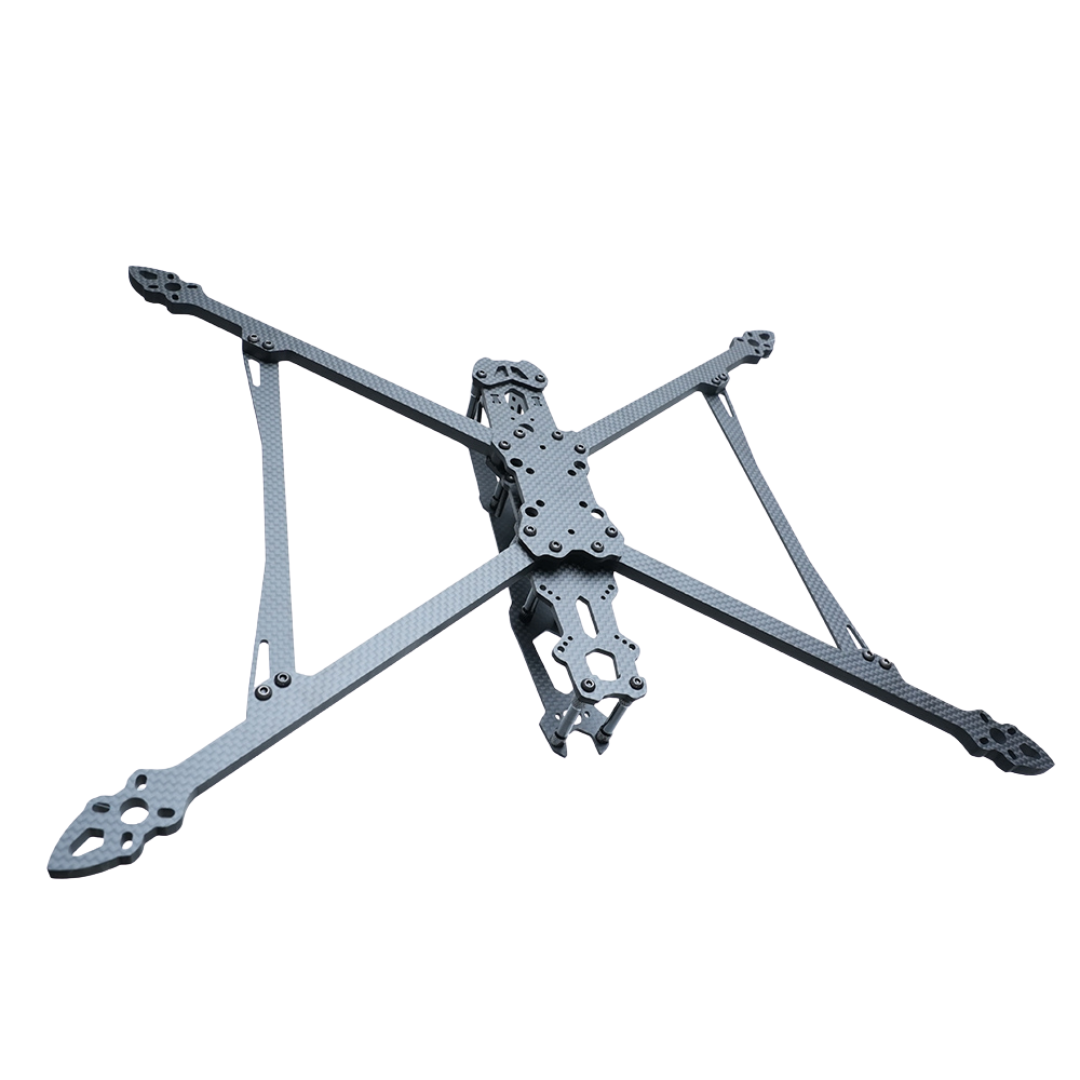

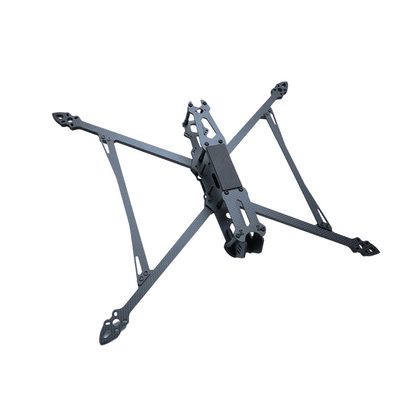

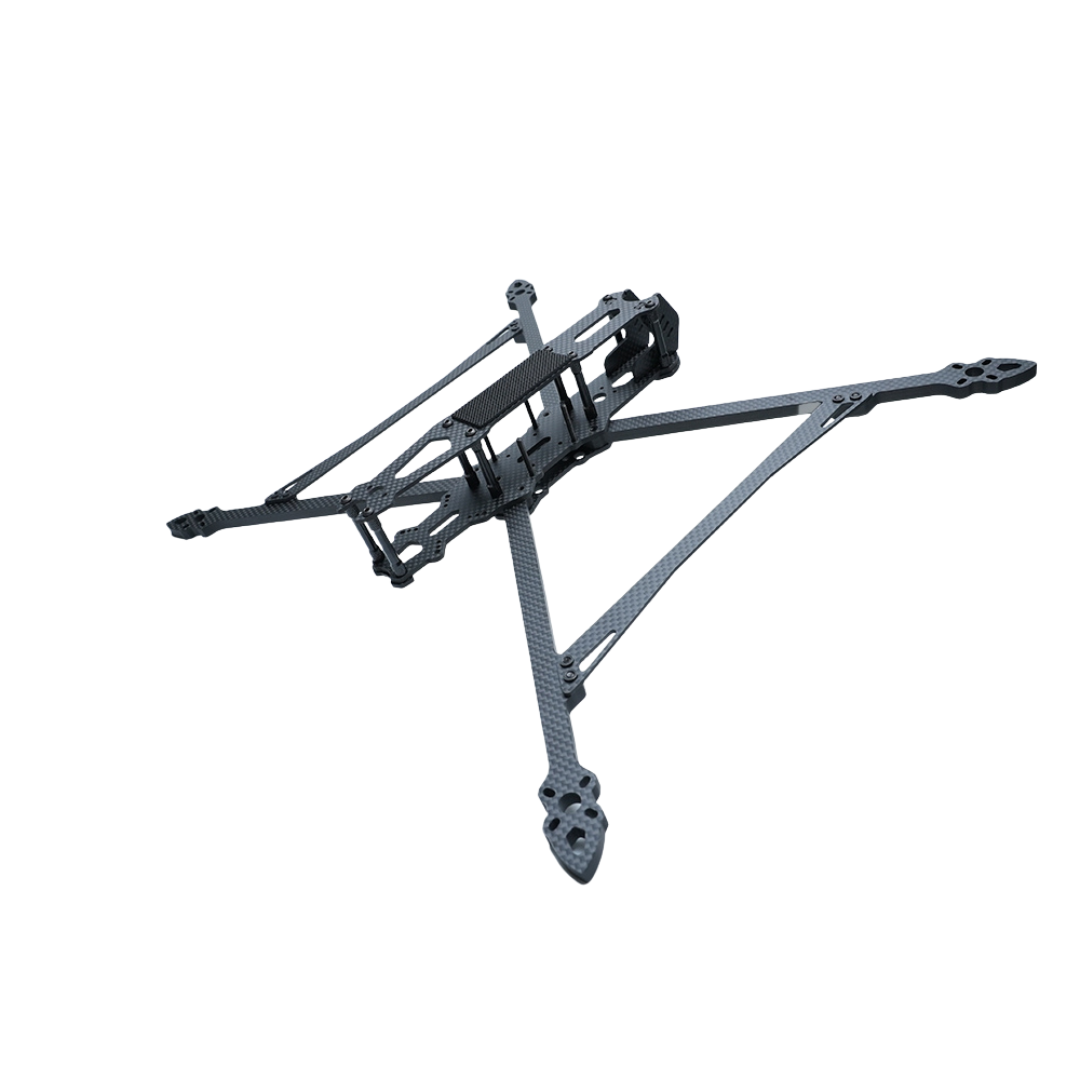

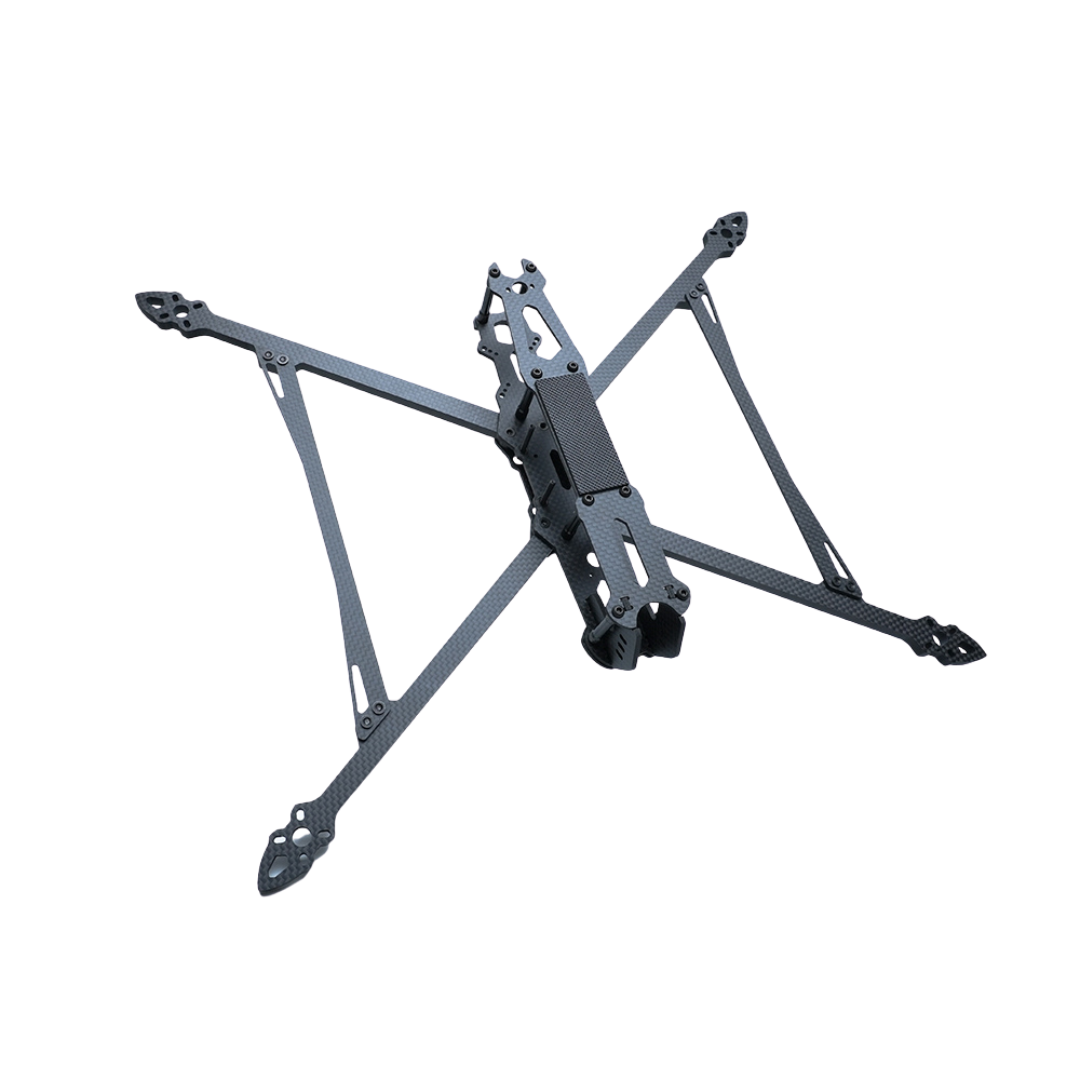

    Frame Pilotix Mark4-10 V3 Partizan Edition 10"

    The newest version of Mark4-10 Partizan Edition is a top-tier carbon fiber frame designed for building 10-inch long-range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights.

    Please note: The frame kit does not include 3D-printed parts

    Specifications:
    Model: MARK4 V3
    Wheelbase: 427mm
    Arm thickness: 7mm
    Top plate width: 41mm
    Top plate length: 201mm
    Top plate thickness: 2mm
    Bottom plate width: 50mm
    Bottom plate length: 205mm
    Bottom plate thickness: 3mm
    Camera side plate thickness: 2.5mm
    Camera mounting hole space: 19 mm
    Vtx mount hole: 20x20mm & 25.5x25.5mm & 30.5x30.5mm
    Stack mount hole: 30.5x30.5mm&20x20mm
    Motor mounting hole pitch: 16x16mm & 19x19mm
    Propeller size: 10inch
    Weight: about 234g

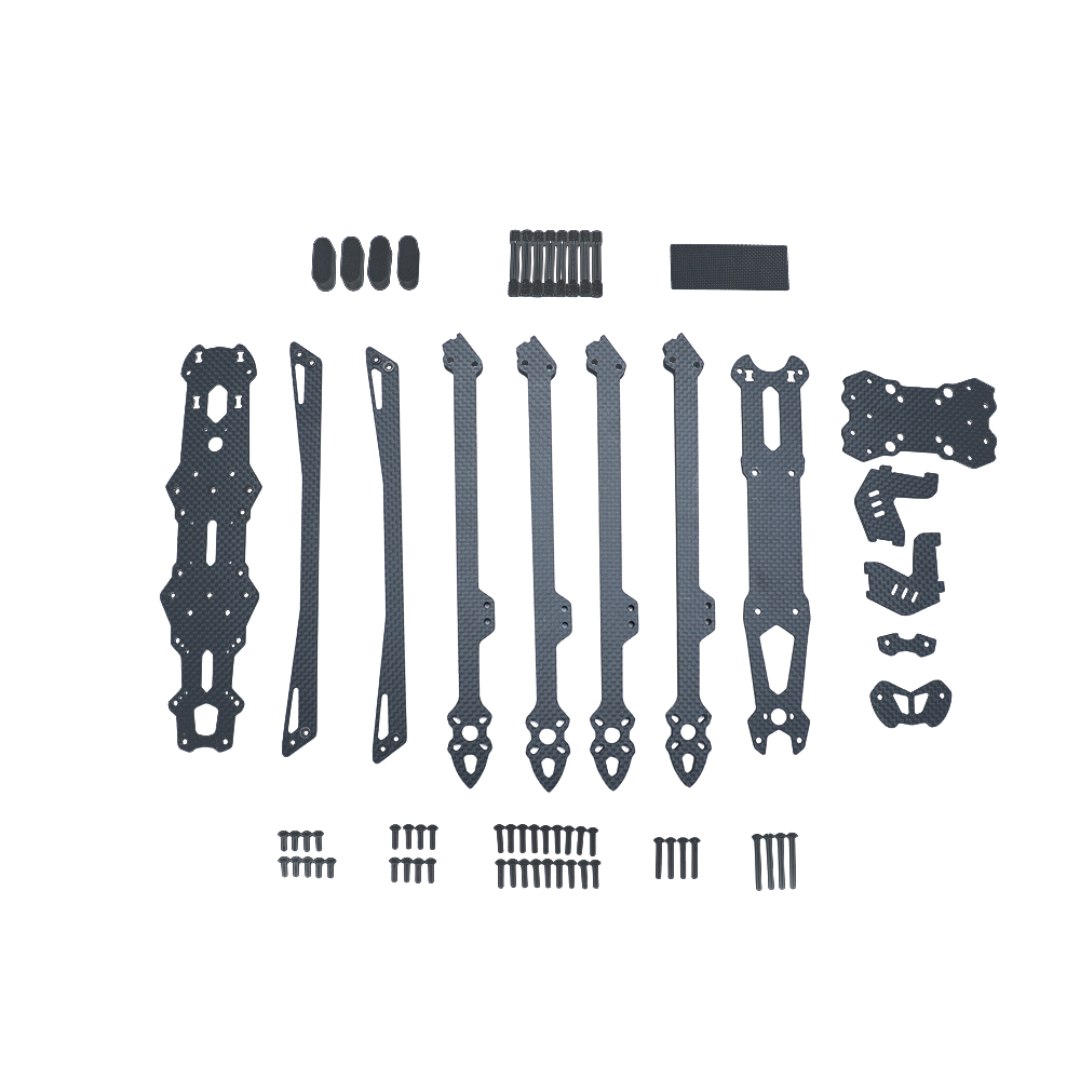

    Package Includes:
    1x Frame Pilotix Mark4-10 V3 Partizan Edition 10"
