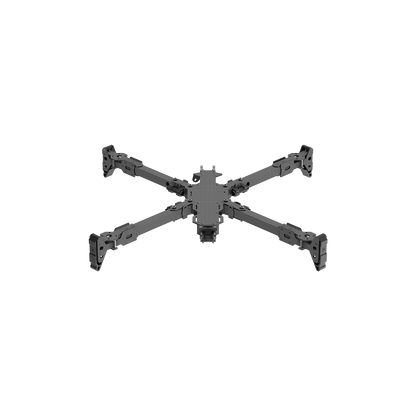

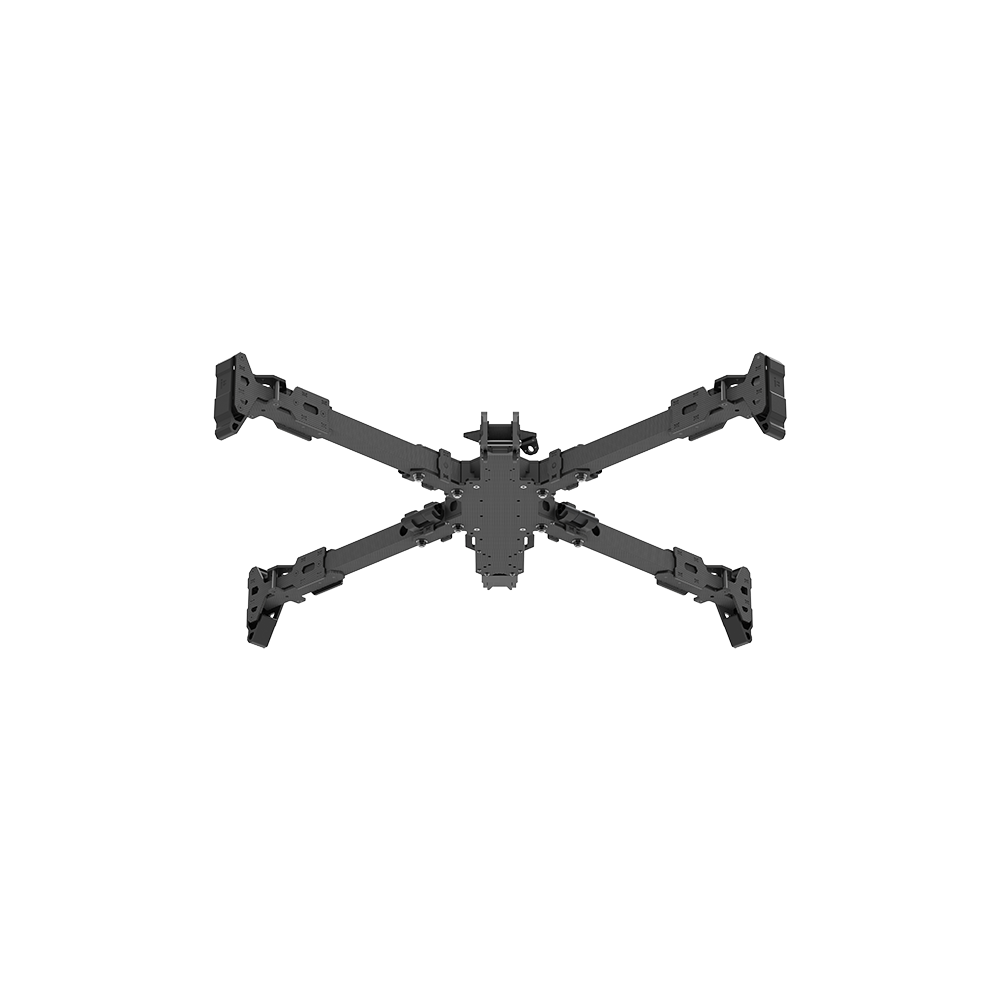

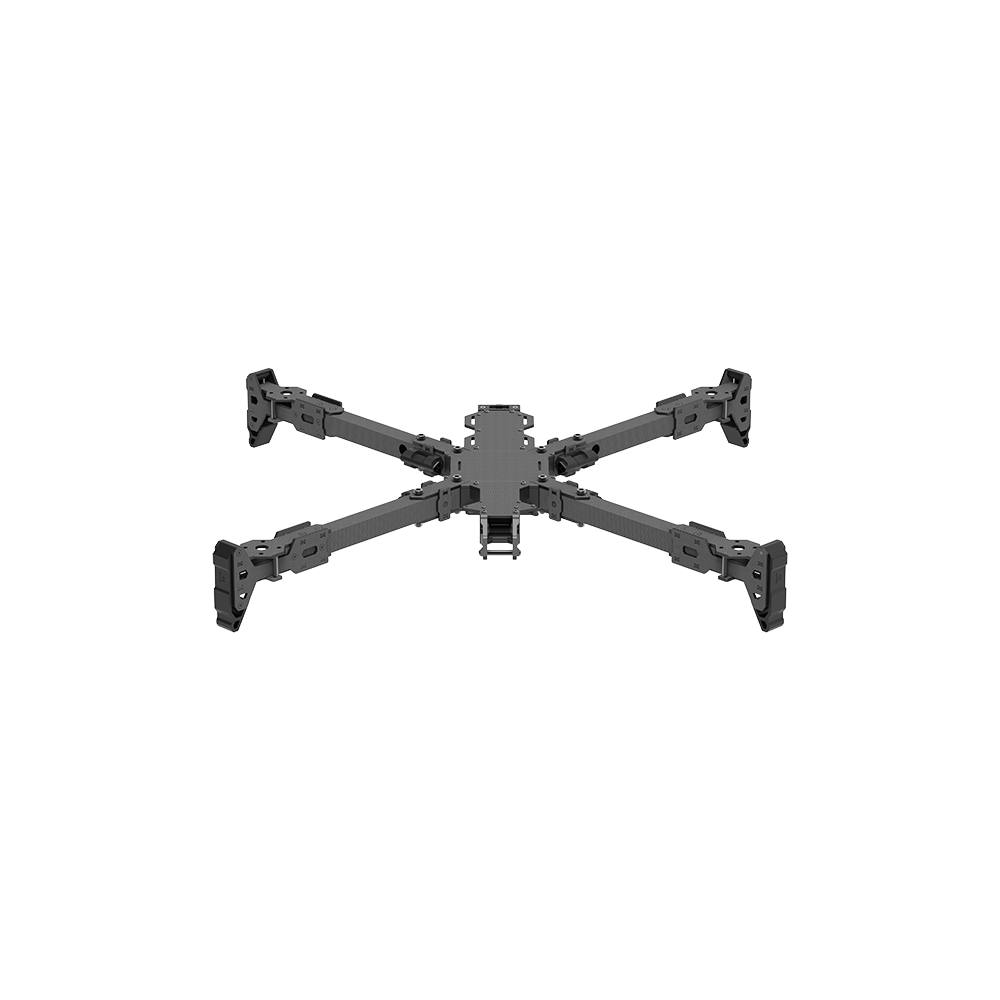

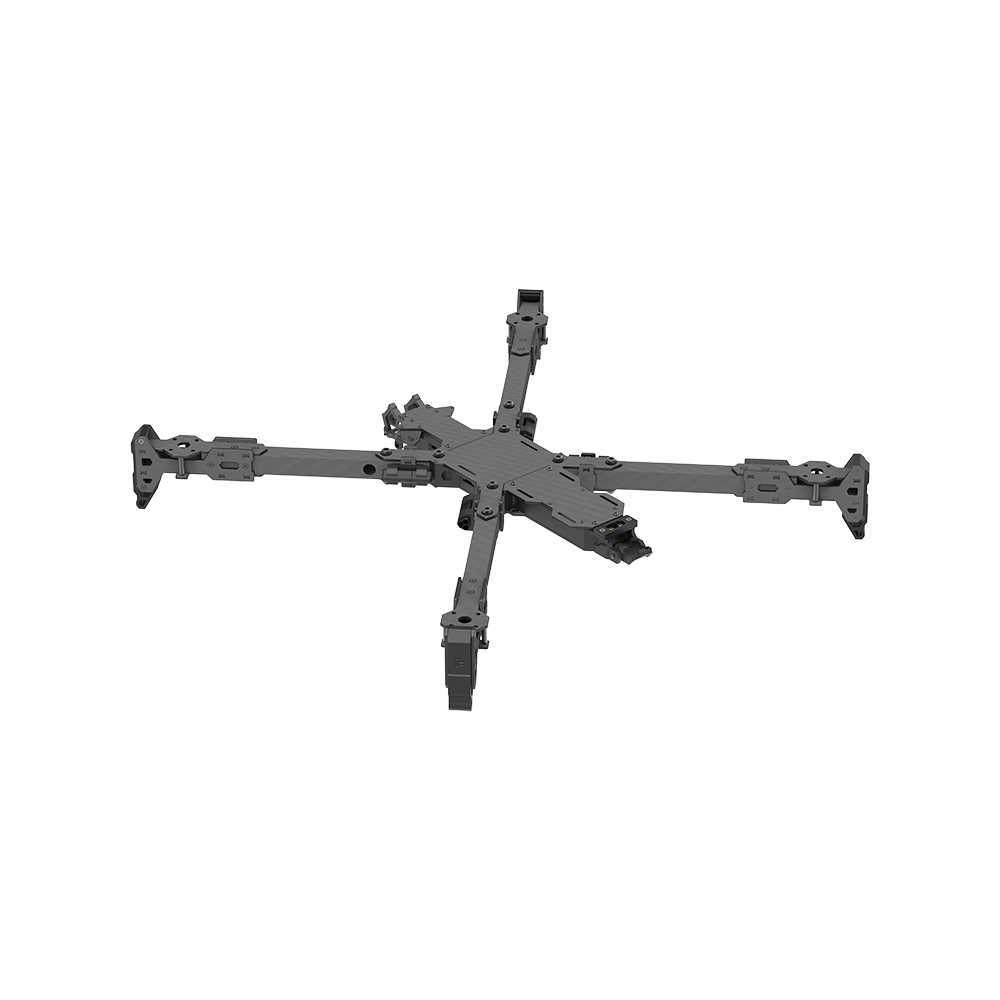

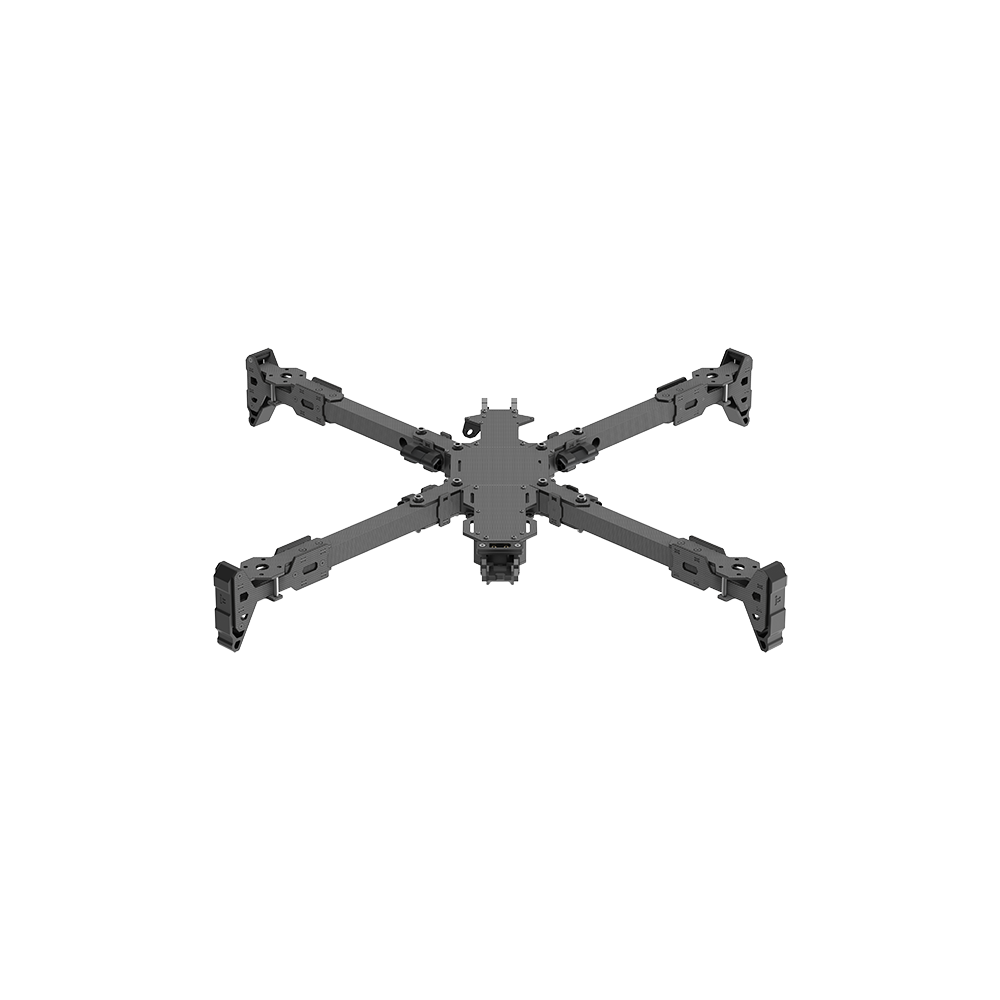

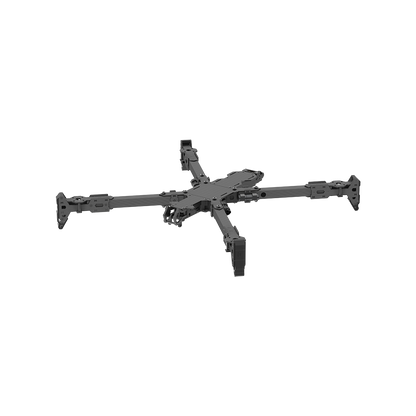

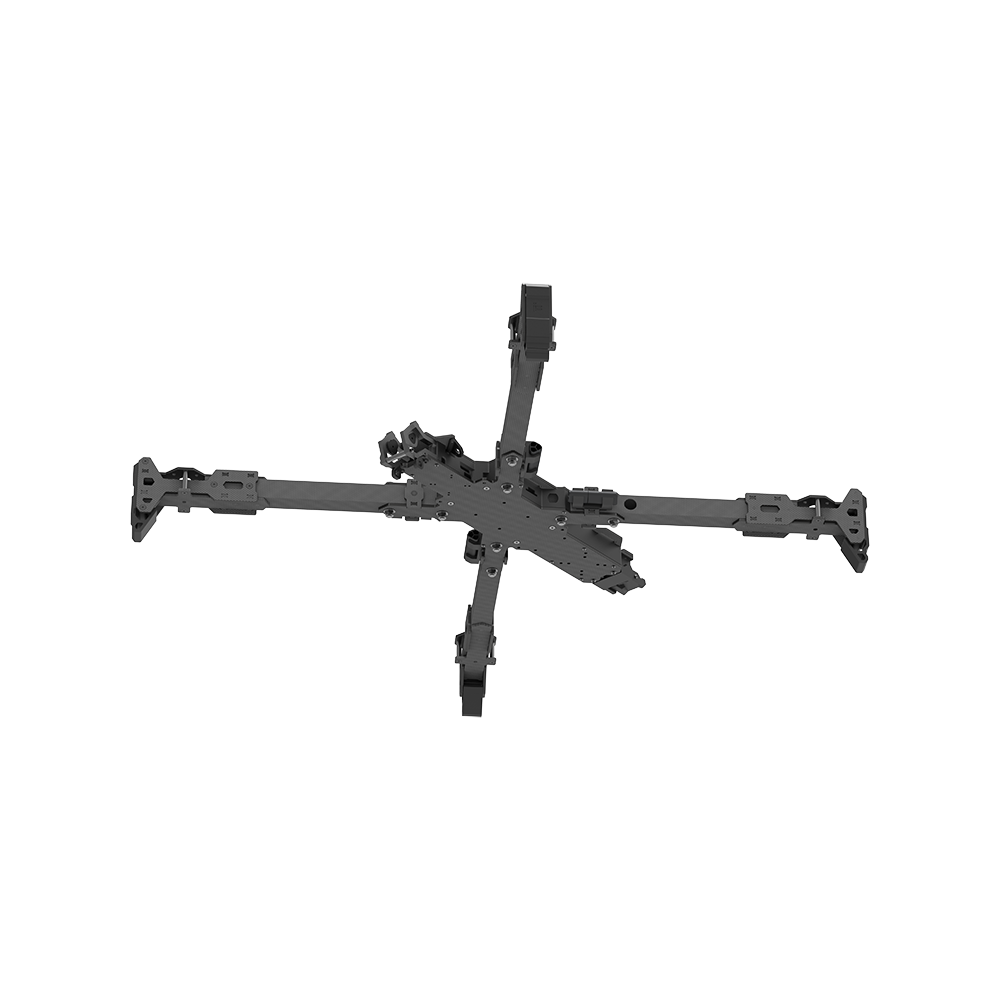

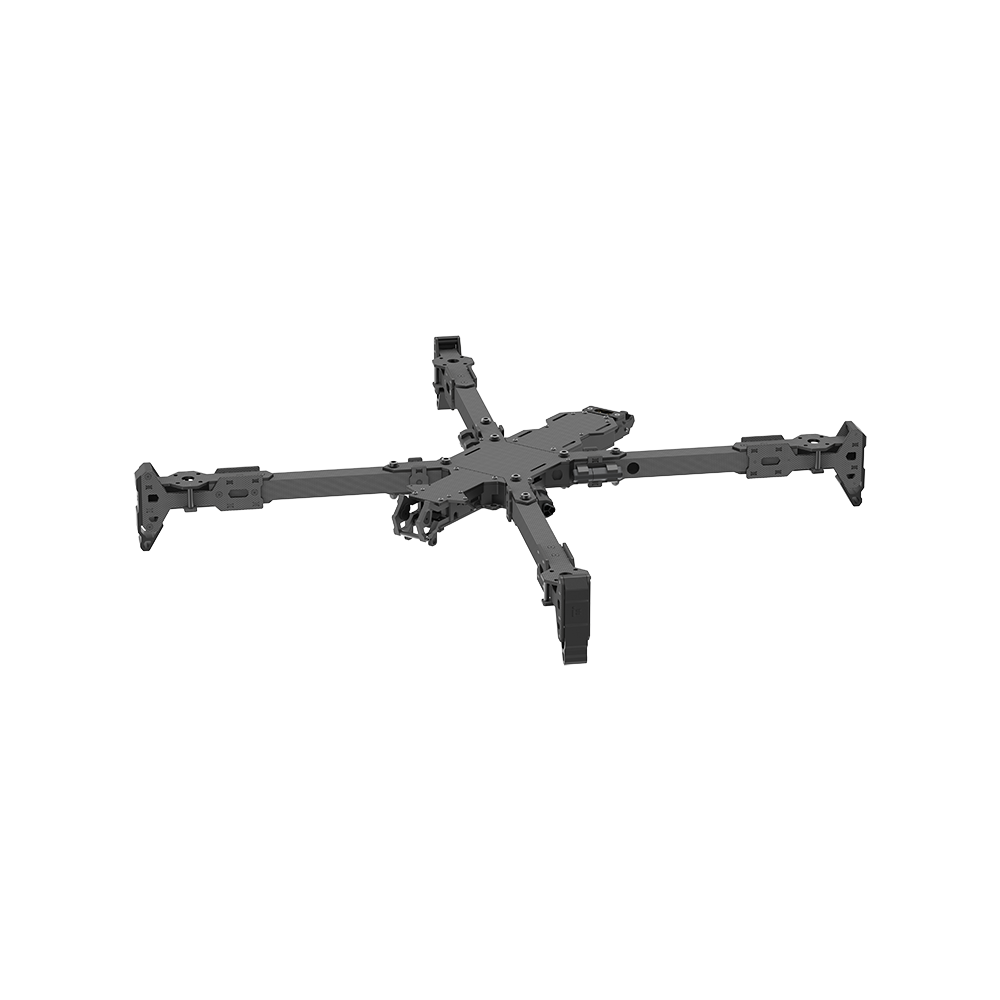

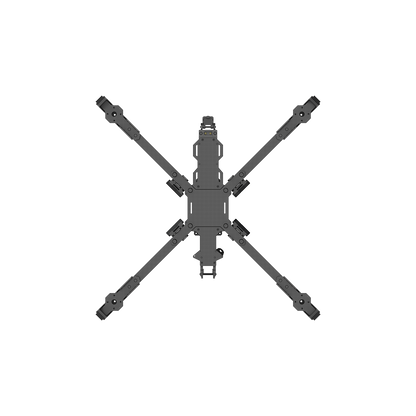

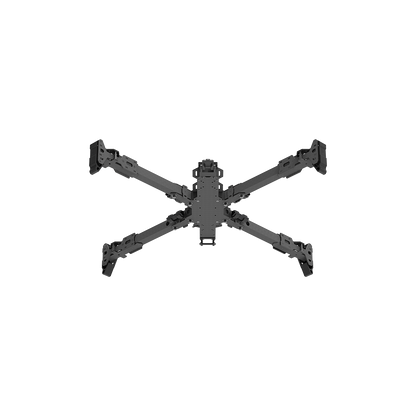

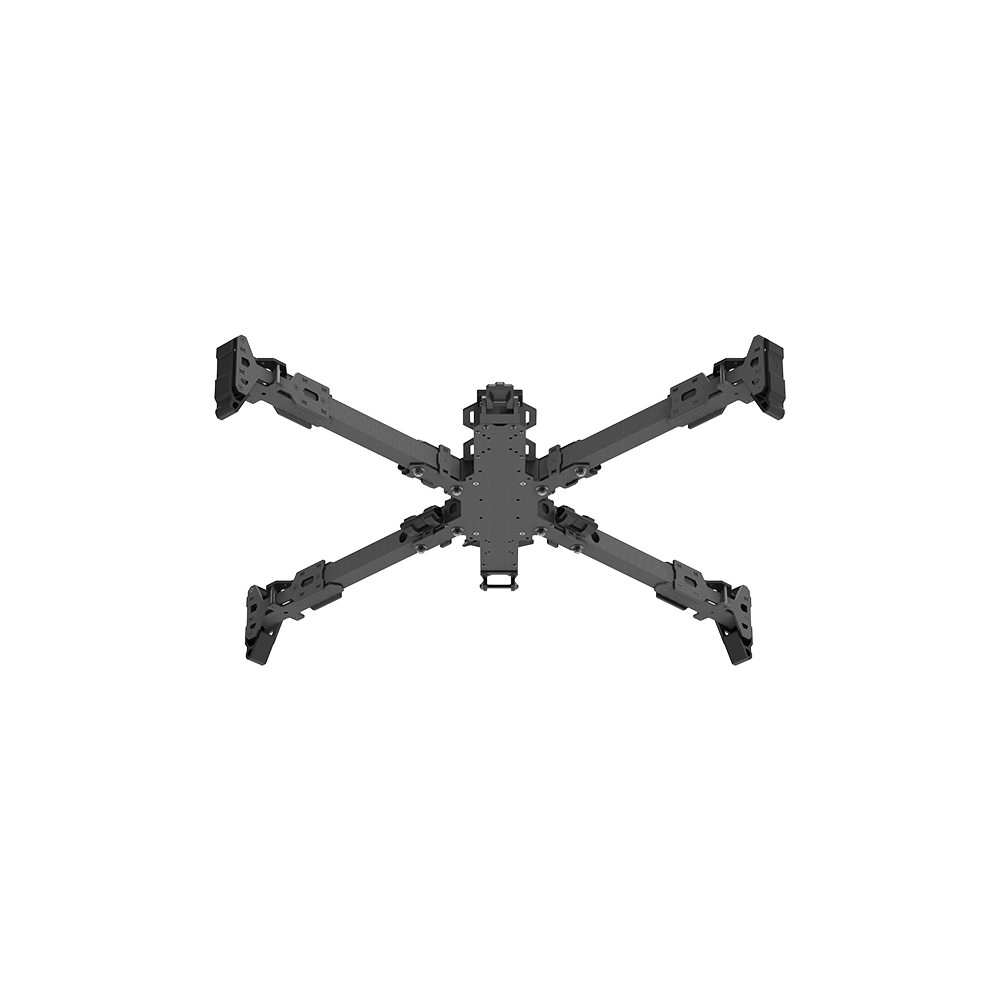

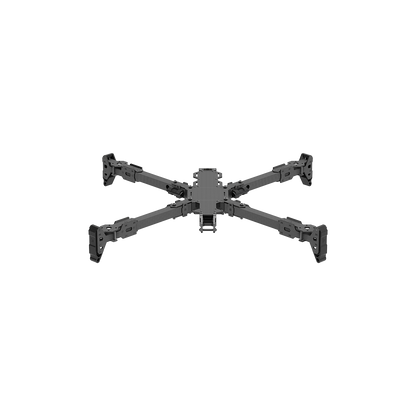

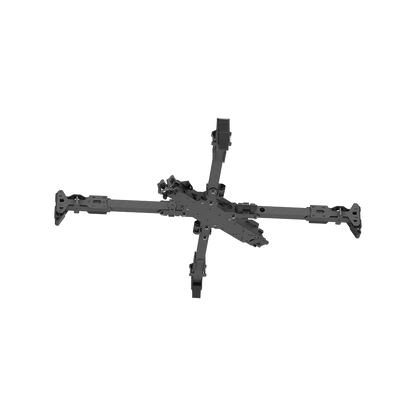

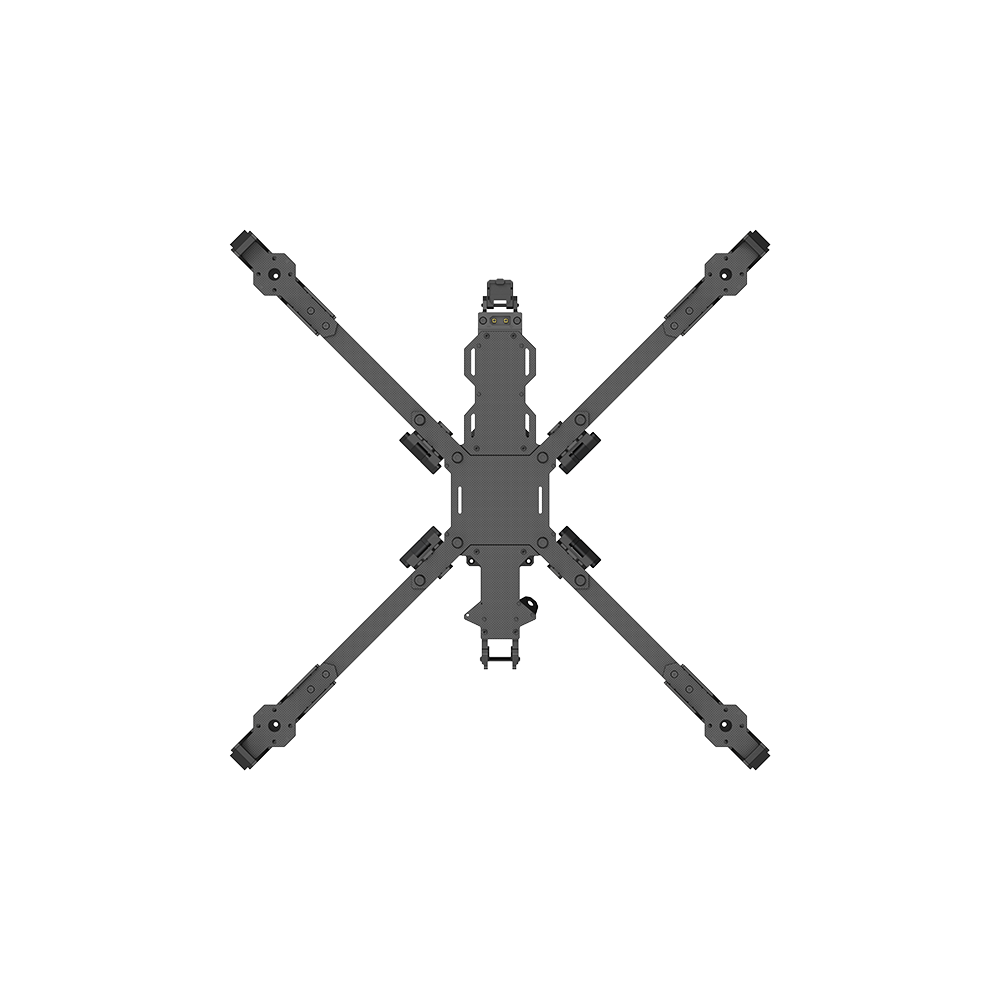

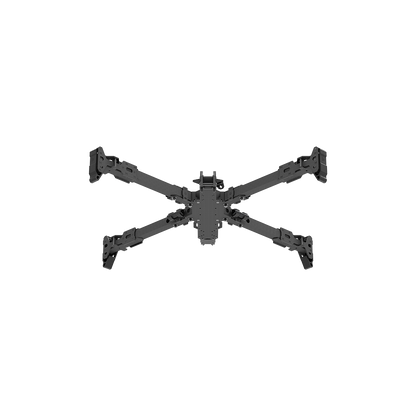

    Frame iFlight X413

    Frame iFlight X413

    Brand: iFlight

    €328,62
    €328,62 €328,62
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: C015205
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    X413 Frame Kit

Specifications:
Product Name: X413 Frame Kit
Frame wheelbase: 599 mm
Frame size: L425*W425*H26 mm
Arm thickness: Carbon tube 20*20 mm
Thickness of the top plate: 3 mm
Bottom plate thickness: 3 mm
Maximum magazine height: 20 mm
Maximum height of VTX: 20 mm
Assembly of flight magazine: 35*35 Φ3mm
VTX mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
Motor mounting: 30x30mm Φ4mm
Weight: 850 grams
Compatible: HD O3 Air Unit/ BLITZ Whoop 5.8G 2.5W/ BLITZ Whoop 1.2G 1.6W

Packing List:
1 x X413 frame set
4 x Amass MT plug
1x TPU parts
1 x non-slip battery pad
3x battery strap
1 x bag of screws
