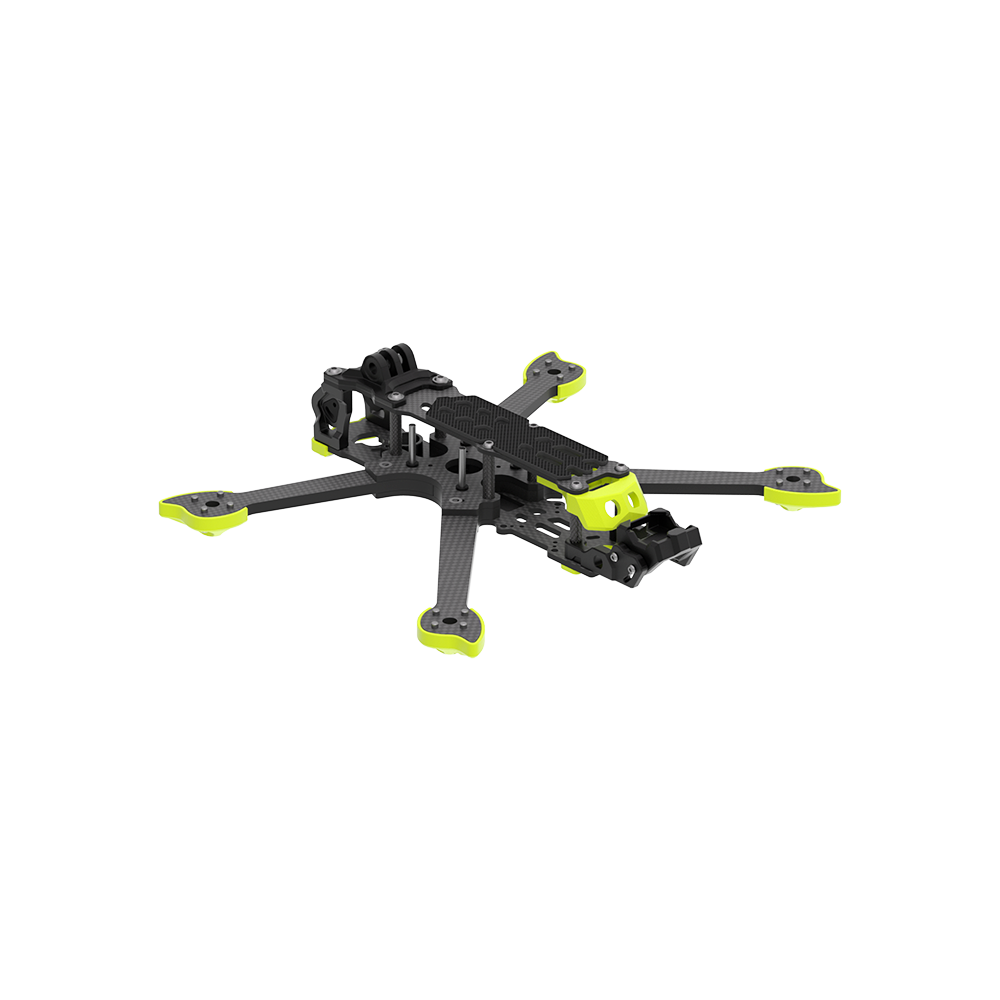

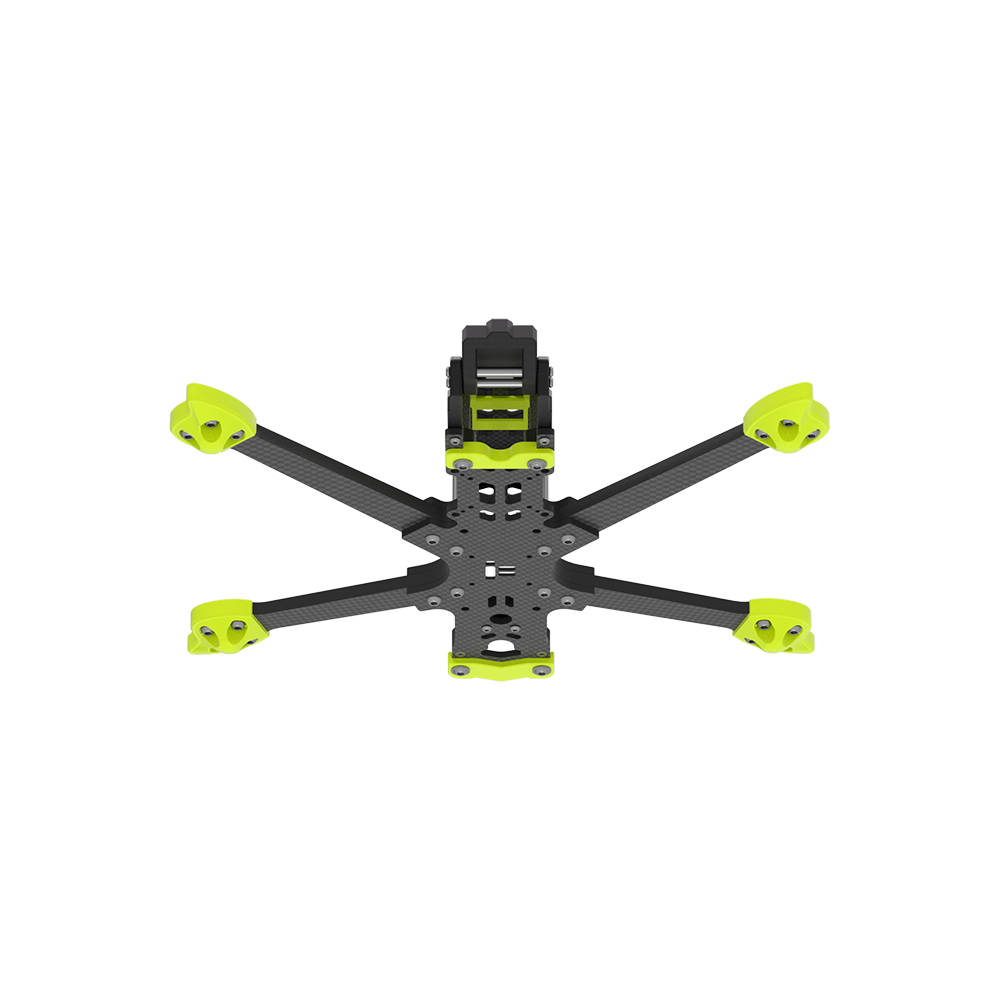

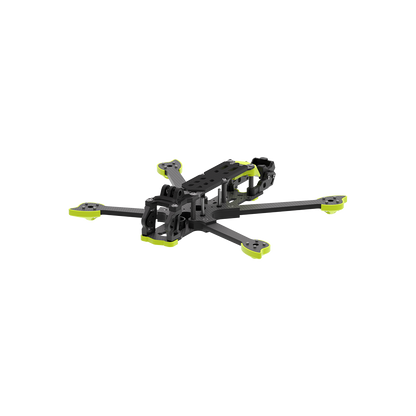

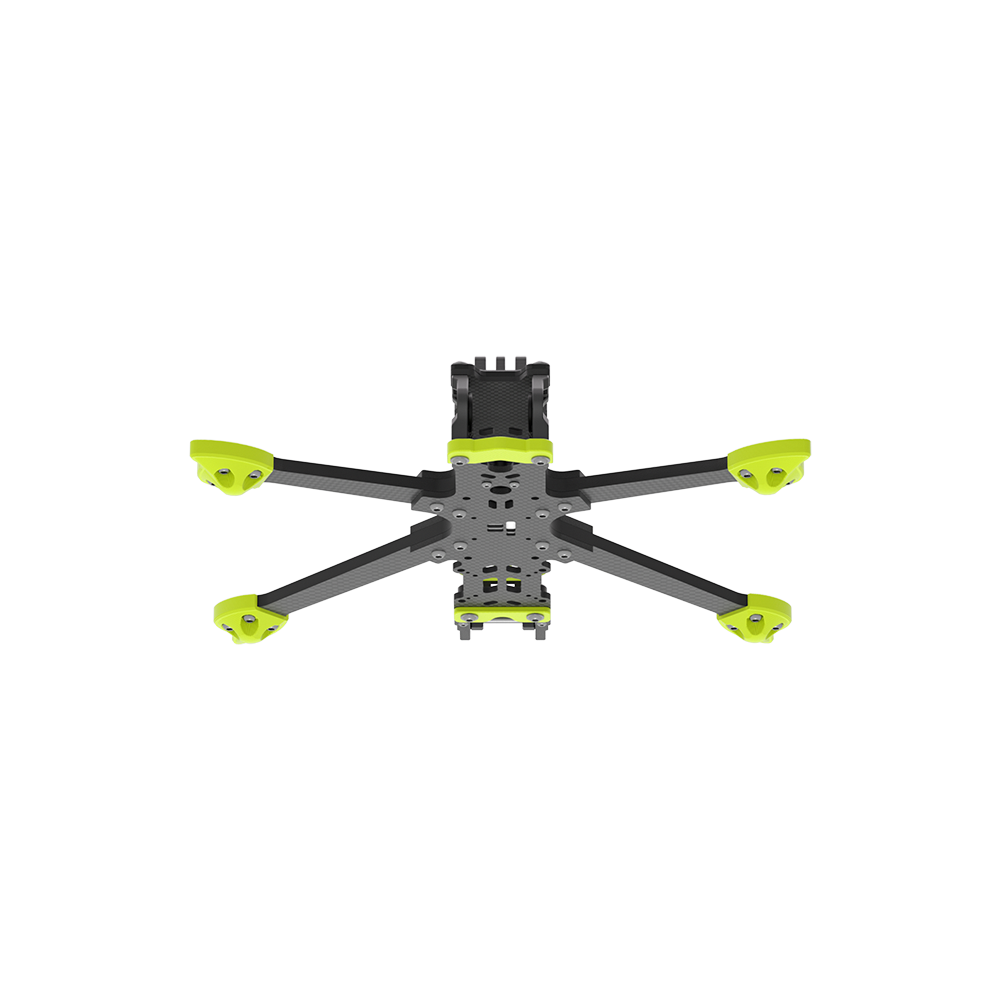

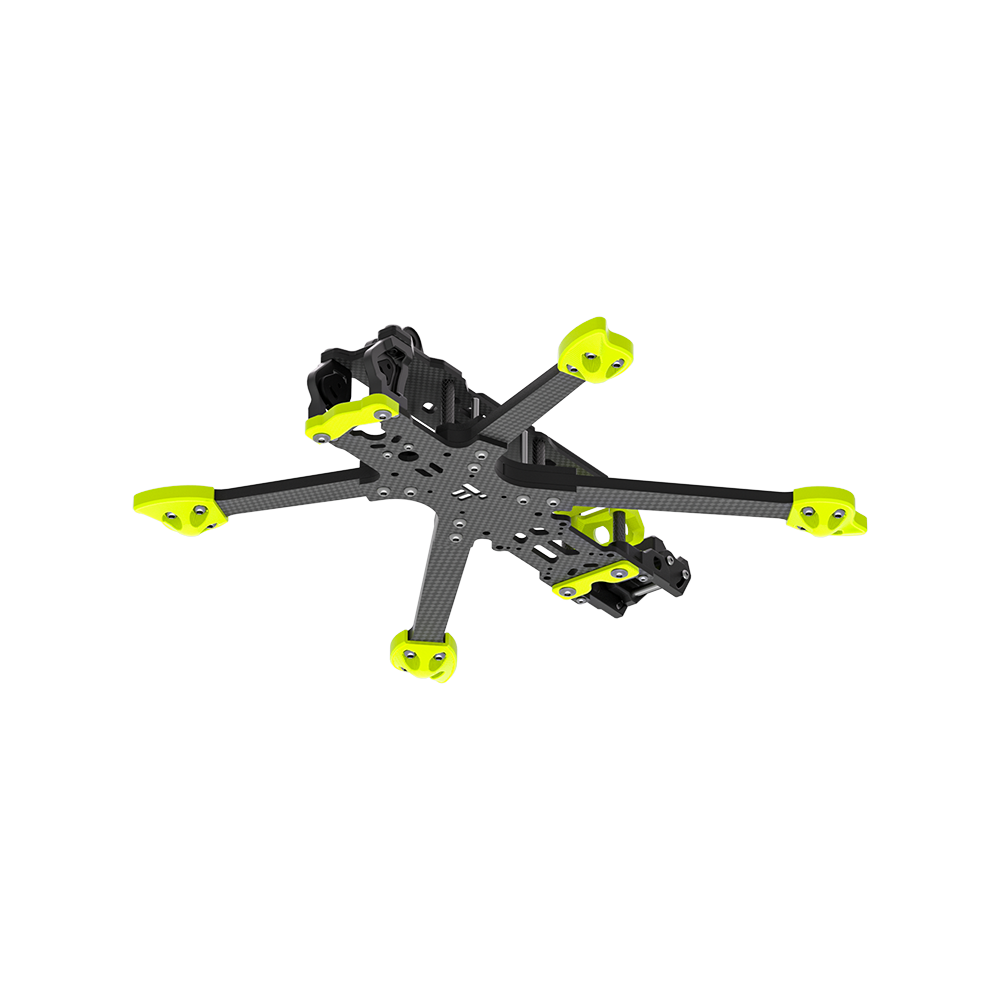

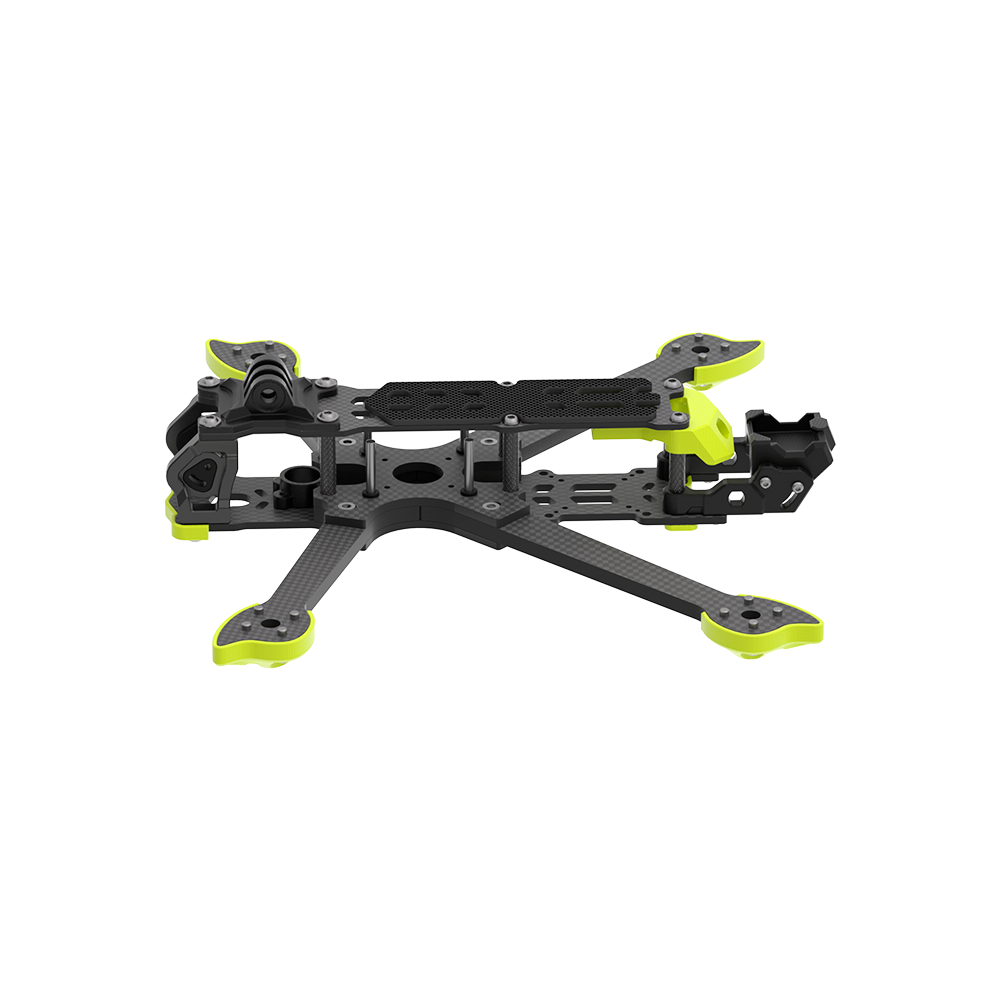

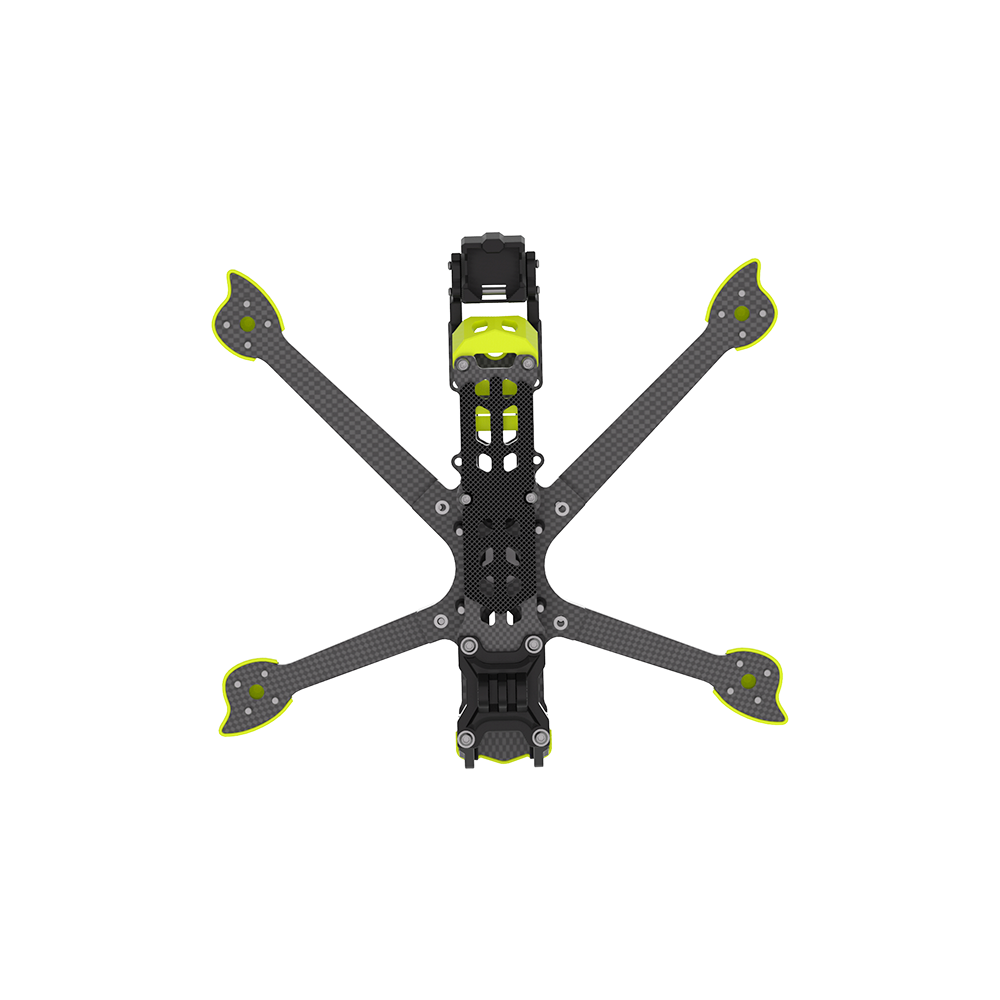

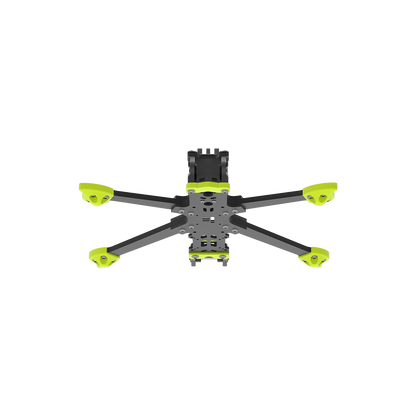

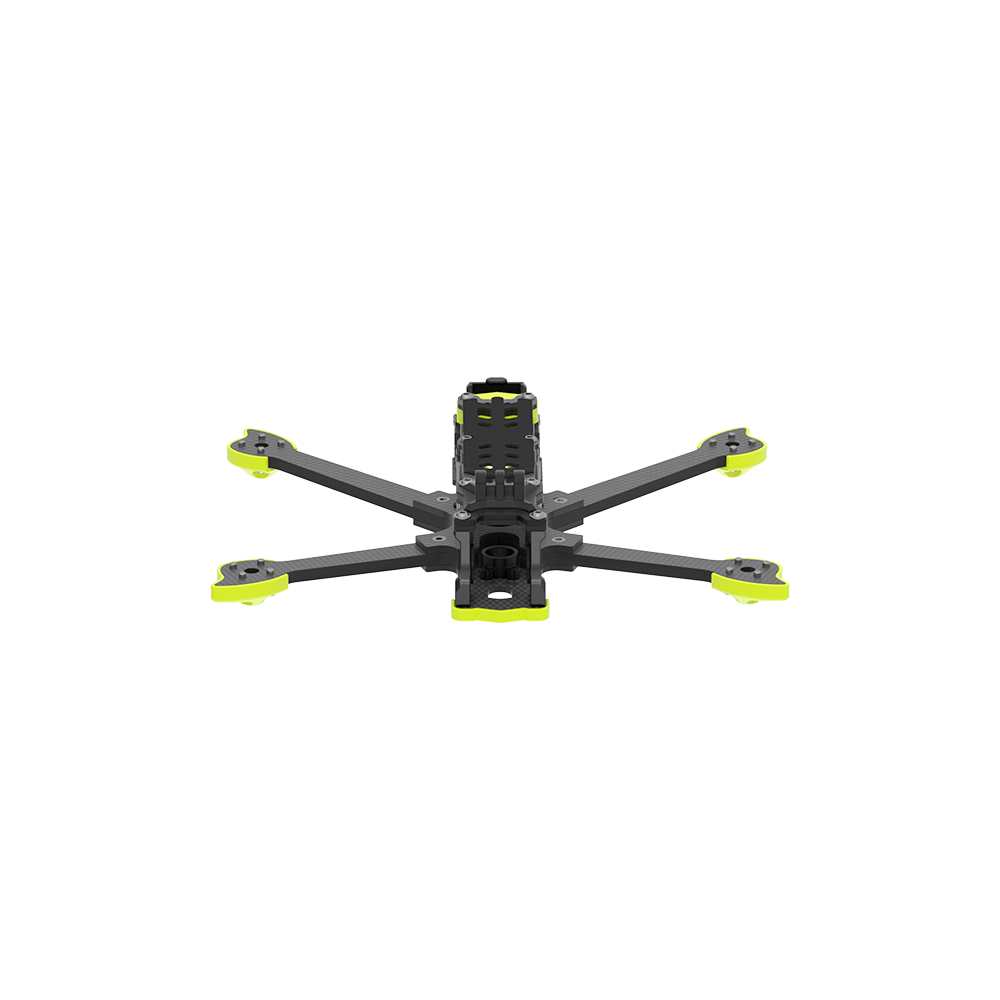

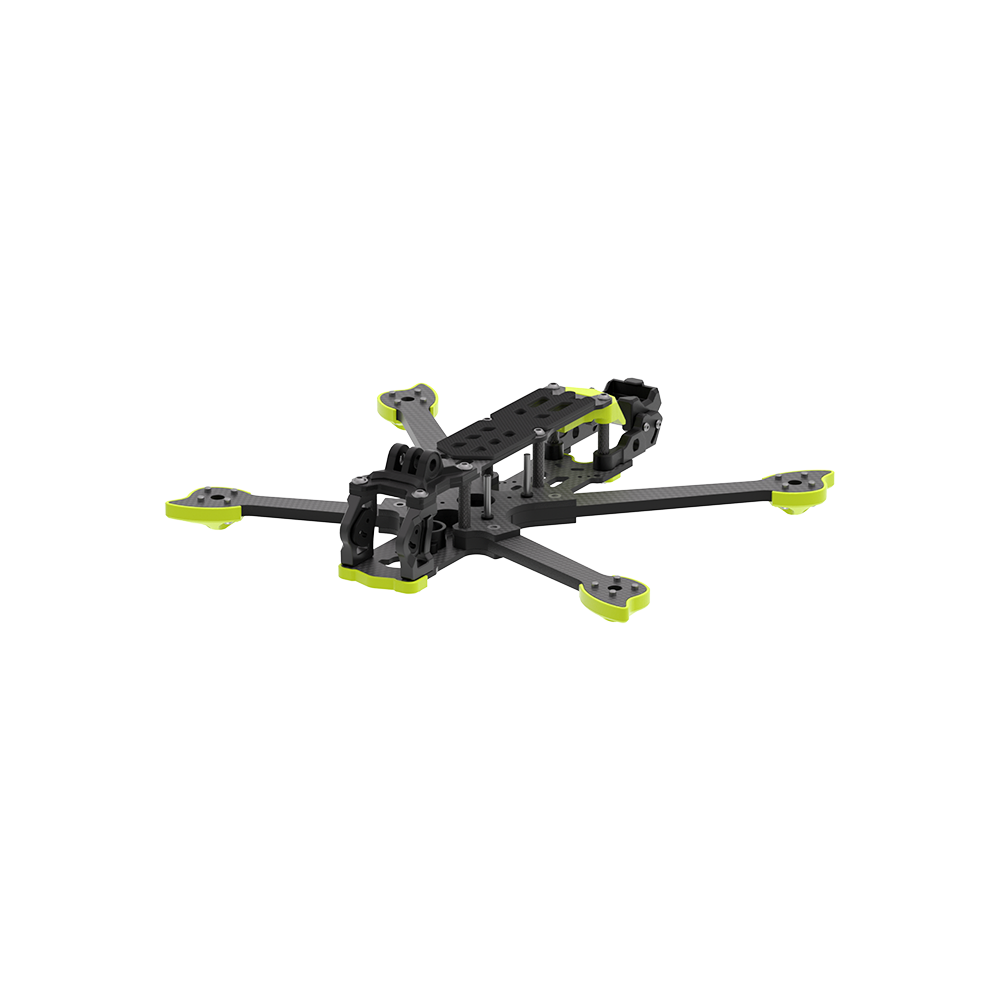

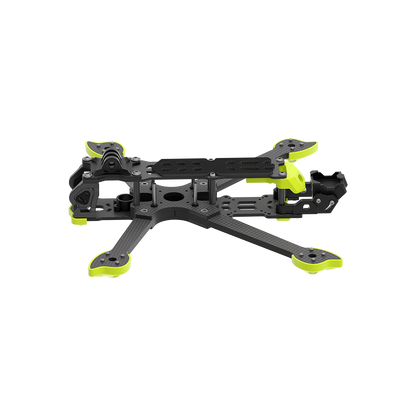

    Frame iFlight Nazgul DC5

    Frame iFlight Nazgul DC5

    Brand: iFlight

    €78,65
    €78,63 €78,65
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: FQ15861
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    Nazgul DC5 frameset

The iFlight Nazgul5 V3 frame is a 5" freestyle frame. Made from super stiff carbon for minimal resonance and recommended 2207 motors for maximum 5" propeller control.

Specifications:
Product Name: Nazgul5 Frame Kit V3
Geometry: Squashed-X
Wheelbase: 245 mm
Frame size: L173*W173*H36.5 mm
Frame body size: 36.5mm
Arm thickness: 5 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2.5 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Maximum magazine height: 21 mm
Maximum height of VTX: 29 mm
Motor mounting: 16x16mm
VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 130 grams (without TPU parts)

Packing List:
1 x Nazgul5 V3 Frameset
1 x GoPro TPU Base Mount
1 x bag of screws
4 x TPU arm protector
1 x TPU bottom plate front protection
1 x bottom plate TPU back protection
1 x non-slip battery pad
4 x motor wire shield tube
2 x battery strap (20*250 mm)
