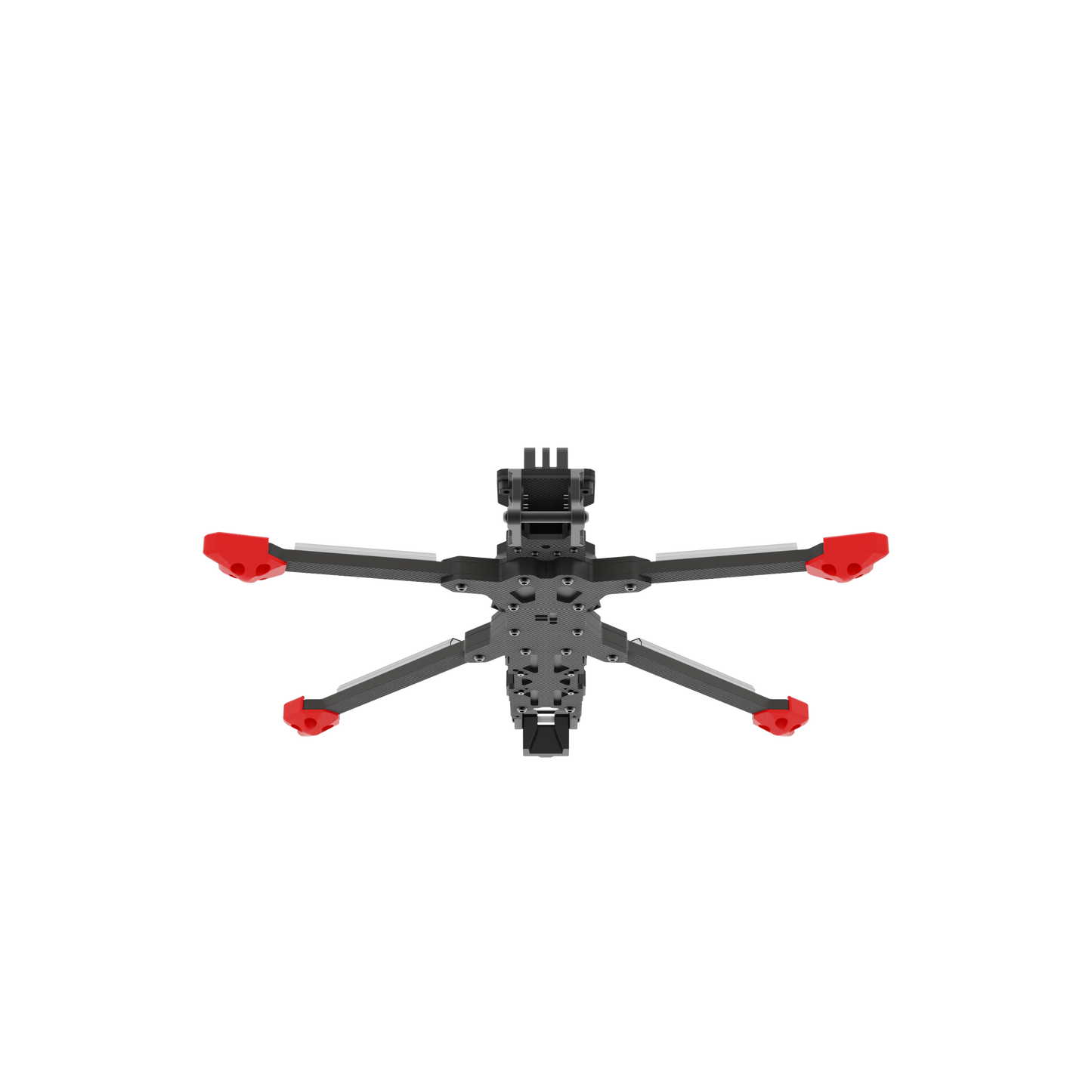

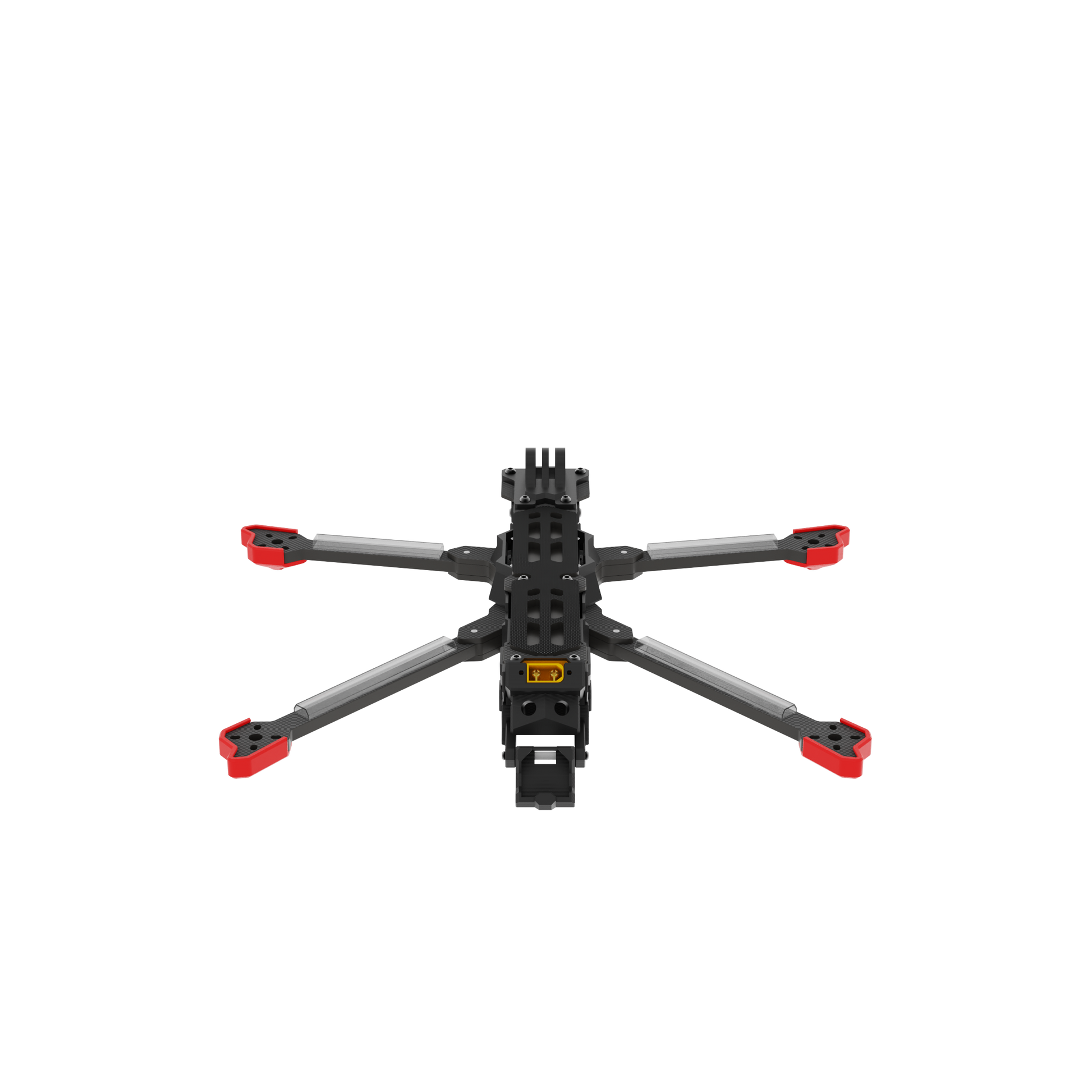

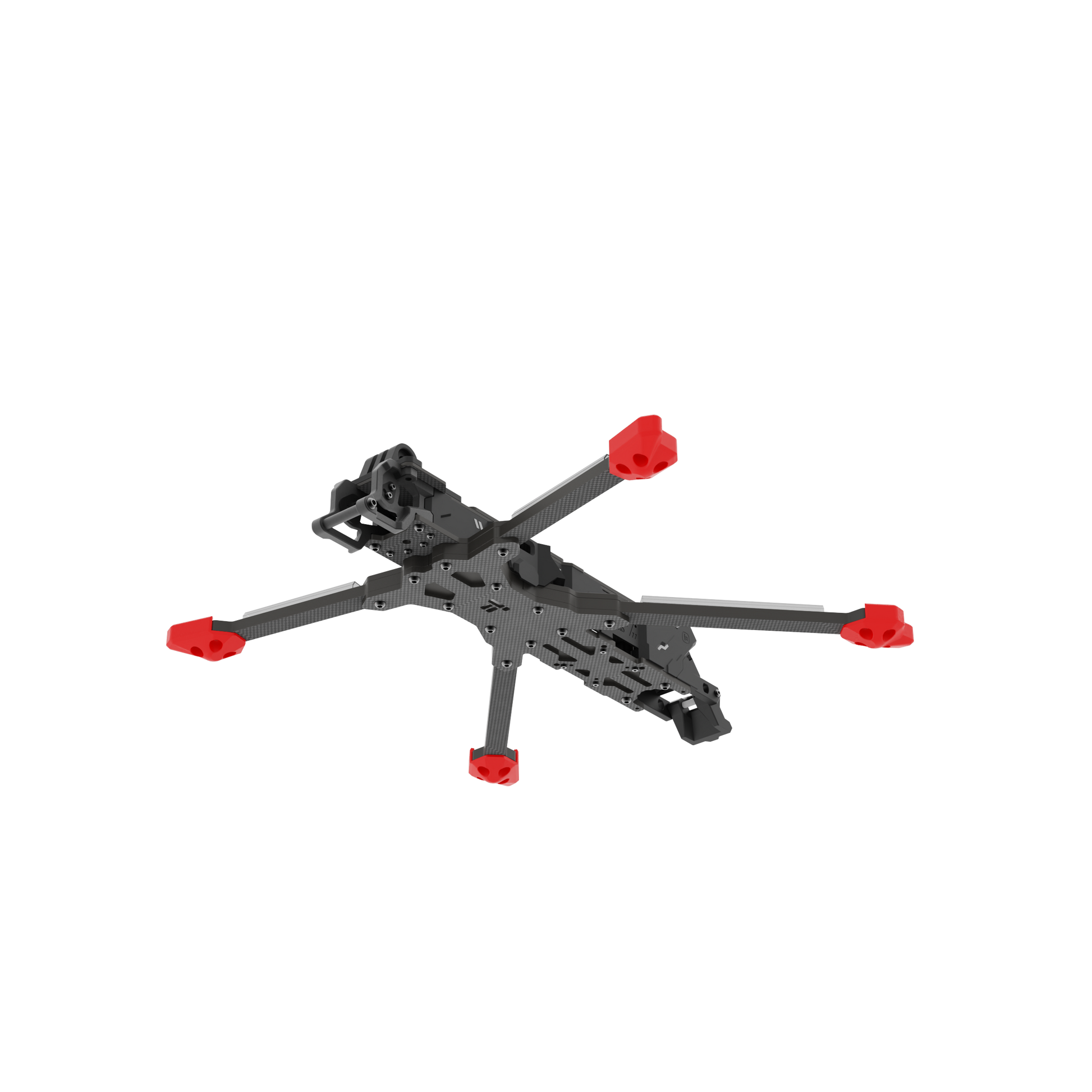

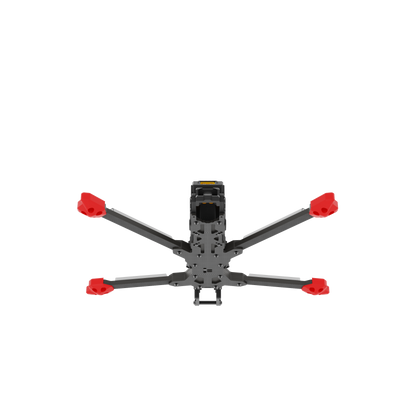

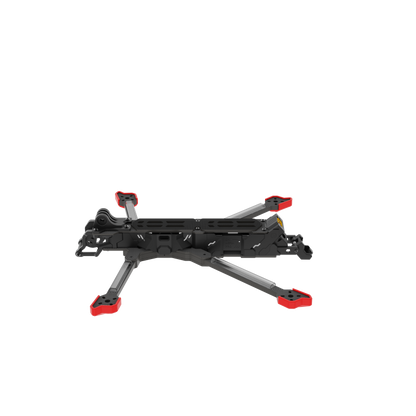

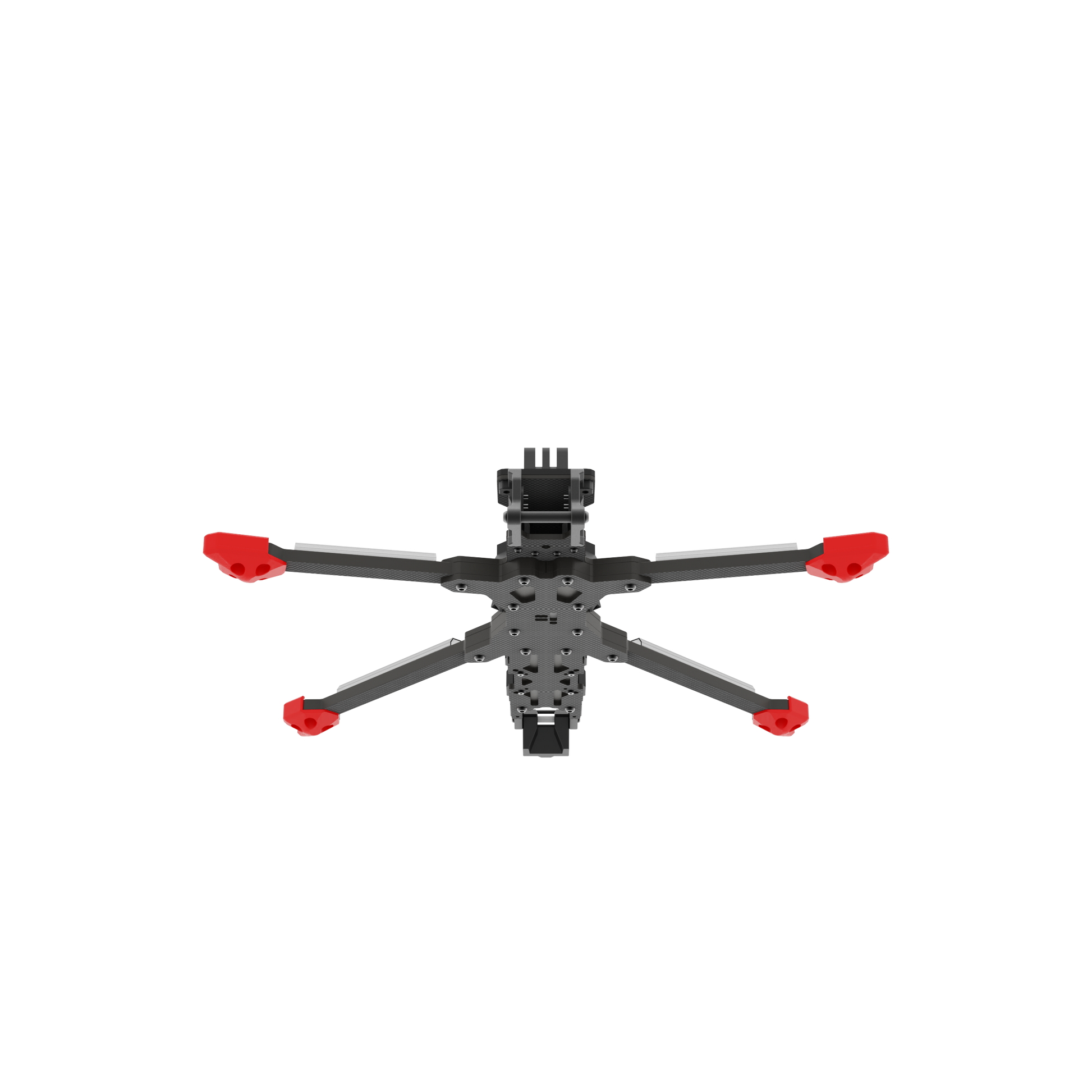

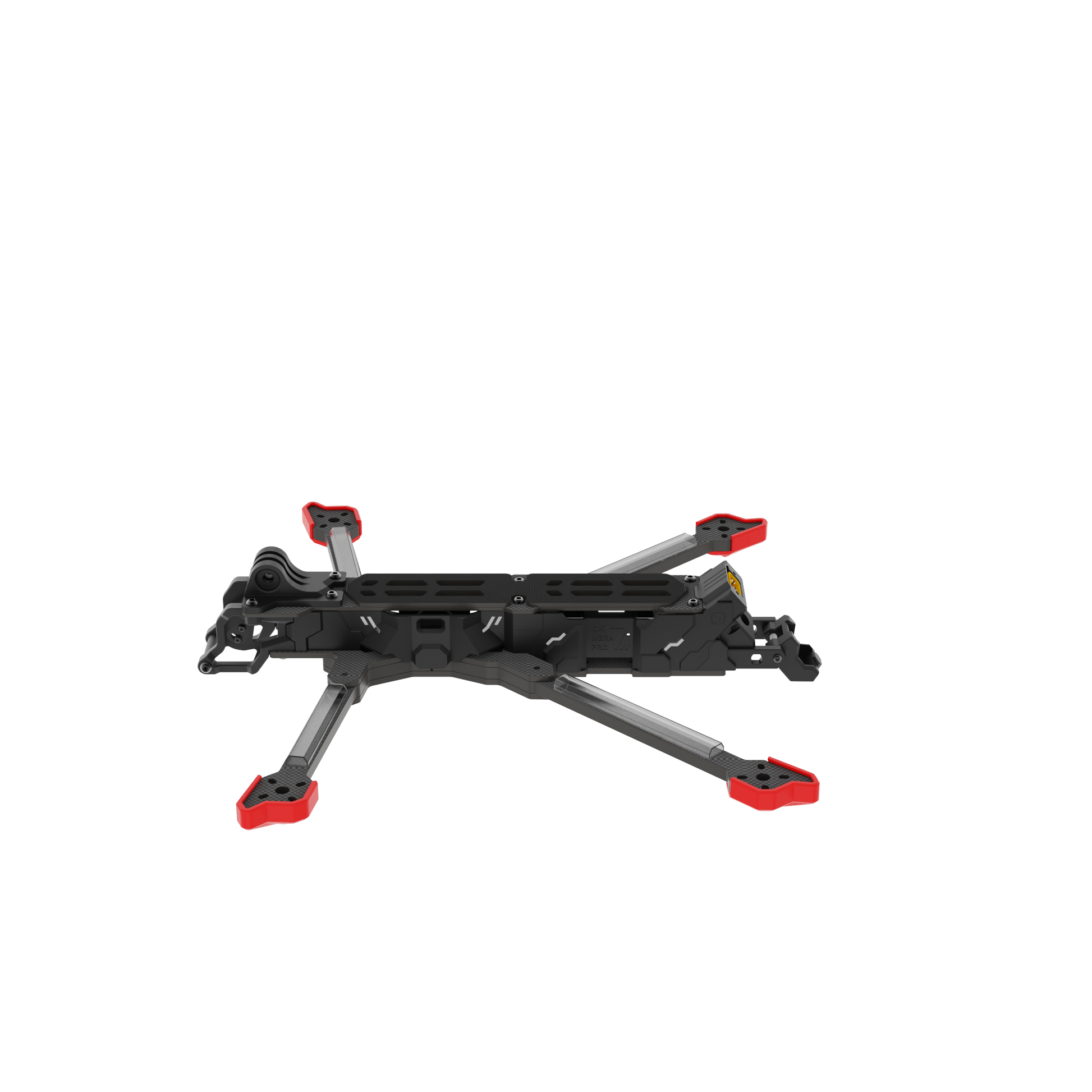

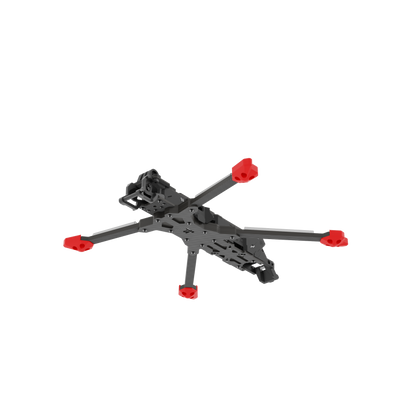

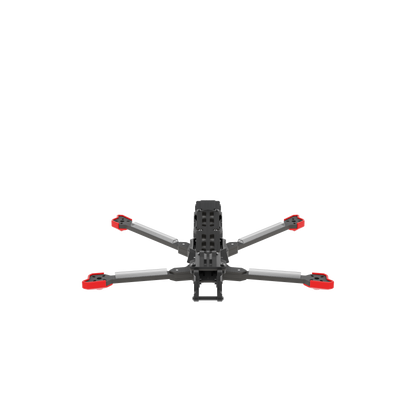

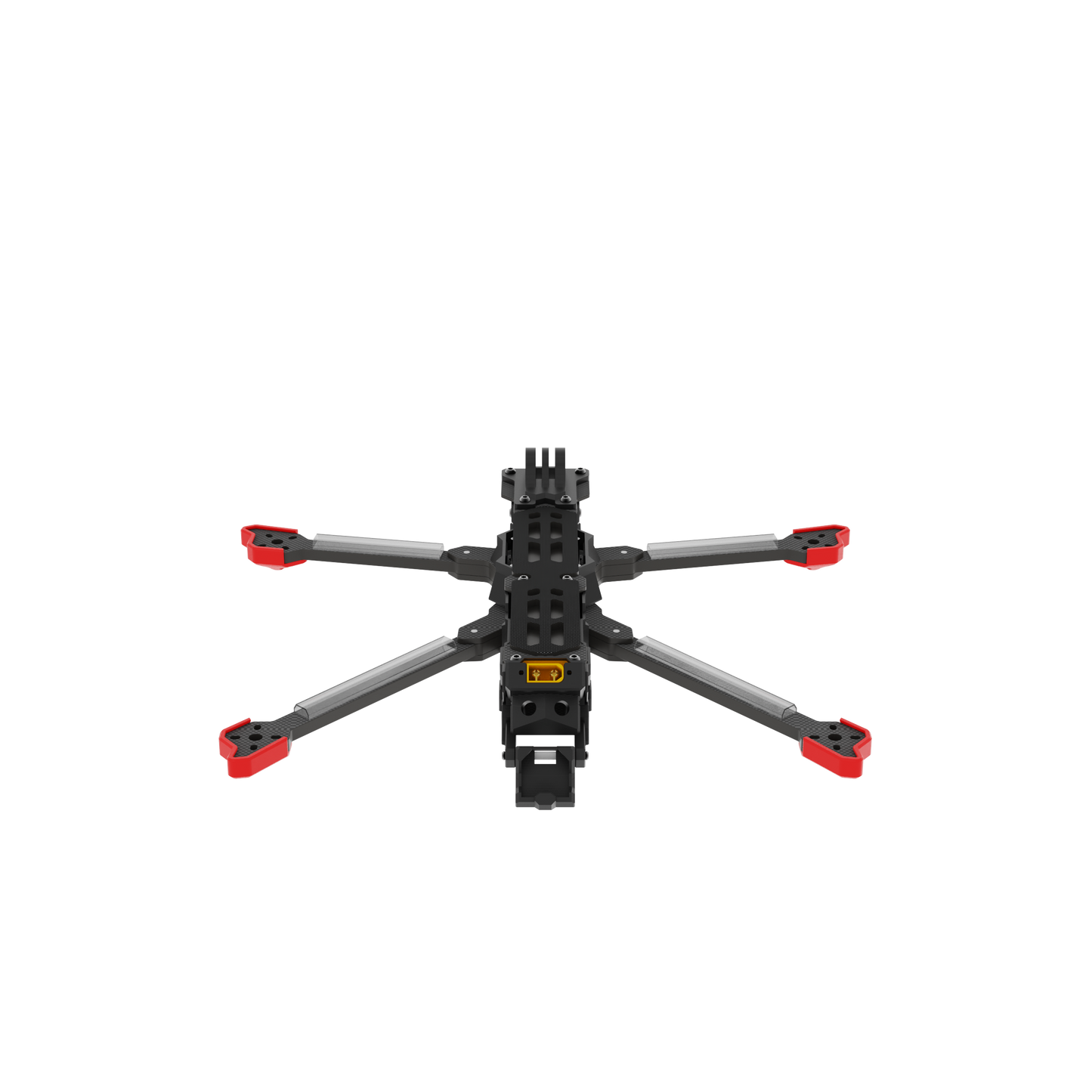

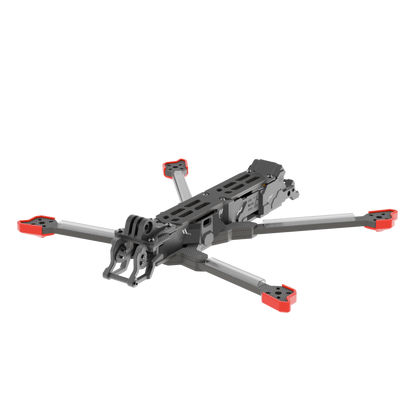

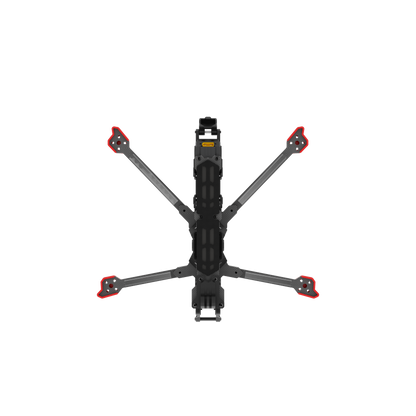

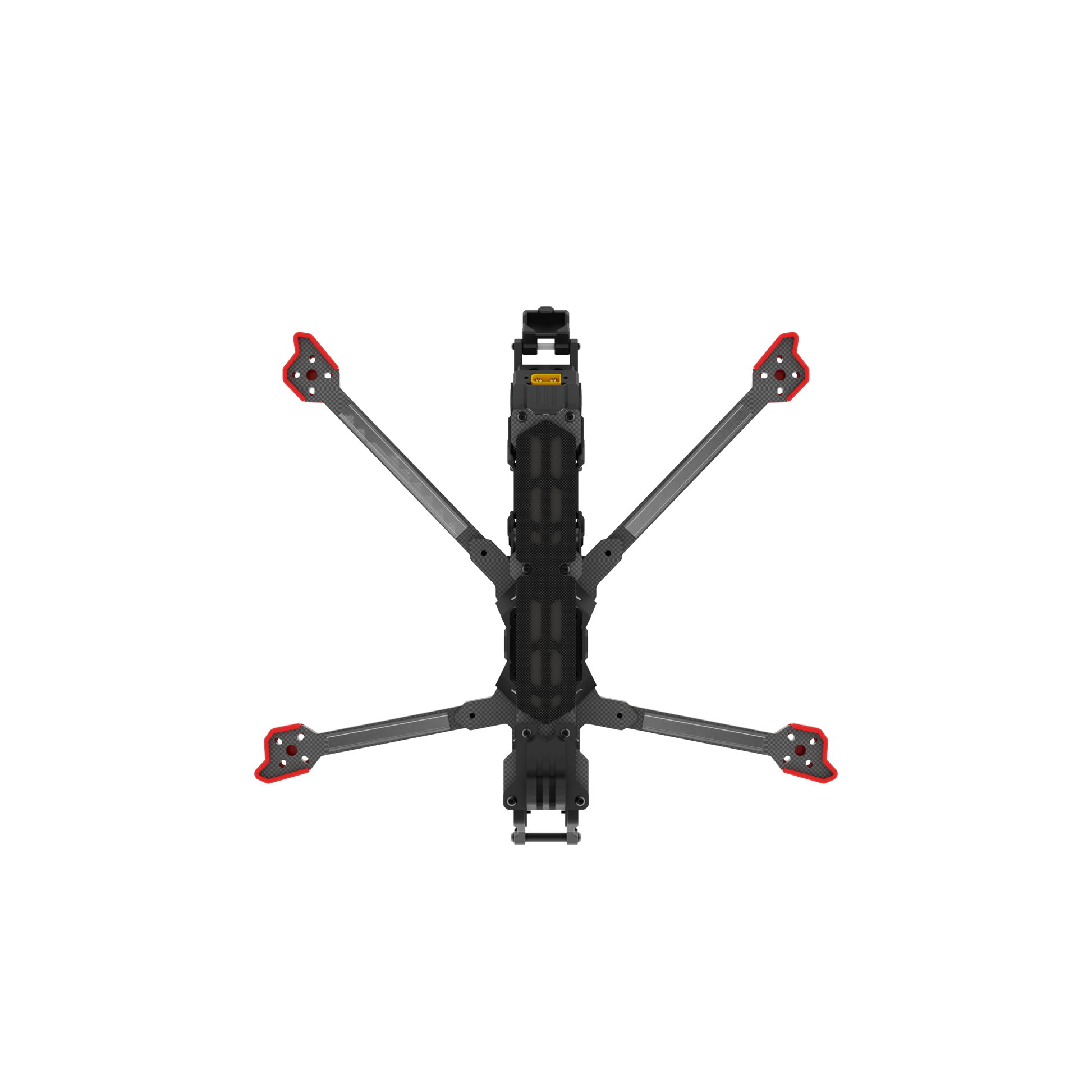

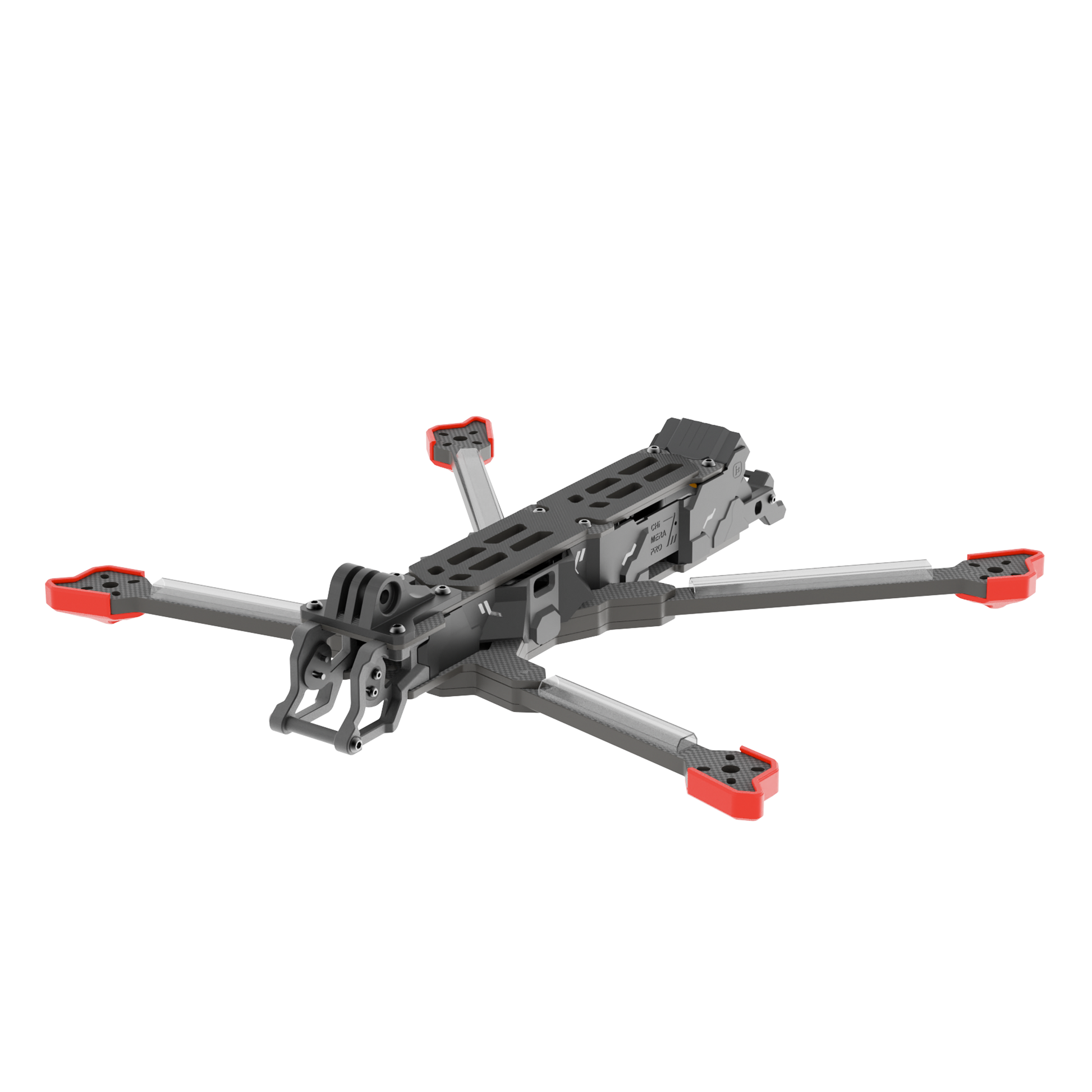

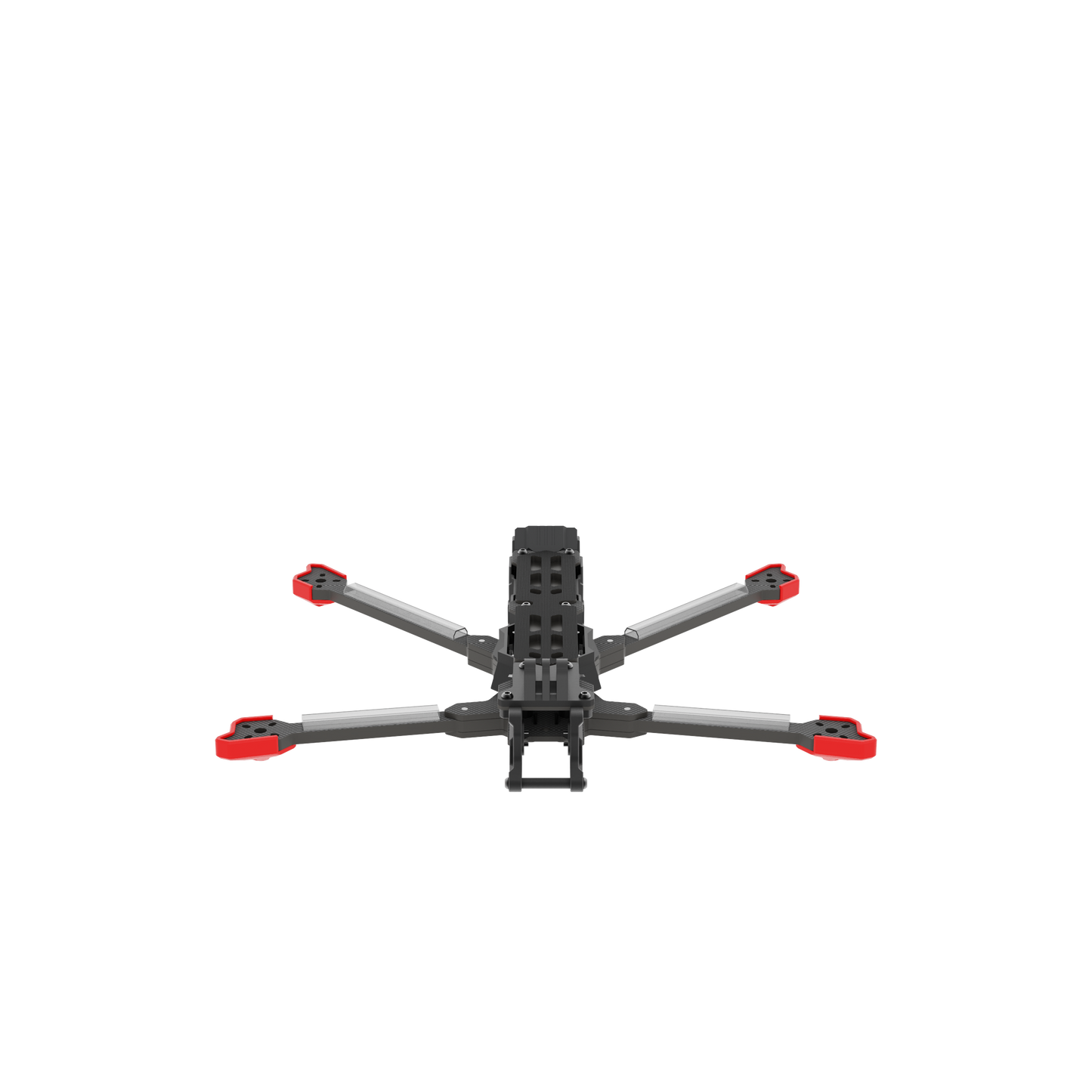

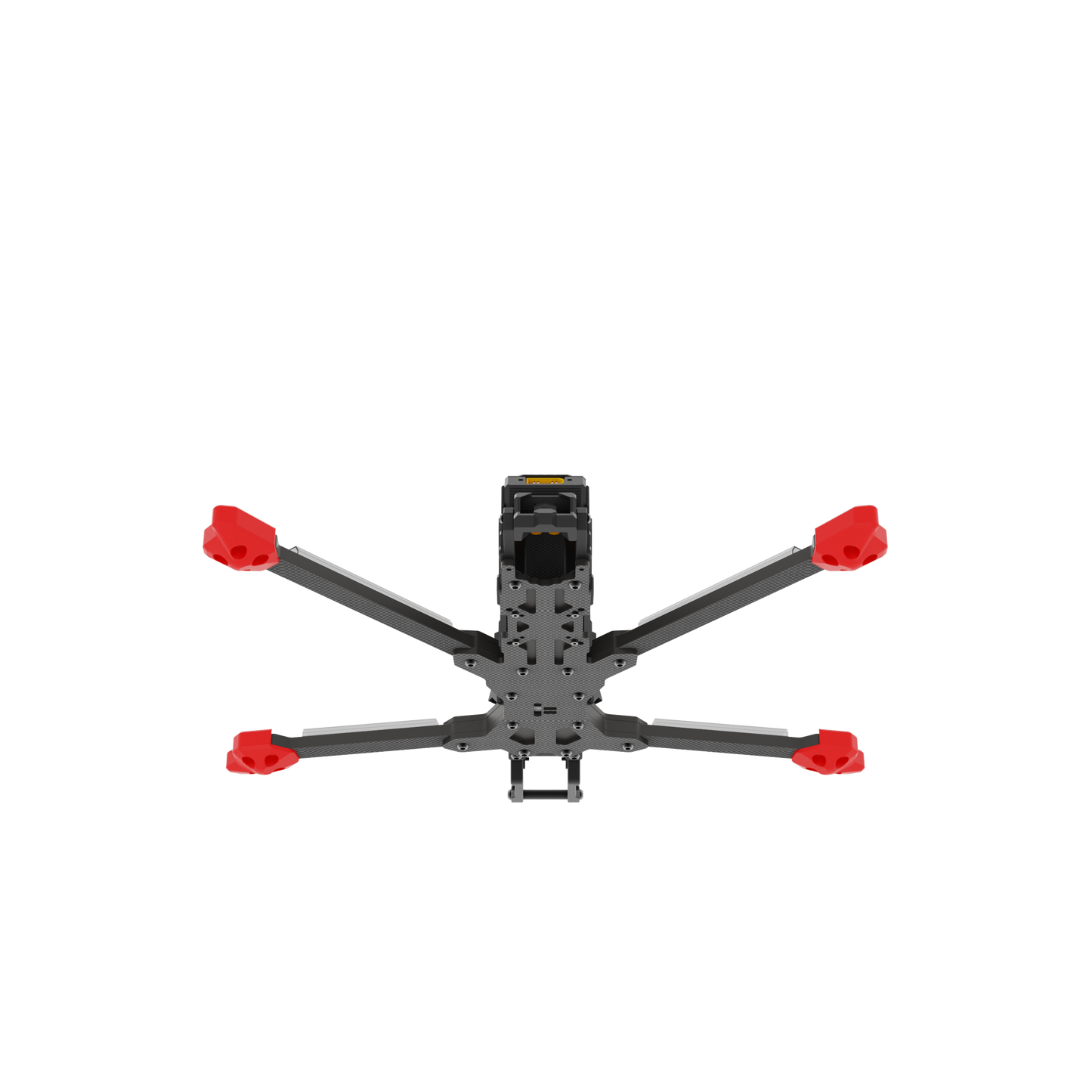

Frame iFlight Chimera7 Pro V2 FPV LR
Frame iFlight Chimera7 Pro V2 FPV LR
Brand: iFlight
Regular price
€142,30
Regular price
€142,30
Sale price
€142,30
Unit price
per
sku: SKU:C013577
Only (2) left in stock - order soon Limited stock available. Order soon!
Couldn't load pickup availability
- Description

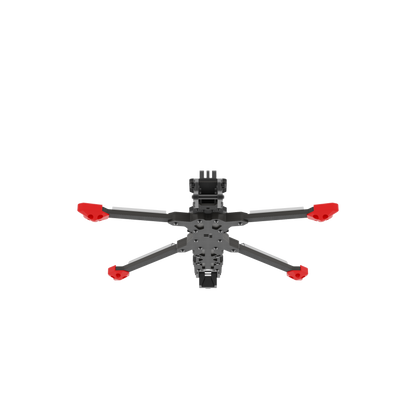

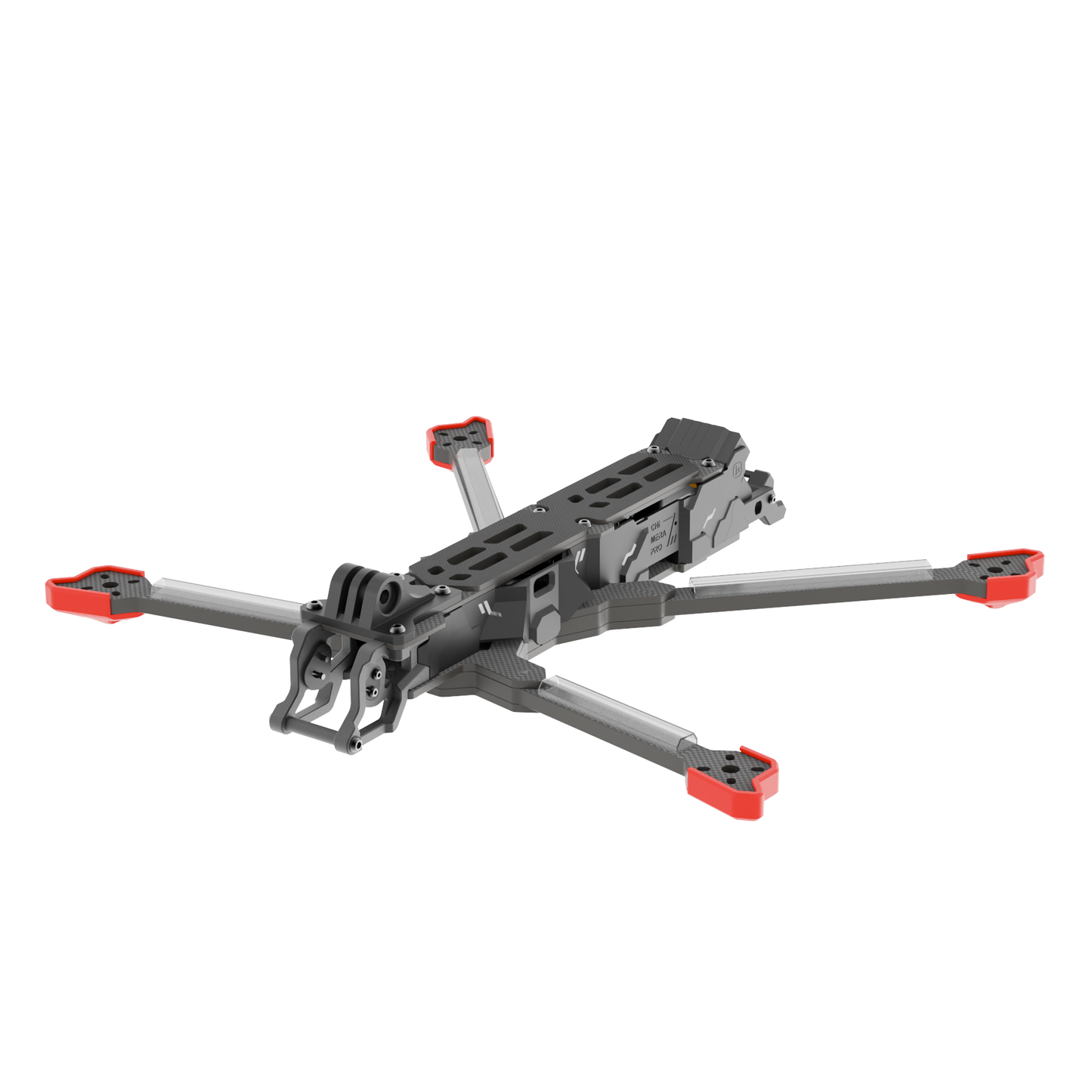

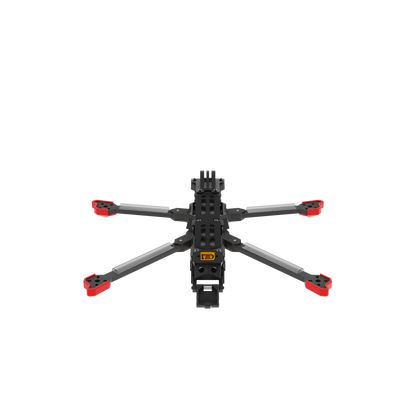

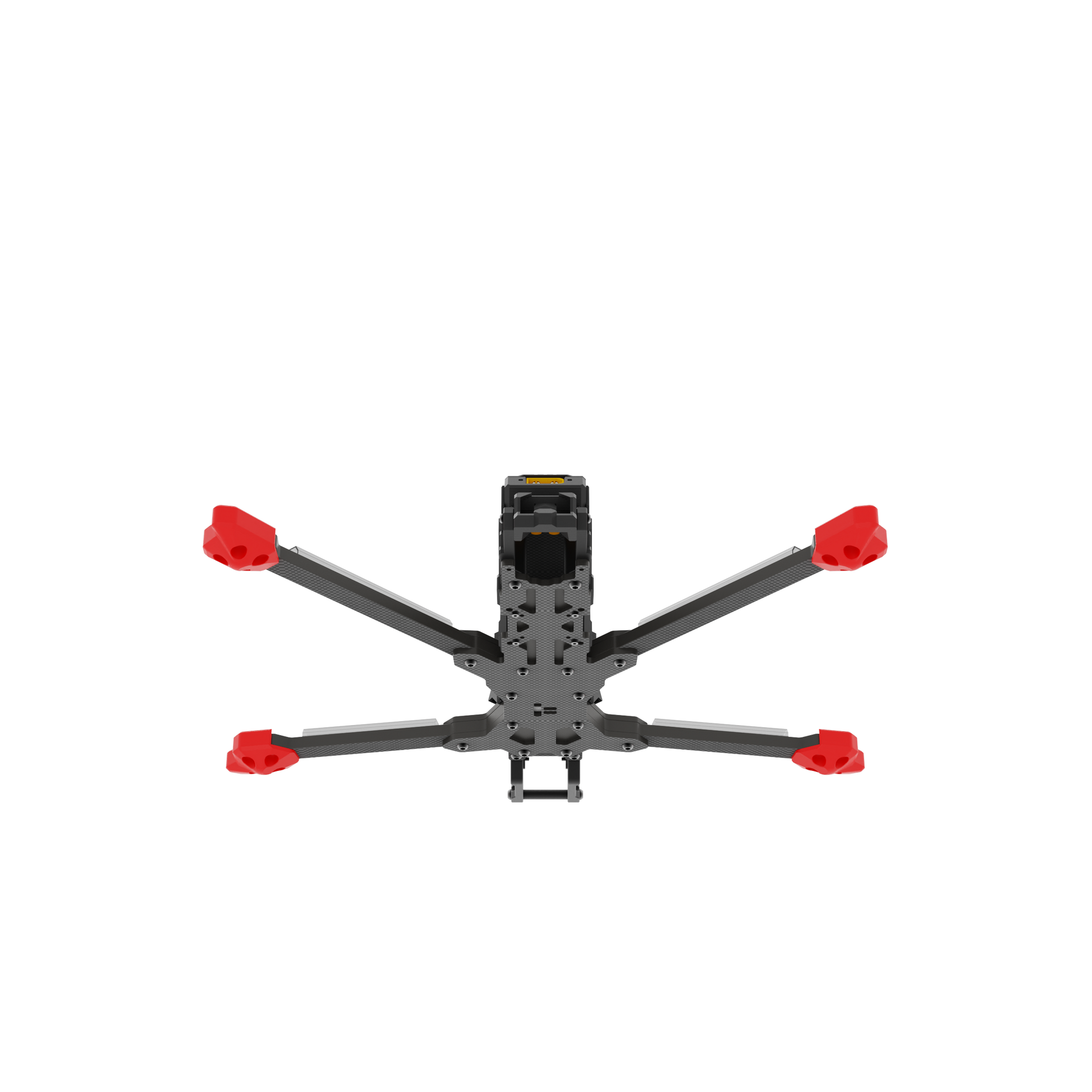

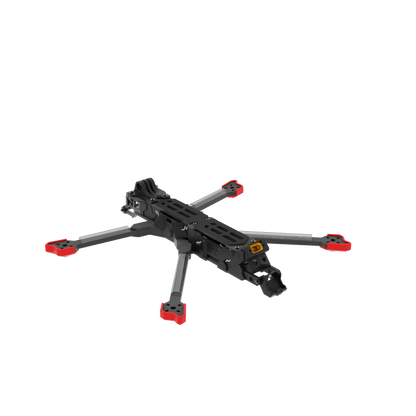

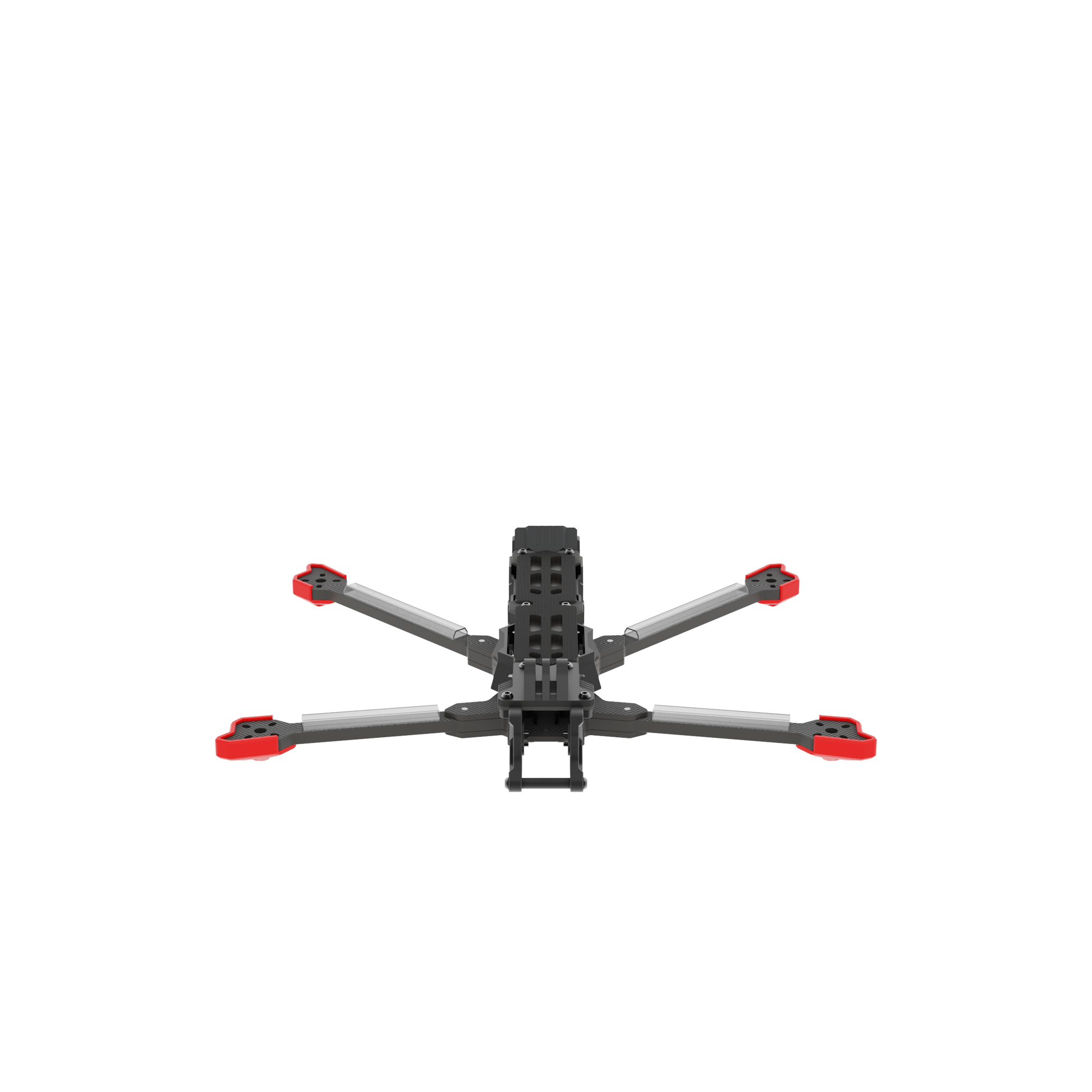

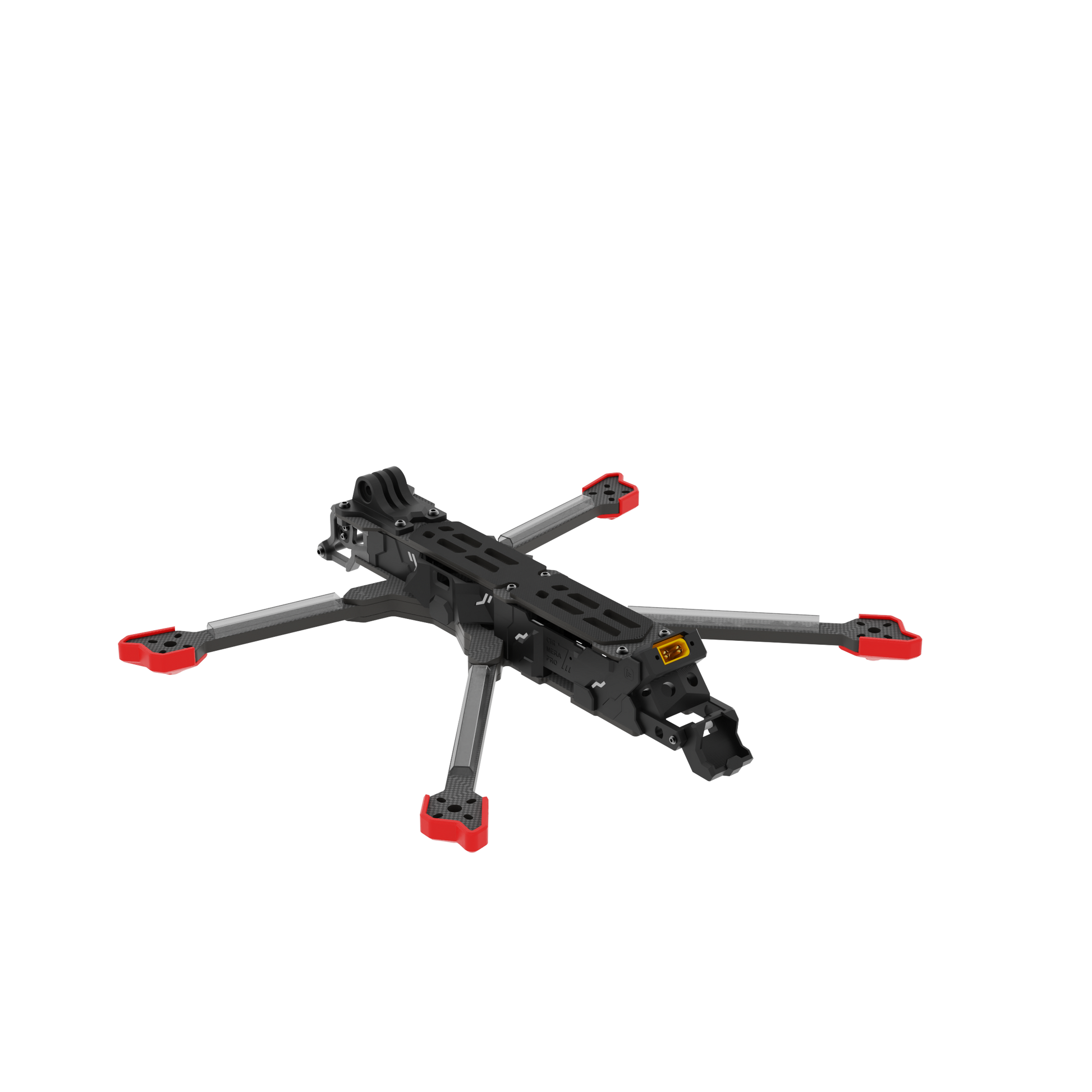

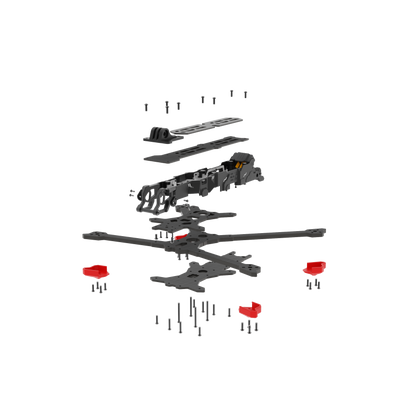

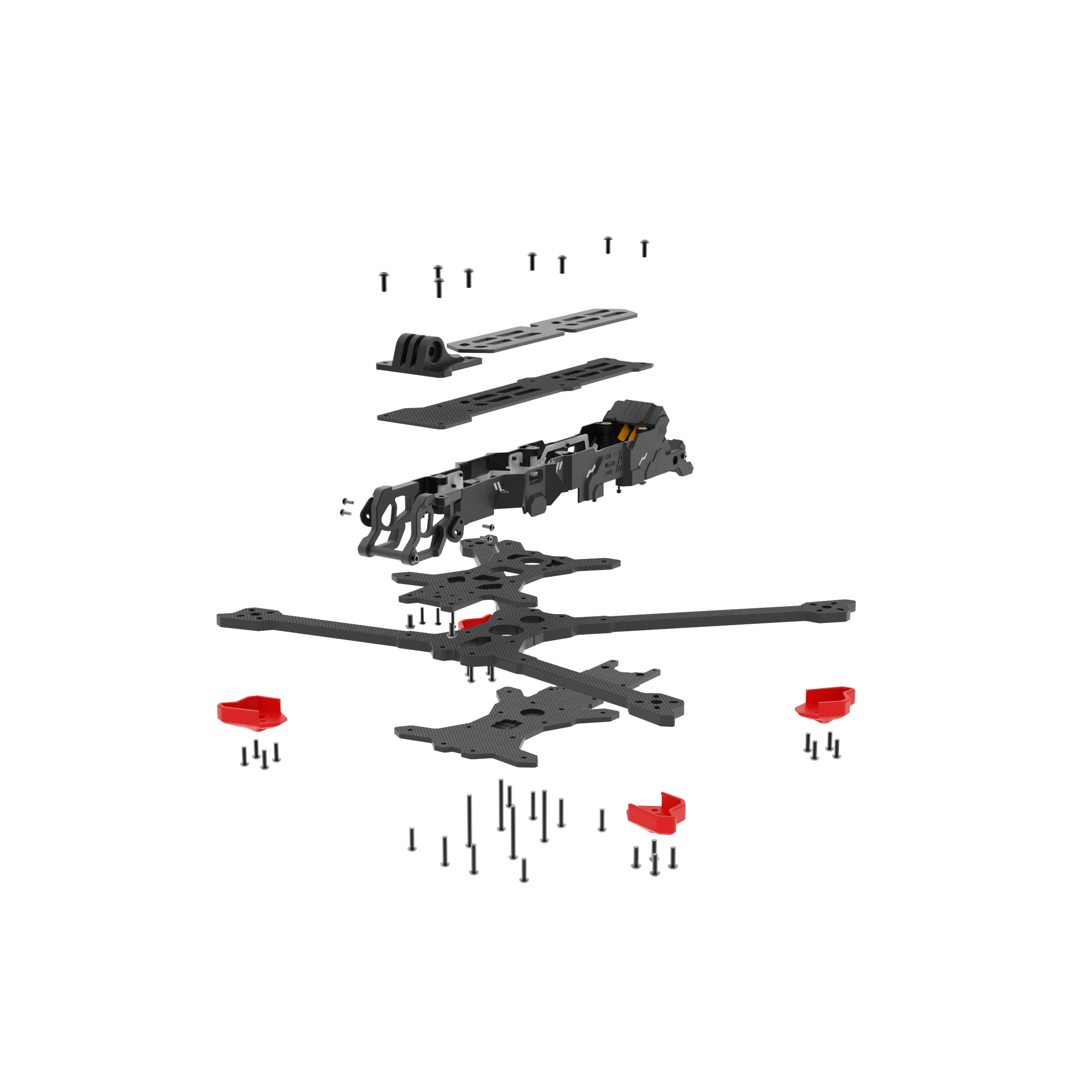

Chimera7 Pro V2 FPV LR Frame Kit The iFlight Chimera7 is a 7.5" long-throw frame designed to provide maximum stability and flight time during cinema shooting. Function: - V2 has been upgraded for DJI O3 HD air unit digital transmission - Specially designed cooler for DJI O3 air unit - New camera mount for wider camera FOV with cushioning TPU inserts - New side panels that perfectly fit the O3 air unit in the back - New dual 5.8G VTX antenna TPU holder - The latest Chimera7 Pro frame upgrades for maximum protection Specifications: Product Name: Chimera7 Pro V2 Frame Kit Wheelbase: 327 mm Frame size: L270*W199*H34 mm Frame body size: 34mm Arm thickness: 6 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Camera plate thickness: 3mm Maximum magazine height: 21 mm Maximum height of VTX: 30 mm Motor mounting: 16x16mm / 19*19mm VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm Weight: 175 grams (without TPU parts) Packing List: 1 x Chimera7 Pro V2 Frame Kit 1x O3 air unit cooler 1x O3 MIPI digital video cable 215mm 2x O3 IPEX to RP-SMA antenna pigtails 1 x O3 dual antenna TPU 1 x GoPro TPU Base Mount 1 x bag of screws 4 x TPU arm protector 1x TPU front bumper 1x TPU rear bumper 2 x non-slip battery mat 2 x battery strap (20*250 mm)
