    Frame iFlight Chimera7 ECO

    Frame iFlight Chimera7 ECO

    Brand: iFlight

    €106,72
    €106,72 €106,72
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: C015261
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

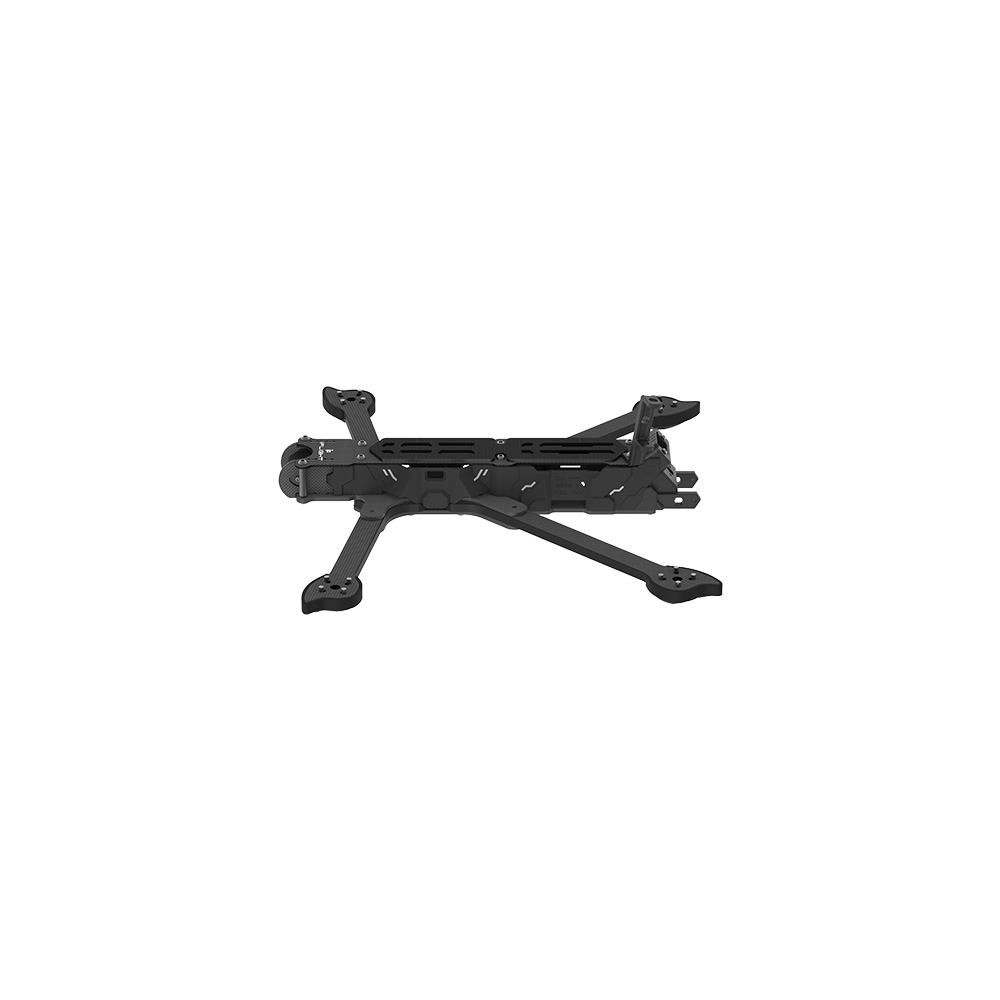

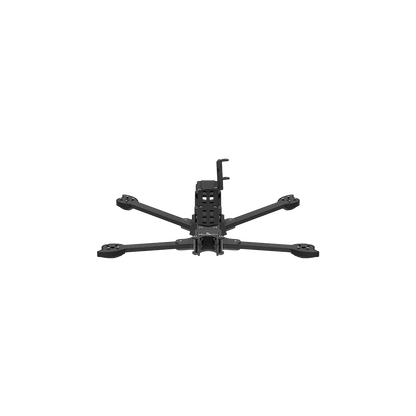

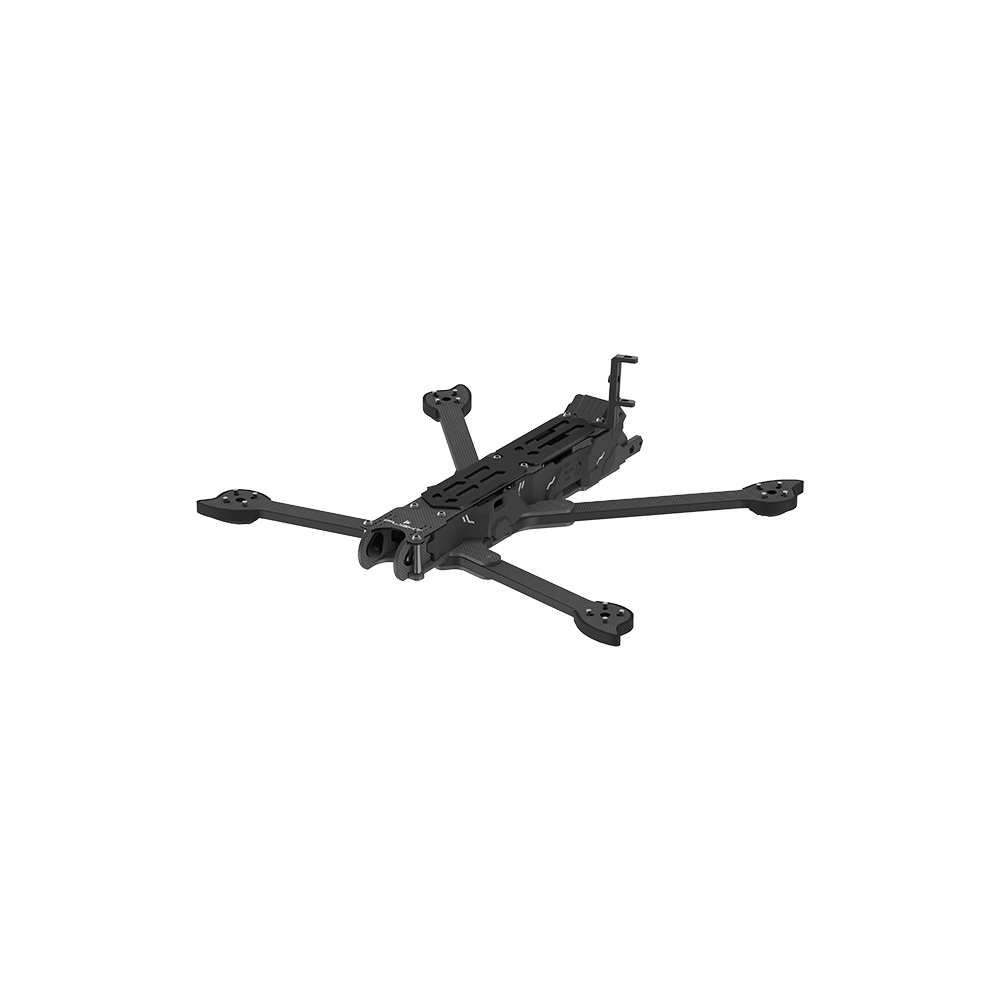

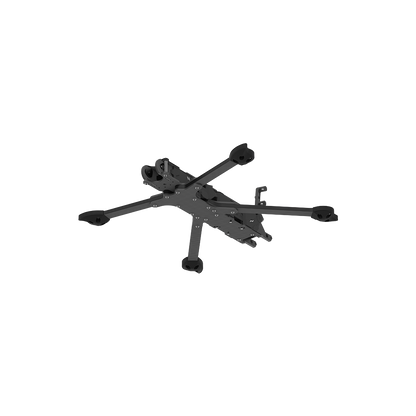

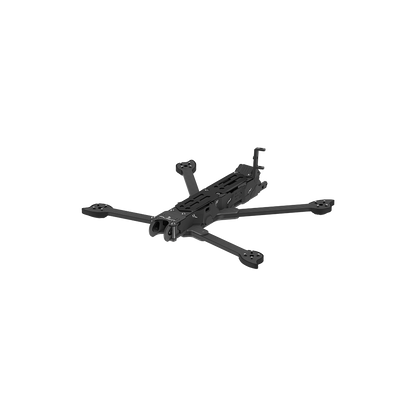

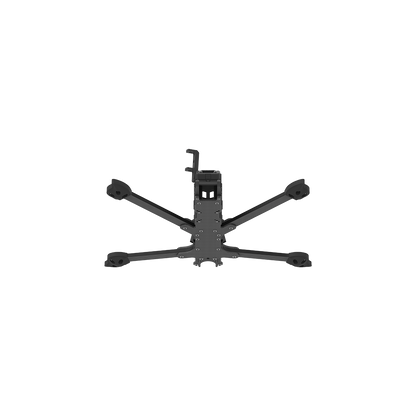

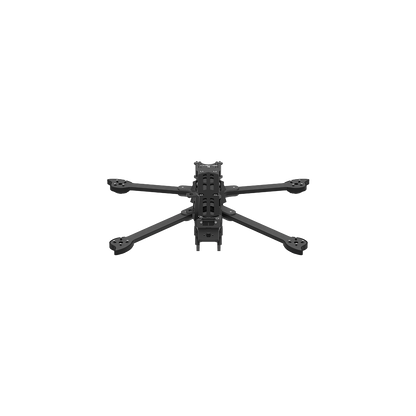

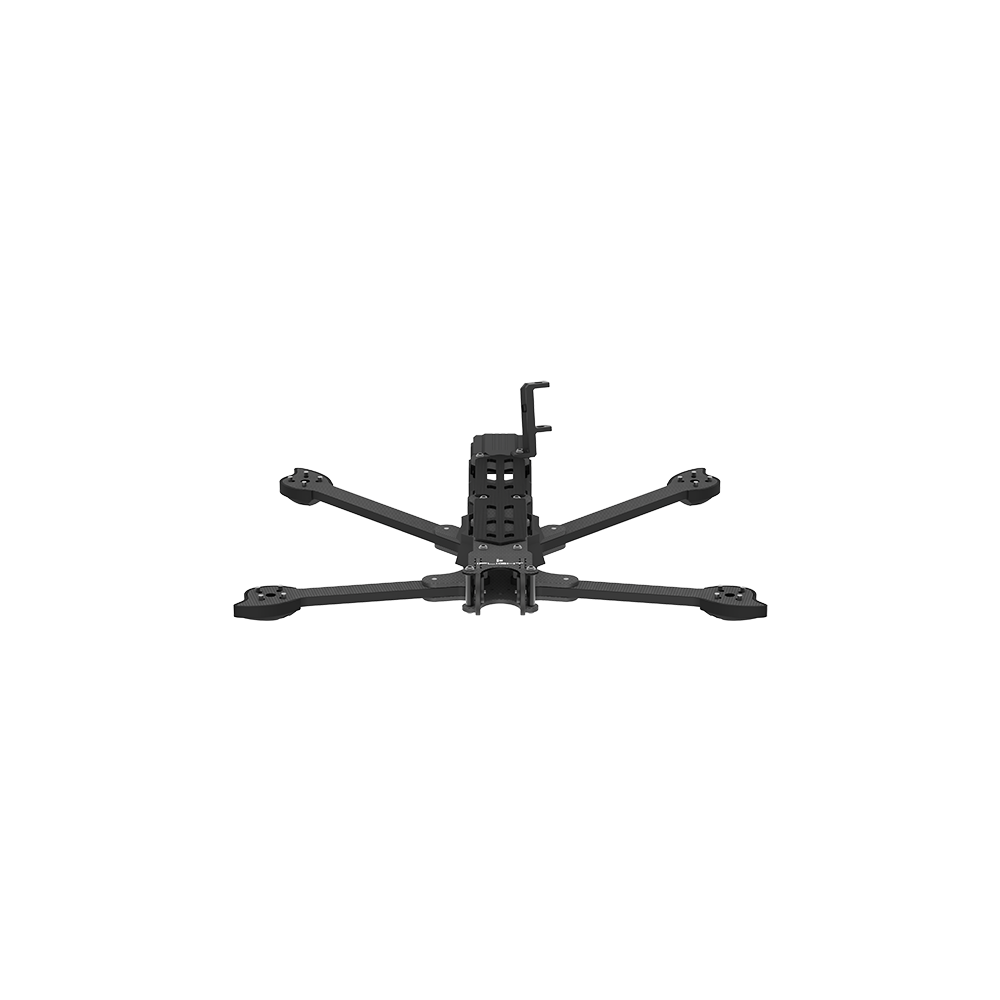

    Chimera7 ECO frame kit


Specifications:
Product Name: Chimera7 ECO Frame Kit
Wheelbase: 327 mm
Frame size: L270*W199*H34 mm
Frame body size: 34mm
Arm thickness: 6 mm
Bottom plate thickness: 3 mm
Thickness of the top plate: 2 mm
Thickness of the top plate: 3 mm
Camera plate thickness: 3mm
Maximum magazine height: 21 mm
Maximum height of VTX: 30 mm
Flight Stack mounting: 30.5x30.5mm /φ3mm
VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Motor mounting: 16x16mm / 19*19mm φ3mm
Weight: 357g

Packing List:
1 x Chimera7 ECOFrame Kit
1x TPU set
1 x bag of screws
1 x non-slip battery pad
2 x battery strap
4 x AMASS MR30 plug
