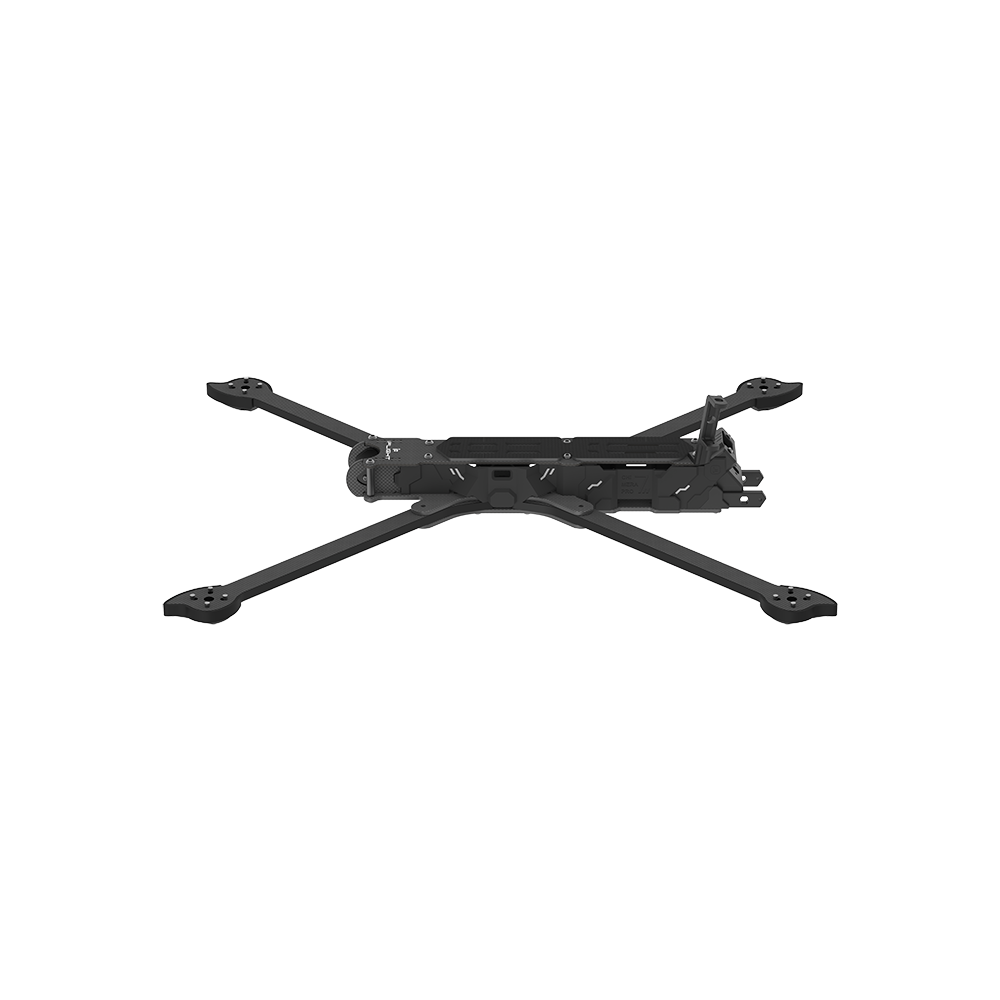

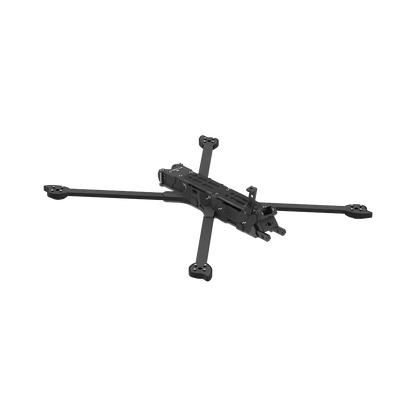

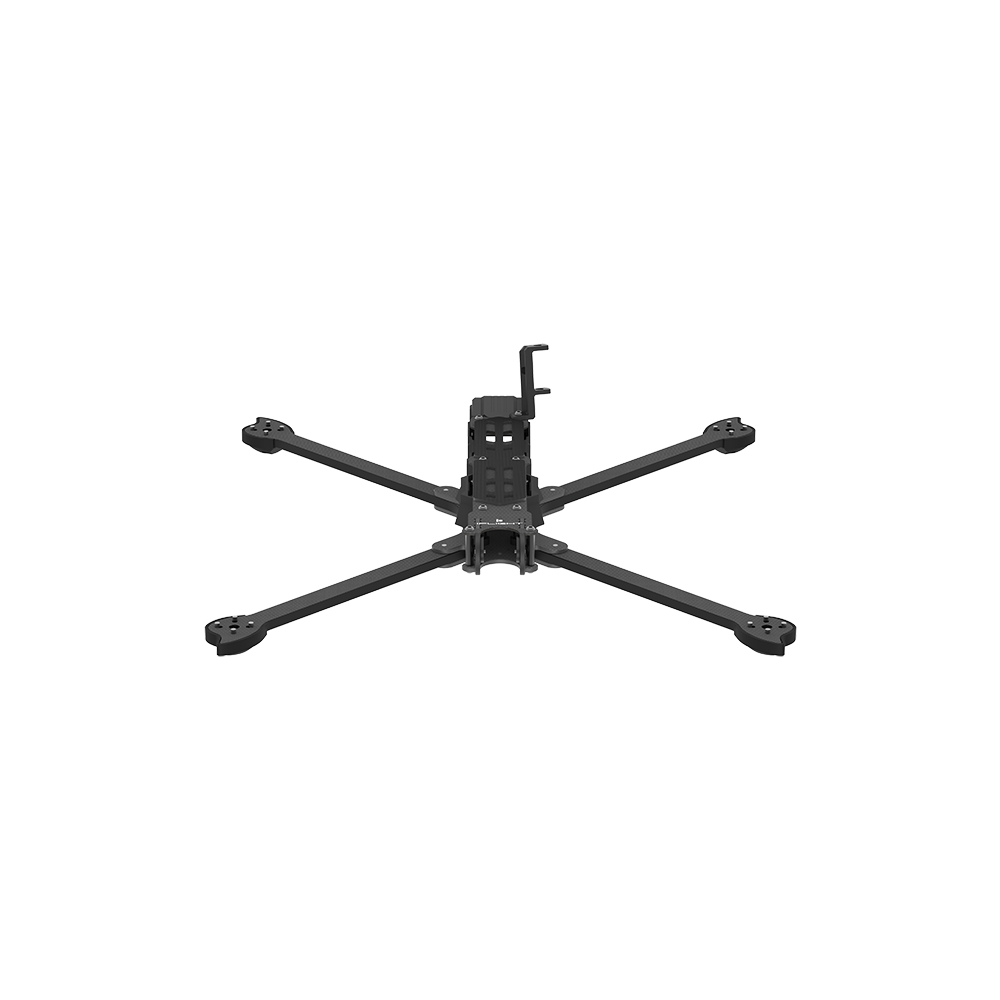

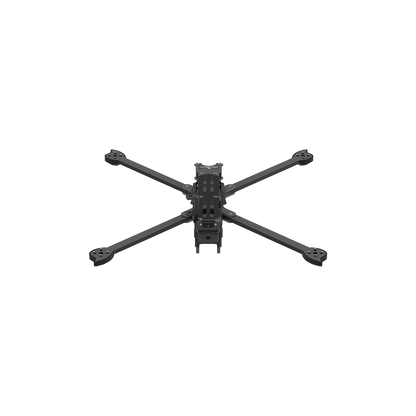

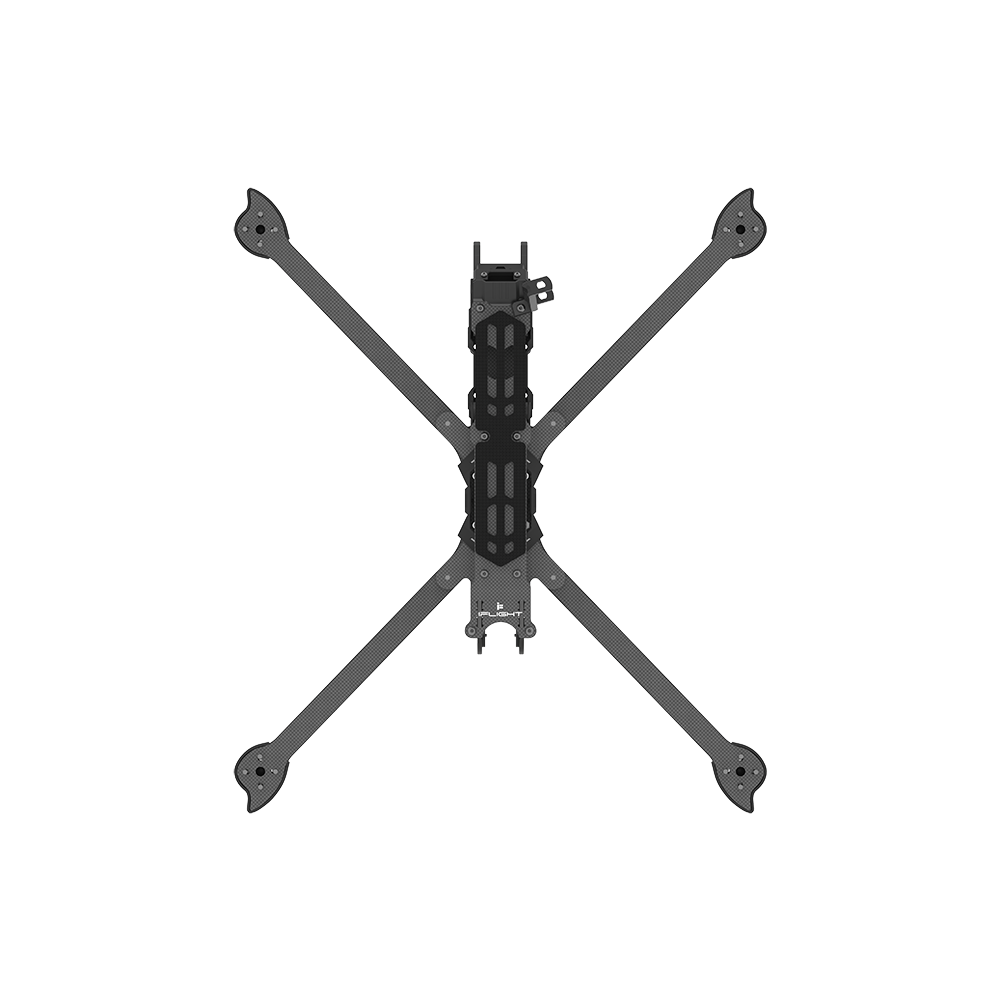

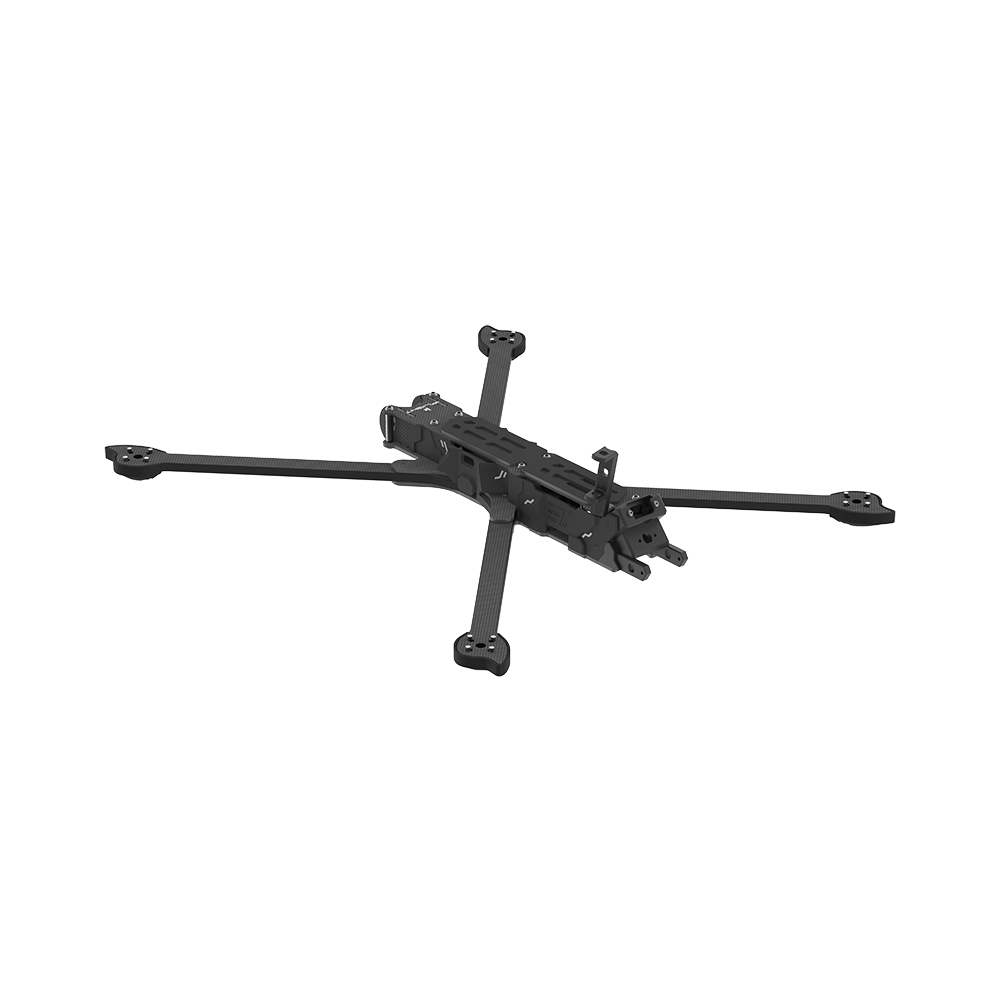

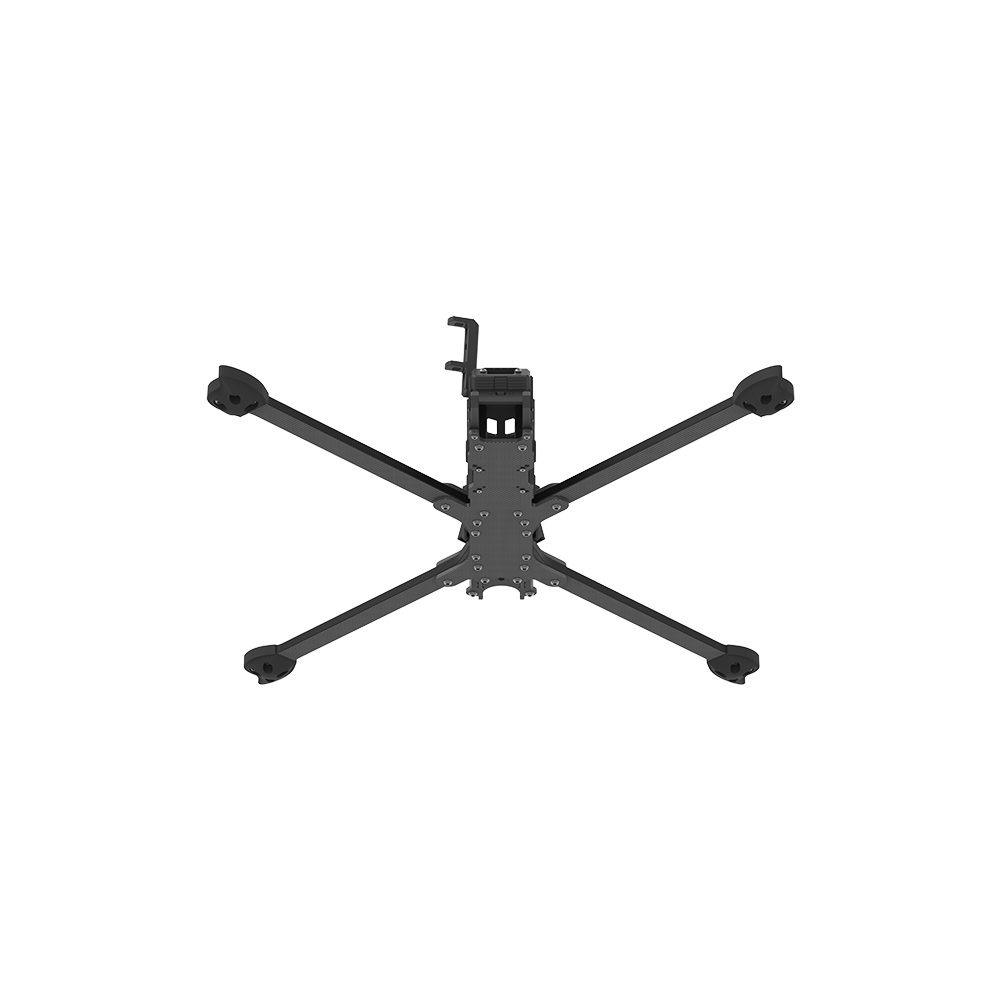

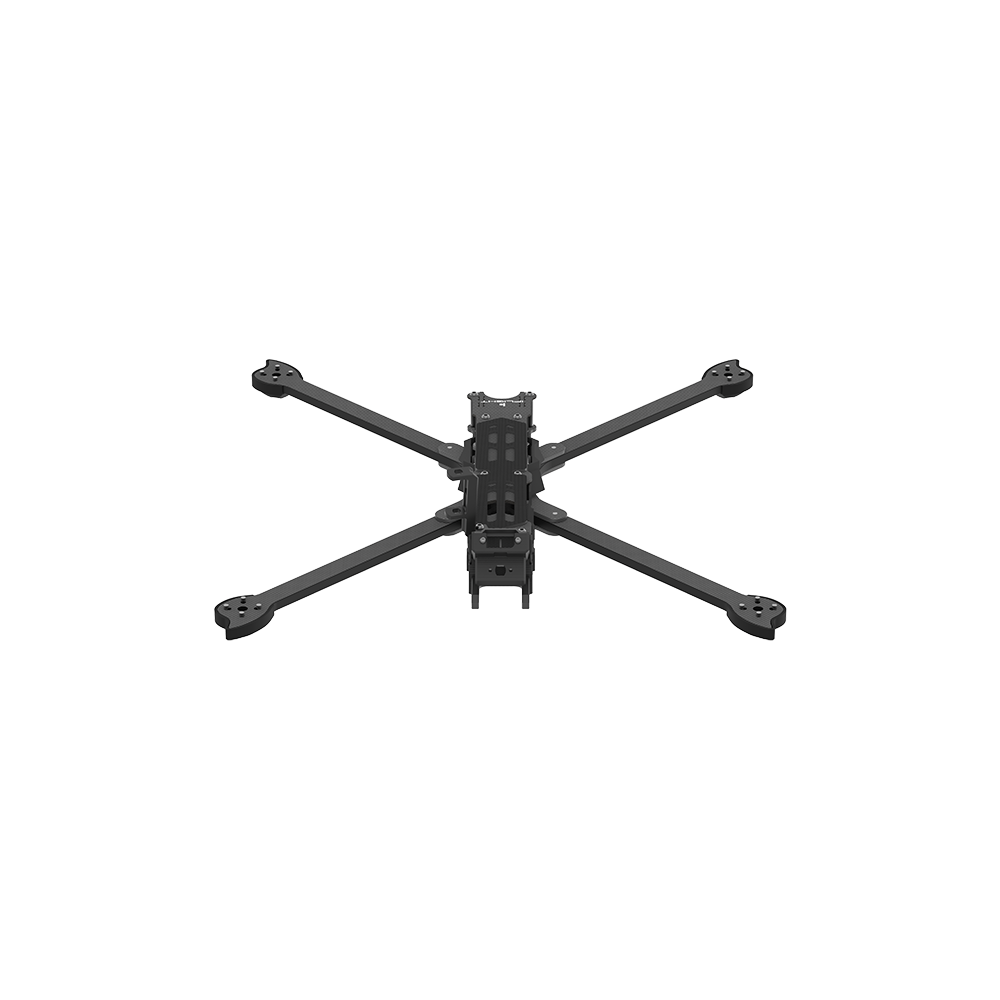

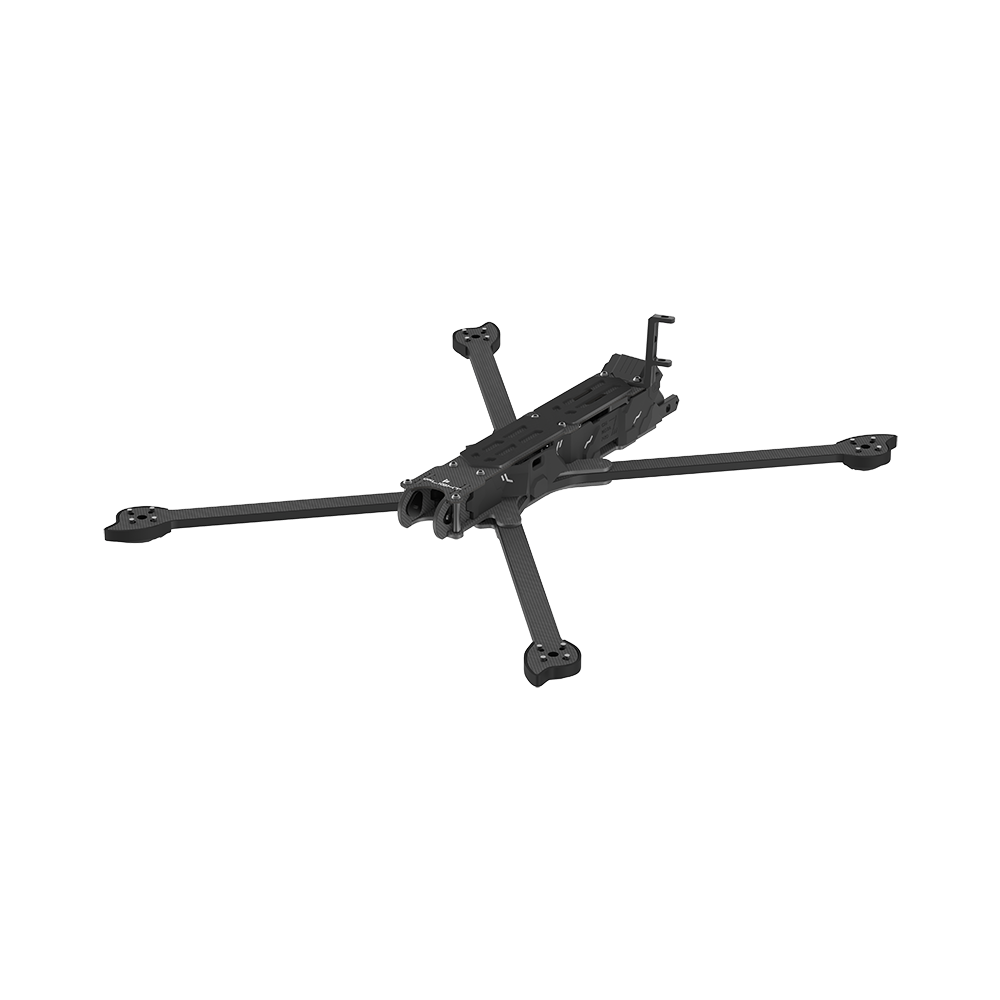

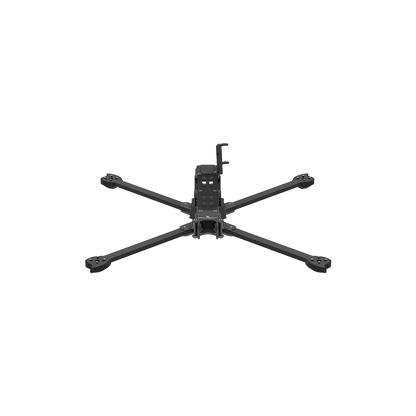

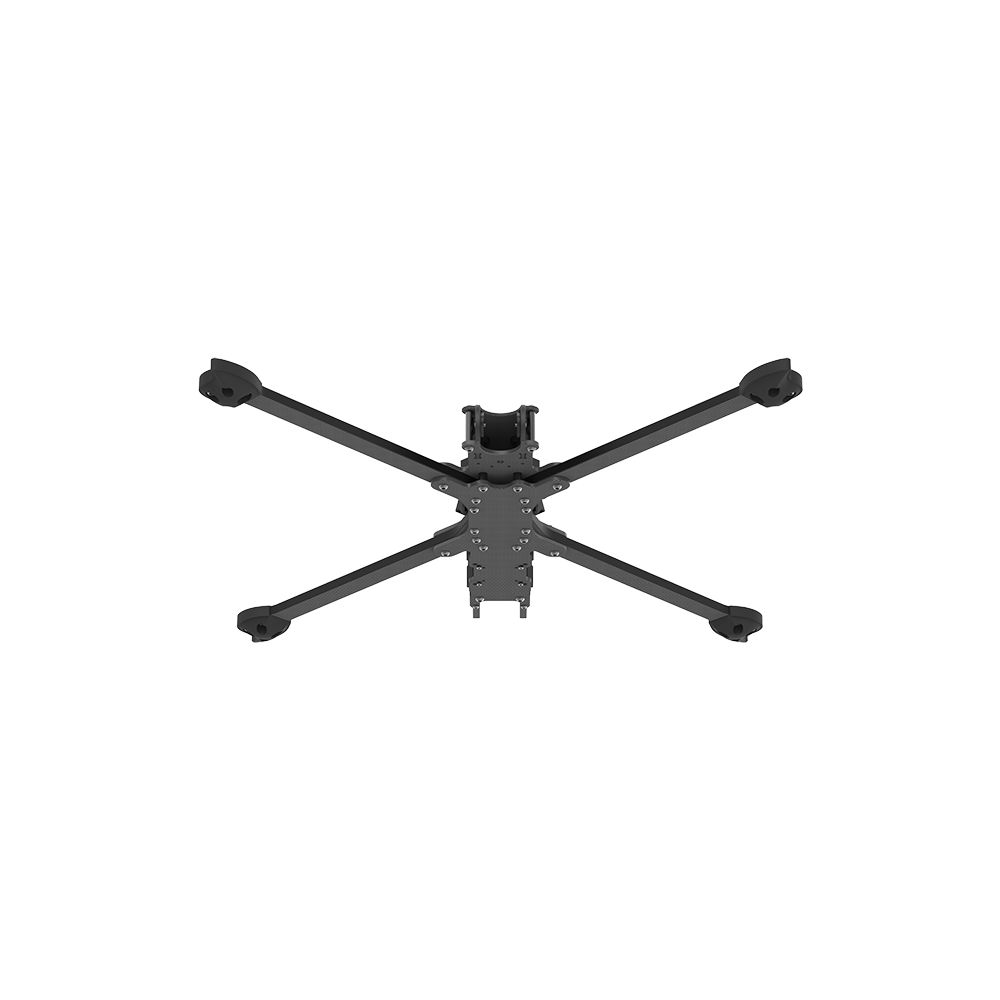

    Frame iFlight Chimera CX10

    Frame iFlight Chimera CX10

    Brand: iFlight

    €117,36
    €117,36 €117,36
    -0% View Product

    sku: C015263

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    Chimera CX10 frameset

    Specifications: Product Name: CX10 ECO 10 Inch Frame Kit Wheelbase: 452 mm Frame size: L338*W299*H34mm Arm thickness: 6 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Maximum magazine height: 21 mm Maximum height of VTX: 30 mm Flight Stack Assembly: 30.5*30.5mm ?3mm VTX mounting: 20*20 ?2mm/ 25.5*25.5 ?1.6mm/ 30.5*30.5 ?3mm Motor mount: 16x16mm/19x19mm ?3mm Weight: 383 g

    Packing List: 1 x CX10 ECO frame 1 x bag of screws 1x TPU set 1 x Battery Anti-Slip Pad 2x battery straps 4 x AMASS MR30 plug
