Frame BETAFPV Pavo25 V2 Brushless Whoop
Frame BETAFPV Pavo25 V2 Brushless Whoop
Brand: BETAFPV
sku: SKU:01090021_1
Out of stockCouldn't load pickup availability
- Description

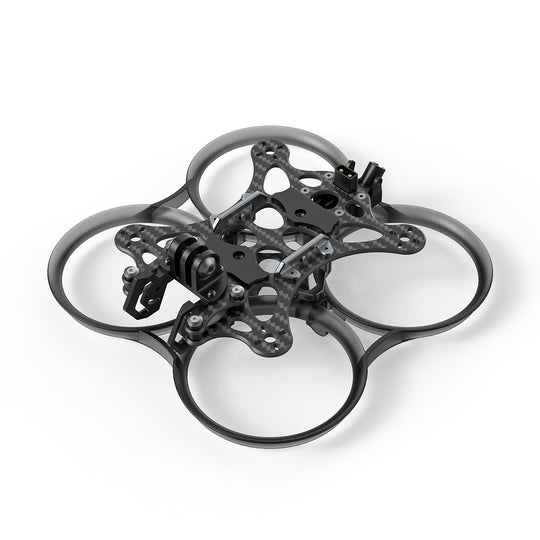

BETAFPV Pavo25 V2 Brushless Whoop frame
The BETAFPV Pavo25 V2 Brushless Whoop frame is designed with advanced performance enhancing features:
- DJI O3 Air Unit Compatibility: The Pavo25 V2 seamlessly integrates with the DJI O3 Air Unit, addressing the limitations of the previous model that failed to meet O3 compatibility. - CNC Y-shaped metal support: This innovative structure improves the overall structural strength, torsion resistance and vibration characteristics compared to traditional aluminum columns, resulting in a faster and smoother response. - Duct Design: Improves lateral stability and increases thrust by 200g compared to frames without propeller cover, providing stronger performance and a better flying experience. - Whoop Duct Riveted Assembly: New design concept and riveted assembly make it easier to install and build stronger, which contributes to the durability of the drone. - COB Light Strip: The frame supports the installation of a remote switchable COB light strip, which allows pilots to enjoy flying in different scenes and conditions.
Specifications:

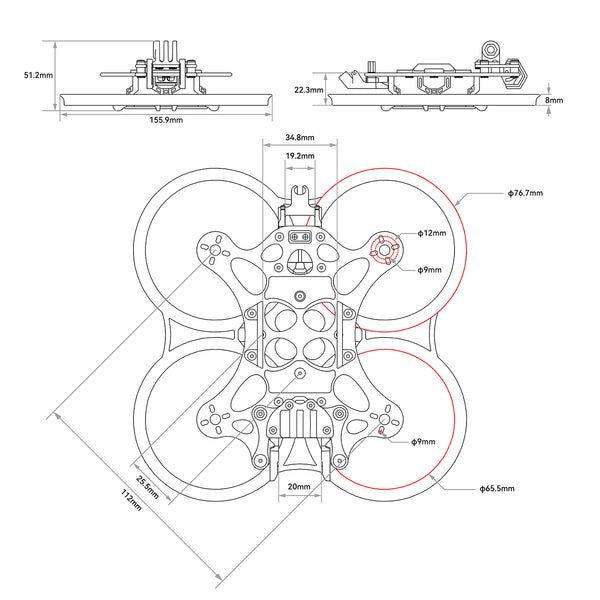

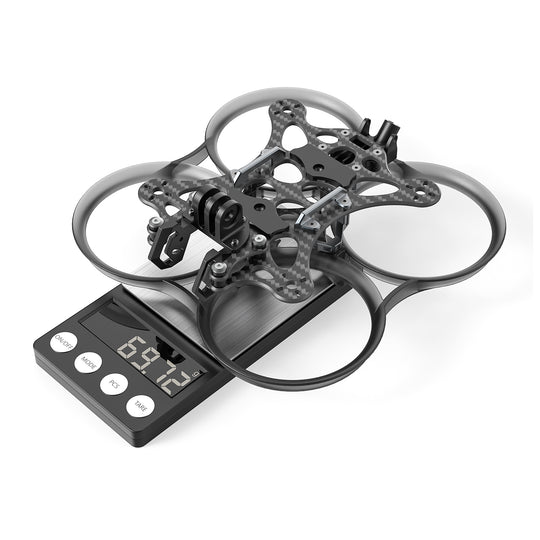

Item: Pavo25 V2 Brushless Whoop Frame Wheelbase: 112 mm Top plate: 2.5mm T700 carbon fiber Base plate: 1.5mm T700 carbon fiber Carbon plate: 2mm T700 carbon fiber Column: CNC aluminum alloy 7075 Battery holder: CNC 7075 aluminum alloy Whoop Duct: PC Injected Translucent Grey Pipe diameter: 65.5 mm Battery Connector: Fixed XT30 Camera installation size: 20mm (compatible with 19mm) HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2 HD VTX antenna mounting hole size: 4mm Flight controller mounting hole size: 25.5 x 25.5mm Motor mounting hole size: 4*M2 EQS ø9mm/ø12mm Weight: 70g:

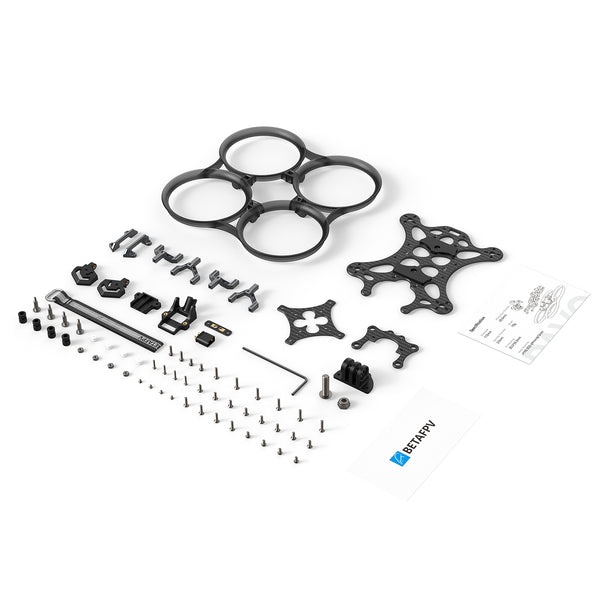

The package includes: 1x Top plate 1x Gimbal Carbon Plate 1x Motherboard 2x battery holder 4x Y-shaped aluminum alloy bracket 1x Hoop channel 1x Receiver holder 1x socket holder 1x Amass XT30U-M socket (black) 1x XT30 Socket Adapter Board 2x Battery Anti-slip mat 1x Battery box 180 mm 4x Flight Controller Amping Ball M2 4x Pan/Tilt ball for vibration reduction M3 4x Pan/Tilt screws 8x M2*6 flat head hexagon socket head screw 4x M2*8 flat head hexagon socket head screw 6x M2*10 flat head hexagon socket head screw 4x Nylon nut M2 1x Accessory pack 1x Service card 1x Frame manual
