Frame BETAFPV Pavo20 Brusless Whoop Blue
Frame BETAFPV Pavo20 Brusless Whoop Blue
Brand: BETAFPV
sku: SKU:01090019_8
Out of stockCouldn't load pickup availability
- Description

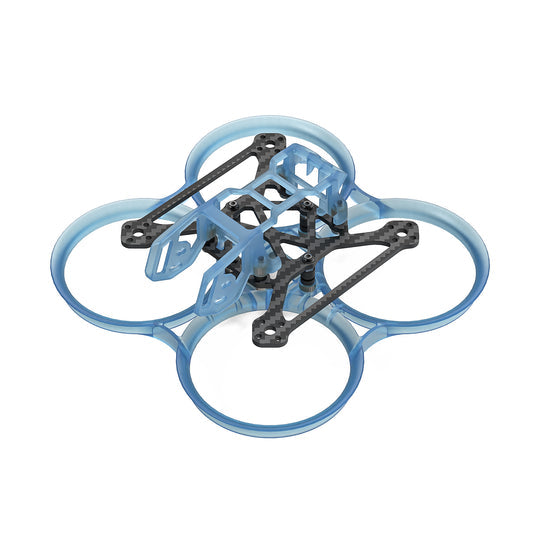

BETAFPV Pavo20 Brusless Whoop frame
- Integrated HD VTX injection mounting bracket eliminates the hassle of adjusting bolt tightness and hassle-free installation. The original broadcast antenna can be mounted directly on the frame kit. - Made of impact-resistant reinforced PA12 channel. Its reinforced cross-sectional design increases strength and blast resistance, utilizes the principles of aerodynamics, and works flawlessly with an improved power system. - The camera's side panel and 4-point fixation design effectively protects the lens while allowing easy installation of ND filters, eliminating any concerns about angle deviation after intense flights. - Open slot for battery strap including side limiting slots ensures secure and stable battery placement that accommodates a wide range of batteries. Supports 2~4S batteries.
Specifications:

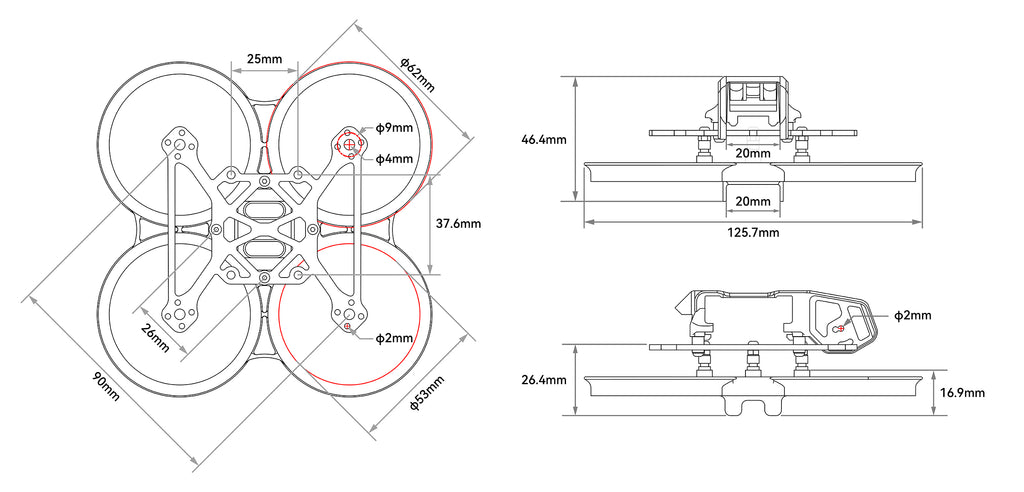

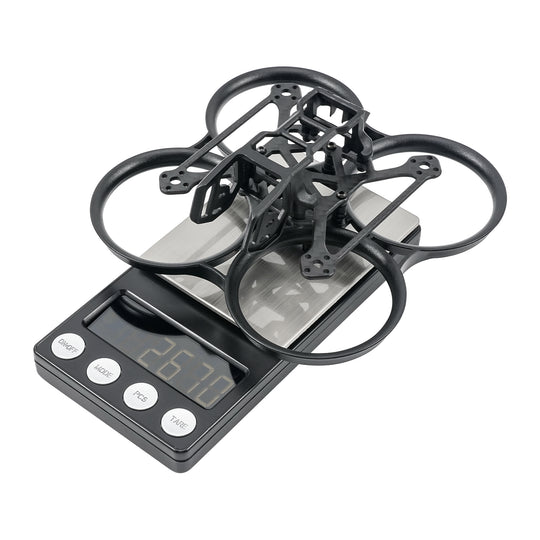

Item: Pavo20 Brushless Whoop Frame Wheelbase: 90 mm Weight: 26.7g (with HD VTX mount), 13.8g (Whoop Duct), 4.1g (HD VTX mount only) Color: Blue Thickness of the top plate: 2 mm Camera: 19mm/20mm Camera Filter: Support FC Mount: 26x26mm, suitable for conventional whoop FC Motor mounting: 4-M2-?9mm Battery slot width: 20mm
Recommend parts:
FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1 Engine: 1103 | 8000kv/8500kv/11000kv Propellers: GF 2015-2B, GF 2020-4B Battery: 2S~4S 450mAh~650mAh VTX: DJI O3, Caddx Vista, RunCam Link
The package includes: 1x Pavo20 top plate 1x 20*20mm VTX mounting plate 1x channel Pavo20 Whoop 1x Pavo20 VTX holder 1x 130mm battery strap 2x Battery non-slip mat 2x 5.8g antenna 8x M2 nuts 10x Rubber damper 6x M2*10 screws 6x M2*3 screws 4x M2*14 screws 4x M2*15 screws
