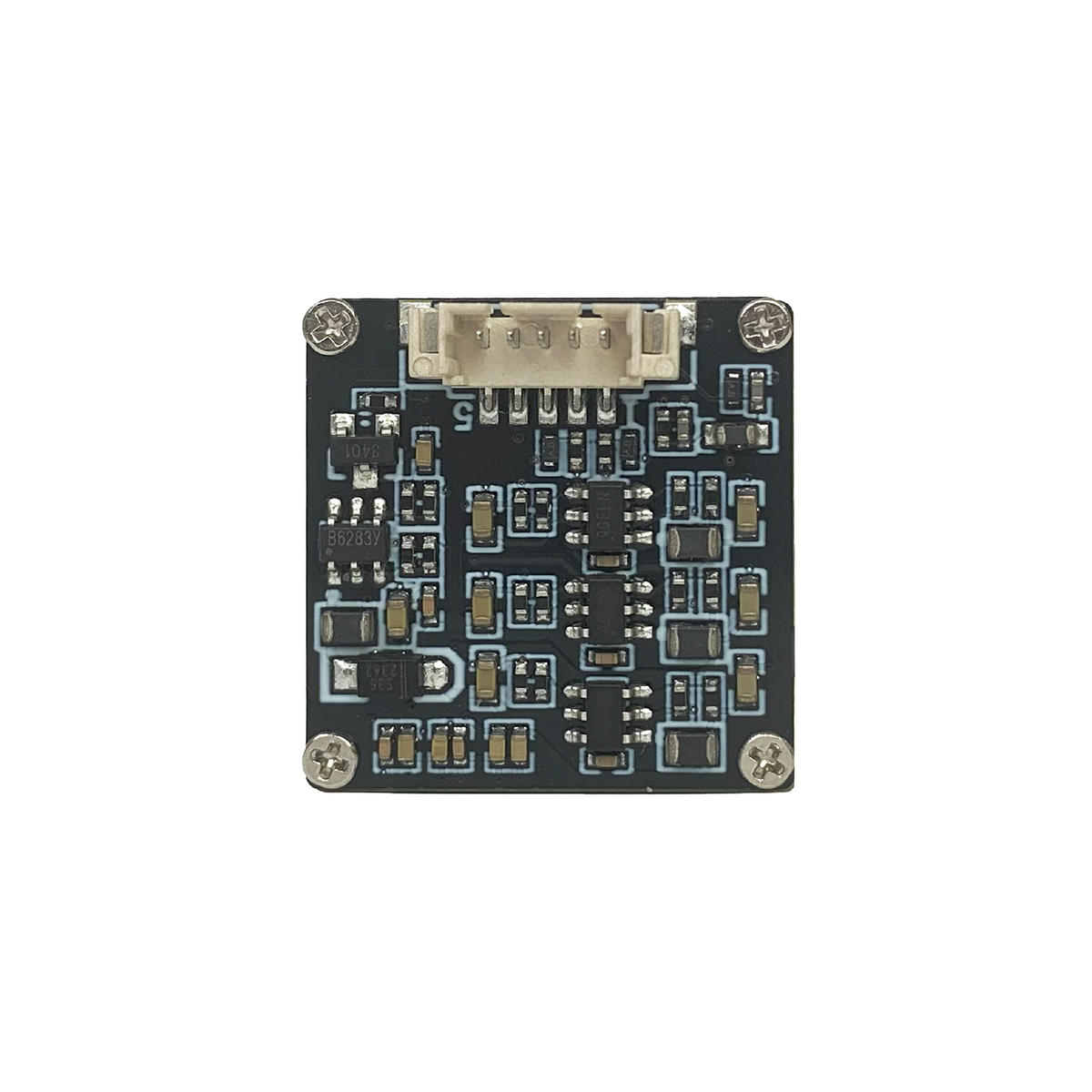

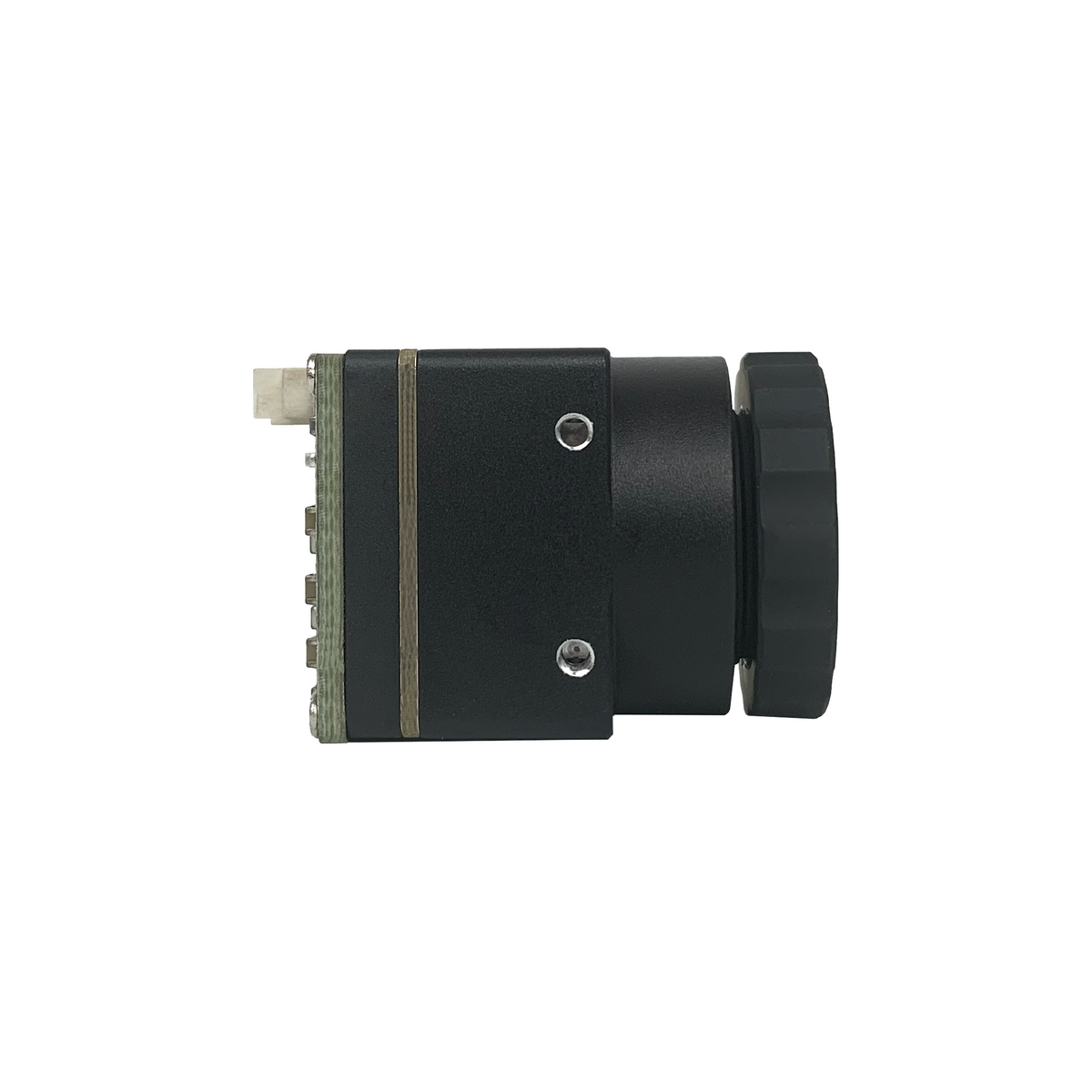

FPV Thermal camera Partizan T384 (6.8mm)
FPV Thermal camera Partizan T384 (6.8mm)
Brand: Partizan
sku: SKU:6624
AvailableCouldn't load pickup availability
- Description
The Partizan Thermal T384 FPV Camera is a cutting-edge thermal imaging solution specifically designed for drone applications. The camera is equipped with a 6.8mm lens and operates in a wavelength range of 8 to 14?m ensuring precise heat signature detection. With its resolution of 384×288, it delivers clear and accurate thermal images. The camera's robust design allows it to operate effectively in extreme temperatures, from -40? to +80?, and its lightweight construction (only 20 g) ensures minimal impact on drone flight dynamics.
Technical Specifications:
Sensor Type: Vanadium oxide (VOx) microcalorimeter – A type of uncooled infrared sensor technology, commonly used for thermal imaging due to its sensitivity and stability.
Maximum Image Size: 384x288 pixels – This defines the resolution of the thermal images captured by the sensor.
Pixel Size: 12?m – Refers to the size of each individual pixel on the sensor. Smaller pixels generally offer higher resolution.
Response Wave Band: 8~14 ?m – This is the infrared wavelength range that the sensor is sensitive to, which corresponds to the thermal radiation emitted by most objects at typical Earth temperatures.
NETD (Noise Equivalent Temperature Difference): ?40mK (@25°C, F#1.0) – Indicates the sensitivity of the sensor; a lower NETD value means the sensor can detect smaller temperature differences, improving image quality.
Viewing Angle: 26.46°(H) x 19.81°(V), 33.19°(D) – The horizontal (H), vertical (V), and diagonal (D) field of view angles provided by the lens.
Lens: 6.8mm – The focal length of the lens, influencing the field of view and image magnification.
Storage Temperature: -45°C to +75°C – The temperature range within which the sensor can be stored without damage.
Storage Humidity: <90% RH – The maximum relative humidity at which the sensor can be stored.
Operation Temperature: -40°C to +60°C – The temperature range within which the sensor can operate effectively.
Operation Humidity: <90% RH – The maximum relative humidity at which the sensor can operate.
Weight: 23g – The weight of the sensor, making it lightweight and likely suitable for portable applications.
Dimension: 21mm x 21mm x 38mm – The physical size of the sensor, indicating it’s quite compact.
Power: ?0.8W – The maximum power consumption of the sensor, indicating it’s energy-efficient.
DC in: 5~12V – The range of input voltage required to power the sensor.
Package includes:
1x FPV camera Partizan Thermal T384 (6.8mm)
