FPV Thermal Camera Partizan T384 (4mm) v1.1
FPV Thermal Camera Partizan T384 (4mm) v1.1
Brand: Partizan
sku: SKU:8182
AvailableCouldn't load pickup availability
- Description
Partizan T384 FPV Thermal Camera (4mm) v1.1
The Partizan Thermal T384 FPV Camera v1.1 is an upgraded compact thermal imaging solution designed for drone applications. This version features redesigned connectors on the backside for easier integration and a reduced board size of 20×20 mm, making it suitable for lightweight builds. Equipped with a 4mm lens and operating in the 8–14 ?m infrared band, the camera provides precise heat signature detection with a resolution of 384×288 pixels.
Features:
- Thermal resolution: 384×288 pixels for clear image details
- 4mm lens with 26.46° × 19.81° field of view
- Response wavelength range: 8–14 ?m (infrared spectrum)
- High sensitivity: NETD ?40 mK for accurate temperature detection
- Wide operating temperature range: -40? to +60?
- Lightweight and compact design (20×20 mm board, only 23 g)
- New connector layout (J2 – 3-pin, J3 – 5-pin) for simplified wiring
- Power input: DC 5–12 V, low consumption ?0.8 W
- Automatic freeze-frame refresh every 90s
Specifications:
Sensor Type: VOx microbolometer
Resolution: 384×288 pixels
Pixel Size: 12 ?m
Spectral Range: 8–14 ?m
NETD: ?40 mK (@25°C, F#1.0)
Field of View (FOV): 26.46° (H) × 19.81° (V) × 33.19° (D)
Lens: 4 mm focal length
Operating Temperature: -40? to +60?
Storage Temperature: -45? to +75?
Humidity: <90% RH (operating and storage)
Power Supply: DC 5–12 V
Power Consumption: ?0.8 W

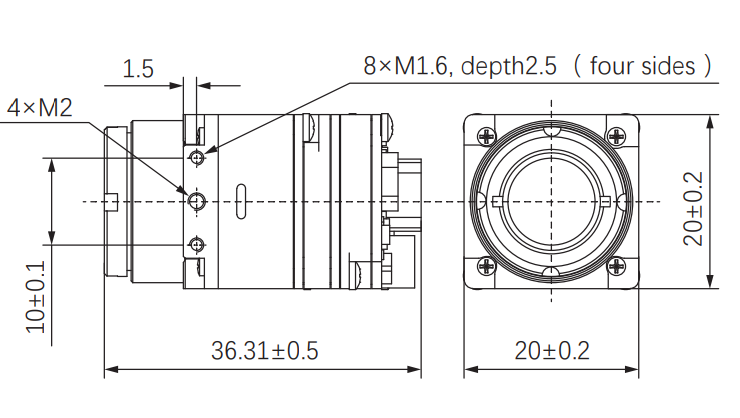

Dimensions: 20 × 20 × 38 mm
Weight: 23 g
Package Includes:
1× FPV thermal camera Partizan T384 v1.1
