    FPV Thermal Camera CaddxFPV YT384 (4mm)

    FPV Thermal Camera CaddxFPV YT384 (4mm)

    Brand: CaddxFPV

    €917,18
    €917,18
    -% View Product

    sku: FN-Y0483

    Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

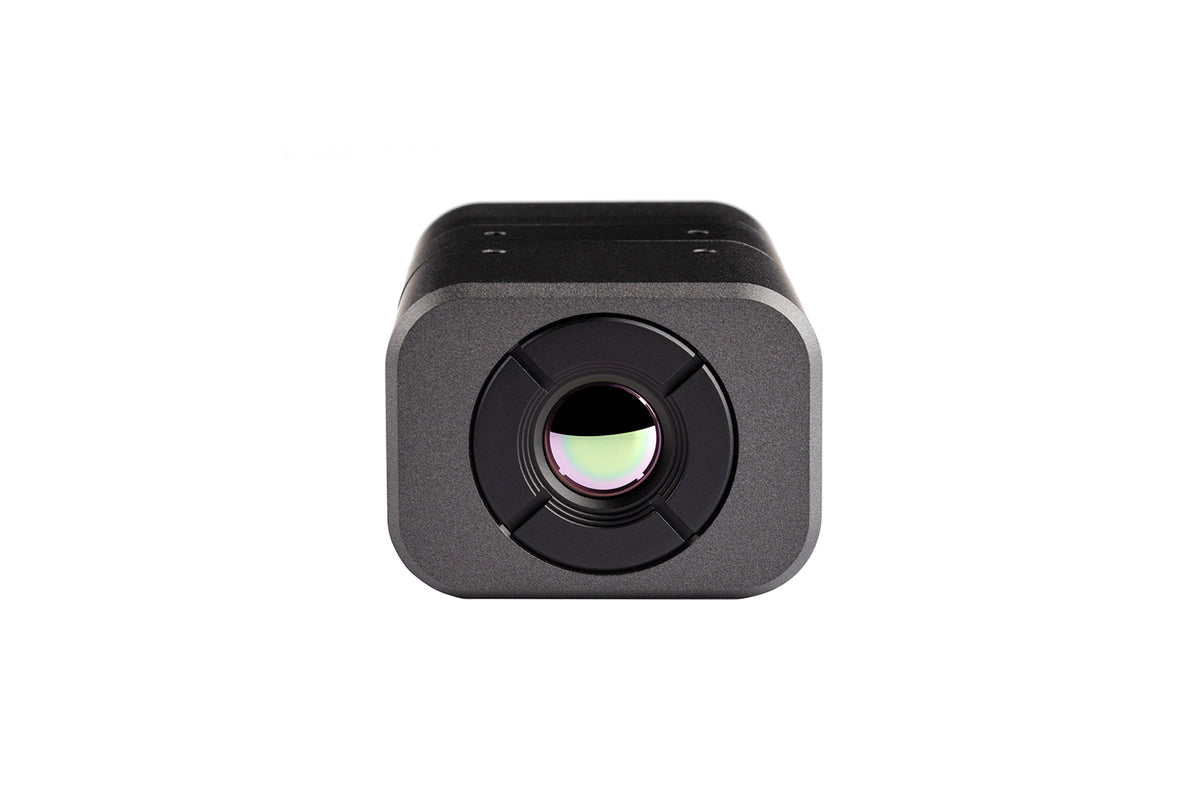

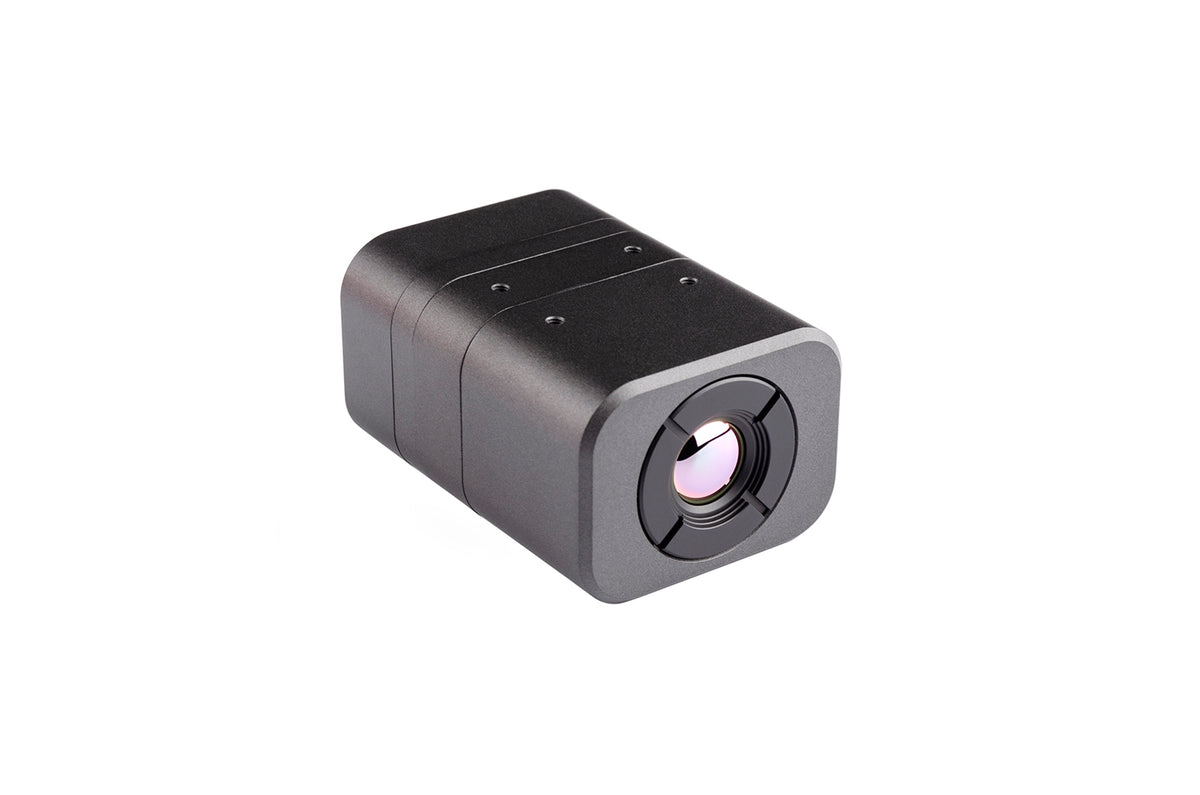

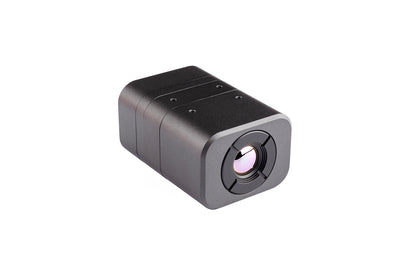

    FPV Thermal camera CADDXFPV YT384 (4mm)

    The CADDXFPV YT384 is a lightweight, high-performance thermal camera tailored for FPV drones, search and rescue operations, and inspection missions. Built around an uncooled Vanadium Oxide sensor with a 384×288 resolution, it delivers real-time thermal imagery across a wide 7–14 ?m infrared spectrum.

    Its 4 mm F1.0 lens provides an ultra-wide 65.5° (H) field of view, ensuring broad environmental awareness, while the <20 ms latency and 50 fps frame rate make it ideal for fast-paced applications like FPV flying or real-time monitoring.

    Specifications:

    Model: YT384 Sensor: Uncooled Vanadium Oxide Resolution: 384 × 288 Wavelength: 7000 nm – 14000 nm Lens Aperture: F1.0 Focal Length: 4 mm Field of View (FOV): 65.5° (H) × 49.0° (V) × 115° (D) Instantaneous Field of View (IFOV): 2.93 Frame Rate: 50 fps Delay: < 20 ms Power Consumption: < 1.5 W Video Output: PAL Supply Voltage: 9V ~ 24V Operating Temperature: -20°C ~ 60°C Weight: 74 g

    Package includes:

    1x FPV Thermal camera CADDXFPV YT384 (4mm)
