FPV Thermal Camera CaddxFPV IRC-256SL
FPV Thermal Camera CaddxFPV IRC-256SL
Brand: CaddxFPV
sku: SKU:IRC-256SL
Out of stockCouldn't load pickup availability
- Description
FPV thermal camera CADDXFPV IRC-256SL
The CADDXFPV IRC-256SL FPV Thermal Camera is an advanced thermal imaging solution designed specifically for FPV drones.
The IRC-256SL camera with its thermal sensor provides clear and detailed thermal images with a resolution of 256x192 pixels. This allows pilots to accurately detect thermal manifestations and temperature changes, which is particularly useful for applications such as search and rescue, wildlife monitoring and infrastructure inspections.
The CADDXFPV IRC-256SL thermal camera is designed to be lightweight and compact to ensure minimal impact on the overall performance and flight characteristics of the drone. Its low-latency video transmission ensures pilots receive thermal images in real-time, enabling instant decision-making and in-flight action.

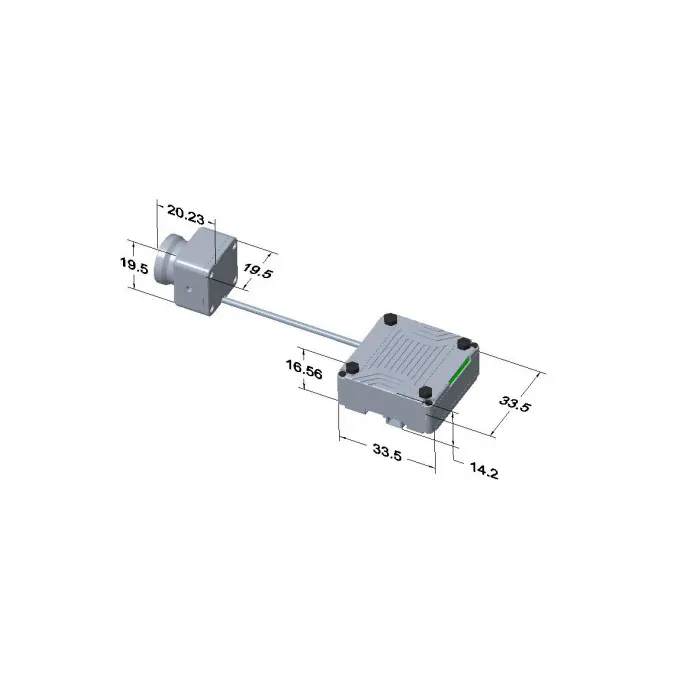

Specifications: Model Name: CADDXFPV IRC-256SL Detector type: Uncooled VoX Resolution: 256*192@12?m Wavelength range: 8~14?m NETD: ?40mk @ F1 25? Frame rate: 50Hz Video interface: 1*PAL Supply voltage: 5V~20V Typical power consumption: <1.5w Focal length: 4 mm F.NO: 1.0 FOV: 50°(H)x37.2°(H)x62.3°(D) Operating temperature -20?~60? Camera size: 19.5 x 19.5 x 20.23 mm Base plate size: 33.5x33.5x16.56
The package includes: 1x CADDXFPV IRC-256SL FPV thermal camera
