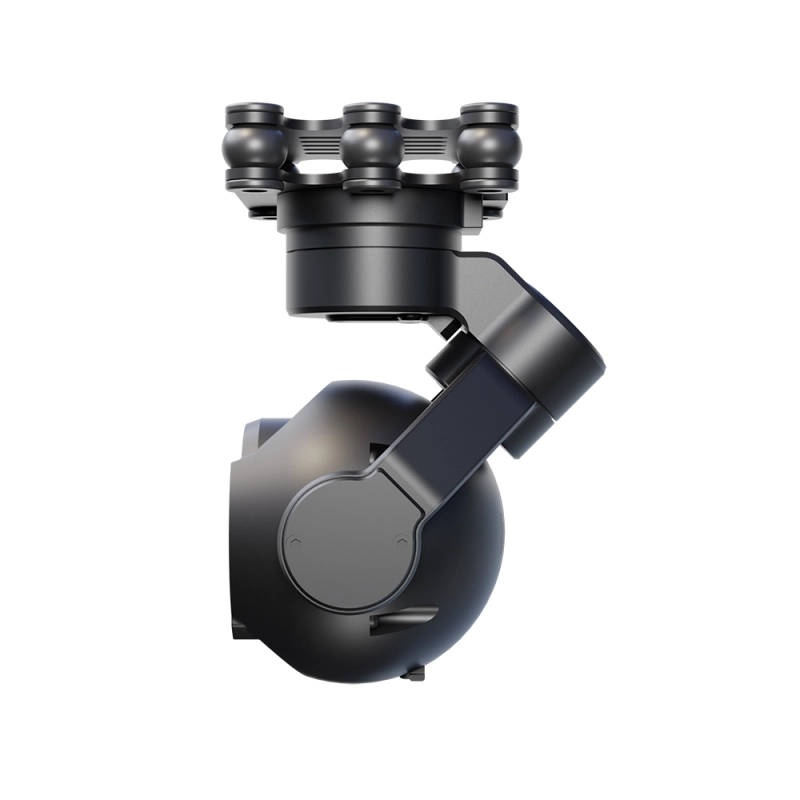

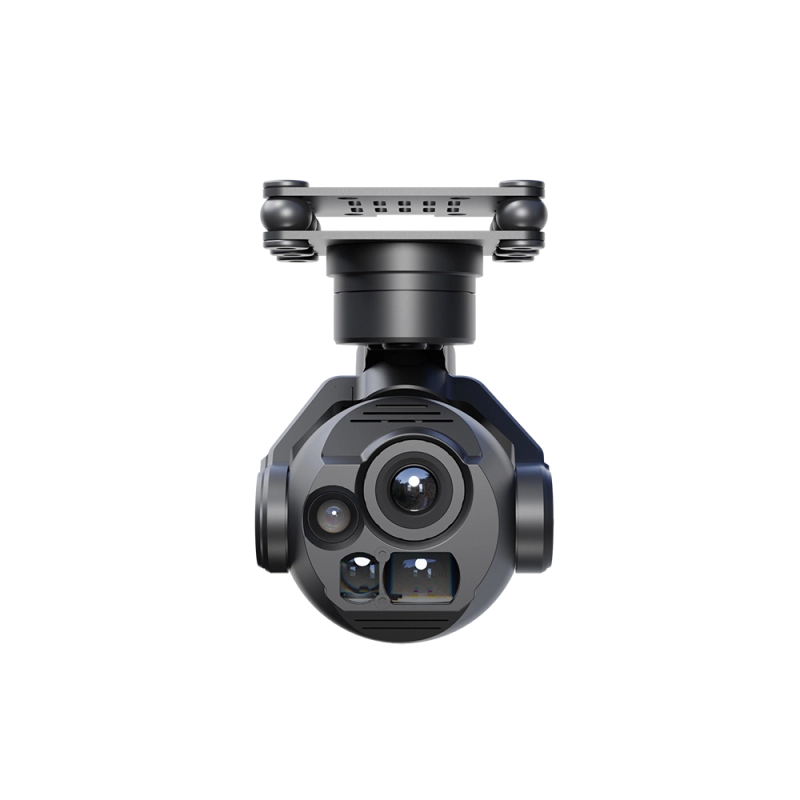

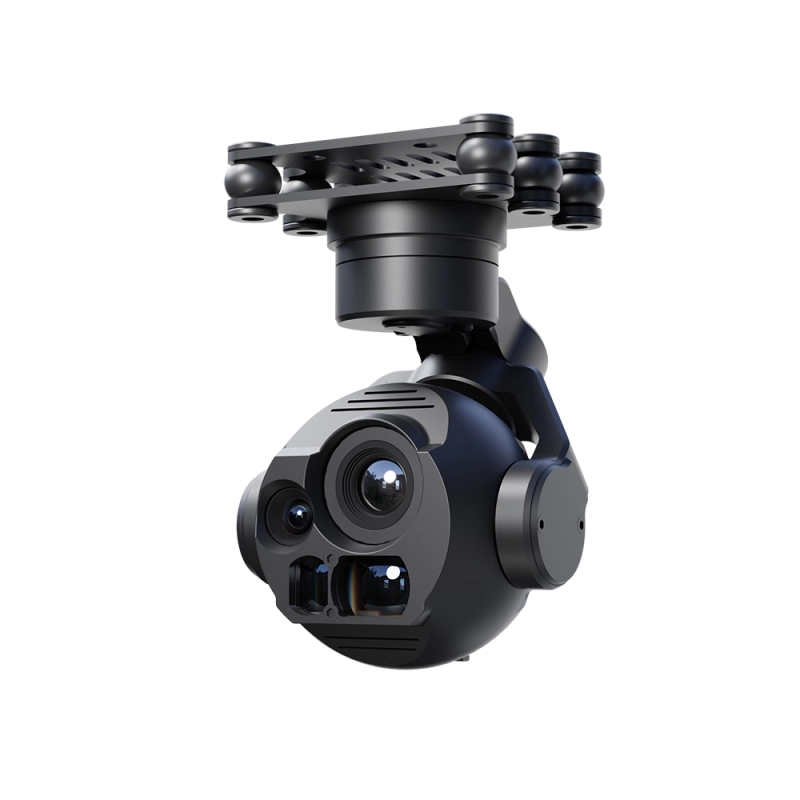

FPV HD camera SkyDroid C13 2K 1080P Thermal Imaging 3-Axis Stabilized gimbal
FPV HD camera SkyDroid C13 2K 1080P Thermal Imaging 3-Axis Stabilized gimbal
Brand: SkyDroid
sku: SKU:7169
Limited AvailableCouldn't load pickup availability
- Description
FPV HD camera SkyDroid C13 2K 1080P Thermal Imaging 3-Axis Stabilized gimbal
Skydroid C13 is a three-axis gimbal that integrates a 500W-pixel visible light camera, a 640 thermal imaging sensor, and a laser rangefinder. A high-definition, distortion-free visible light camera with up to 5 million pixels, enabling 2K photography and card recording. The C13's camera boasts an impressive 30x electronic zoom, ensuring clear and detailed images even from a distance.
The C13 is equipped with a high-precision laser rangefinder with a measurement range of up to 1000 metres. This rangefinder is characterised by its accuracy, speed, small margin of error and ease of use. It is also equipped with a 640 high-resolution thermal imaging camera with a wide field of view and clear images, capable of observing various heat sources from a long distance.
AI intelligent algorithms enable the locking of targets, after which the device can automatically fly towards them. This process requires pairing with the Skydroid S series flight control.
C13 uses an industrial-grade three-axis stabilisation structure, significantly reducing image jitter and maintaining image stability.
Features:
- Three-axis stabilization - 30x zoom - 500W pixels - Network port, RTSP output - Al target locking - 1KM distance measurement - Al guidance - Thermal Imaging Camera - Visible Light Camera - Laser Rangefinder
Specifications:
Parameters of Visible Light Camera Pixels: 5 MP Digital Zoom: 0–30× CMOS Size: 1/2.7 inch Focal Length: 3.5 mm Aperture: f/2.2 Field of View Angle: 83.4° Recording / Snapshot: H.265, 2880×1620 @ 30fps, 8 Mbps Real-Time Stream: H.265, 1280×720, 2 Mbps
Parameters of Thermal Imaging Camera Pixels: 640 × 512 Response Band: 8–14 ?m Focal Length: 9.1 mm Aperture: f/1.0 Field of View Angle: 48.7° × 38.6° Lens Depth of Field: 1.73 m – ? Snapshot / Recording: H.265, 640×512 @ 30fps Real-Time Stream: H.265, 640×512 @ 30fps Detection Distance: 1.1 km Brightness / Contrast Adjustment: 0–100 Polarity / Pseudo-Color: White Hot / Black Hot, supports 12 pseudo-color modes
Ranging Laser Wavelength: 905 nm Detection Range: 5 m – 1 km Ranging Precision: ±1 m Measurement Frequency: 1–5 Hz
Package includes:
1? FPV HD camera SkyDroid C13 2K 1080P Thermal Imaging 3-Axis Stabilized gimbal
