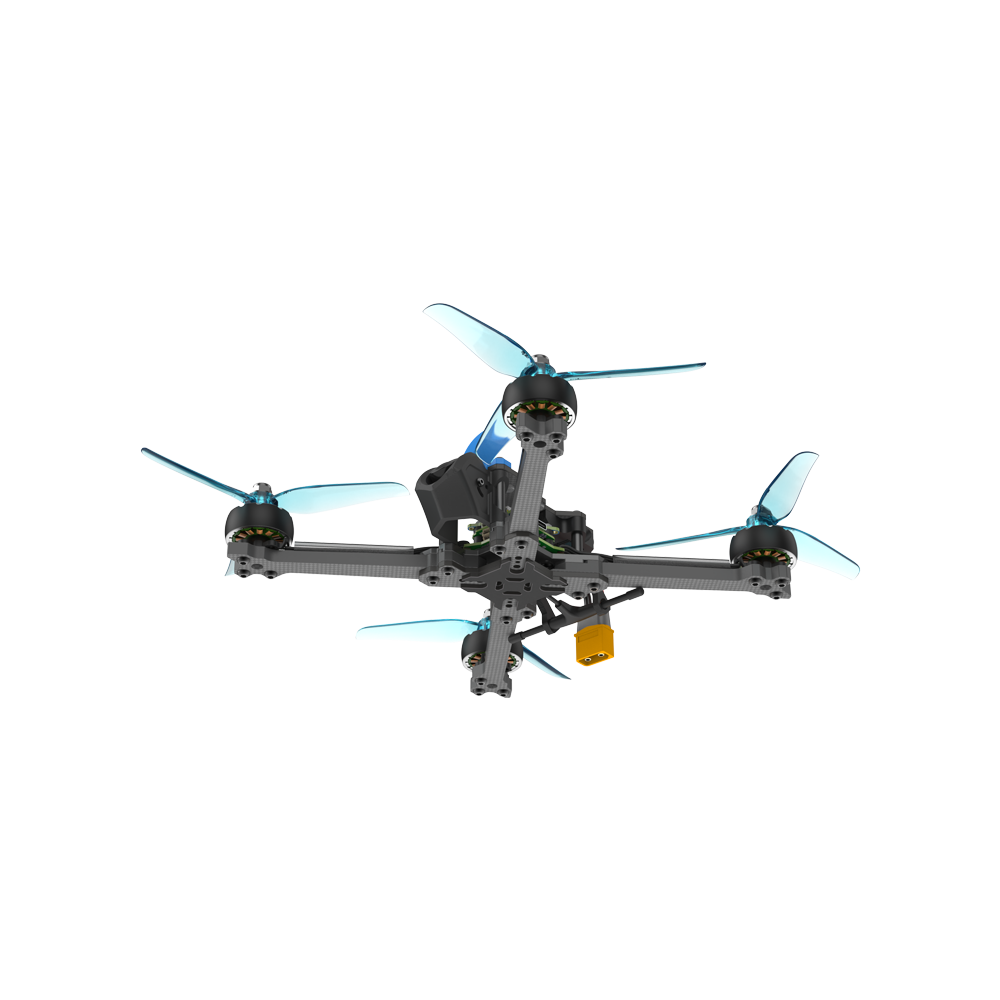

Mach R5 Analog 6S Racing Drone (TBS)
The iFlight Mach R5 Analog is a 5-inch racing drone equipped with R5 2207 motors for increased torque and efficiency, as well as high speed and consistent lap times. The iFlight Mach R5 uses the latest BLITZ F7 55A AIO, the most powerful of our currently available iFlight AIOs. Quick-change arm assembly for easy on-the-fly or race day repair. Improved canopy design with low wind resistance for maximum speed and efficiency.
Function:
- Super light but super powerful with the latest R5 2207 motors - Super durable design, 6mm arms and 7075 CNC center plate - SucceX Mini VTX 600mW - R5 2207 2050KV motors - Latest BLITZ Mini F7 Stack (F7+55A) - RaceCam R1 camera
Specifications:
Product name: Mach R5 6S Analog FC: BLITZ Mini F722 Flight Controller ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC Video transmission: SucceX Mini VTX 600mW Frame: wheelbase 225 mm Engine: R5 2207 engines Prop: 5 inch Nazgul propellers Weight: 235 grams Takeoff Weight: Approx. 430 g Dimensions (L×W): 152×152 mm Diagonal Distance: 120 mm Maximum speed: 27 m/s (manual mode) Maximum take-off height: 5000 m Maximum Hover Time: Approx. 8 minutes Maximum flight distance: 5 km Maximum resistance to wind speed: 100 km/h (level 5) Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: 1 antenna GNSS: N/A Receiver option: TBS Crossfire NANO RX
Video transfer Product name: SucceX Mini VTX 600mW Output power: 0-25-200-400-600 mw Input voltage: 6-36V Working current: ?450mA@12V,800mW; ?850mA@12V, 2500mw Transmission: 40CH (A-B-E-F-R) Antenna interface: MMCX Mounting hole: 30.5*30.5mm--20*20mm Weight: 11g (W/O antenna) Dimensions: L38mm*W36.5mm*H7.2mm
The package includes: 1 x Mach R5 6S Analog BNF 1 x battery strap 2 x R5 Prop (pairs) 1 x battery pad
