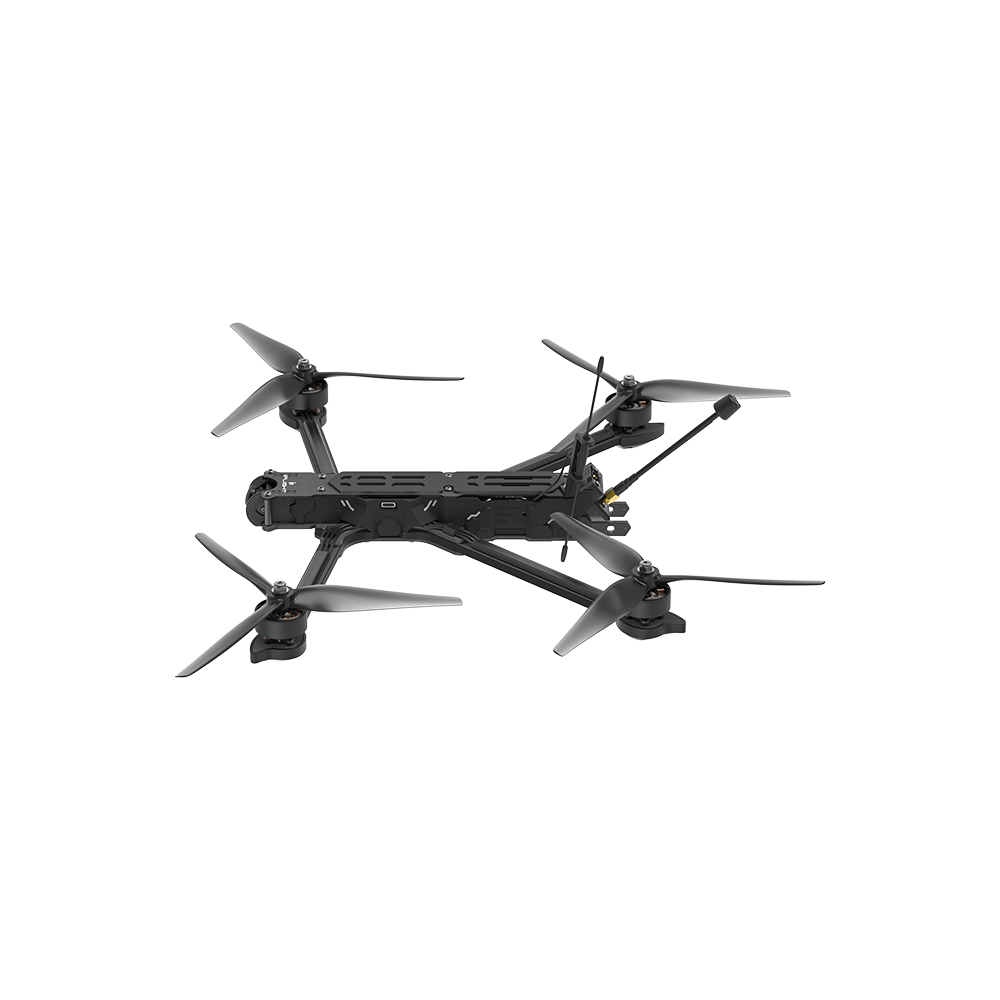

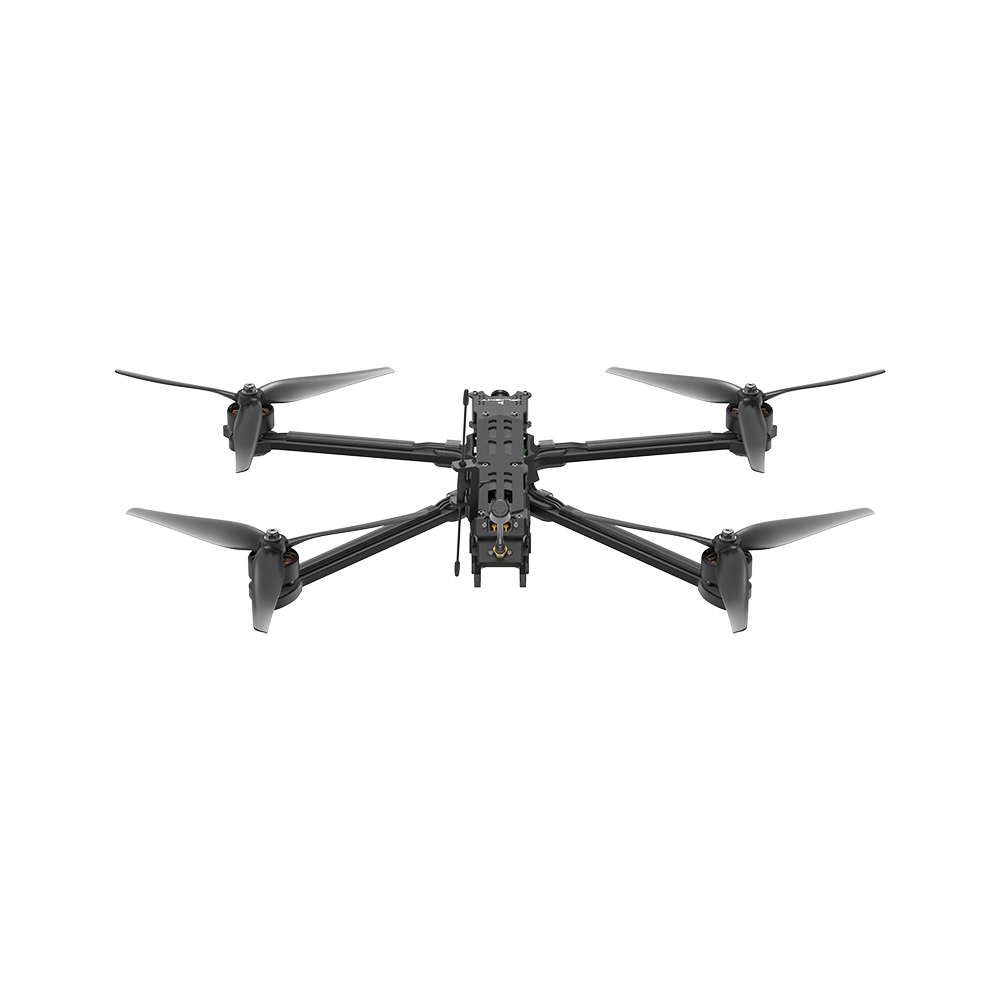

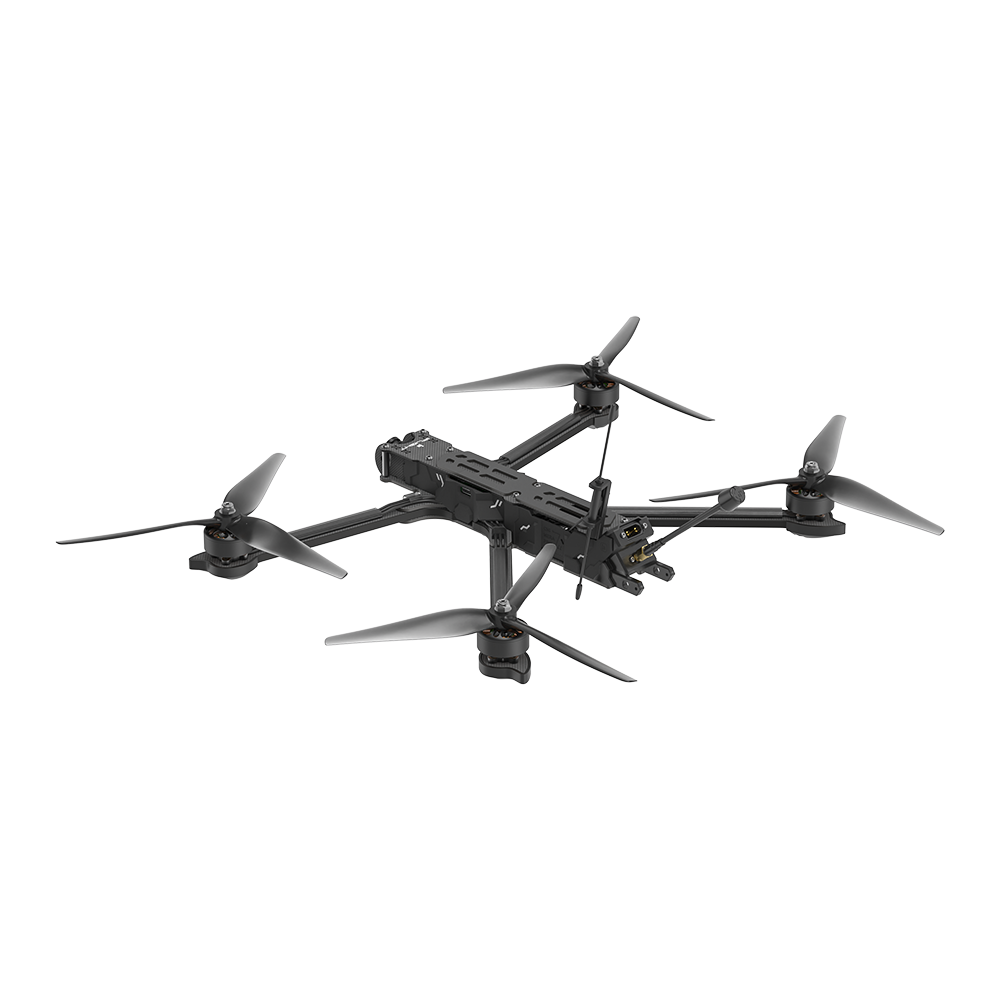

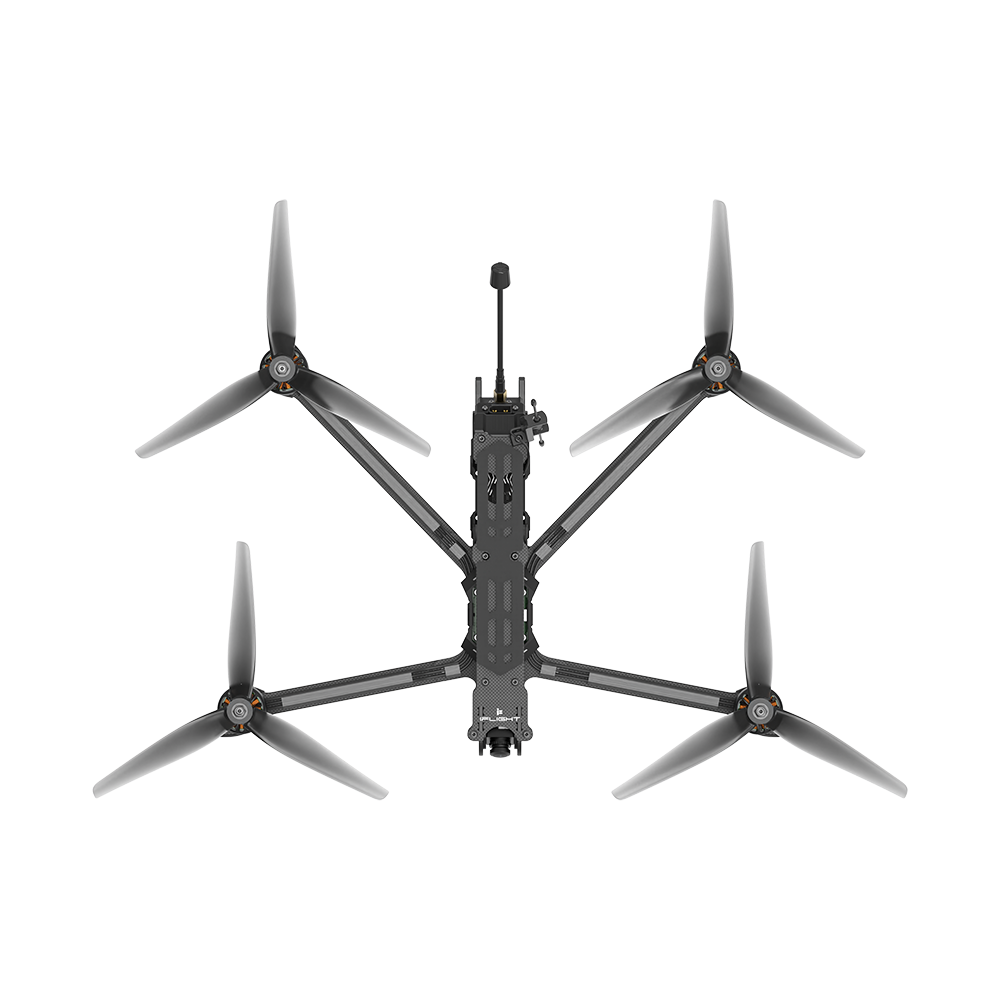

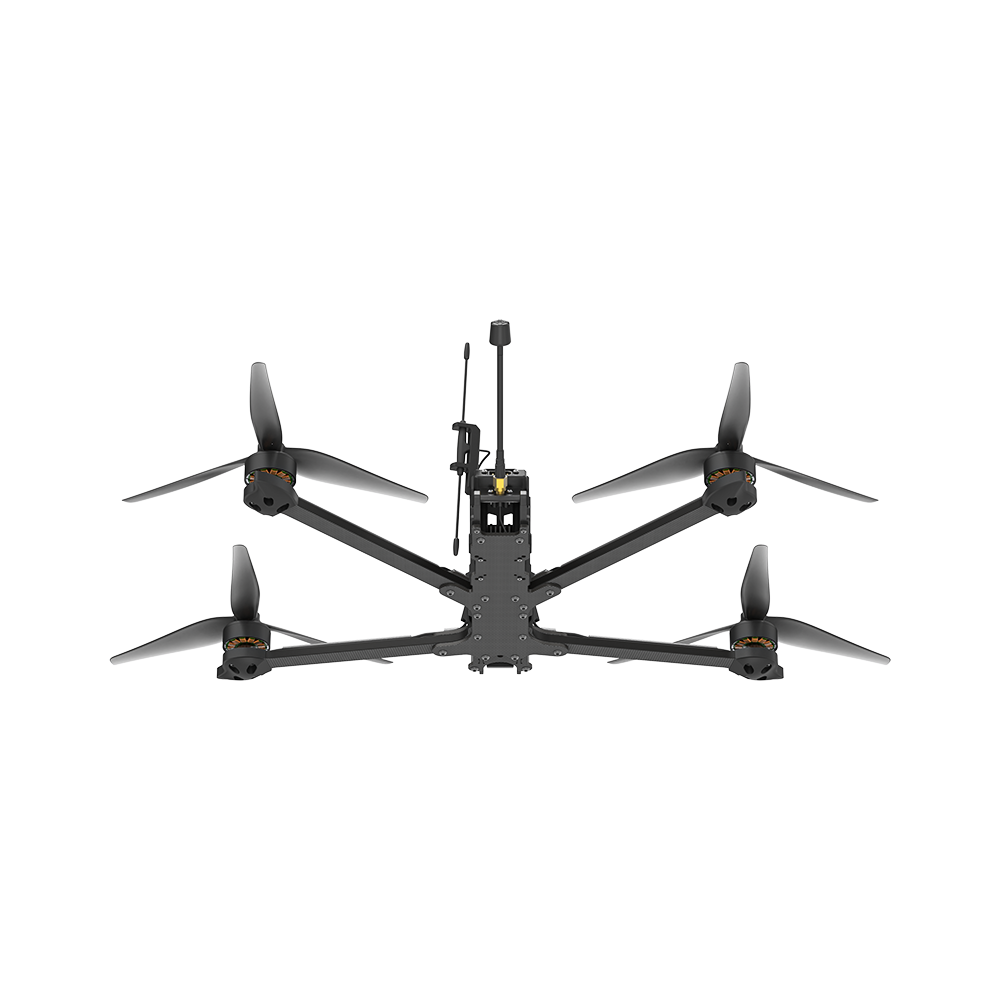

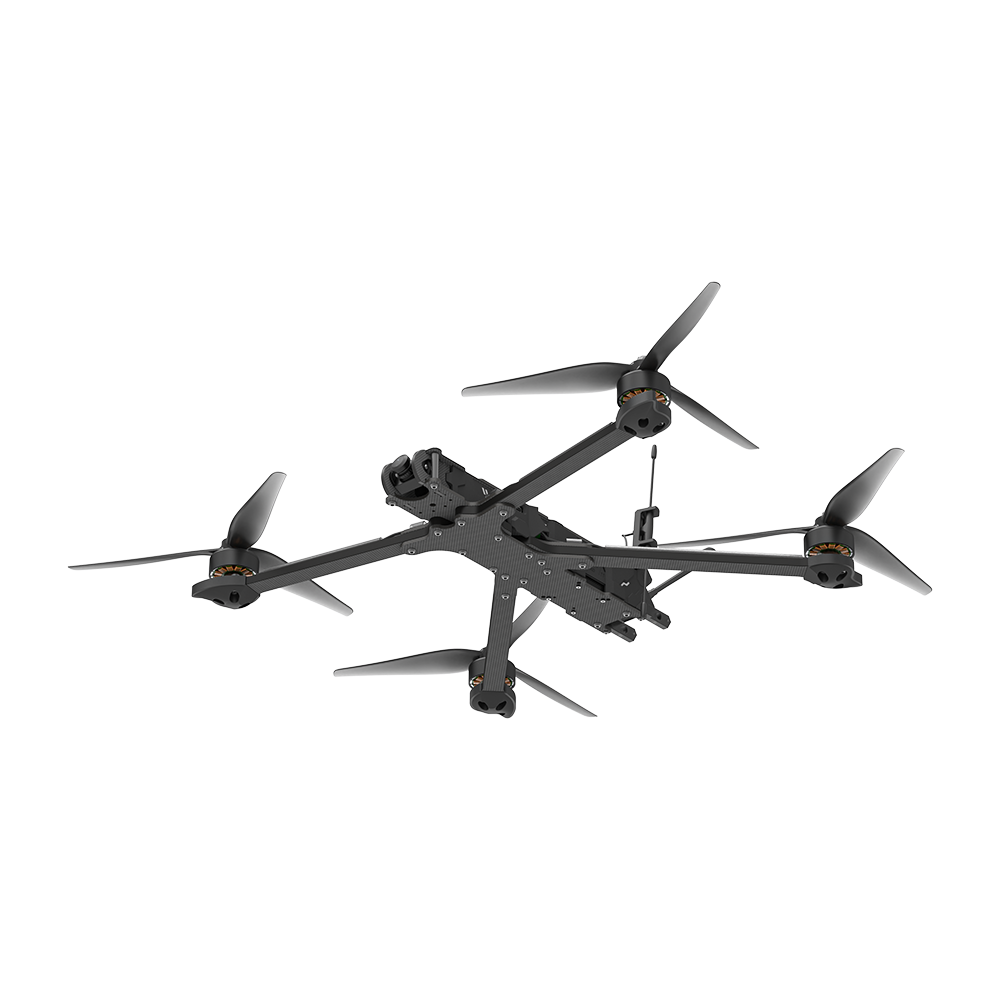

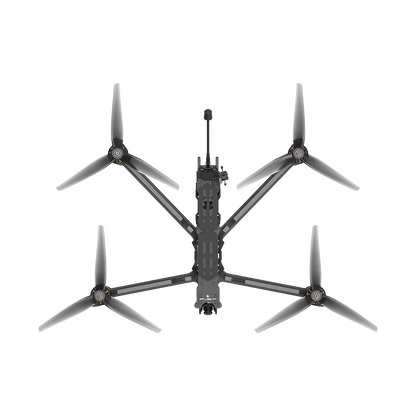

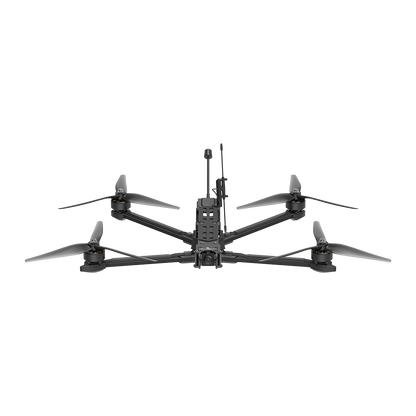

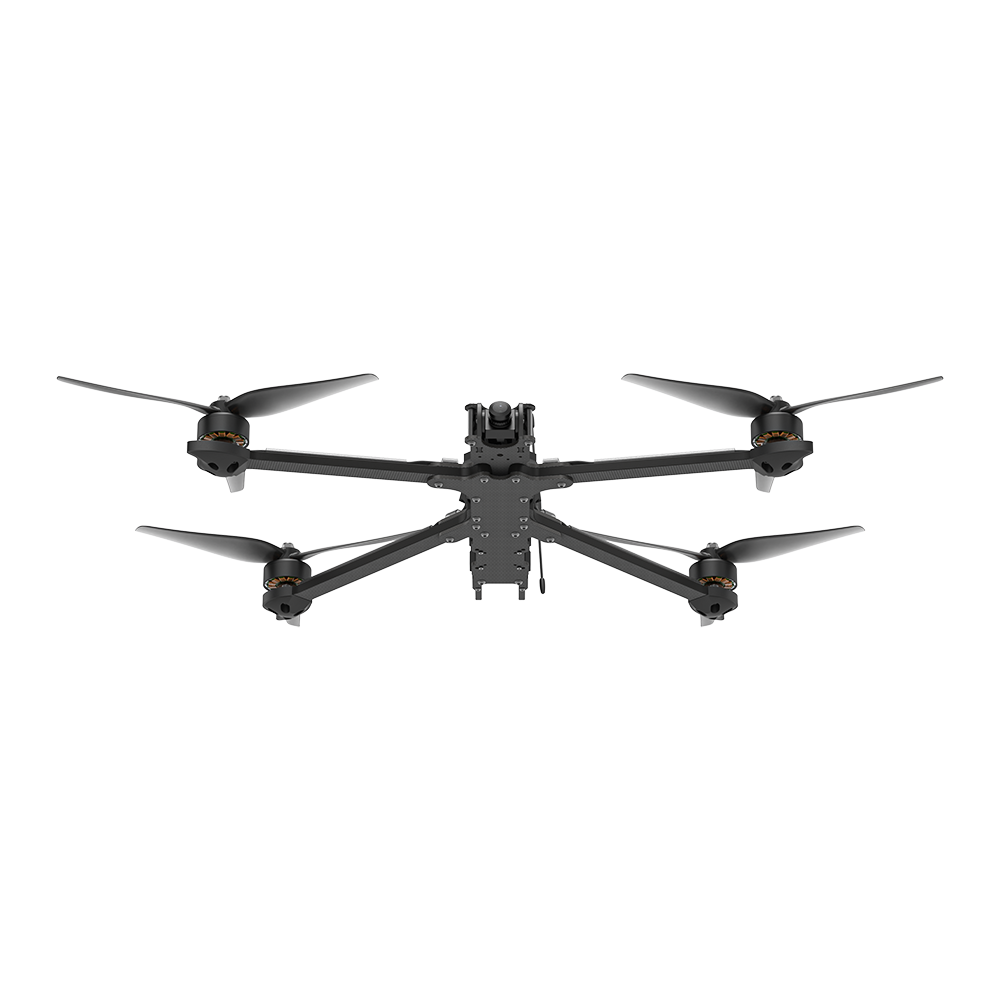

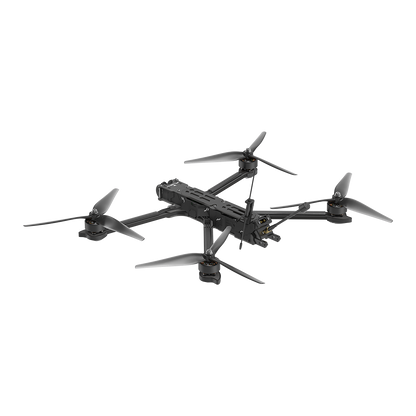

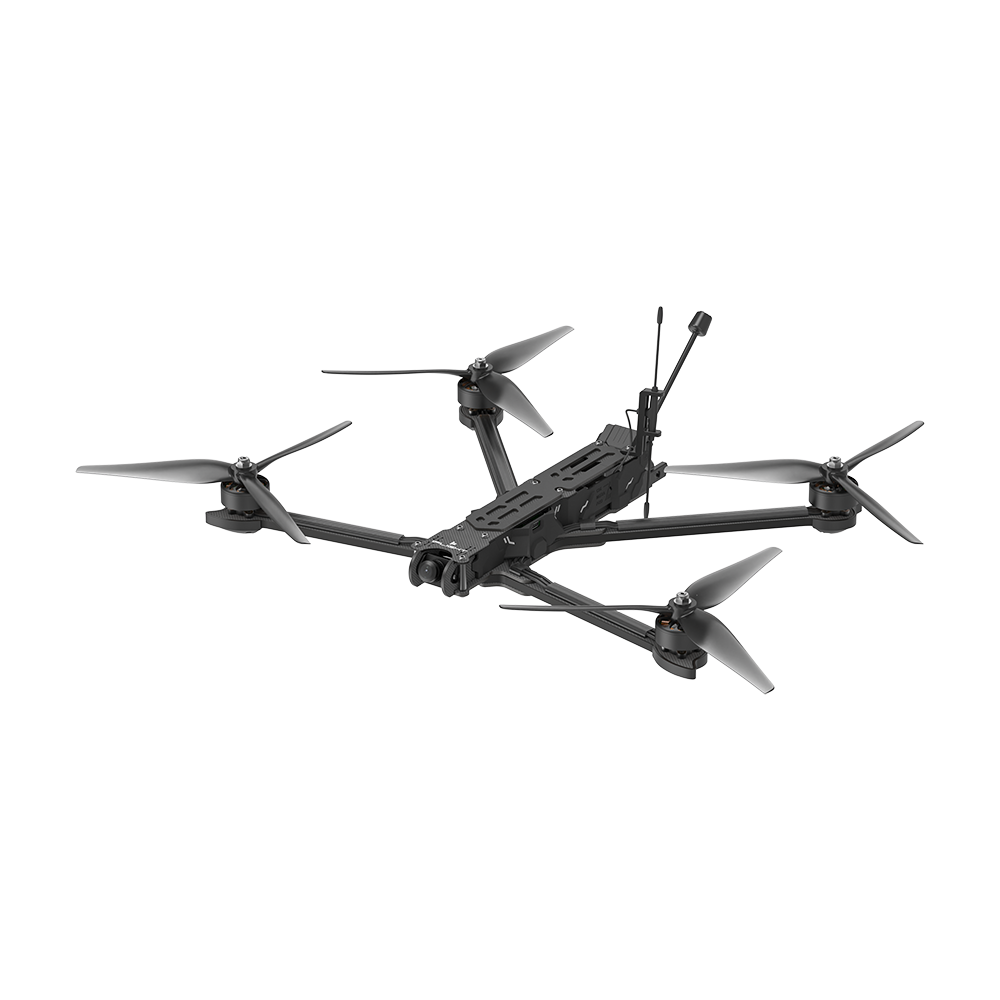

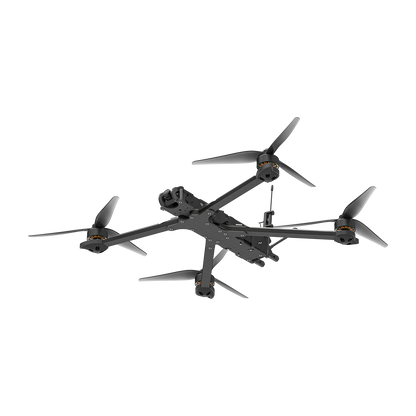

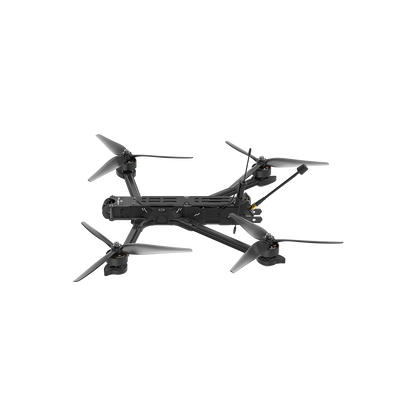

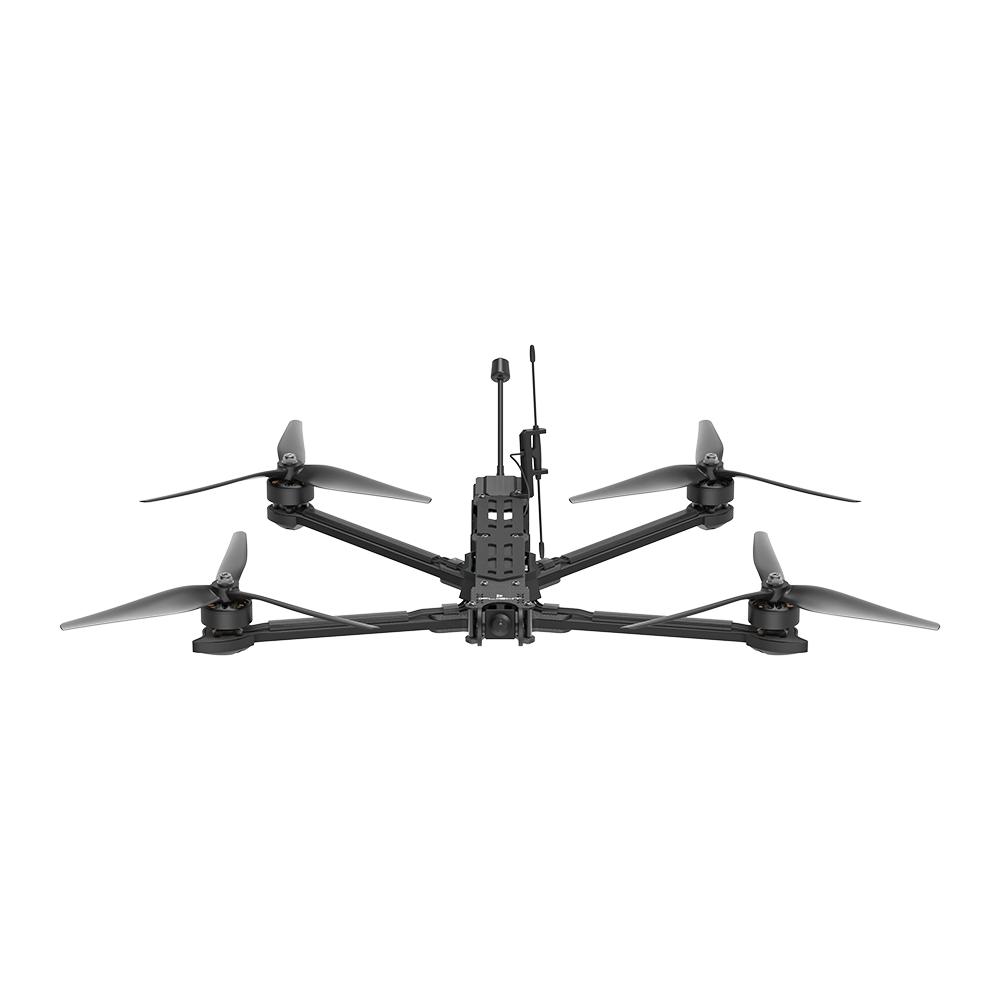

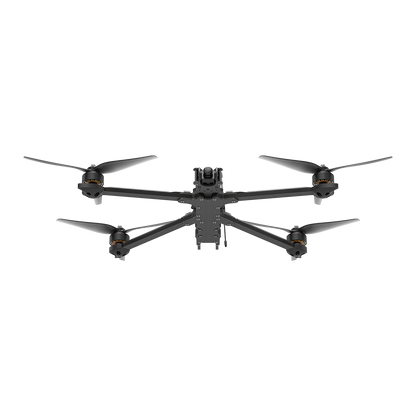

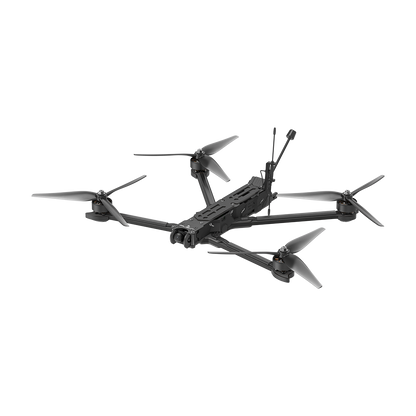

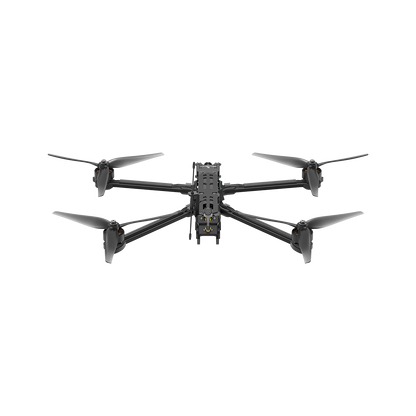

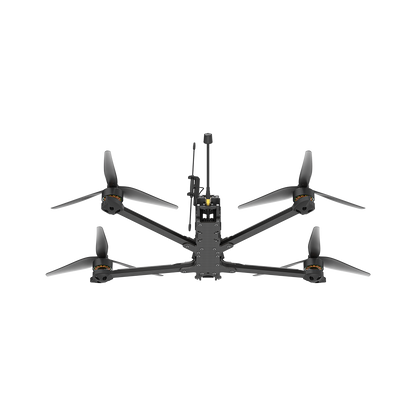

    FPV Drone iFlight Chimera9 ECO 6S Analog (PNP)

    FPV Drone iFlight Chimera9 ECO 6S Analog (PNP)

    Brand: iFlight

    €386,15
    €386,15 €386,15
    -0% View Product

    sku: L015111

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    Chimera9 ECO 6S analog (PNP)

    Function:

    - Latest Chimera9 ECO frame for maximum protection. The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.

    - Economical and efficient electrical system. Featuring a BLITZ ATF435 flight controller, BLITZ 1.6W Whoop VTX and BLITZ E55S 4-in-1 ESC, this setup offers a high level of performance and functionality.

    Not included in the BNF Lite version: - Cooler for DJI O3 air unit - Dual 5.8G VTX antenna holder TPU - Anti-spark filter - TPU Kit (GPS Mount / Buzzer Mount / GoPro Mount etc.) - LED board with LED strips

    Specifications:

    Product name: Chimera9 ECO 6S Analog Receiver option: No RX (PNP) FC: BLITZ ATF435 Flight Controller ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC Video transmission: BLITZ Whoop 1.6W VTX Geometry: DeadCat (DC) Frame: wheelbase 405 mm Motor: XING-E 2809 800KV motors Propeller: 9X4X3 propeller Camera: RaceCam R1 Mini 1200TVL 2.5mm Weight: 739 g (without battery) Dimensions (L×W×H): 360x235x34mm Maximum speed: 140 km/h Maximum take-off height: 6000 m Maximum Hover Time: Approx. 33 minutes (with 6S2P 8000mAh without load) Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: Individual antennas GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional) Payload: 1.5-2.2 kg

    Video transfer Product Name: BLITZ Whoop 5.8G 1.6W VTX Output power: 0-25-400-800-1600 mw Input voltage: 12V Operating current: ? pit @40 mA, ? 25 mw @ 150 mA, ? 400 mw @ 330 mA, ? 800 mw @ 460 mA, ? 1600 mw @ 660 mA Free transmission: 40CH (A-B-E-F-R) Antenna interface: IPEX Mounting hole: 25*25/?1.6mm Weight: 16.5g (antenna not included) Dimensions: 37*31.5*10mm

    The package includes: 1 x Chimera9 ECO 6S Analog BNF (PNP) 1 x battery pad 1x Antenna 2 x propellers (pairs) 2x battery strap
