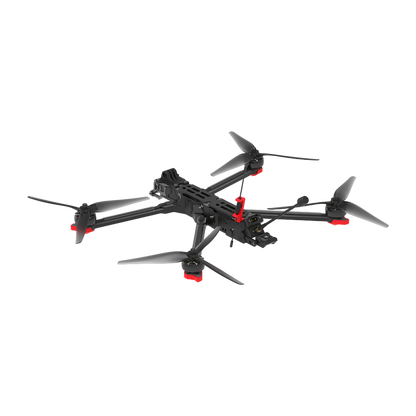

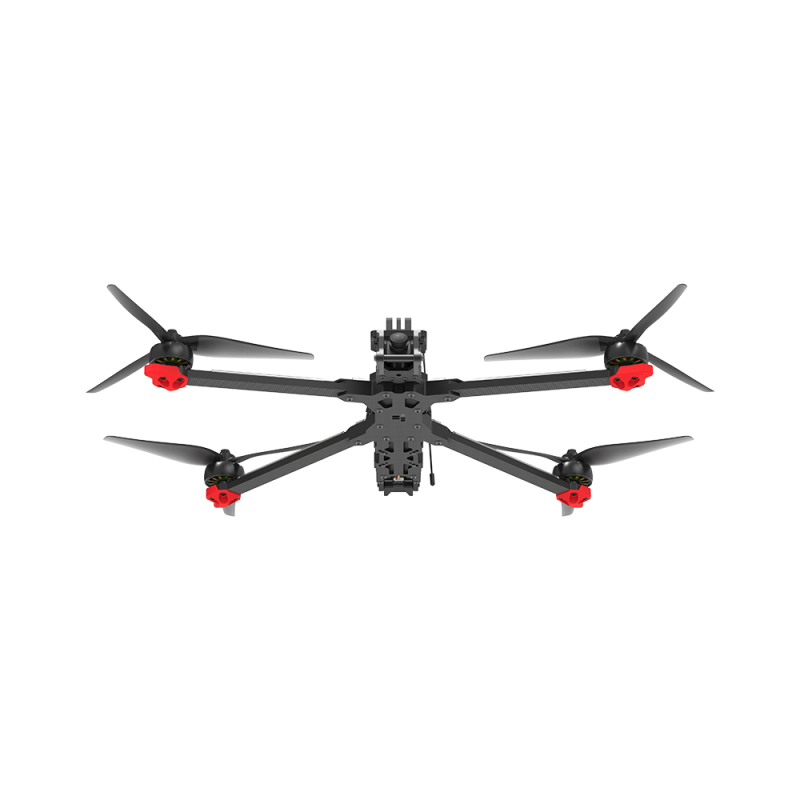

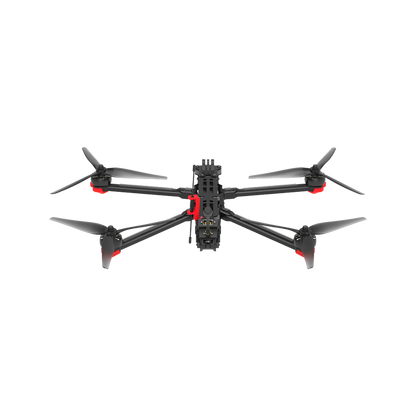

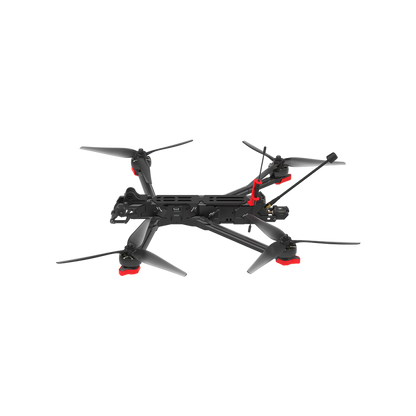

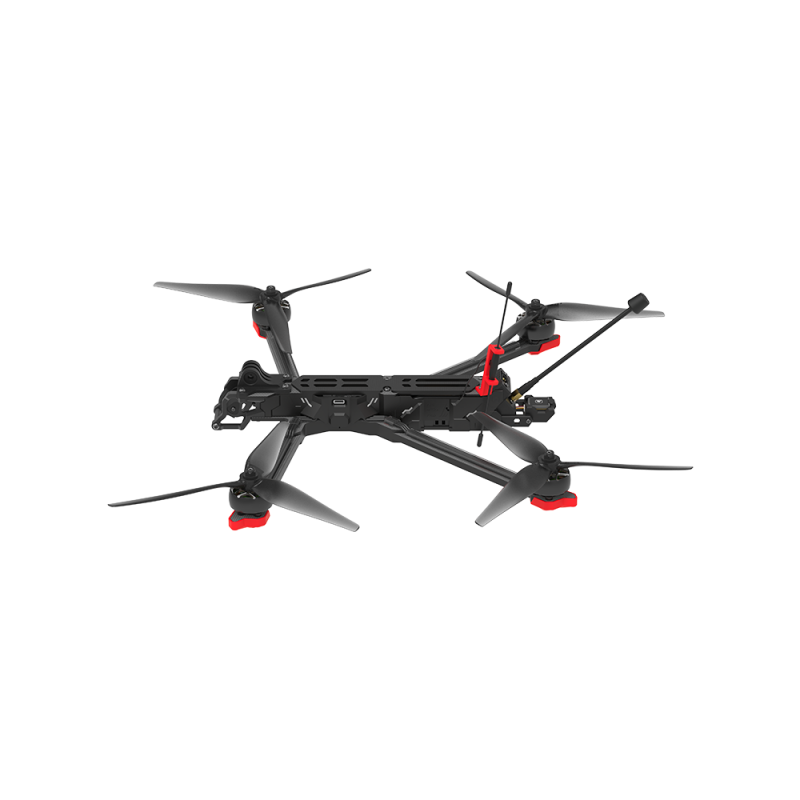

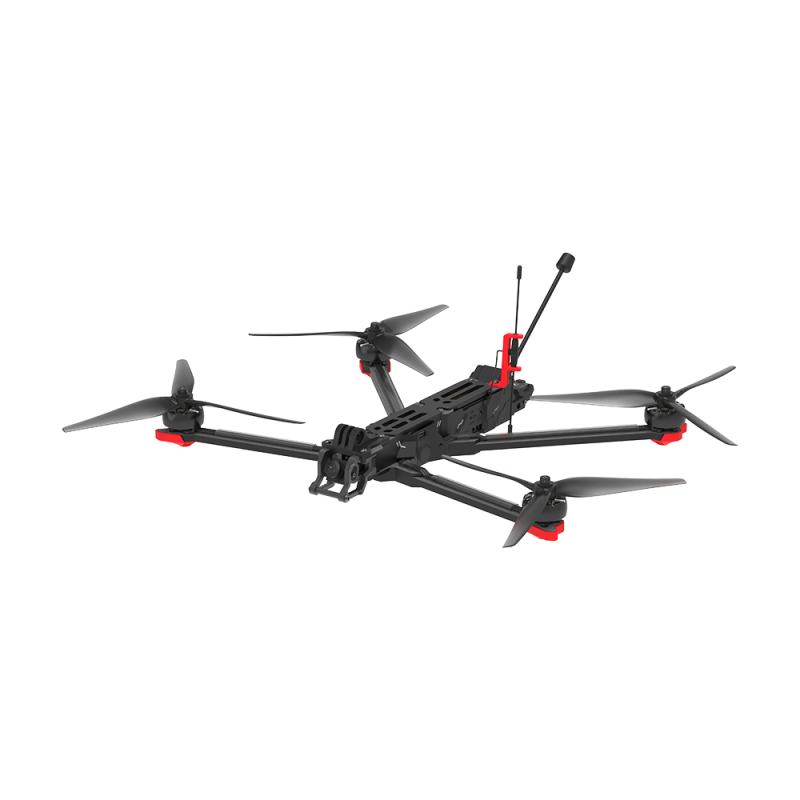

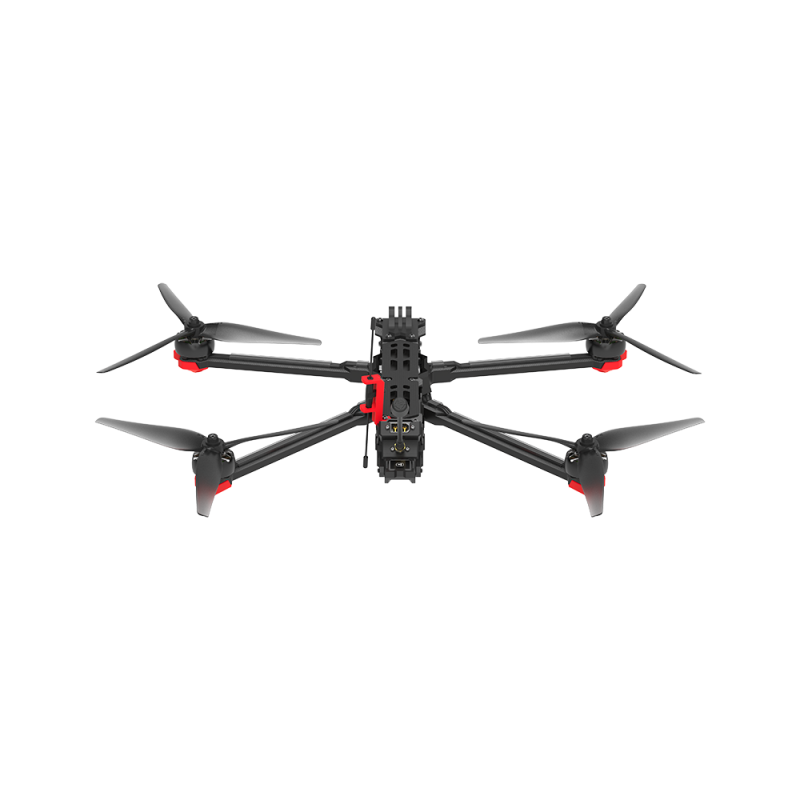

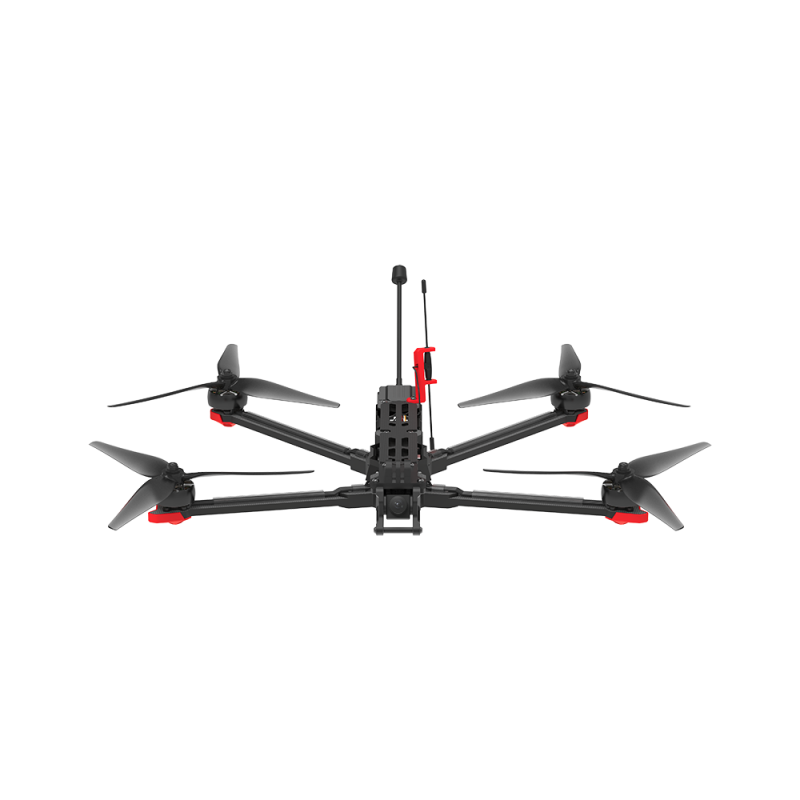

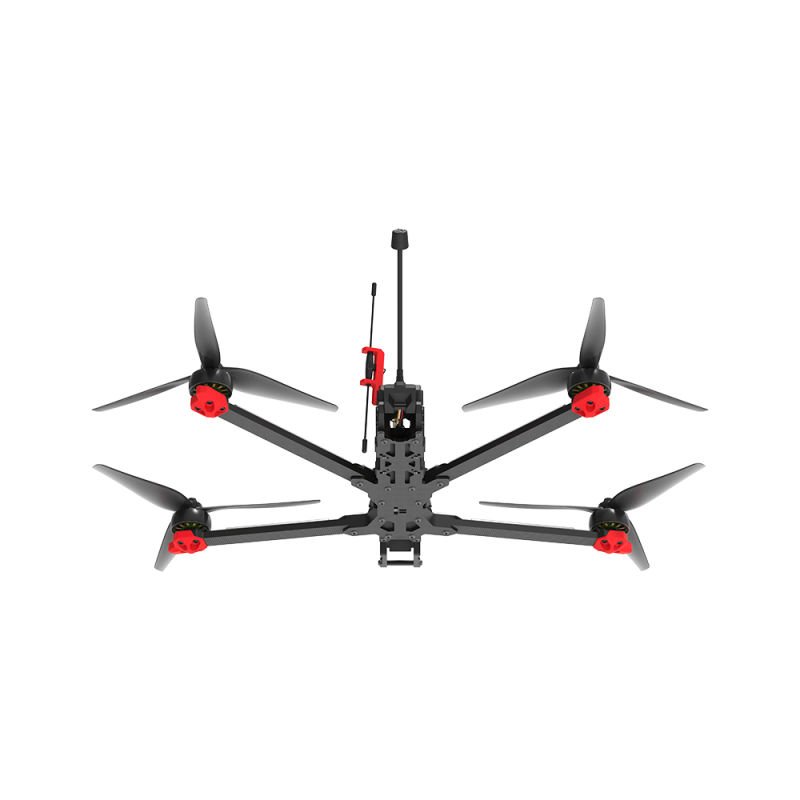

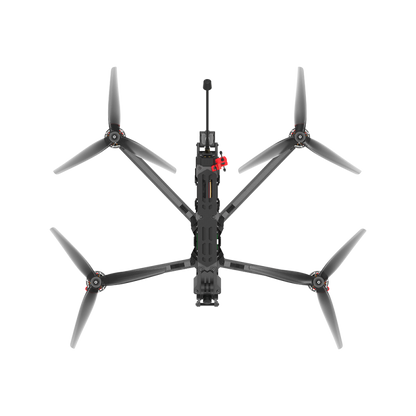

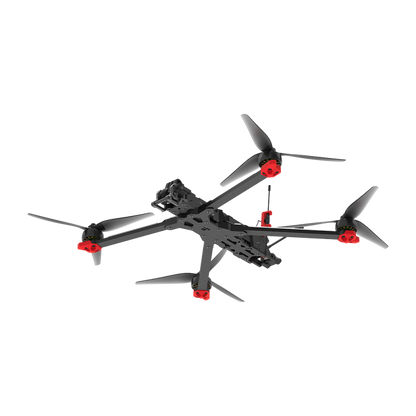

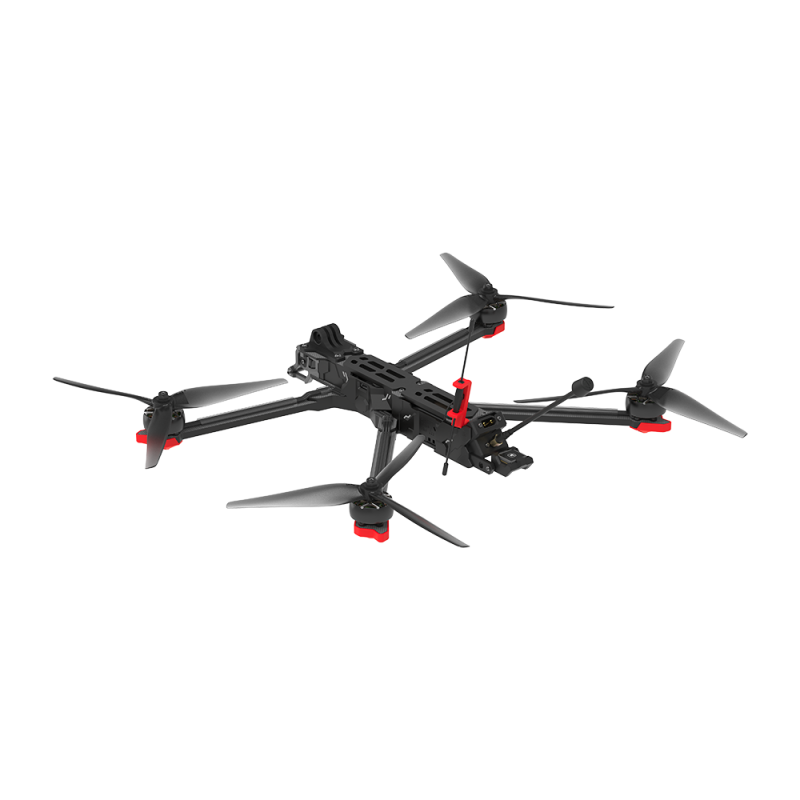

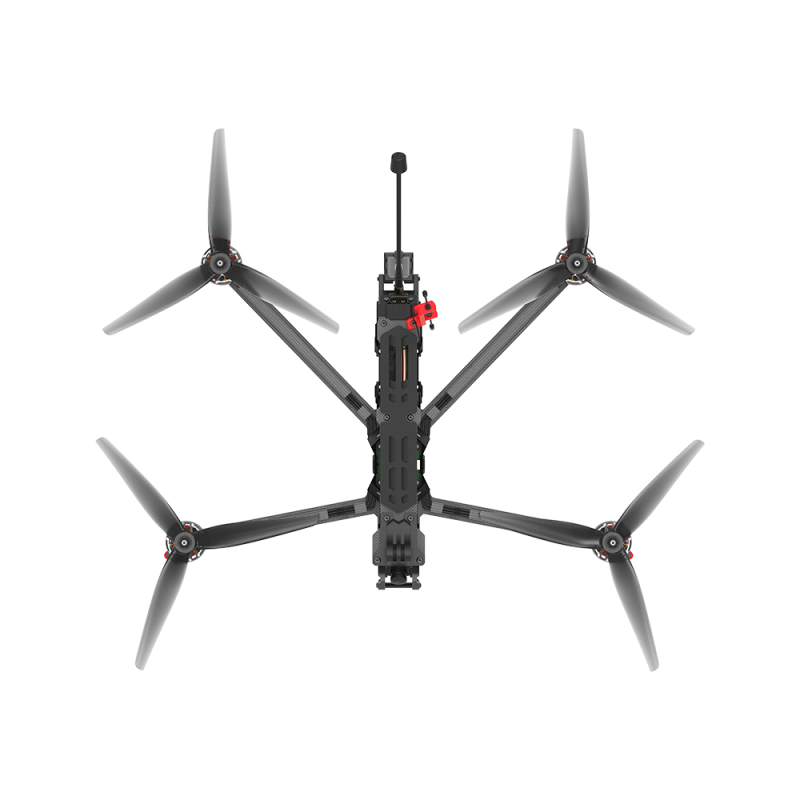

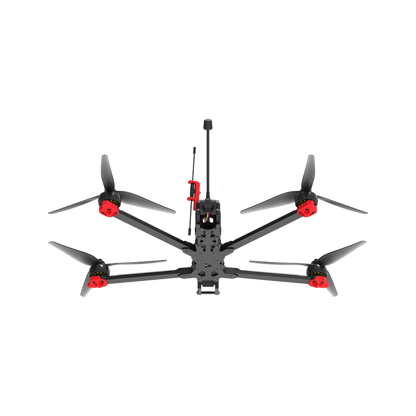

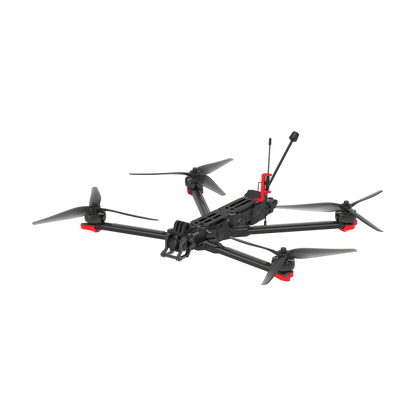

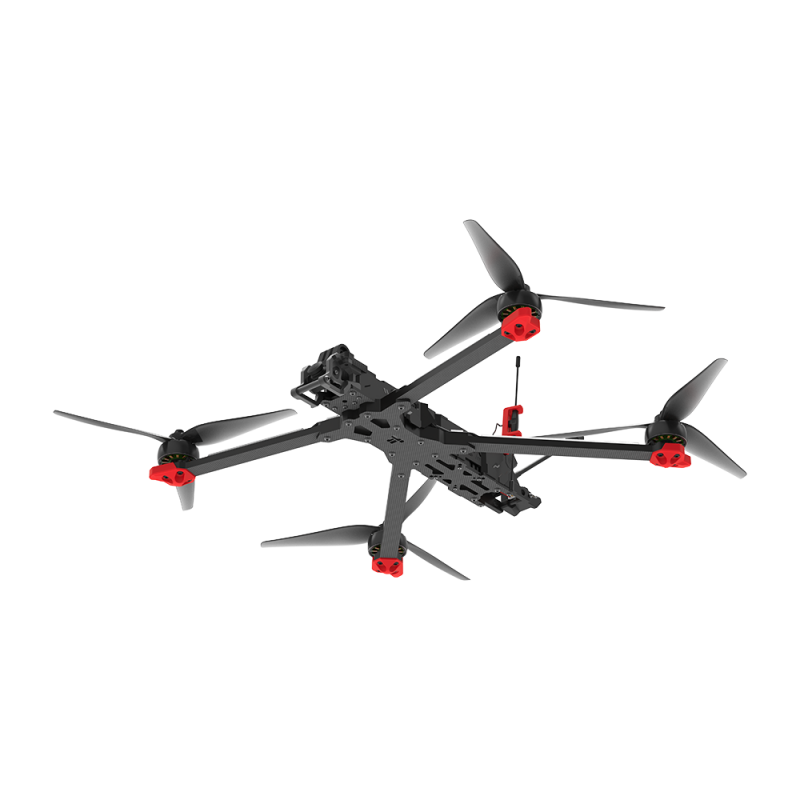

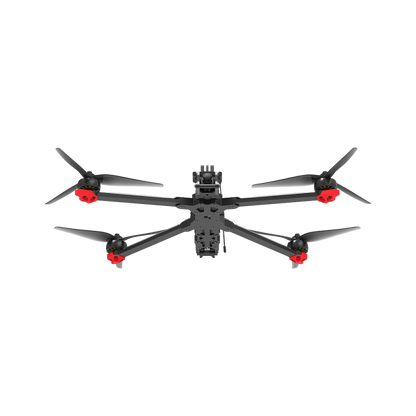

FPV Drone iFlight Chimera9 Analog BNF (TBS)
FPV Drone iFlight Chimera9 Analog BNF (TBS)
Brand: iFlight
sku: SKU:L014434
Out of stockCouldn't load pickup availability
- Description
Chimera9 analog BNF (TBS)
Function:
- Smooth and powerful XING2 engines - Durable unibell (one-piece bell) technology, solid titanium alloy shaft with reinforced bell joint, impact-resistant 7075 aluminum bell, long-life smooth Japanese NSK bearings, N52H curved-arc center-groove magnets, and XING O-ring bushing gap protection.
- The latest Chimera9 frame for maximum protection - The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
- Secure battery plug with spark filter - Connecting the battery can cause a loud spark at the connector, which is caused by the high current of the battery first rushing into the low ESR capacitor, as well as filling the ESC capacitance. The Chimera9 has a protection circuit that extends the life of the XT60 connectors and prevents rapid voltage or current spikes that can protect your electronics from damage.
- Pre-installed GPS for greater safety at a distance - GPS retracement function and Betaflight GPS rescue mode ready to set (default OFF to avoid unexpected behavior; set-up instructions included). Own iFlight 100mm LR antenna for the best signal coverage even at long distances.
Specifications:
Product name: Chimera9 6S Analog Model: Chimera 9 inches FC: BLITZ F722 Flight Controller ESC: BLITZ E55 4-IN-1 2-6S 55A ESC Video transmission: BLITZ Whoop 1.6W VTX Camera: RaceCam R1 Mini 1000TVL 2.5mm Geometry: DeadCat (DC) Frame: wheelbase 405 mm Engine: XING2 2809 engines Propeller: 9X4X3 propeller Weight: 776 g (without battery) Dimensions (L×W×H): 360x235x34mm Maximum speed: 140 km/h Maximum take-off height: 6000 m Maximum Hover Time: Approx. 33 min Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: Individual antennas GNSS: GPS + Galileo Payload: 1.5-2.2 kg Receiver option: TBS
Video transfer:
Product name: BLITZ Whoop 1.6W VTX Input voltage: 7V - 34V Interface: MMCX Power levels: PIT/25mW/400mW/800mW/1600mW Channels: 40 (including Raceband) Mounting pattern: 30.5x30.5mm/?3 Light weight: 18.9 g (without antenna) VTX telemetry: IRC Tramp Table values ??RC Tramp VTX: 25mW/400mW/800mW/1600mW
The package includes: 1 x Chimera9 6S Analog BNF 1 x battery pad 1x antenna 1x propellers (pairs) 2x battery strap
