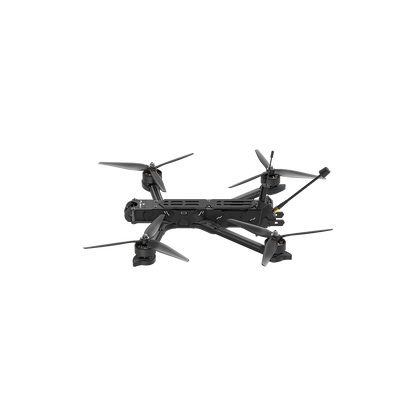

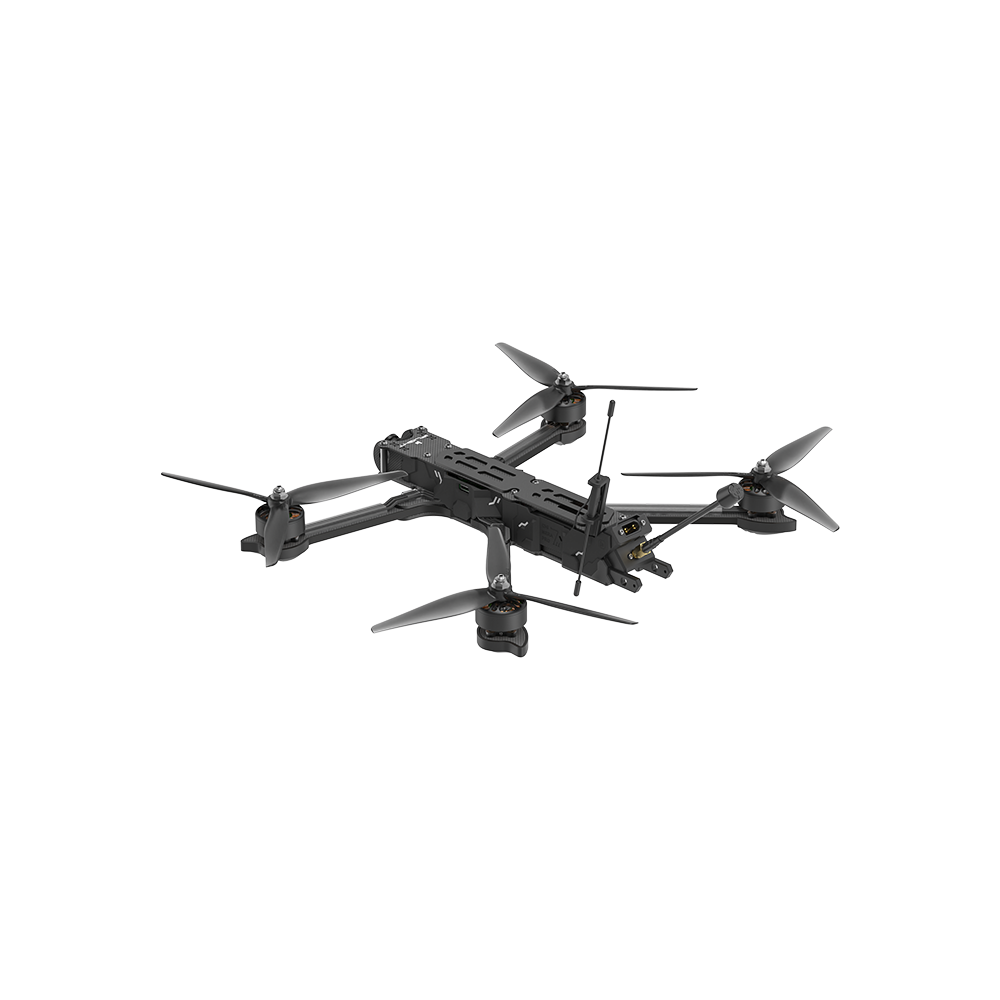

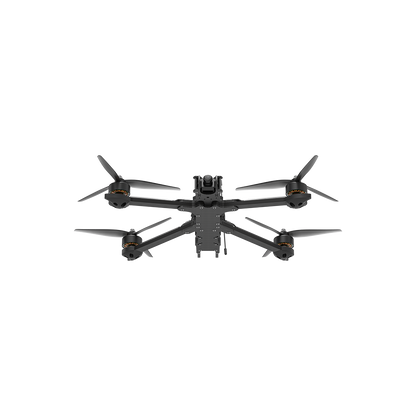

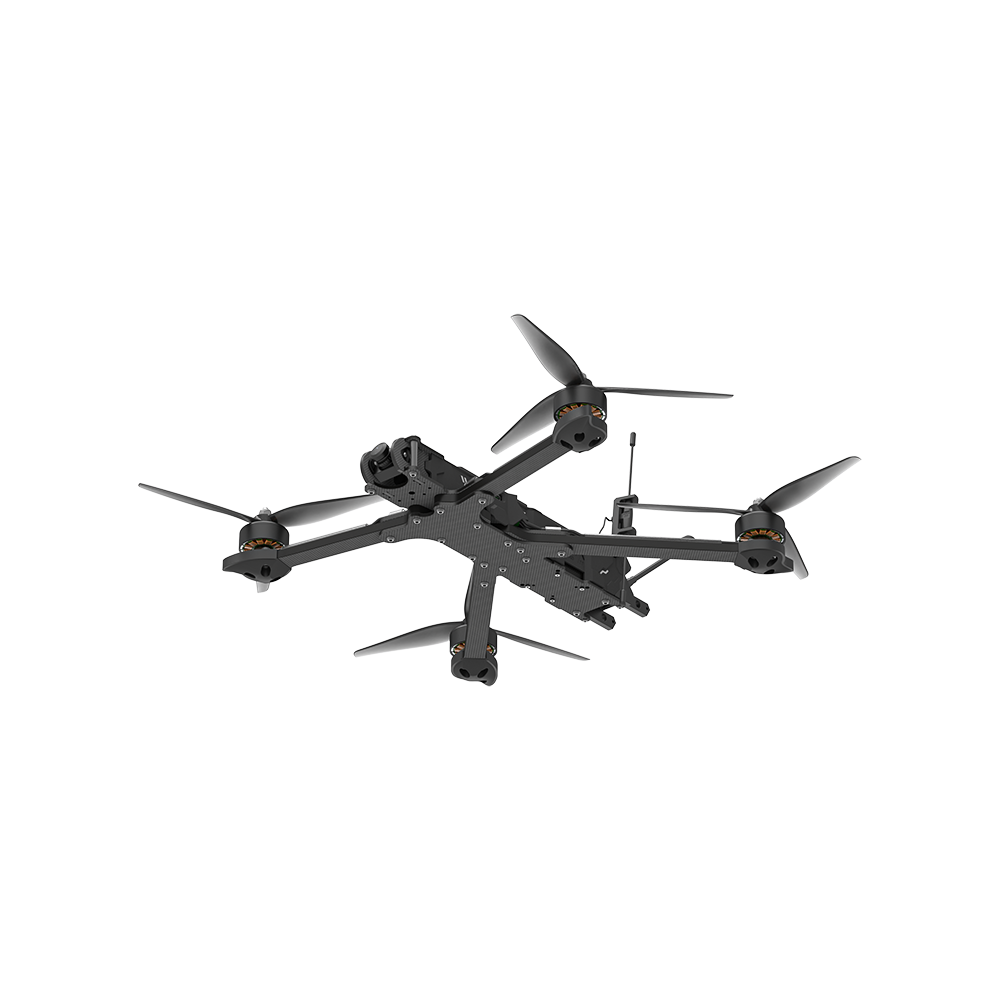

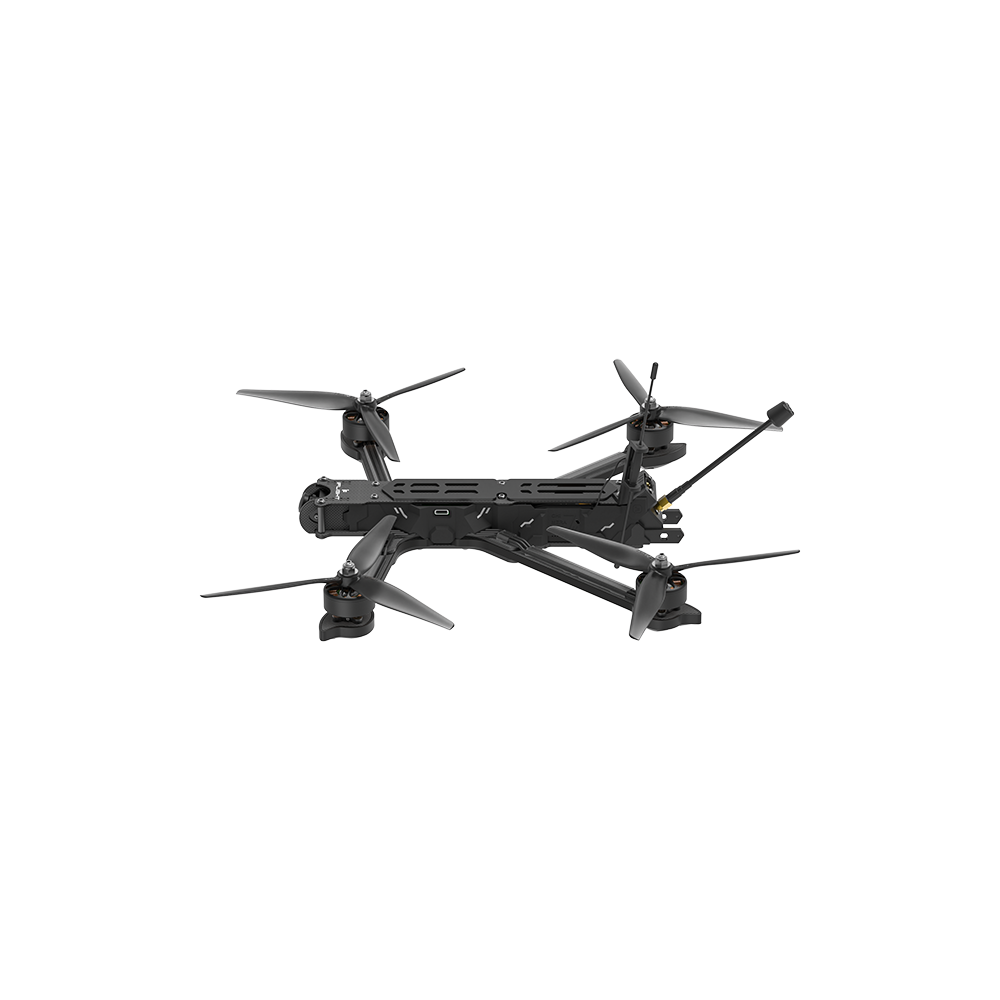

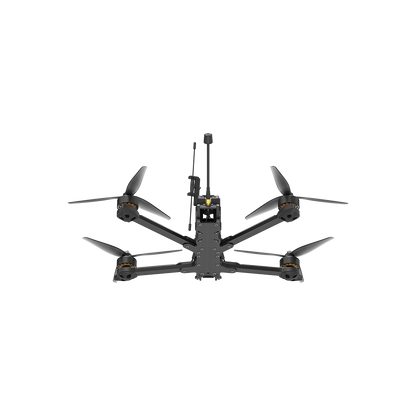

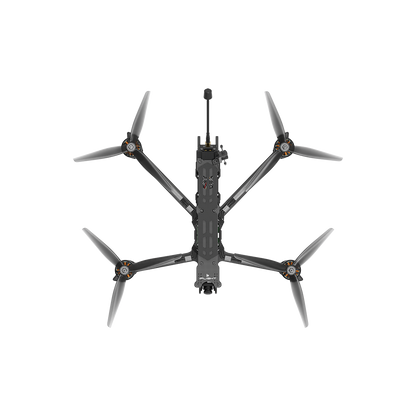

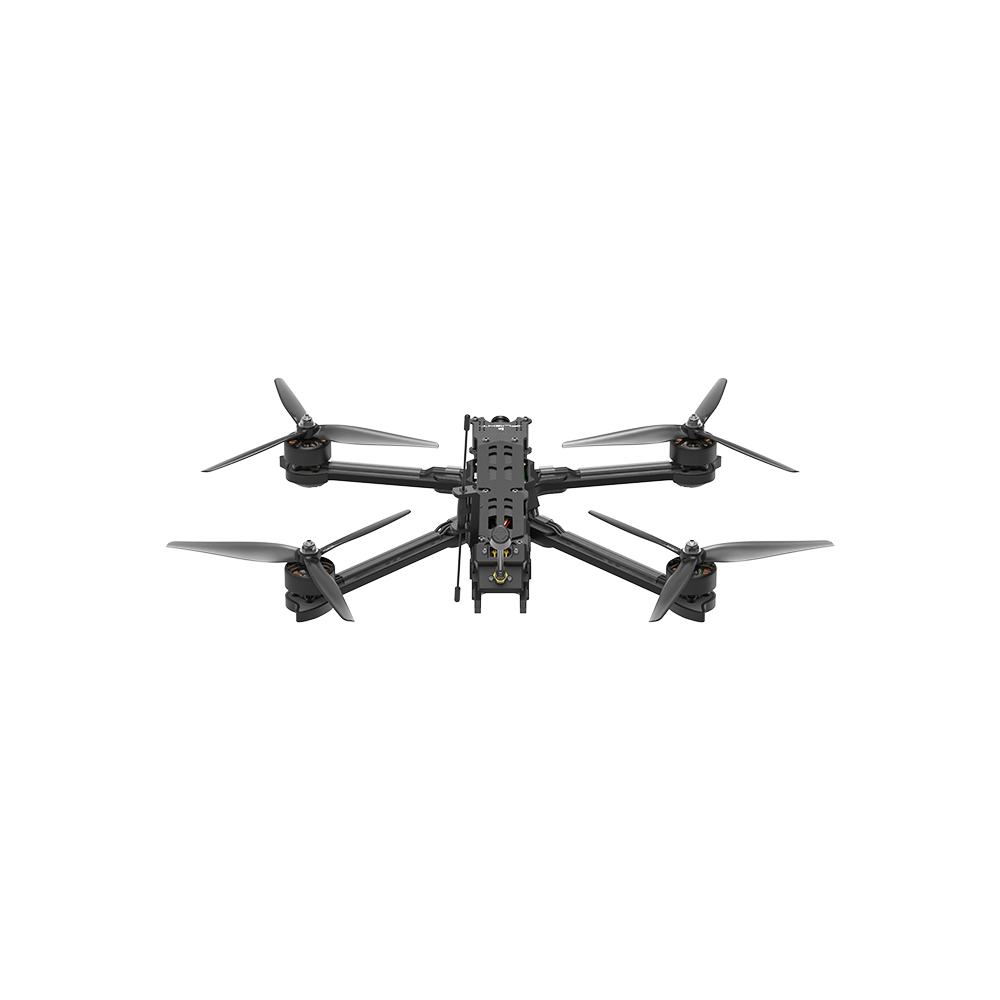

FPV Drone iFlight Chimera7 ECO 6S Analog BNF (TBS)
FPV Drone iFlight Chimera7 ECO 6S Analog BNF (TBS)
Brand: iFlight
sku: SKU:L015116
Out of stockCouldn't load pickup availability
- Description

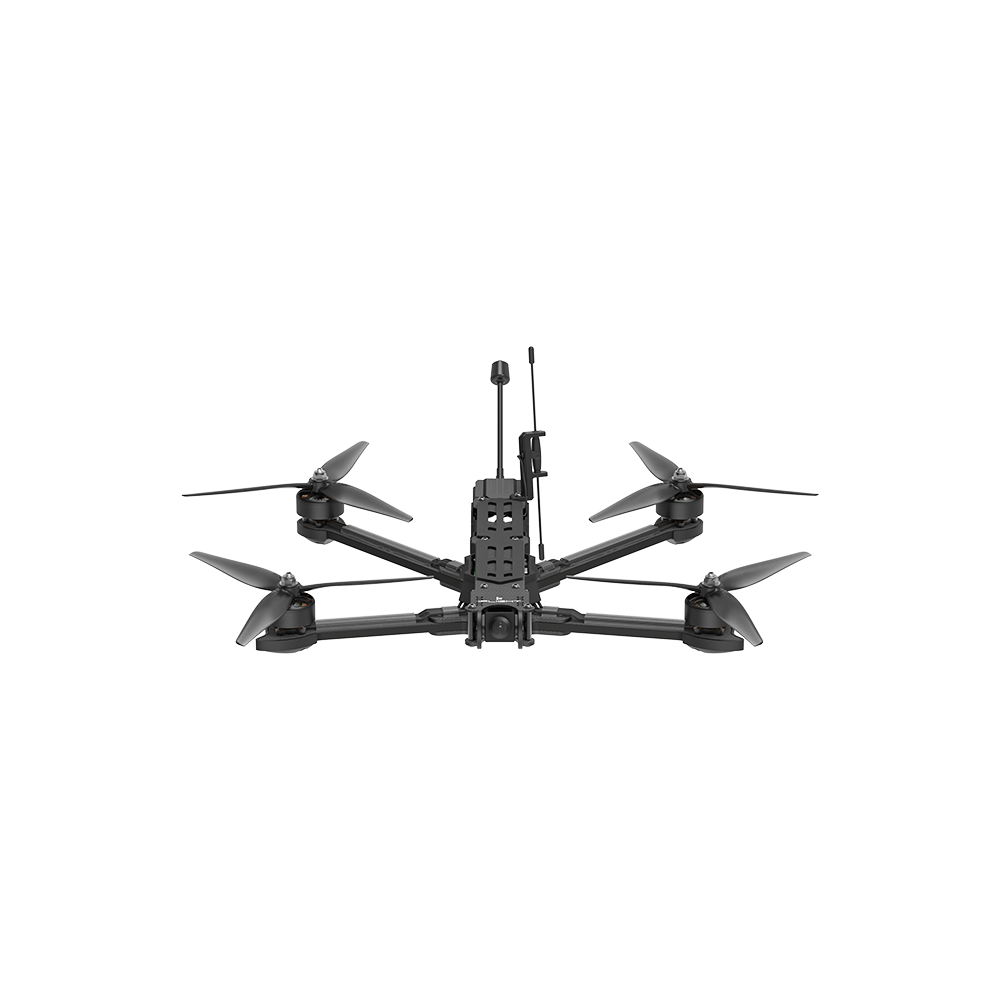

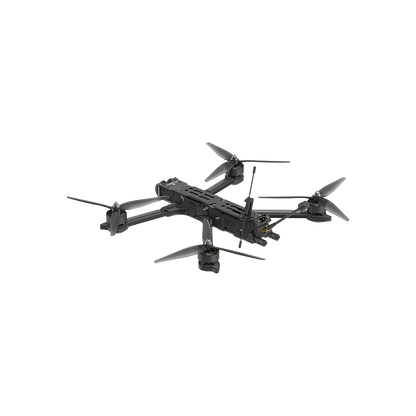

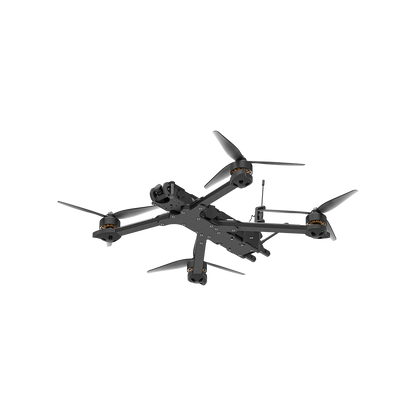

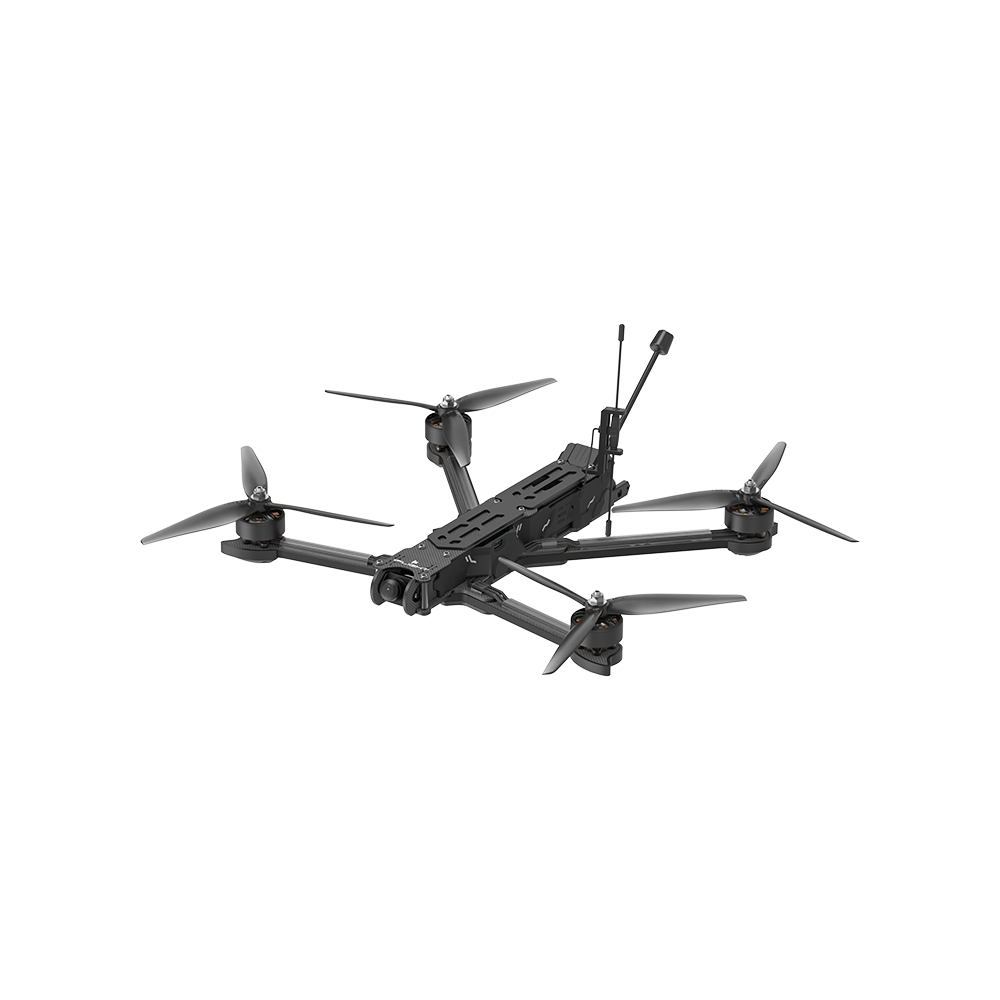

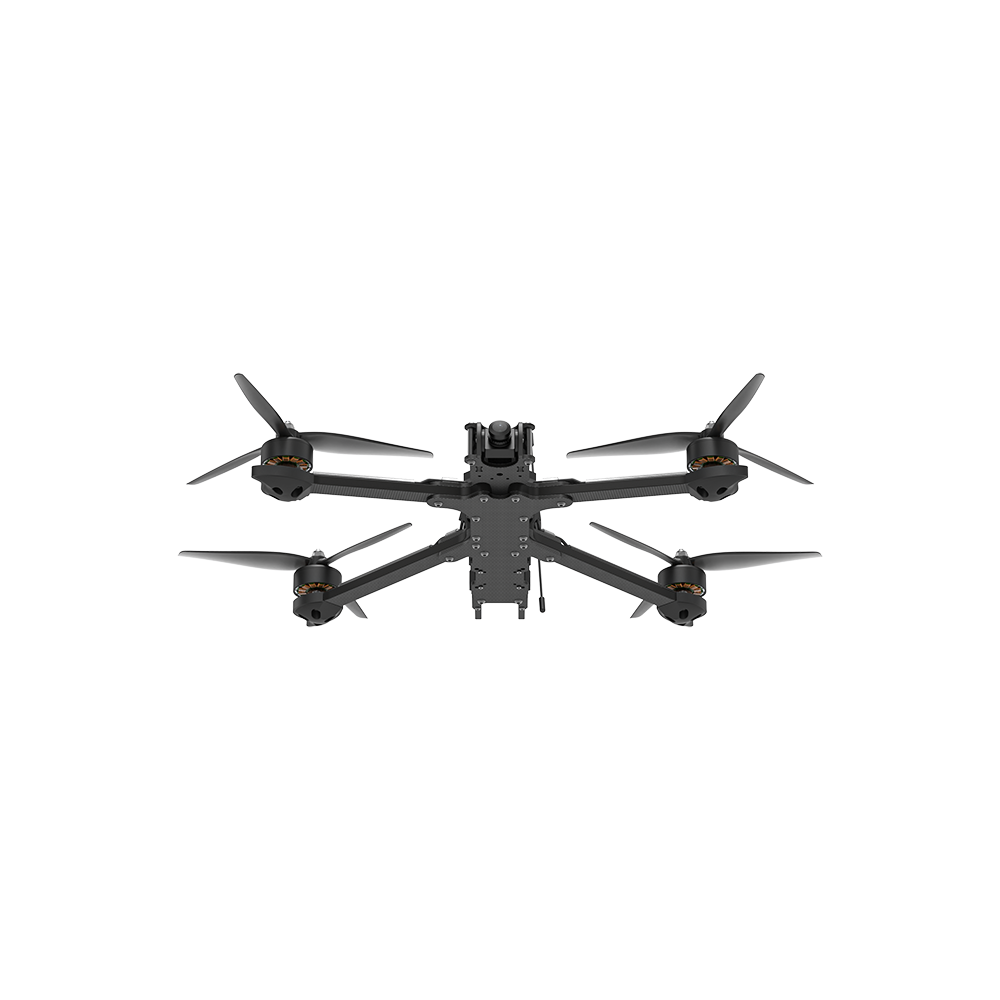

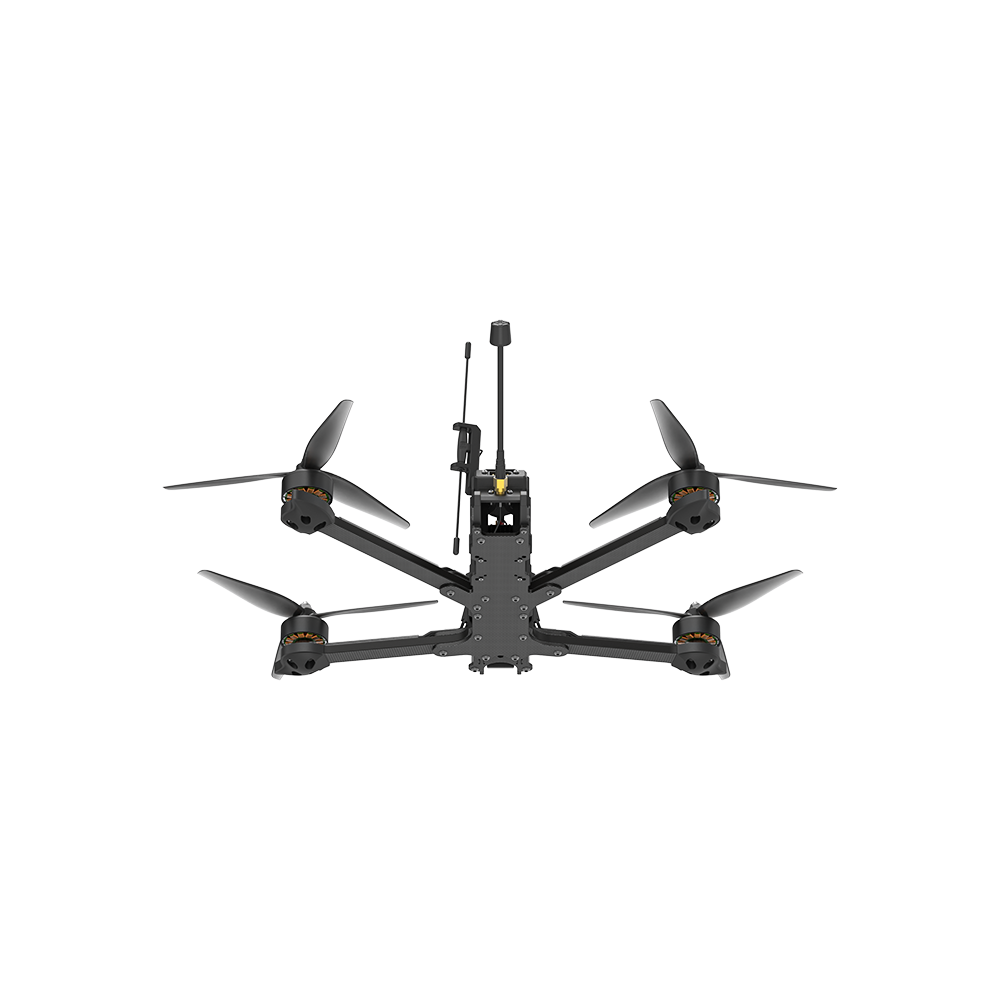

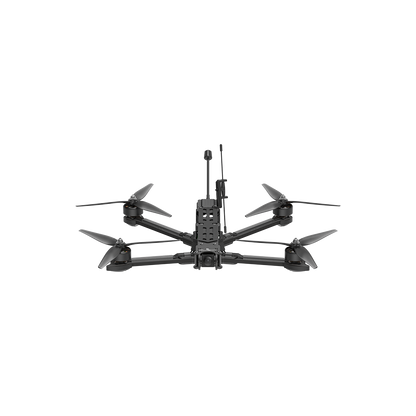

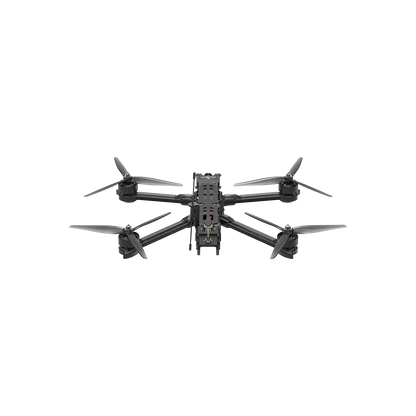

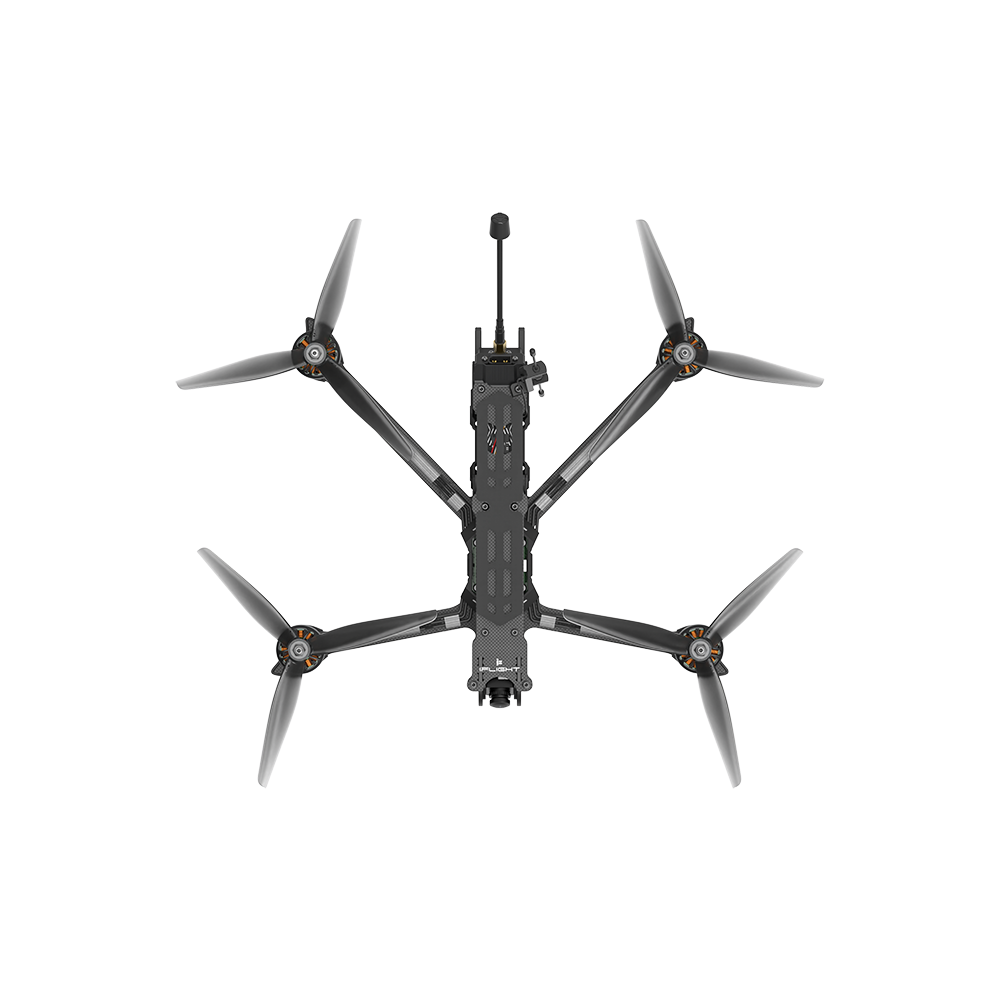

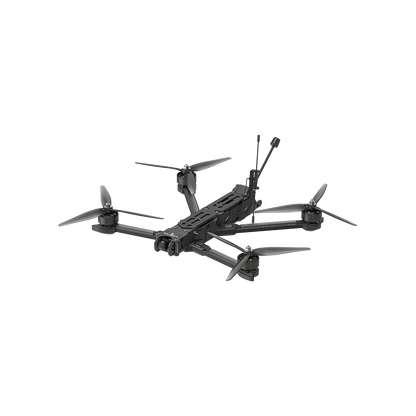

Chimera7 ECO 6S Analog BNF (TBS)
The Chimera7 ECO 6S is a lightweight version of iFlight's highly efficient 7.5-inch long-range drone. It has a super stiff frame for minimal resonance and XING2 2809 motors for maximum control of the 7.5 inch propeller. Recommended 5S 3000mAh above (slow driving) or 6S 3300mAh battery.
Function: - Latest Chimera7 ECO frame for maximum protection - Economical and efficient electrical system
Not part of the drone: - Specially designed cooler for DJI O3 air unit - Dual 5.8G VTX antenna holder TPU - Anti-spark filter - TPU Kit (GPS Mount / Buzzer Mount / GoPro Mount etc.) - LED board with LED strips
Specifications:
Product name: Chimera7 ECO 6S Analog Receiver option: TBS Crossfire Nano RX FC: BLITZ ATF435 Flight Controller ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC Video transmission: BLITZ Whoop 1.6W VTX Frame: wheelbase 327 mm Motor: XING-E 2809 1250KV motors Propeller: 7.5X3.7X3 propeller Weight: 660 g (without battery) Dimensions (L×W×H): 270x199x34mm Maximum speed: 140 km/h Maximum take-off height: 7000 m Maximum Hover Time: Approx. 30 minutes (with 6S2P 8000mAh battery) Operating Temperature Range: -10° to 40° C (14° to 104° F) Transmit Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm Antennas: Individual antennas GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video transfer Product Name: BLITZ Whoop 5.8G 1.6W VTX Output power: 0-25-400-800-1600 mw Input voltage: 12V Operating current: ? pit @40 mA, ? 25 mw @ 150 mA, ? 400 mw @ 330 mA, ? 800 mw @ 460 mA, ? 1600 mw @ 660 mA Free transmission: 40CH (A-B-E-F-R) Antenna interface: IPEX Mounting hole: 25*25/?1.6mm Weight: 16.5g (antenna not included) Dimensions: 37*31.5*10mm
The package includes: 1 x Chimera7 ECO 6S analog (TBS) 1 x battery pad 1x Antenna 2 x propellers (pairs) 2x battery strap
