    FPV Drone HGLRC Petrel 85Whoop Entry-level RTF Set

    FPV Drone HGLRC Petrel 85Whoop Entry-level RTF Set

    Brand: HGLRC

    €318,96
    €368,60 €318,96
    -13% View Product

    sku: 5212

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    FPV Drone HGLRC Petrel 85Whoop Entry-level RTF Set

    • Frame: Petrel 85Whoop frame
    • Flight control: SPECTER 10A AIO
    • MCU: STM32F411
    • GYRO: ICM42688
    • Built-in video streaming:
      • 0-RCE-25-100-400mW (adjustable)
    • Built-in ESC:
      • Continuous current: 10A
      • Peak current: 13A (10s)
      • ESC protocol: Dshot600, Oneshot, Multishot
      • ESC Firmware: Z_H_30/(Bluejay)
    • Flight Control Firmware:
      • HGLRCF411SX1280 V2
    • Input voltage for flight control:
      • 3.7v-7.4v (Lipo)
    • Mounting hole position: 25.5X25.5mm, M2
    • Engine: SPECTER 1202.5 11000kv
    • Propeller: Gemfan 2015 double blade
    • ELRS version weight: 48+1g

    Key Parameters:

    • Built-in ELRS:
        .
      • Receiving distance: More than 200m
    • Binding method:
      • Quickly turn the power on and off three times to enter binding mode
    • Interface: USB TYPE-C + USB TYPE-A double connector
    • Working voltage: 5 V
    • How to Update ELRS Firmware:
      • WIFI or USB connector
    • ELRS firmware version: ELRS 3.0
    • ELRS Firmware Name: HGLRC 2.4GHz, HGLRC Hermes 2.4GHz RX
    • External receiver support protocol:
      • Only supports the CRSF protocol
    • Weight: 9.5 g
    • Size: 74mm x 21mm x 12.5mm

    Remote control parameters:

    • Built-in ELRS: ELRS 2.4GHz
    • Built-in ELRS refresh rate: 250Hz
    • Remote control sensor type: Potentiometric sensor
    • Antenna: Built-in IPEX1 generation copper tube antenna
    • Working voltage: 6-8.4 V DC
    • Remote control distance: More than 500m
    • Output interface:
      • TX NANO bin module (CRSF protocol)
      • TYPE-C (only for charging and flashing firmware)
      • 3.5mm analog training port
    • Battery: 18650 flat head battery x2 (user install)
    • Charging:
        Charging current 1.2 A
      • :
    • TYPE-C
      • .
    • Charging time: Approximately 3-4 hours
  • Remote control channels: 8 channels
  • Bluetooth: Bluetooth 4.2
  • How to Update ELRS Firmware:
    • WIFI or TYPE-C wired brush
  • ELRS firmware version: ELRS 3.0
  • ELRS Firmware Name: DIY Device 2.4GHz DIY ESP32 + E28 2.4GHz TX
  • Weight: 195 g (without battery)
  • Dimensions: 160 mm x 130 mm x 50 mm (without remote control)

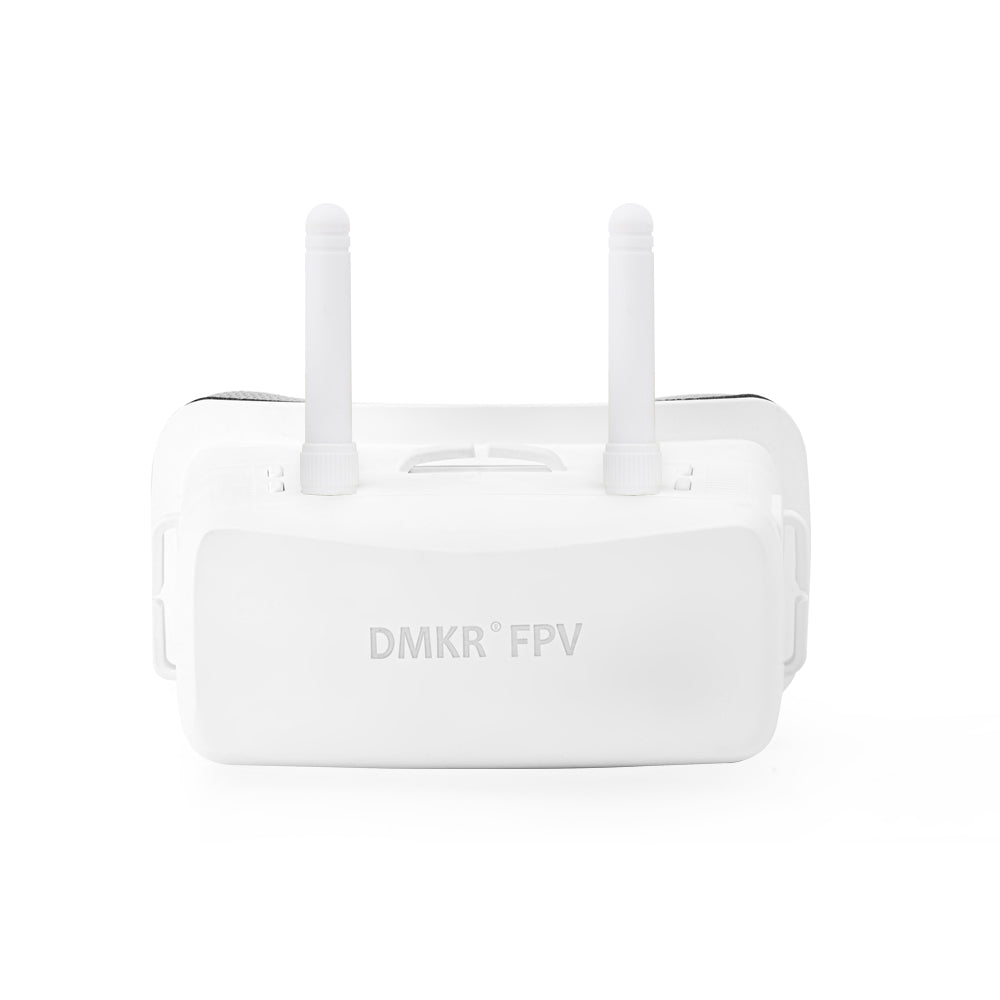

    • 5.8G FPV video glasses

    • Model: 5.8G FPV video glasses
      • .
    • Screen Material: 3.0 inch IPS screen with high brightness
      • .
    • Display resolution: 480 x 320
    • Display specifications: 16:9
    • Field of vision: 360 degree full viewing angle
    • Backlight brightness: 500cd/m²
    • Video Latency: Less than 10 milliseconds
    • Antenna head: Antenna head with internal hole and internal needle antenna RP-SMA
    • Charging port: Use TYPE-C
      • to charge the built-in battery.
    • Headphone port: 3.5mm AV jack supports video input and audio/video output
    • Menu language: Chinese and English
    • Battery:
      • Power adapter: We recommend using a DC5V/1A or DC5V/2A charging head
      • Battery Specifications: Built-in 3.7V/1200mAh polymer battery
    • Power consumption:
      • Battery charging time: approximately 1 hour
      • Using time: About 3 hours
    • Dimensions: 107mm x 150mm x 75mm
    • Weight: 300 g (without antenna)
