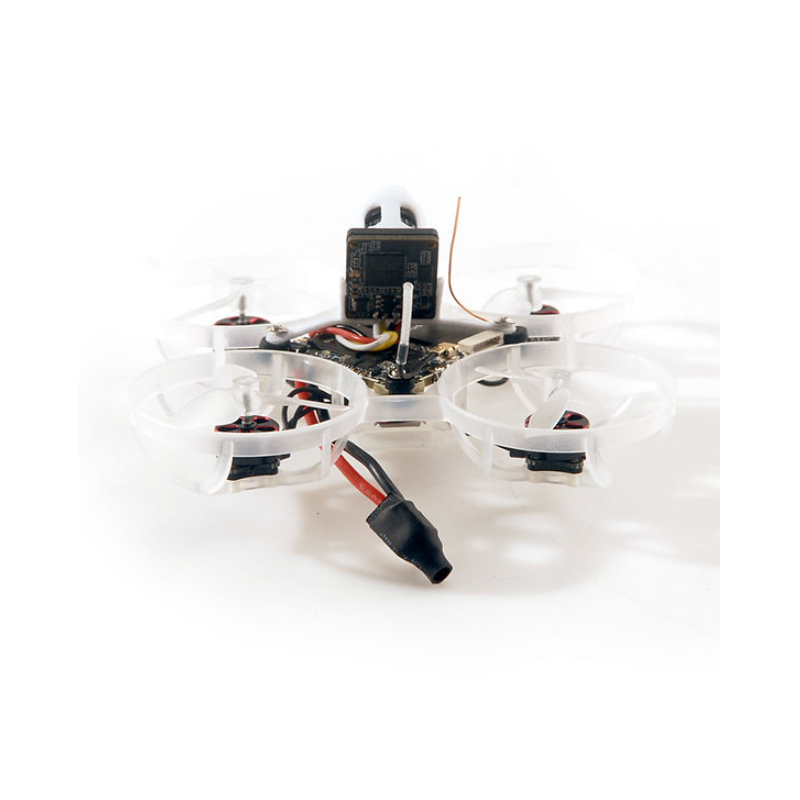

Happymodel Mobula6 Freestyle HD - Lightweight 65mm Brushless Drone
The Happymodel Mobula6 Freestyle HD is a revolutionary 65mm brushless drone that weighs an amazing 19.6 grams, making it one of the lightest in its class. To achieve this remarkable weight, HDZero developed the first 5-in-1 AIO system that combines the HDZero VTX, flight control system, ESC, RX (ELRS) and 5V 1A BEC on one robust PCB board. The drone is equipped with a lightweight 5.8G VTX antenna and premium Japanese RENY screws, which ensures increased durability and performance while keeping the total weight under 20 grams.
This Bind-and-Fly (BNF) drone features an HDZero Lux camera that delivers stunning 720p video at 60fps in 4:3 and 16:9 aspect ratios. With powerful SE0702 28000KV motors and 31mm propellers, it offers unmatched agility and sensitivity, making it ideal for freestyle flying.
Key Specifications:
- Weight: 19.6 g
- Recommended battery: 1S 300mAh
- Propeller size: 31 mm for exceptional maneuverability
- AIO module: HDZero 5-in-1, integrating VTX, FC, ESC, RX and BEC
- Camera: HDZero Lux (720p60, 4:3 and 16:9 aspect ratios) for high definition
- Motors: SE0702 28000KV brushless motors for excellent performance
- Microcontroller: STM32F411, 100MHz with 512K Flash for efficient processing
- Gyroscope: BMI270 for smooth and responsive flight control
- ESC: BLHeli_S 5A each, 4-in-1 for optimized efficiency
- Receiver: Built-in SPI ExpressLRS 2.4GHz for better range and reliability
- BEC: 5V 1A for powering other accessories
- Board dimensions: 28.5 × 28.5 mm, with mounting holes 25.5 × 25.5 mm
- Firmware Target: CRAZYBEEF4SX1280
Enclosed accessories:
- 1x Happymodel Mobula6 Freestyle HD BNF
- 1x Spare crown for better protection
- 1x Spare set of propellers for easy replacement
- 1x Screwdriver and 1x propeller removal tool for convenient maintenance
