FPV Drone GEPRC Tern-LR40 Analog PNP
FPV Drone GEPRC Tern-LR40 Analog PNP
Brand: GEPRC
sku: SKU:GP106093
Couldn't load pickup availability
- Description
Please note that this version does not include GPS M-10.

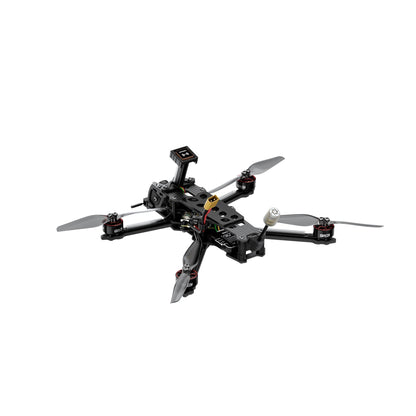

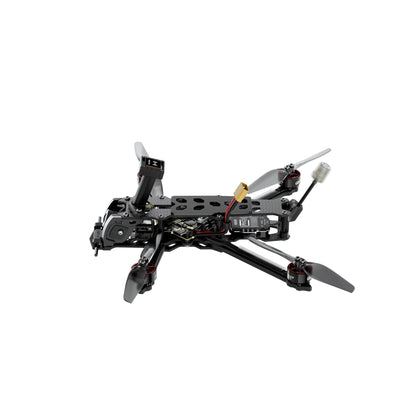

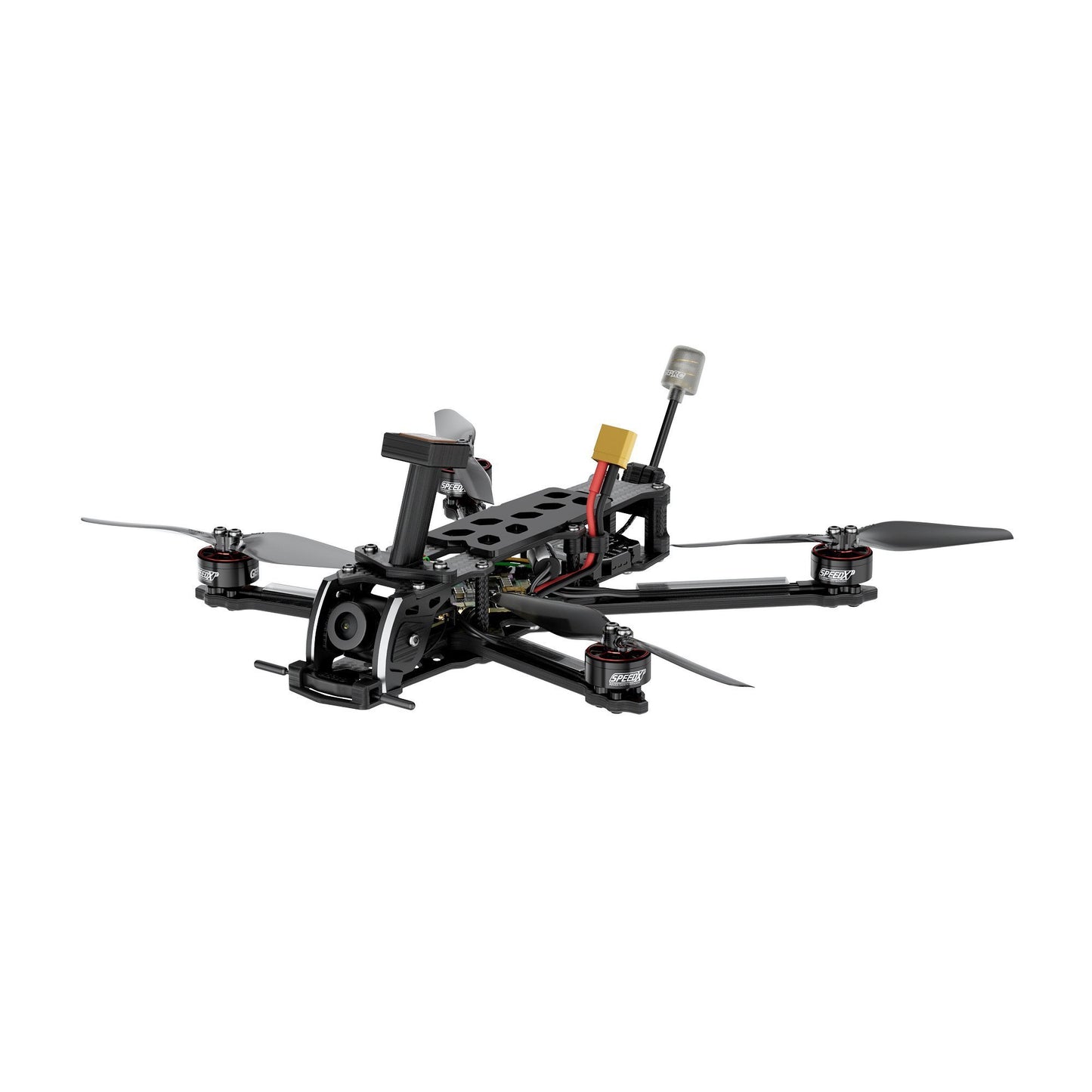

FPV drone GEPRC Tern-LR40 Analog PNP
Features:
New lightweight construction, weight under 249 g.An advanced method of GPS fixation and removal of interfering sources
Due to the DC design, the propellers are not visible during flight, which is more suitable for straight-line aerial photography.
Install the BB ring to set the low battery alarm
Thanks to GPS GEP-M10nano, the satellite search speed is higher and the rescue mode is more stable.
Compatible with GoPro mount installation, extended shooting possibilities.
Specifications:
Model: Tern-LR40
Frame: Tern-LR40 frame
Top plate: 1.5 mm
Middle plate: 2.0mm
Bottom plate: 1.5 mm
Arm thickness: 3.5 mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E
ESC: 32bit 45A
VTX: RAD mini 1W
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP UFL
Connector: XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propeller: HQProp T4X2.5Grey (2CW+2CCW)
Tern -LR40 Analog version PNP weight: 159 g ± 5 g
Receiver: PNP
Recommended battery: LiPo 4S 660mAh-850mAh/18650 3000mAh
Flight time: 10-25 min
Contains:
1 x Tern-LR40
2 x HQProp T4X2.5Grey (2CW+2CCW)
2 x non-slip mat for batteries
1 x pack of screws
4 x battery tape M15*170 mm
1 x L-shaped screwdriver 1.5 mm
1 x GoPro camera mount
1 x T-type antenna holder
1 x RC printed
