FPV Drone GEPRC Mark5 HD O3 PNP 4S
FPV Drone GEPRC Mark5 HD O3 PNP 4S
Brand: GEPRC
sku: SKU:GP105746
Couldn't load pickup availability
- Description

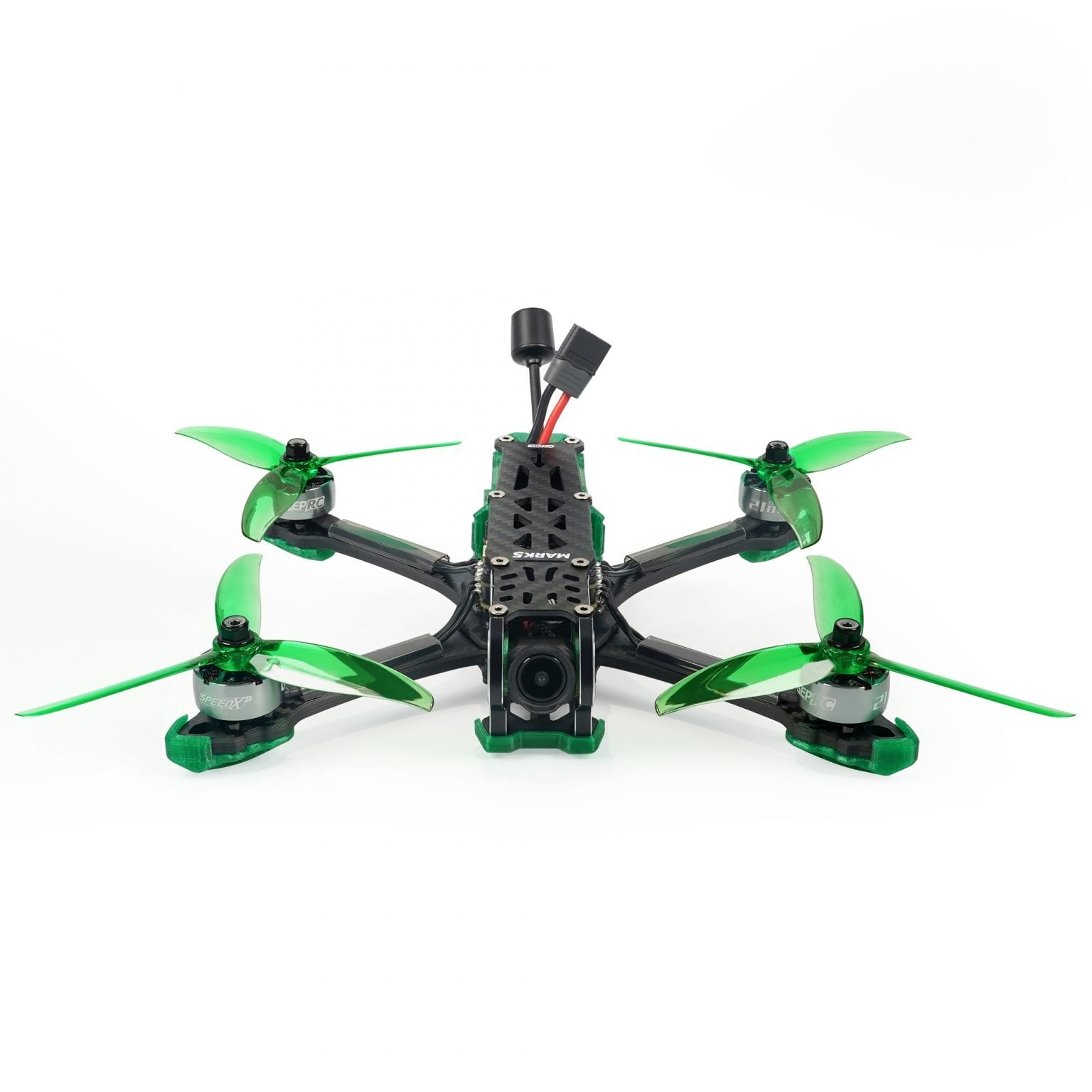

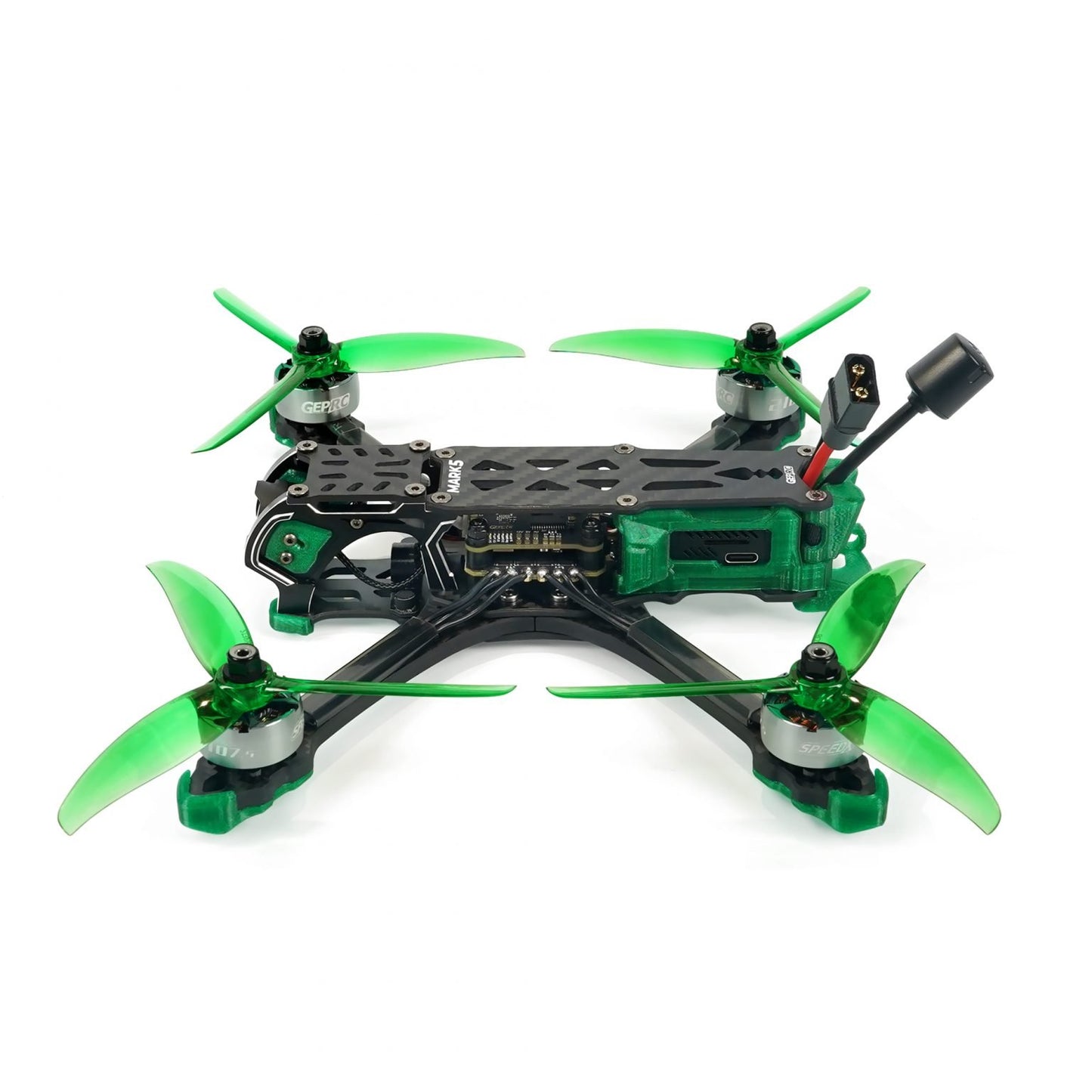

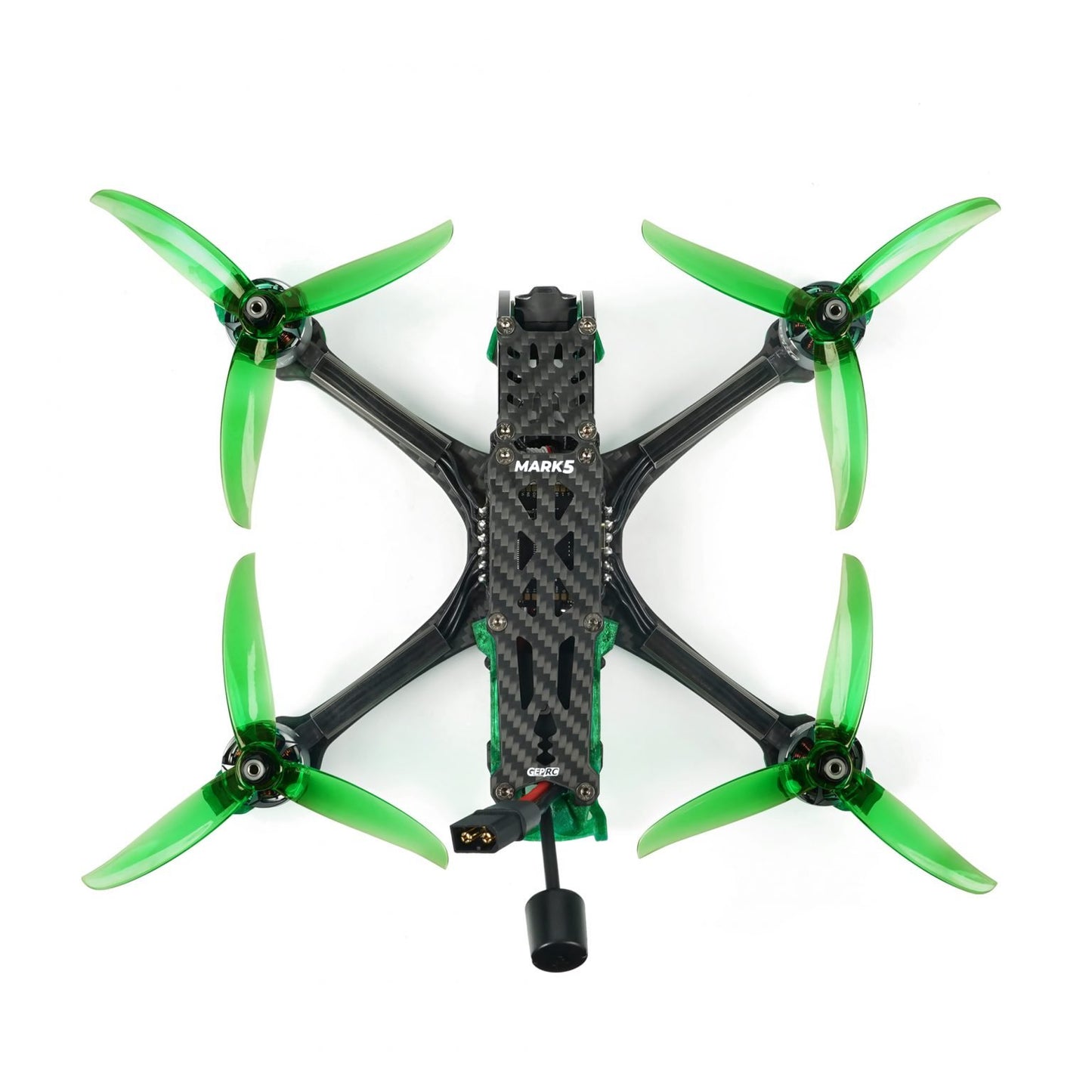

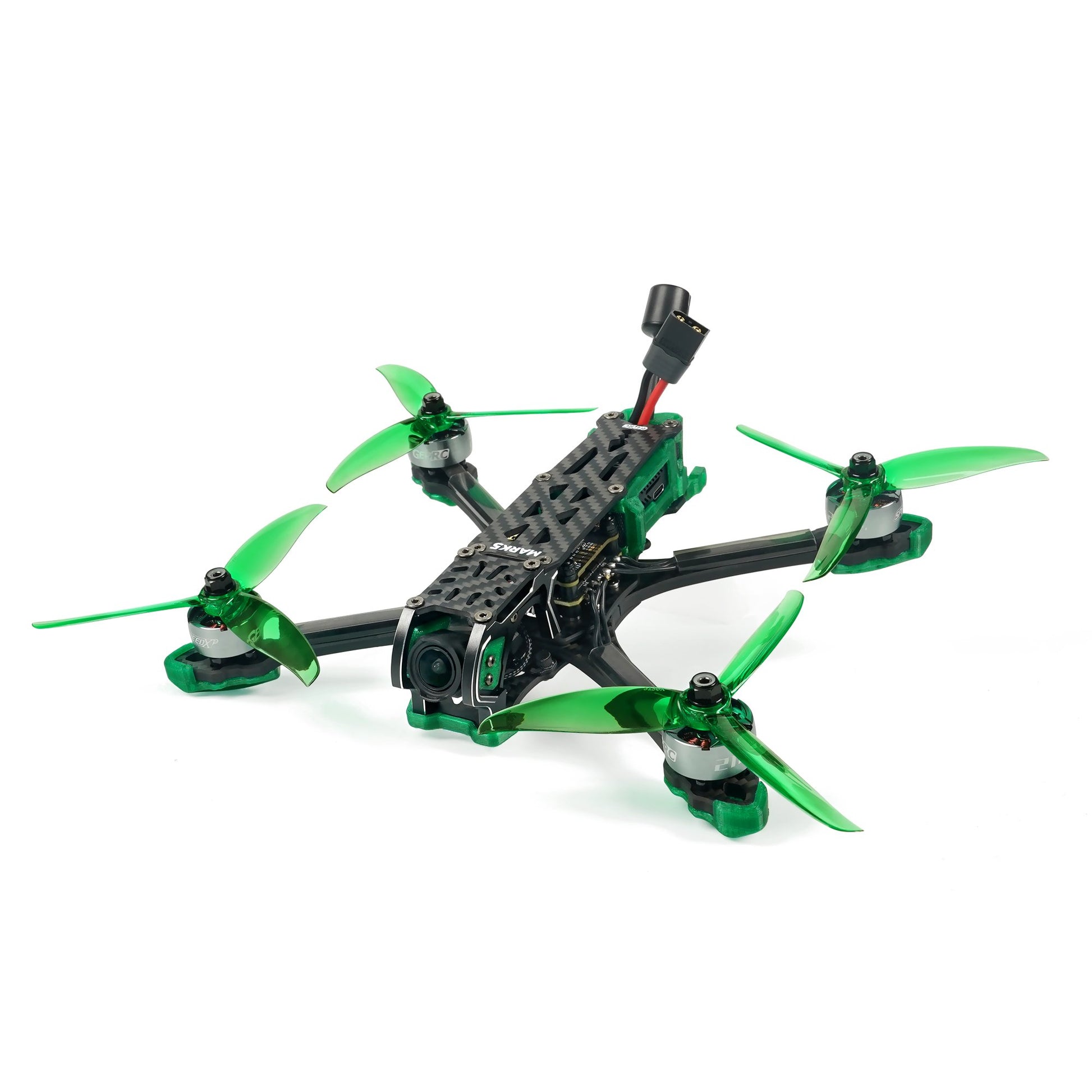

Mark5 HD O3 PNP (4S)

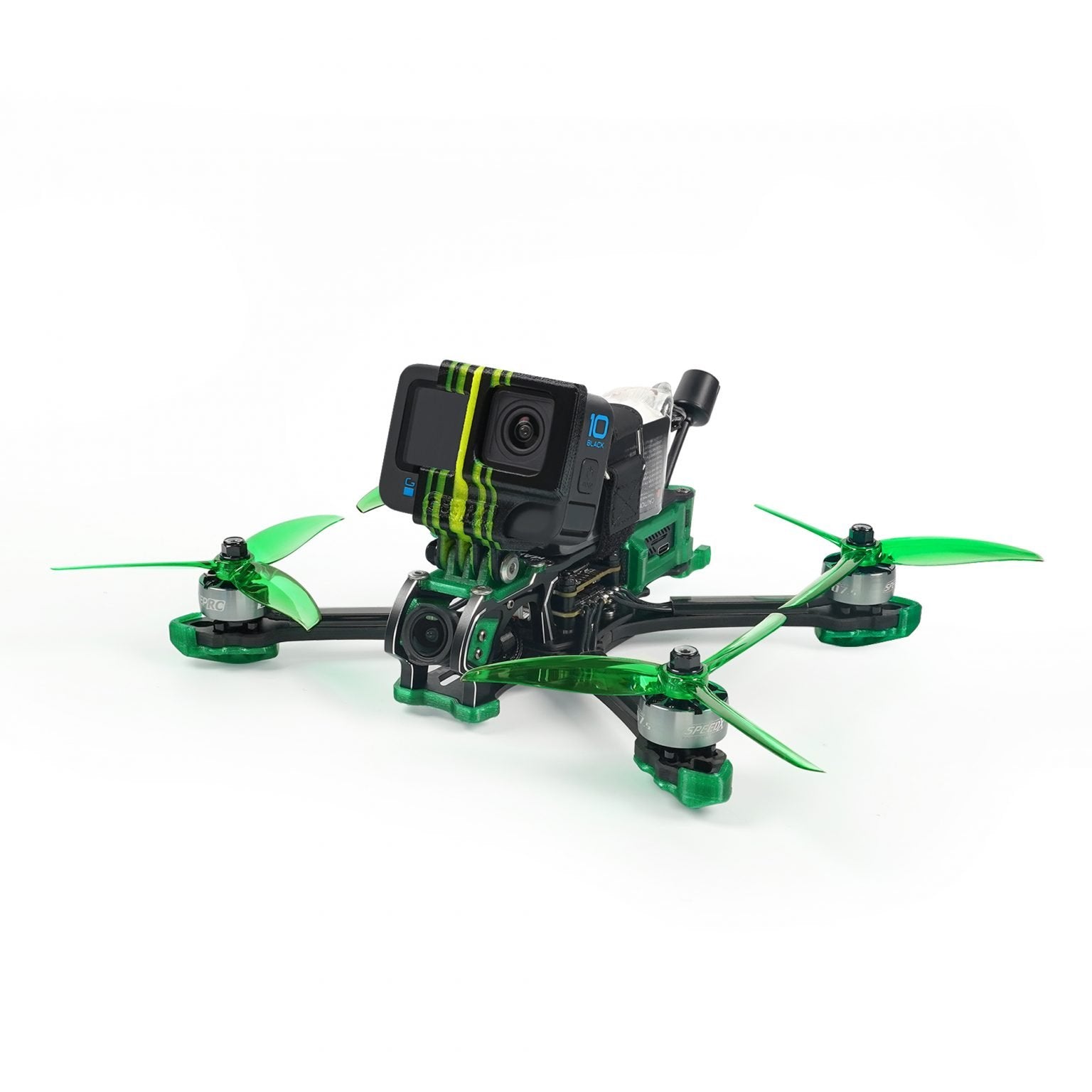

The camera's newly improved aluminum alloy side plate, 7075-T6 aluminum alloy, is strong and durable. It can be fully adapted to the new DJI O3 aerial unit camera with a field of view (FOV) of 155° and the recording specification can support up to 4K 60FPS. Specially designed TPU mounting parts for the O3 VTX module, equipped with a cooling air intake port, which contributes to sufficient heat dissipation in the air unit. MARK5 O3 uses the latest GEPRC SPAN F722-BT-HD V2 stack with ICM 42688P gyroscope for smooth flight, redundant power and ports and supports Bluetooth wireless connection for debugging. SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor and uses new Gemfan 5136 propellers which have strong performance. MARK5 O3 comes with two different camera mounts that can be mounted with a whole range of GP action cameras, as well as GP 8/10 Naked camera, Insta 360 GO2 and Caddx Peanut etc. to record the beautiful moments of your flight.
Specifications:
Model: MARK5 HD O3 quadcopter
Brand: GEPRC
Frame: GEP-MK5 O3
Wheelbase: 225 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyroscope: 42688-P (SPI)
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna
Motor: SPEEDX2 2107.5-2450KV (4S version)
Weight: 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: PNP
Recommended battery: LiPo 4S 1300mAh-1800mAh (4S version)
