    RunCam WiFiLink FPV Camera + Ground End

    RunCam WiFiLink FPV Camera + Ground End

    Brand: RunCam

    €108,89
    €108,89 €108,89
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: WIFILINK-G
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The RunCam WiFiLink FPV Camera + Ground End delivers high-definition FPV video transmission for drones, robotics, and security applications. Equipped with the IMX415 sensor, it records smooth 1080P video at up to 90FPS or 720P at 120FPS, with an ultra-wide 160° field of view, ensuring full coverage and sharp detail.

    Its compact design (19×19mm lens module, 30×30mm or 32×32mm PCB) and flexible mounting options make it easy to integrate into a variety of platforms, while the universal 9-30V power supply ensures reliable operation.

    Key Features

    • High-Quality Video: 1080P at 60/90FPS, 720P at 120FPS for smooth and responsive footage.
    • Ultra-Wide View: 160° FOV with IMX415 sensor for complete scene coverage.
    • Flexible Power Supply: Supports DC 9-30V; BEC recommended for stable operation.
    • Compact & Lightweight: Lens module 19×19mm, PCB sizes 30×30mm or 32×32mm, total weight 30g.
    • Reliable Wireless Connection: IPEX1 5G antenna with 29dBm output for long-distance video transmission.
    • Versatile Mounting: 25.5mm × 25.5mm mounting hole spacing and MIPI cable options (130mm/200mm).

    Specifications

    • Camera Sensor: IMX415
    • Video Resolution: 1080P up to 90FPS / 720P up to 120FPS
    • Field of View: 160°
    • Power Input: DC 9-30V (BEC recommended)
    • Lens Module: 19 × 19 mm
    • PCB Size: 30 × 30 mm (338Q) / 32 × 32 mm (WiFiLink)
    • Mounting Hole Spacing: 25.5 × 25.5 mm
    • Antenna: IPEX1 5G, 29dBm PA
    • Weight: 30 g

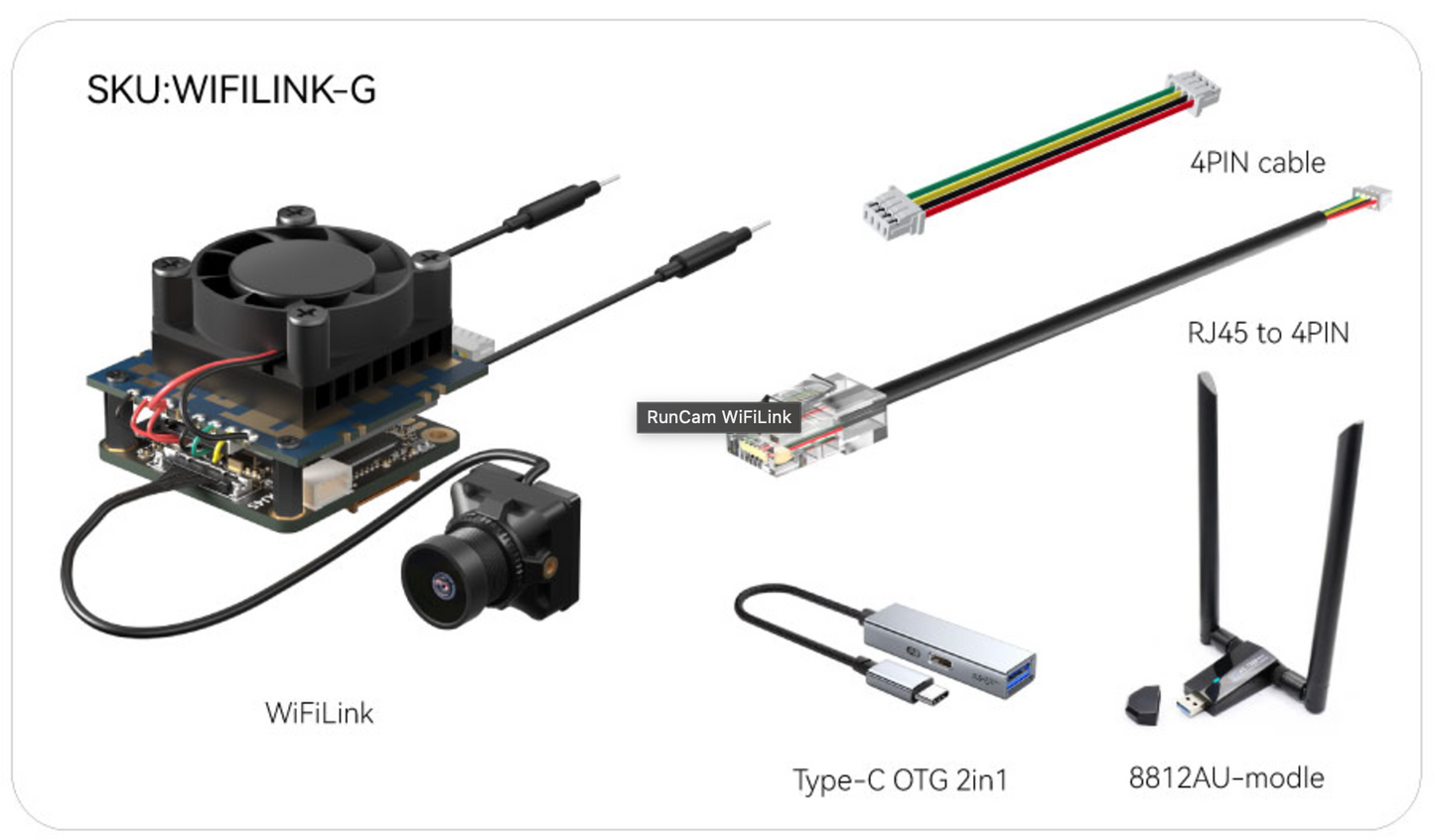

    Package Includes:

    • 1 × RunCam WiFiLink Camera Module
    • 1 × Ground-End Connection Module
    • Cables and mounting hardware
