    FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light

    FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light

    Brand: Foxeer

    €60,98
    €60,98 €60,98
    -0% View Product

    sku: HS1262

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light

    Camera specifications

    • Sensor type: Sony 1/3" CMOS sensor
    • Compatibility with IR light: Works with 850nm IR light
    • Aspect ratio: 4:3 (default) / 16:9 switchable
    • TV system: PAL (default) / NTSC switchable
    • Resolution: 1200TVL
    • Lens: M12 2.1mm F1.4 for low light
    • Filter: No filter

    Field of View (FOV)

    • Aspect ratio 4:3:
      • FOV-H: 100°
      • FOV-D: 125°
    • Aspect ratio 16:9:
      • FOV-H: 100°
      • FOV-D: 115°

    Shutter speed

    • PAL: 1/25~1/10000 sec
    • NTSC: 1/30~1/10000 sec

    Video output

    • Output type: CVBS analog signal

    Sensing capabilities

    • Minimum illumination: 0.00001 Lux
    • White balance: Automatic
    • DNR: 3DNR
    • WDR: 100dB
    • Day/Night Mode: EXT / Auto / Color / Black & White

    On Screen Display (OSD)

    • Flight OSD: Displays voltage, camera name and time

    Power and environmental specifications

    • Input voltage: 4.6V ~ 20V
    • Power consumption: 95mA ±15% at DC12V
    • Working temperature: -10° ~ 50°C (RH90% MAX)
    • Working humidity: 20% ~ 80%
    • Storage temperature: -20° ~ 70°C

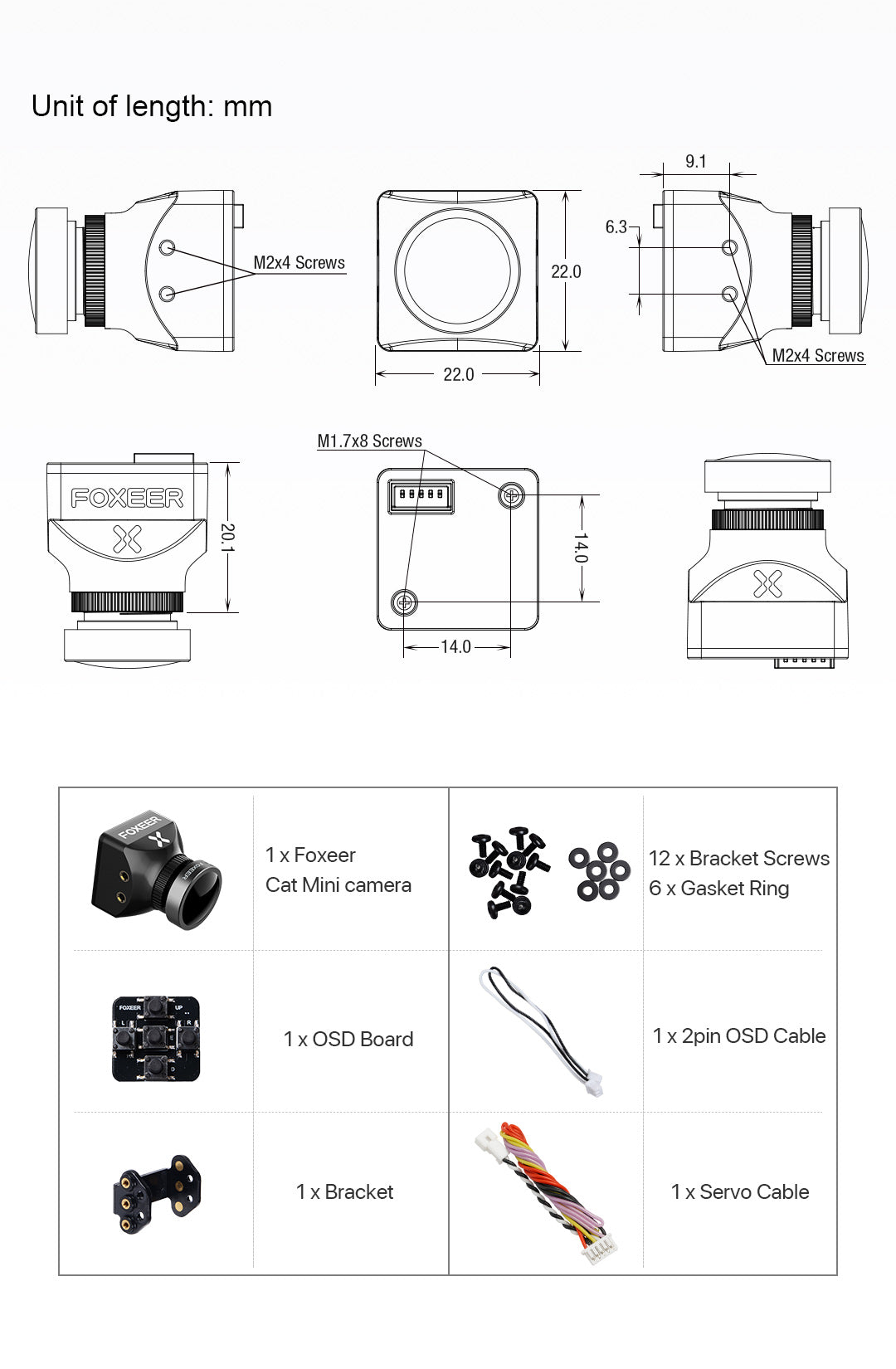

    Physical dimensions

    • Dimensions: 22x22mm
    • Weight: 12.2g (without cable)

    Other functions

    • Language support: English, 中文, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek
    • ODM/OEM: Support available
