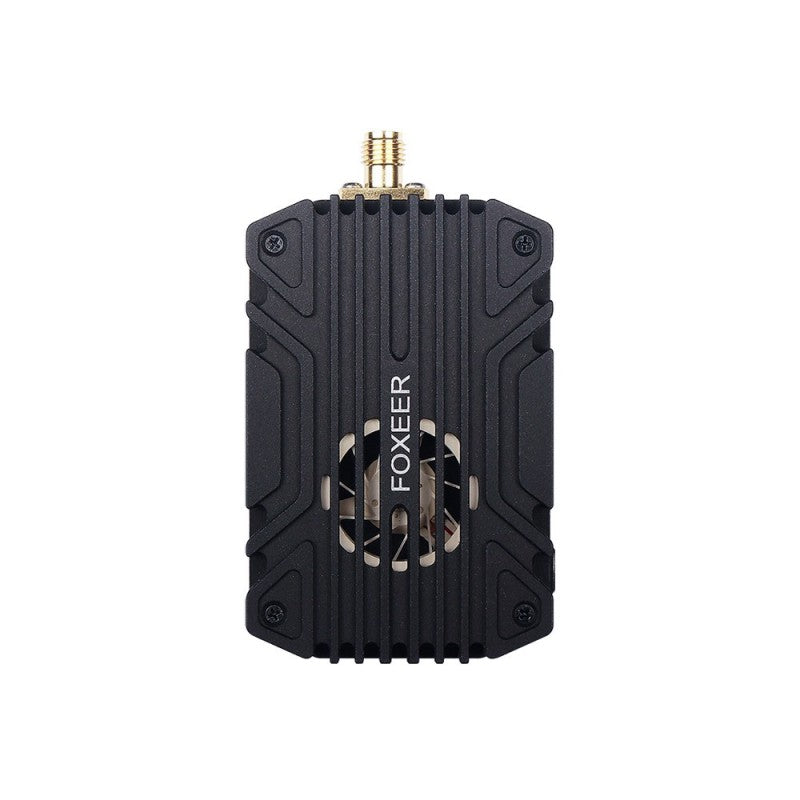

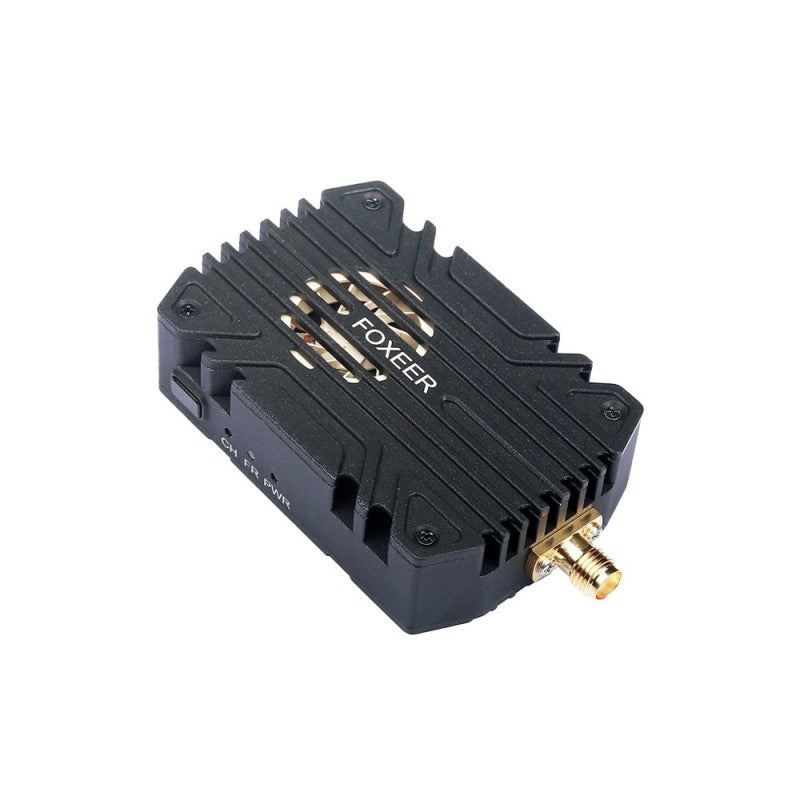

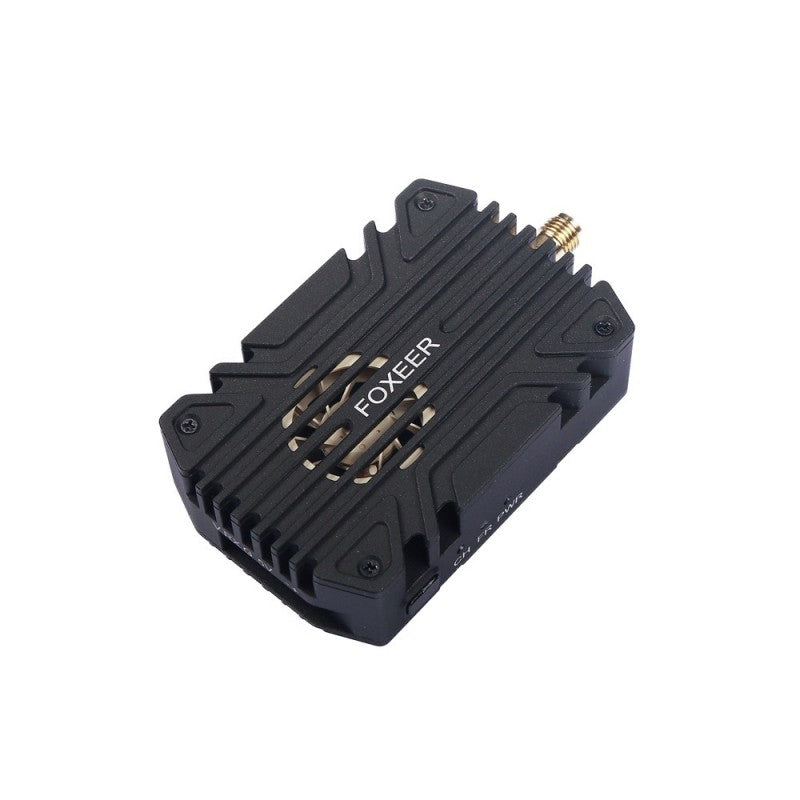

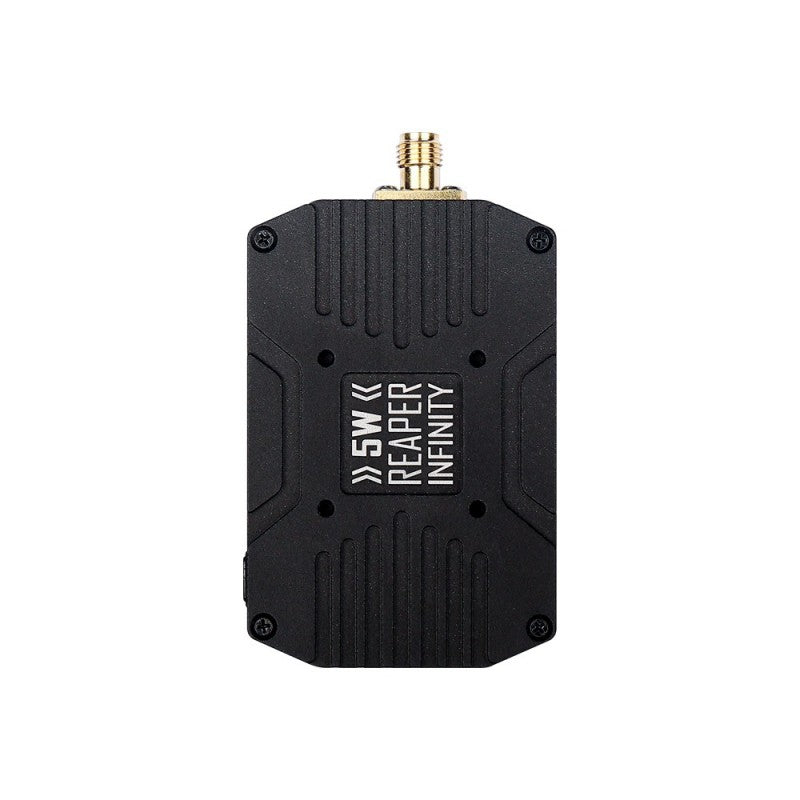

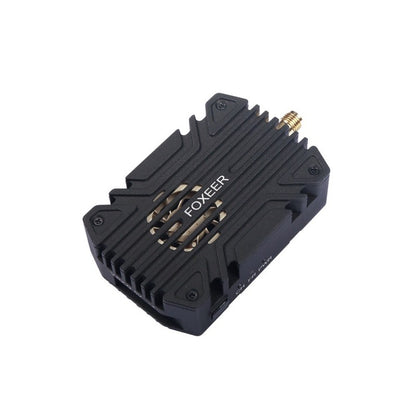

Foxeer Reaper Infinity 5W VTX
Foxeer Reaper Infinity 5W VTX
Brand: Foxeer
sku: SKU:MR1796
Out of stockCouldn't load pickup availability
- Description
The Foxeer Reaper Infinity 5W VTX is an ultra-powerful FPV video transmitter designed for extreme long-range flying and stable video transmission. With adjustable output power up to 5000mW (5W) and support for 40 channels, this VTX delivers strong signal penetration and reliable performance in demanding environments.
Thanks to its wide 9-36V input voltage range, the Reaper Infinity works with a variety of FPV builds and battery setups. The integrated power indicator system makes monitoring the selected output level simple, while Pit Mode allows pilots to power on safely during races or group flights without interfering with others.
Built for durability and high performance, the Reaper Infinity features a robust aluminum housing for efficient heat dissipation, ensuring stable operation even at high transmission power.
Key Features
- Up to 5W (5000mW) transmission power for extreme long-range FPV
- 5 selectable power levels: 50mW / 500mW / 1000mW / 2500mW / 5000mW
- 40 channels on 5.8GHz band
- Pit Mode support for race environments
- Wide voltage input: 9-36V compatible with multiple battery setups
- Integrated LED power indicator
- SMA antenna connector
- Durable housing with efficient heat dissipation
- 20×20mm mounting pattern for easy installation
Specifications
- Model: Foxeer Reaper Infinity
- Frequency: 5.8 GHz
- Channels: 40CH
- Output Power: 50mW / 500mW / 1000mW / 2500mW / 5000mW
- Input Voltage: 9-36V
- Output Voltage: 5V
- Power Consumption:
- 9V / 3A
- 36V / 0.8A
- Mounting Pattern: 20 × 20 mm (M2)
- Connector: SMA
- Dimensions: 72 × 41 × 17 mm
- Weight: 58 g
Package Includes
- 1 × Foxeer Reaper Infinity 5.8G 5W 40CH VTX
