FC RadioMaster Nexus Helicopter Flybarless control unit Rotorflight 2.0
FC RadioMaster Nexus Helicopter Flybarless control unit Rotorflight 2.0
Brand: RadioMaster
Regular price
€89,61
Regular price
€89,61
Sale price
€89,61
Unit price
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:HP0157.0087
Couldn't load pickup availability
- Description

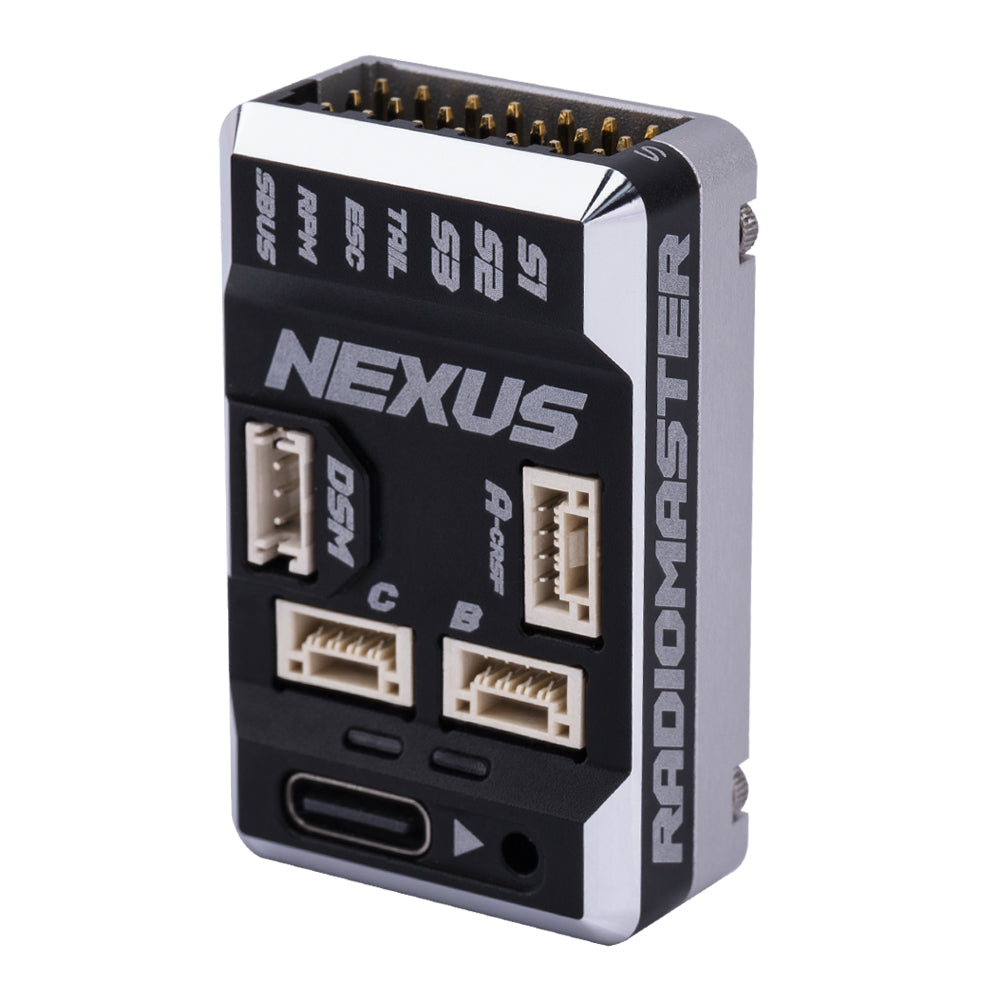

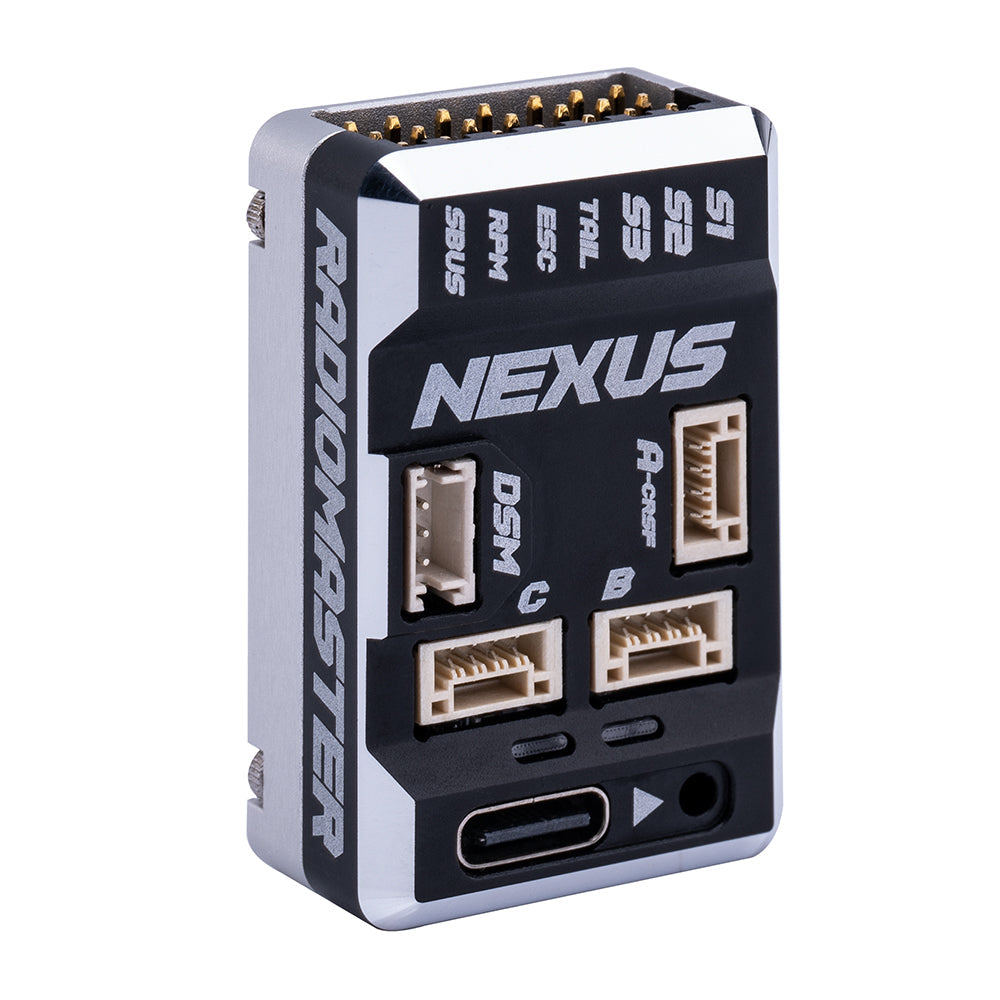

NEXUS Flybarless (FBL) unit is designed based on Rotorflight 2.0 with excellent performance and compatibility for RC helicopter fans. With an advanced MCU STM32F722 and a six-axis motion tracking device TDK ICM-42688-P, NEXUS ensures precise control and stable flight. Built-in 128 MB memory enables comprehensive flight records for fine-tuning.
Properties:
- The NEXUS helicopter controller is designed specifically for Rotorflight 2.0.
- Equipped with advanced processor STM32F722 MCU and 6-axis MEMS device TDK which combines 3-axis gyroscope and 3-axis accelerometer.
- Built-in Black Box: A large memory of 128 MB ensures the ability to record all flights for fine-tuning and editing.

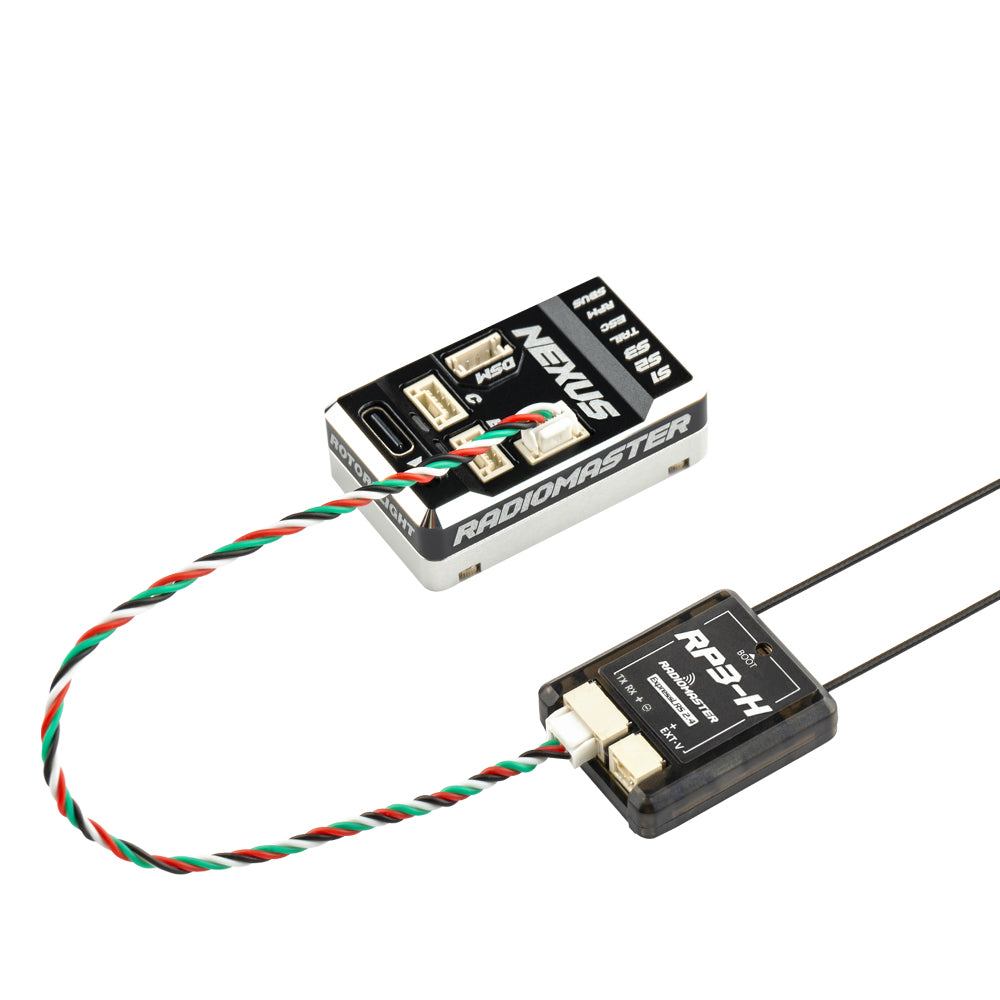

- Connector system with lock, compatible with Plug'n'Play receivers without the need for soldering RP3-H ExpressLRS (RP3-H not included).
- Functional UART ports for future expansion.

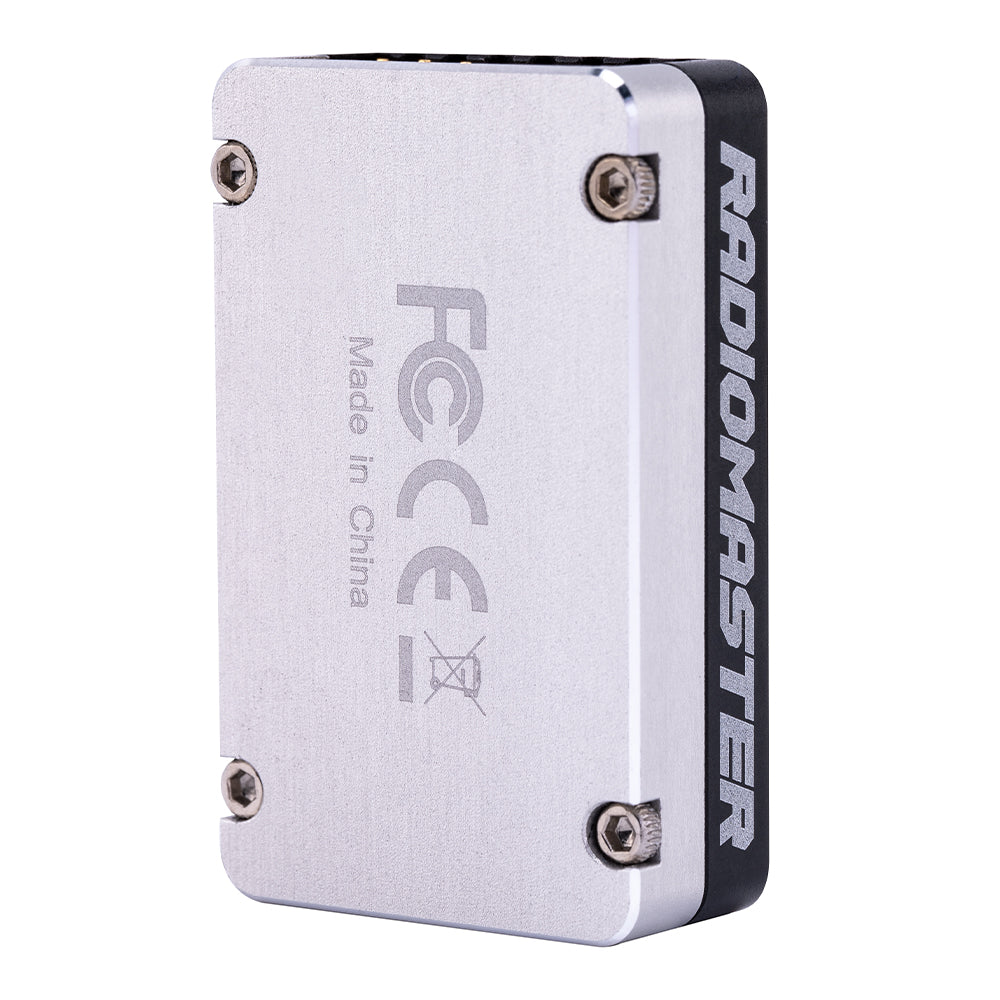

- The NEXUS control unit is compact and durable. The CNC aluminum case not only protects the internal components, but also serves as a heatsink to keep the temperature of the electronics low.
- NEXUS measures 41mm x 25mm x 13mm, making it an ideal choice for a variety of helicopter sizes, including 250/450/500/550/600/700 models.
- The controller supports a wide range of rear motors and tail servo ESCs (760μs / 1520μs).
- Supports various receivers, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, F PORT.
- The device has several independent power supplies that minimize noise when they reach 1.8V. Contains 1.8V for gyroscope, 3.3V for MCU and 5.0V for external interface.
- A light and flexible USB-C extension cable is included in the package and helps in situations where the USB-C port is difficult to access. It's designed with minimal weight because every gram counts, and features flexible silicone wires that limit the transmission of vibrations to the control unit.
- Standard Rotorflight Rescue feature.
Specifications:
- Item: NEXUS Helicopter Controller
- Firmware: Rotorflight 2.0
- MCU: STM32F722RET6
- Gyro (IMU): ICM-42688-P
- Flash memory (Black Box IC): 128MB (W25N01GVZEIG)
- Barometer: SPL06-001

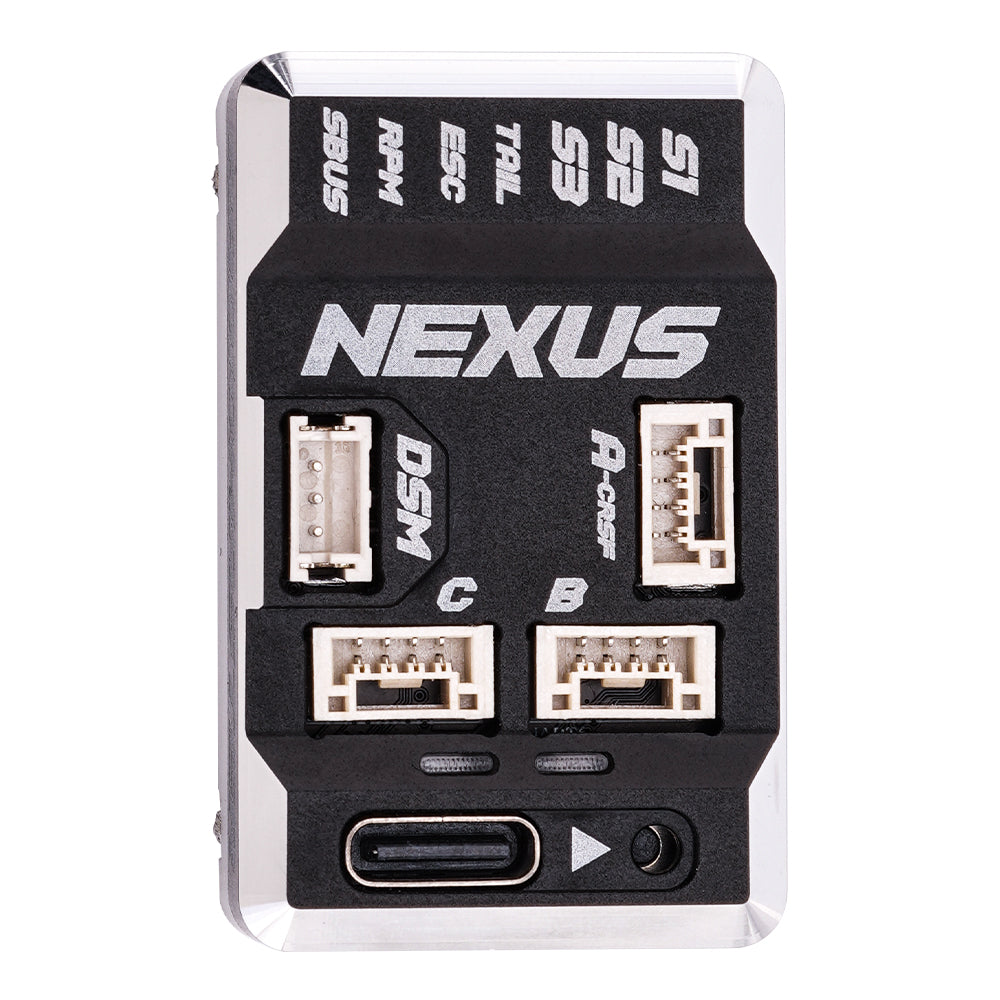

- UART ports: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]

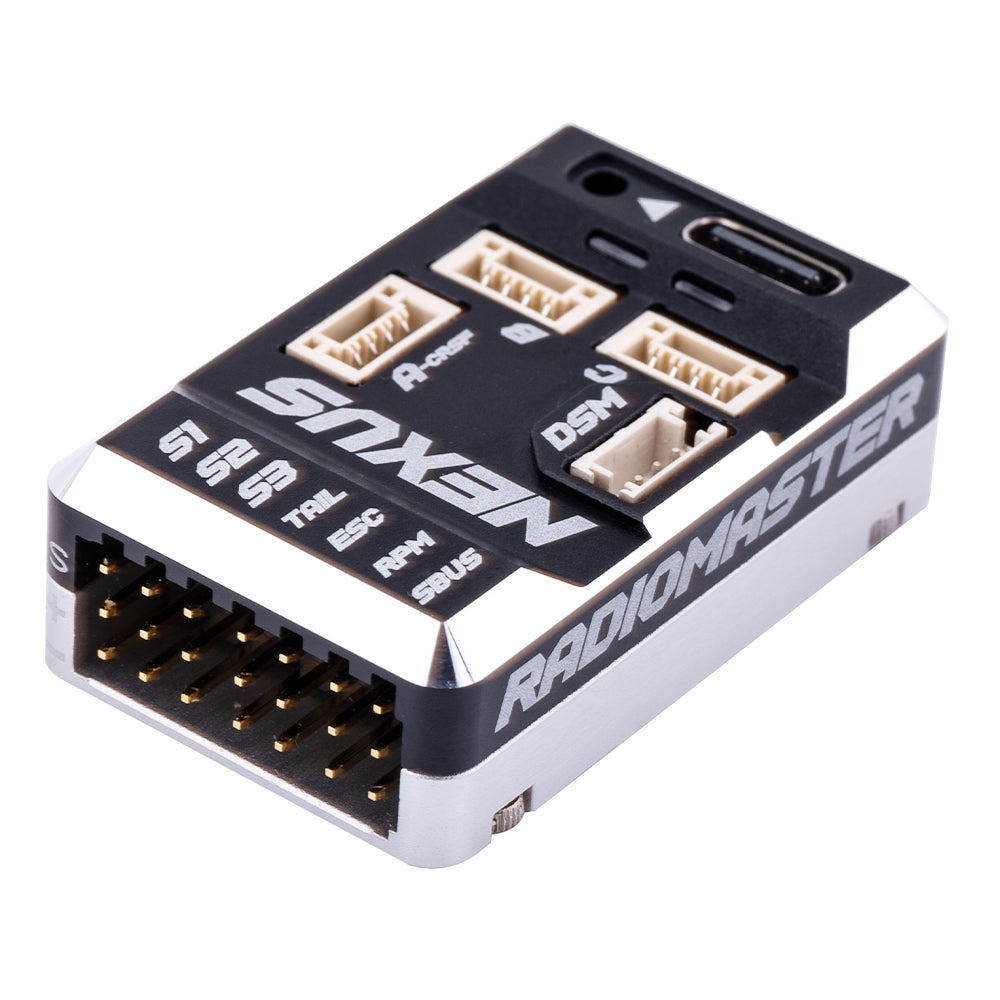

- Servo ports: 4 - S1, S2, S3, TAIL
- Speed sensor: 1 - From ESC frequency sensor
- Receiver support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
- Power supply (DC): 5 - 12.6V
- Power supply for serial ports A-B-C: 5V - 2.0A
- DSM port power supply: 3.3V - 0.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- ESC support: PWM, Oneshot, Multishot, Dshot
- Tail ESC support: 760μs/1520μs servo
- Tail motors support: Yes
- Dimensions: 41.3 x 25.4 x 13.1 mm

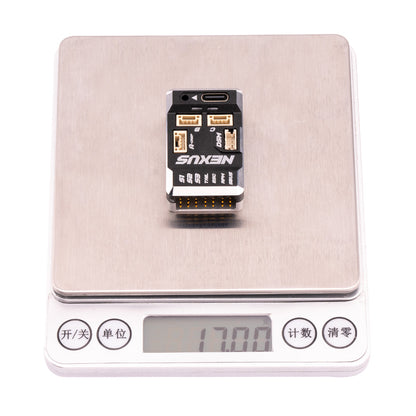

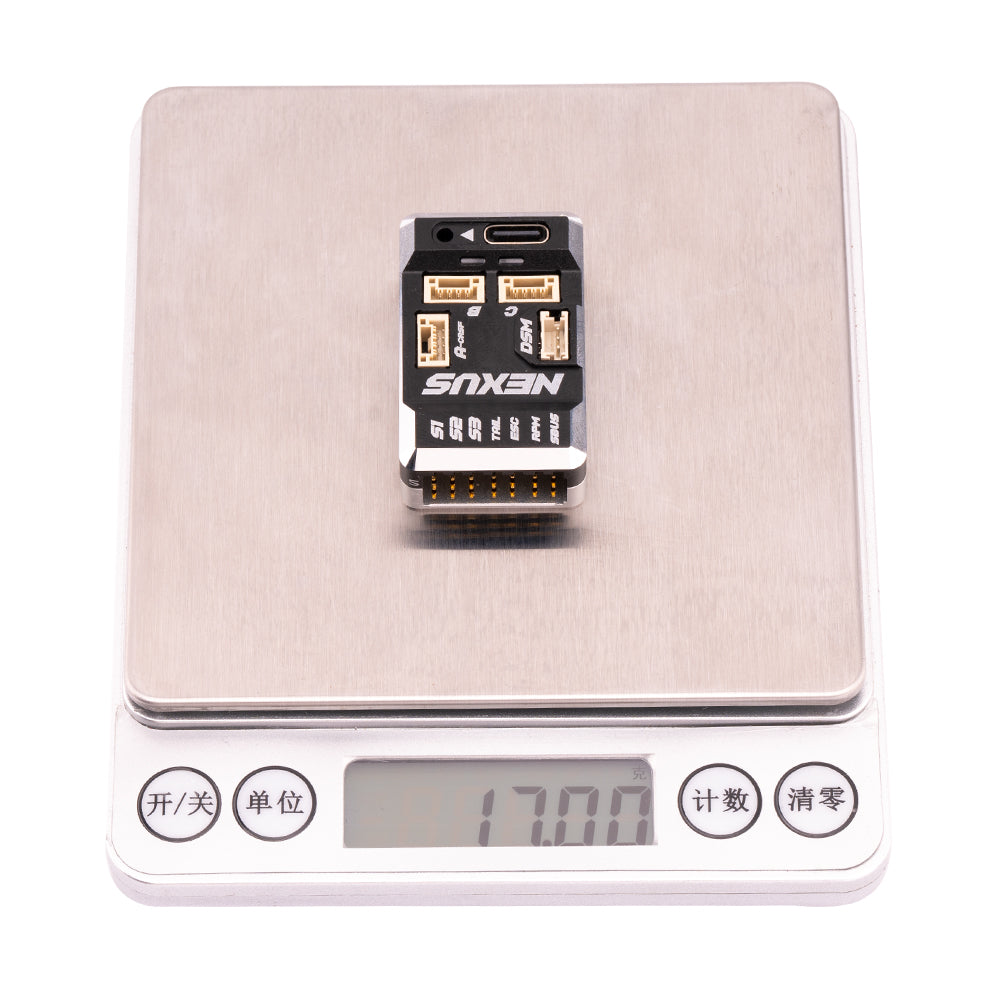

- Weight: 16.8g

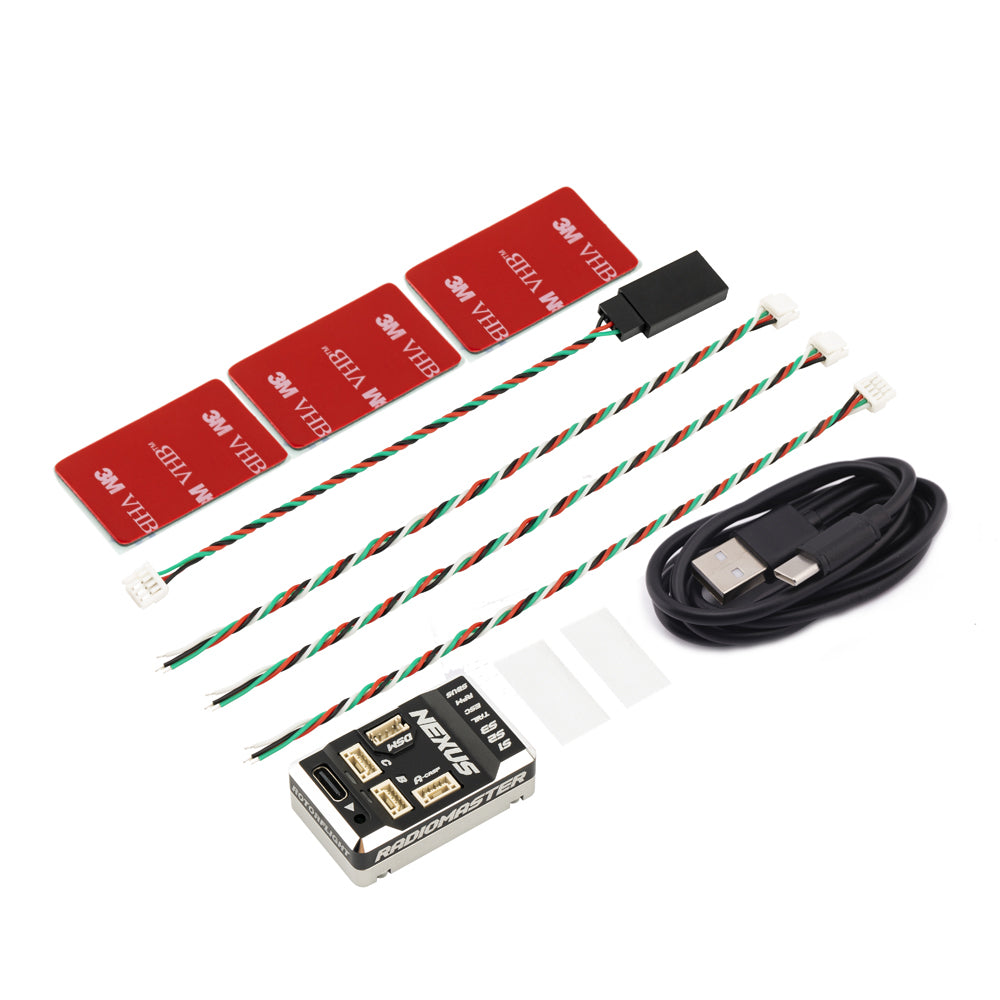

The package contains:
- 1x NEXUS helicopter control unit
- 3x JST-GH 4-pole cables with connector
- 1x JST-GH on servo plug (dupont 3pin connector)
- 1x Light and flexible USB-C extension cable
- 1x USB-C extension cable
- 3x 3M double-sided mounting tapes
- 2x Shrink tubes
