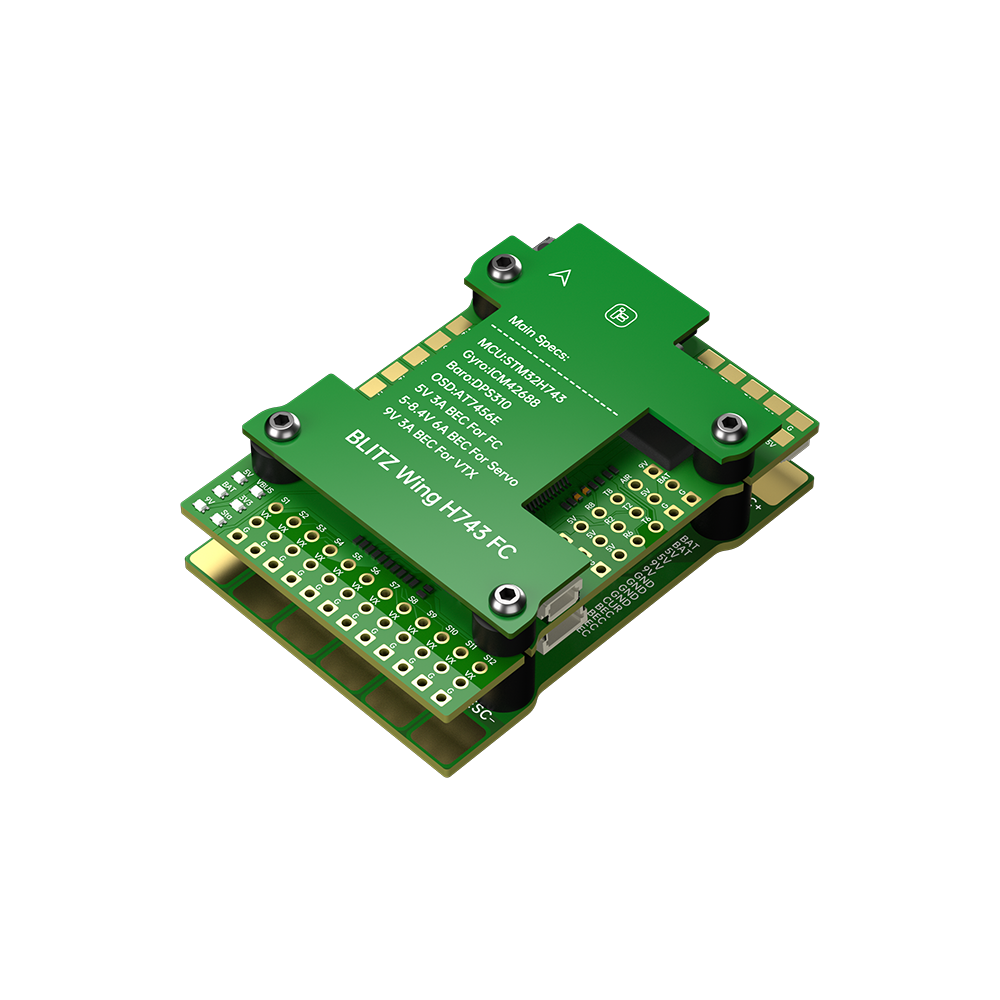

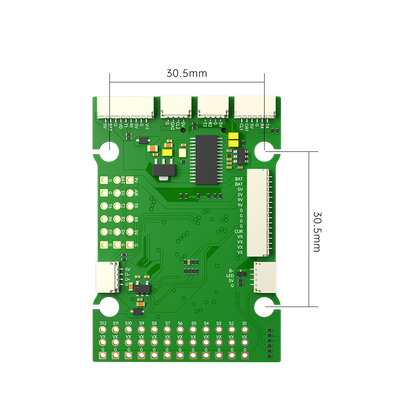

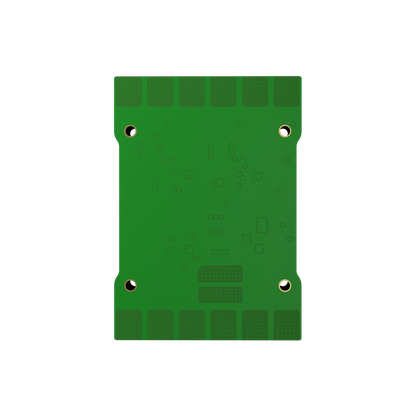

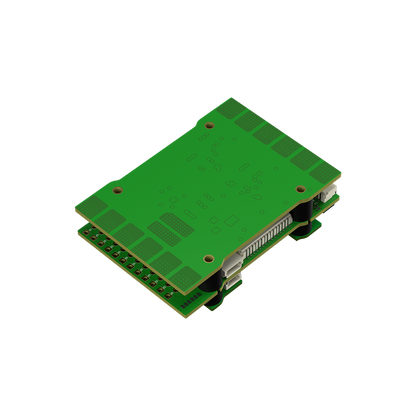

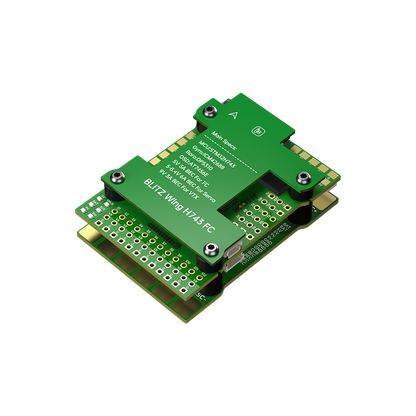

BLITZ Wing H743 Flight Controller
Designed specifically for Fixed Wing UAV enthusiasts, the high-quality flight controller is compatible with INAV and Ardupilot. With advanced features and compatibility with popular software platforms, the BLITZ Wing H743 flight controller offers an excellent flying experience and provides a reliable and efficient solution for the aircraft.
Function:

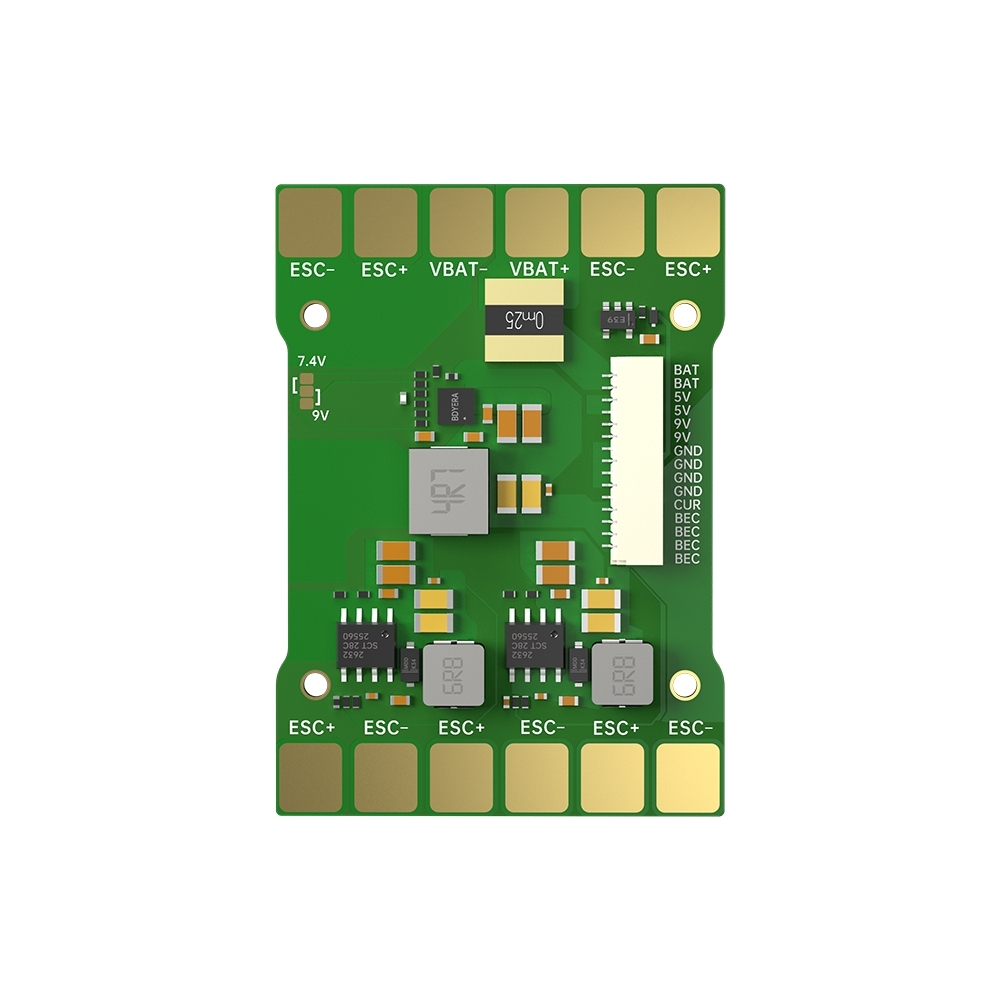

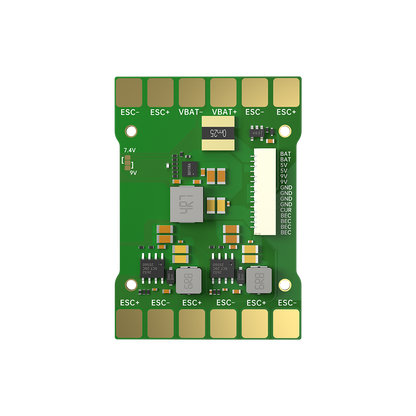

- Up to 5 groups of ESC power solder pads. - Equipped with dual camera analog input function which can be switched by remote control. - Independent 6A servo power supply BEC, providing powerful power protection for servos, compatible with servos of various voltages. - Uses STM32H743 main MCU, which offers high processing power and function support. - On-board SD card slot, providing large-capacity storage space for data recording. - Dedicated soldering pad. - On-board current meter, real-time flight current monitoring. - Supports external air speed sensor for more accurate data.
FC Specifications:

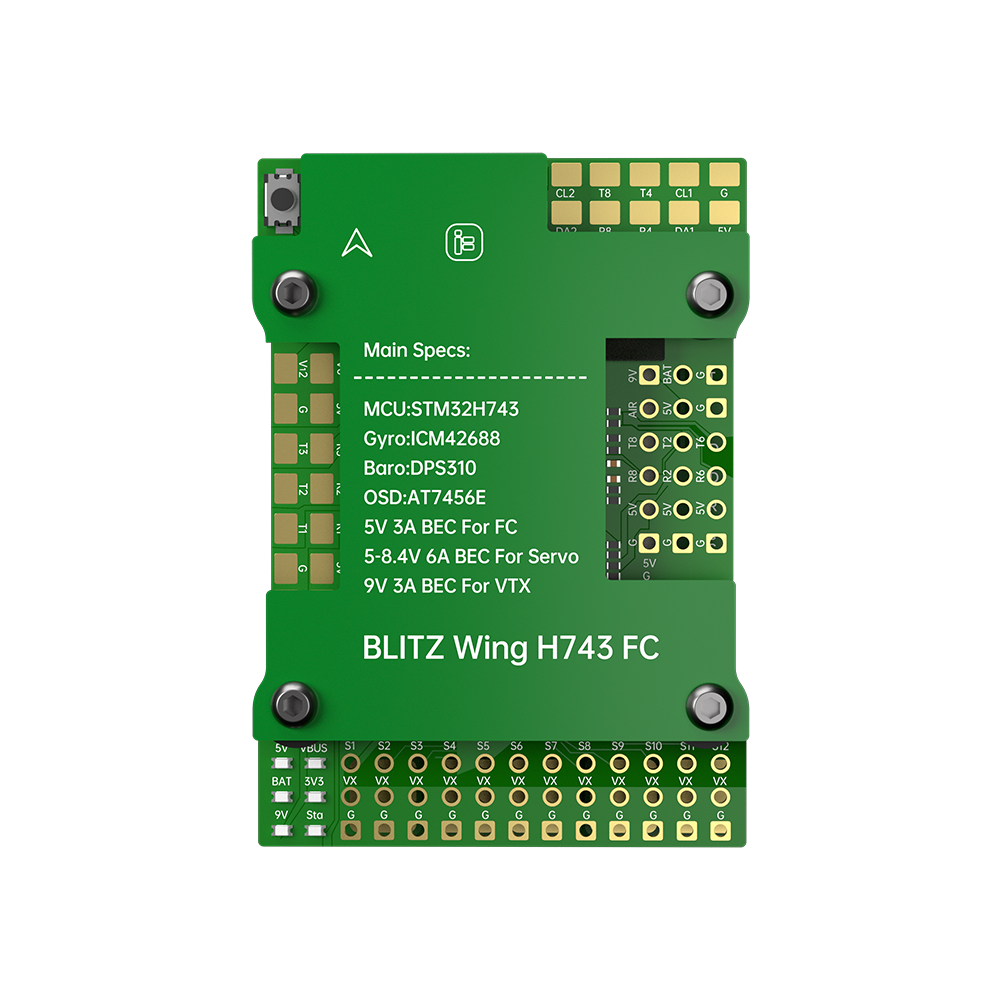

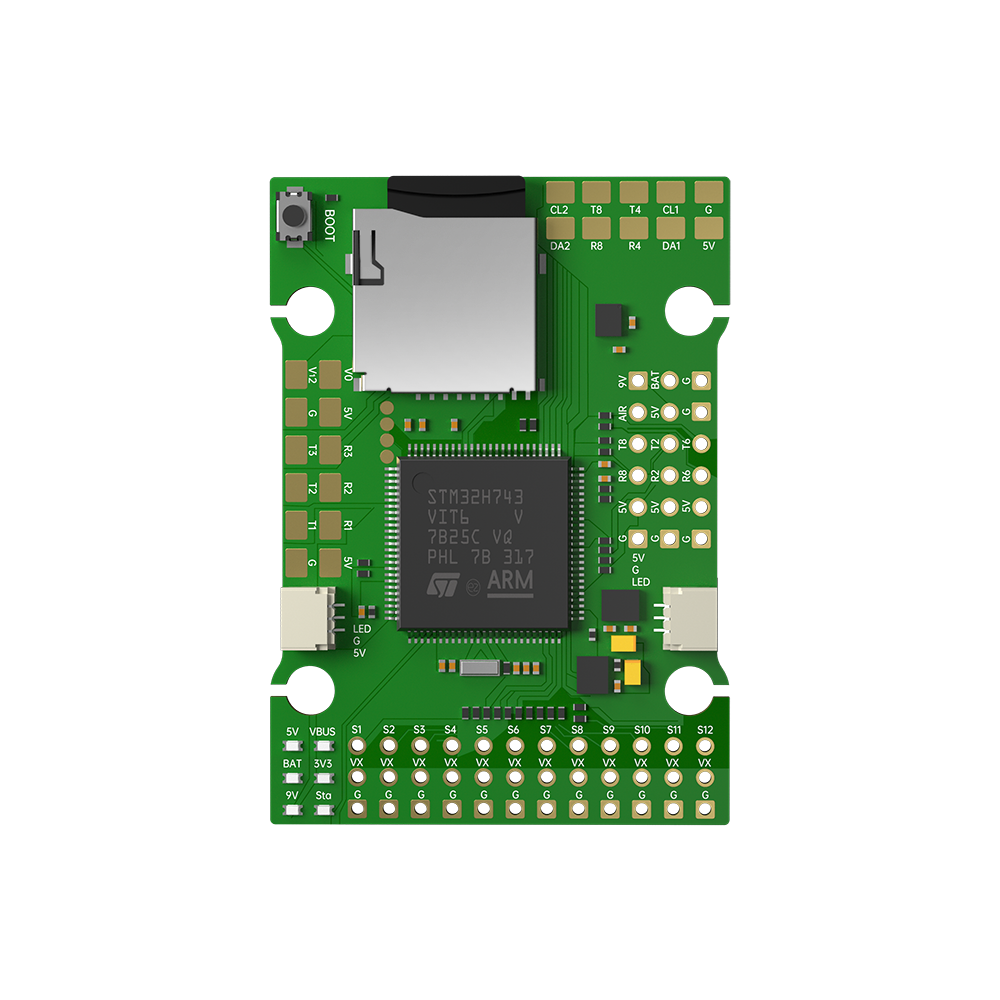

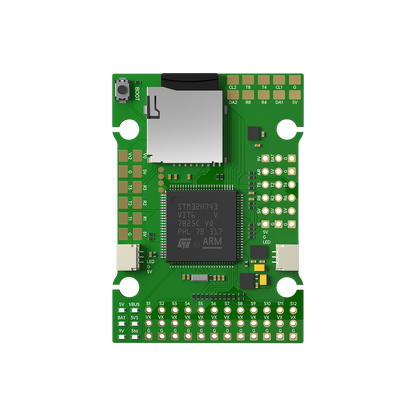

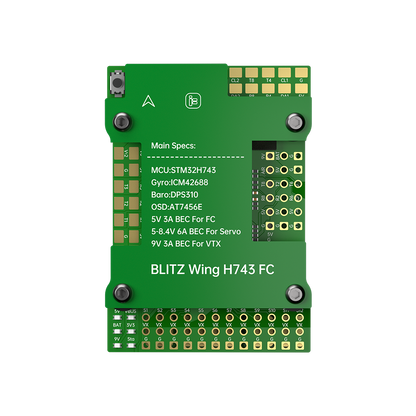

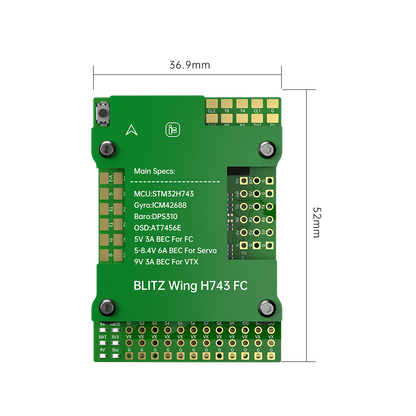

MCU: STM32H743 Gyro: ICM42688P Baro: DPS310 OSD: AT7456E BlackBox: MicroSD card UARTS: 8 I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported WS2812ledStrip: Yes Buzzer: Yes Switchable dual camera inputs Switchable 5V/7.4V/8. 4V outputs 7-36V DC IN (2-8S) Mounting pattern: 30.5*30.5mm/?4 Dimensions: 36.9*52mm Weight: 35g INAV firmware: IFLIGHT_BLITZ_Wing_H743 Ardupilot firmware: IFLIGHT_BLITZ_Wing_H743 BEC: 5V 2.5A / 9V 2.5A / 5-8.4V 6A
Wiring design: UART1 for VTX HD/Analog UART2 for receiver UART4 for GPS UART2, UART5, UART6, UART7 free 5V 2.5A BEC for FC 9V 2.5A BEC for VTX 5-8.4V 6A BEC for servo
The package contains 1 x BLITZ Wing H743 Flight Controller 1x silicone grommets
