    FC iFlight BLITZ Mini F7 V1.1

    FC iFlight BLITZ Mini F7 V1.1

    Brand: iFlight

    €75,14
    €75,10 €75,14
    -0% View Product

    sku: BF12000

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

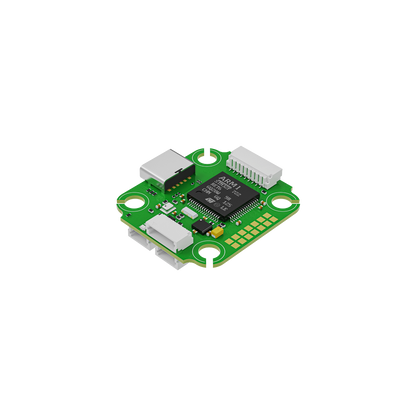

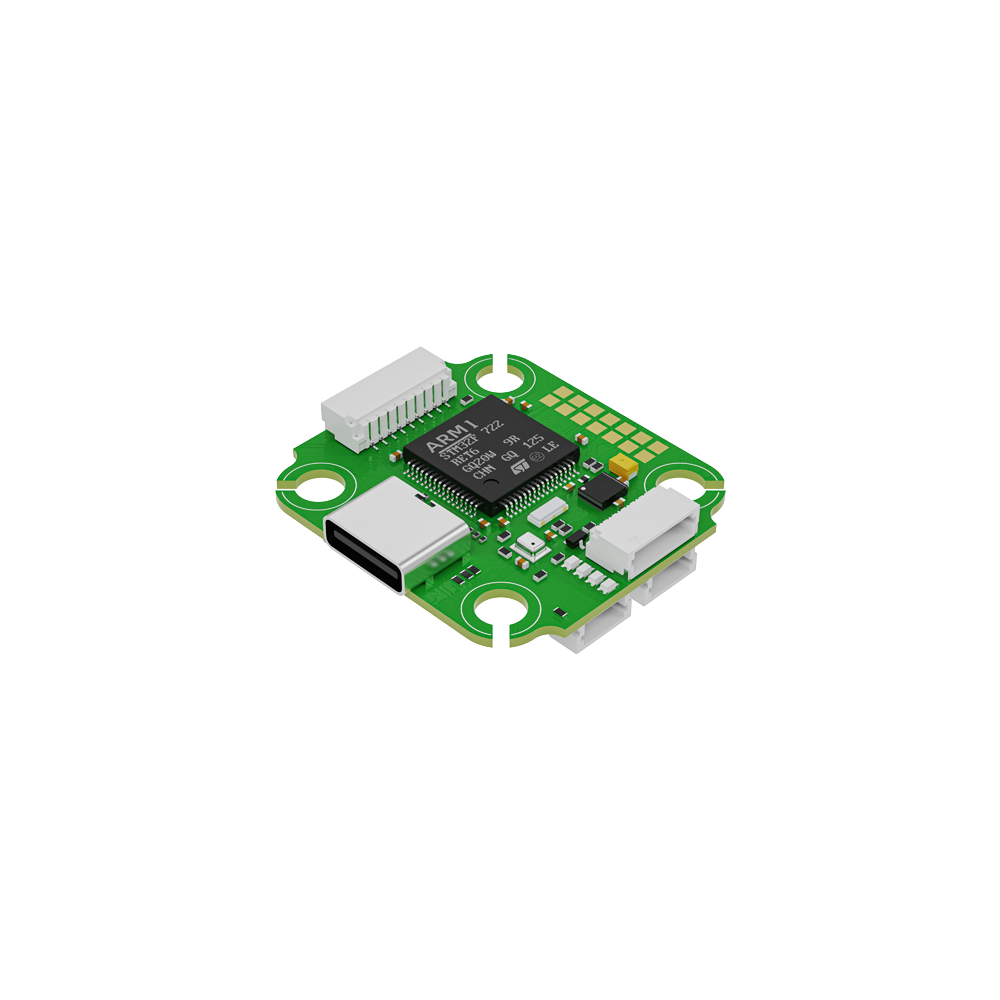

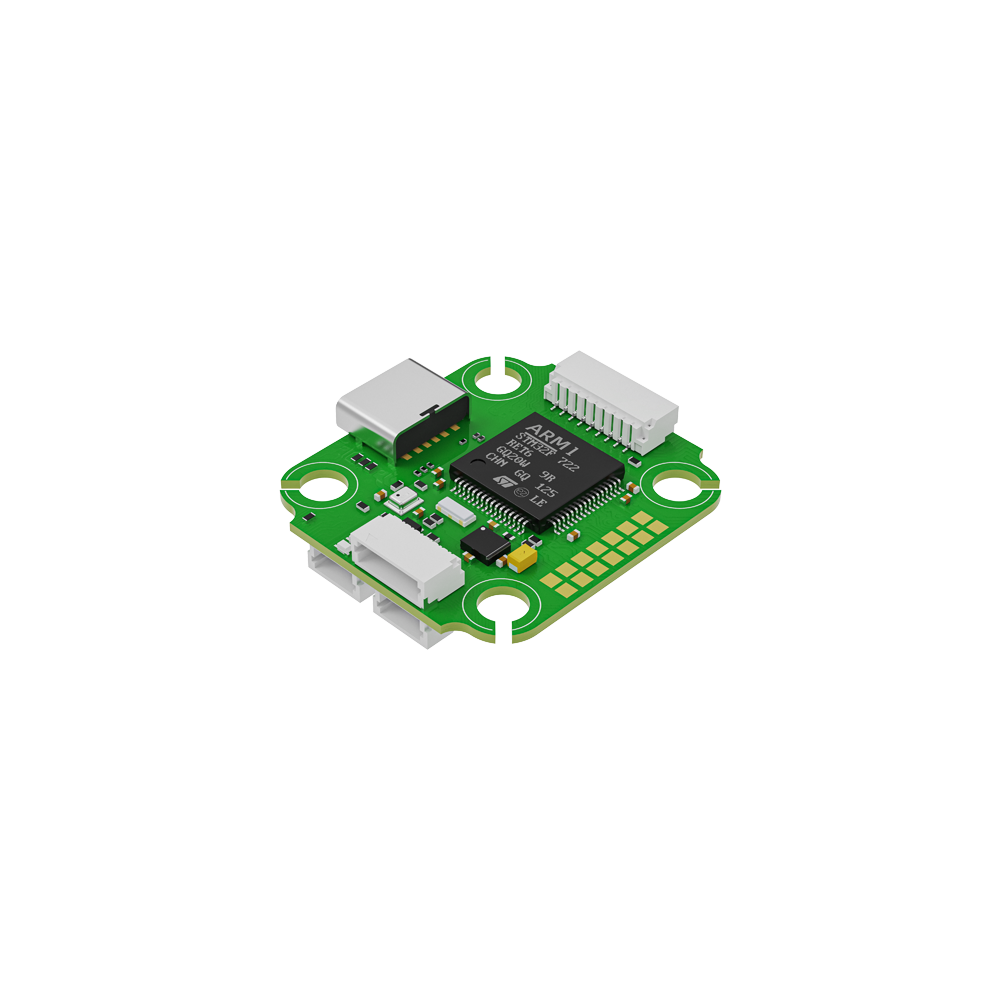

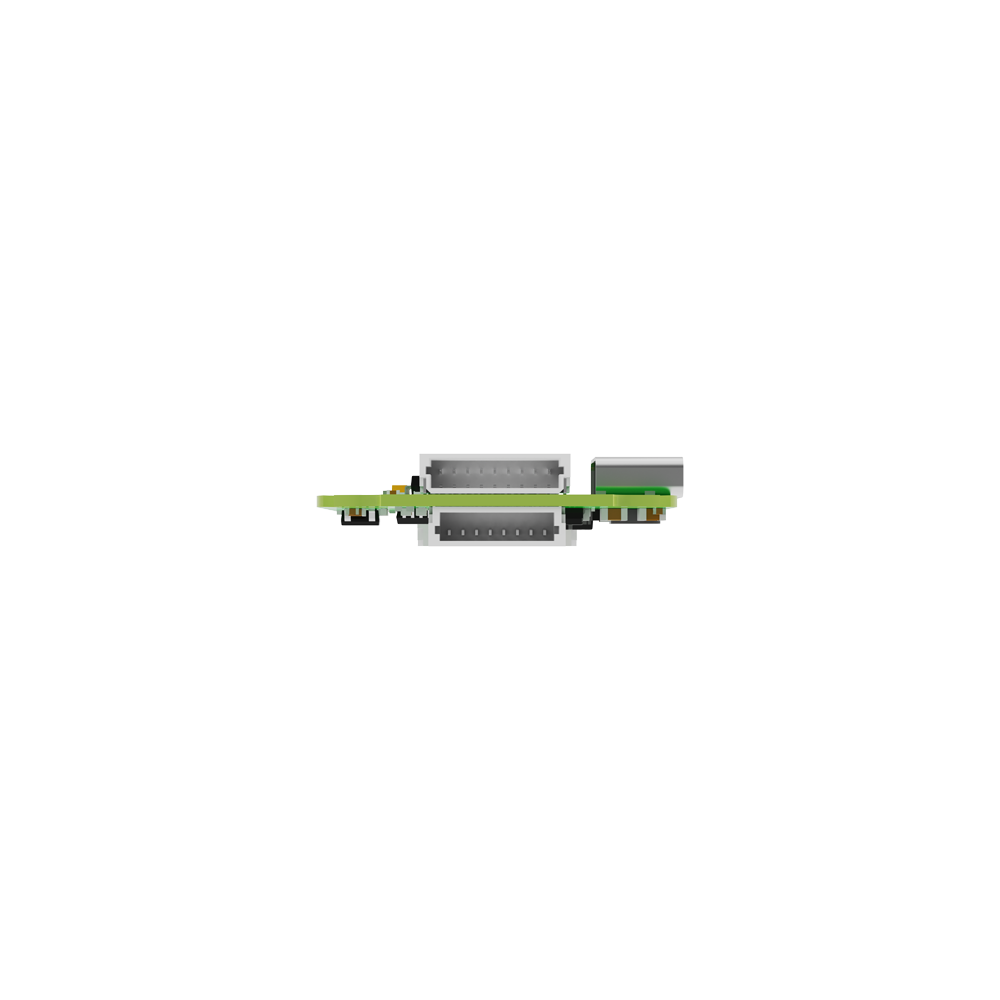

    BLITZ Mini F7 V1.1 Flight Controller

    Function: - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - With LC filter

    Specifications: MCU: STM32F722 (216MHz) Gyroscope: BMI270 Baro: DPS310 OSD chip: AT7456 Flash: 16 MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Tramp VTX SmartAudio / IRC protocol supported LED driver: Yes Buzzer: Yes Target firmware: IFRC-IFLIGHT_BLITZ_F722 Mounting pattern: 20x20mm / 4mm PCB hole diameter Dimensions: 30.5x27 mm Weight: 5g

    Wiring design: UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC telemetry

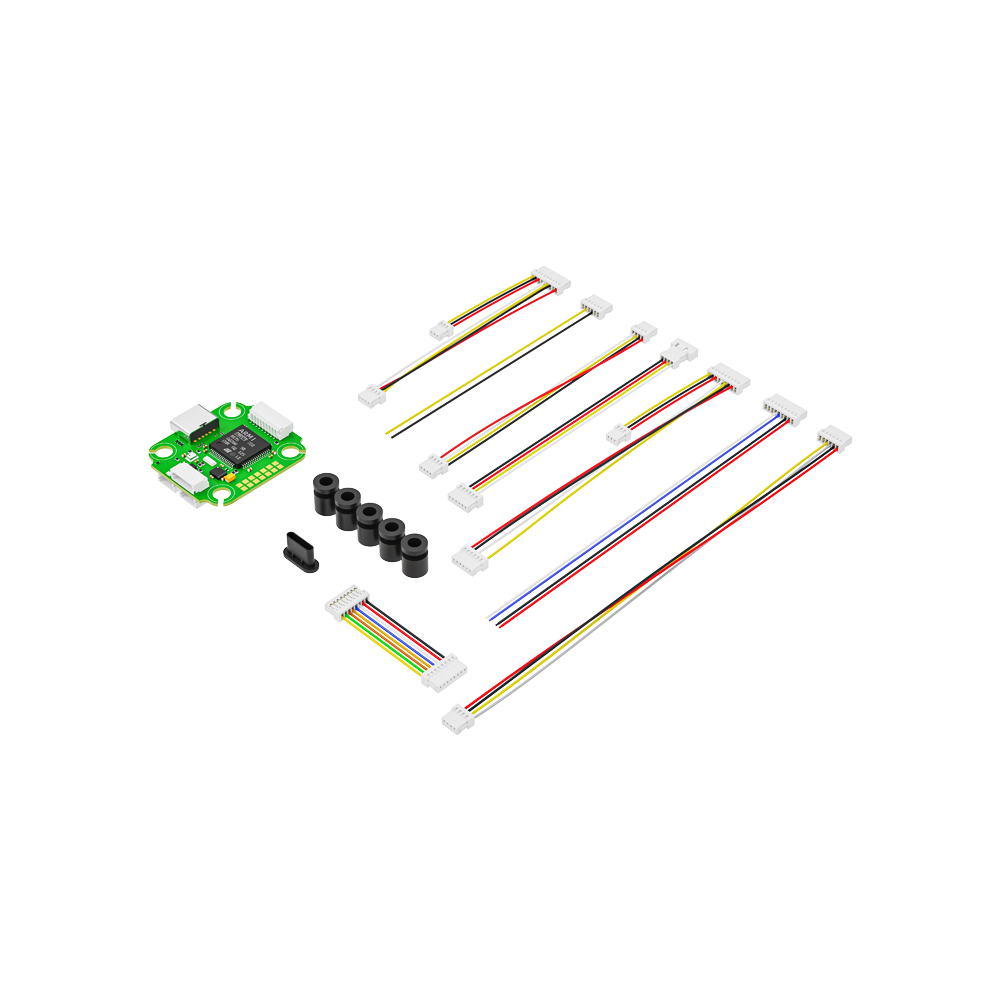

    The package contains 1 x BLITZ F7 V1.2 Flight Controller 1 x set of FC connectors 1x silicone grommets
