    FC iFlight BLITZ Mini F4

    FC iFlight BLITZ Mini F4

    Brand: iFlight

    €59,29
    €59,28 €59,29
    -0% View Product

    sku: BF11372

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

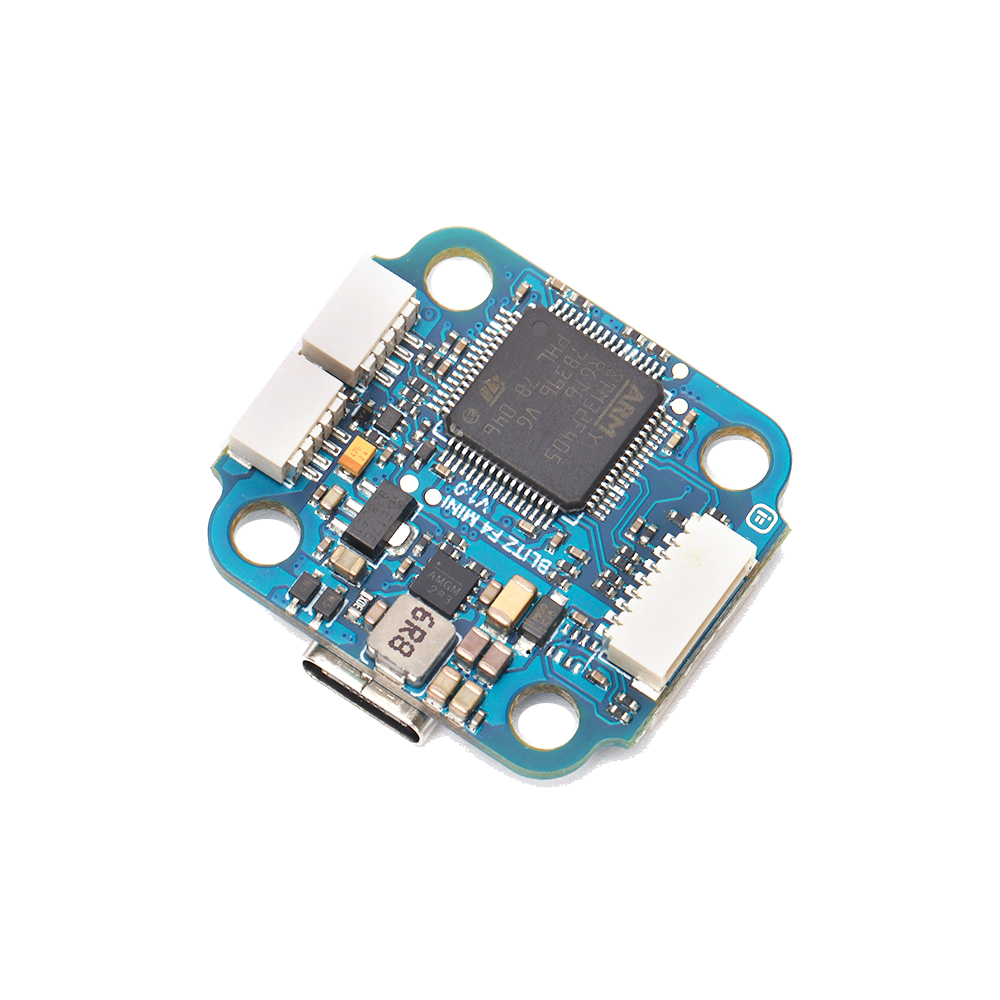

    BLITZ Mini F4 Flight Controller

    Function: - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning

    Specifications: MCU: STM32F405 Gyro: MPU 6000 Baro: NO Betaflight OSD: IFLIGHT OSD (AT7456E) Blackbox: 16MB UARTS: 6 I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Target firmware: IFRC-IFLIGHT_BLITZ_F405 Mounting: 20*20mm/?4 Dimensions: 30.5*27mm Weight: 5.0g

    Wiring design: UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4 for GPS or other sensors that require a serial port UART 6 for ESC telemetry

    The package contains 1 x BLITZ Mini F4 Flight Controller 1x FC connectors 1x silicone grommets
