    FC iFlight BLITZ F745

    FC iFlight BLITZ F745

    Brand: iFlight

    €71,15
    €71,15 €71,15
    -0% View Product

    sku: BF15391

    In stock (9)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

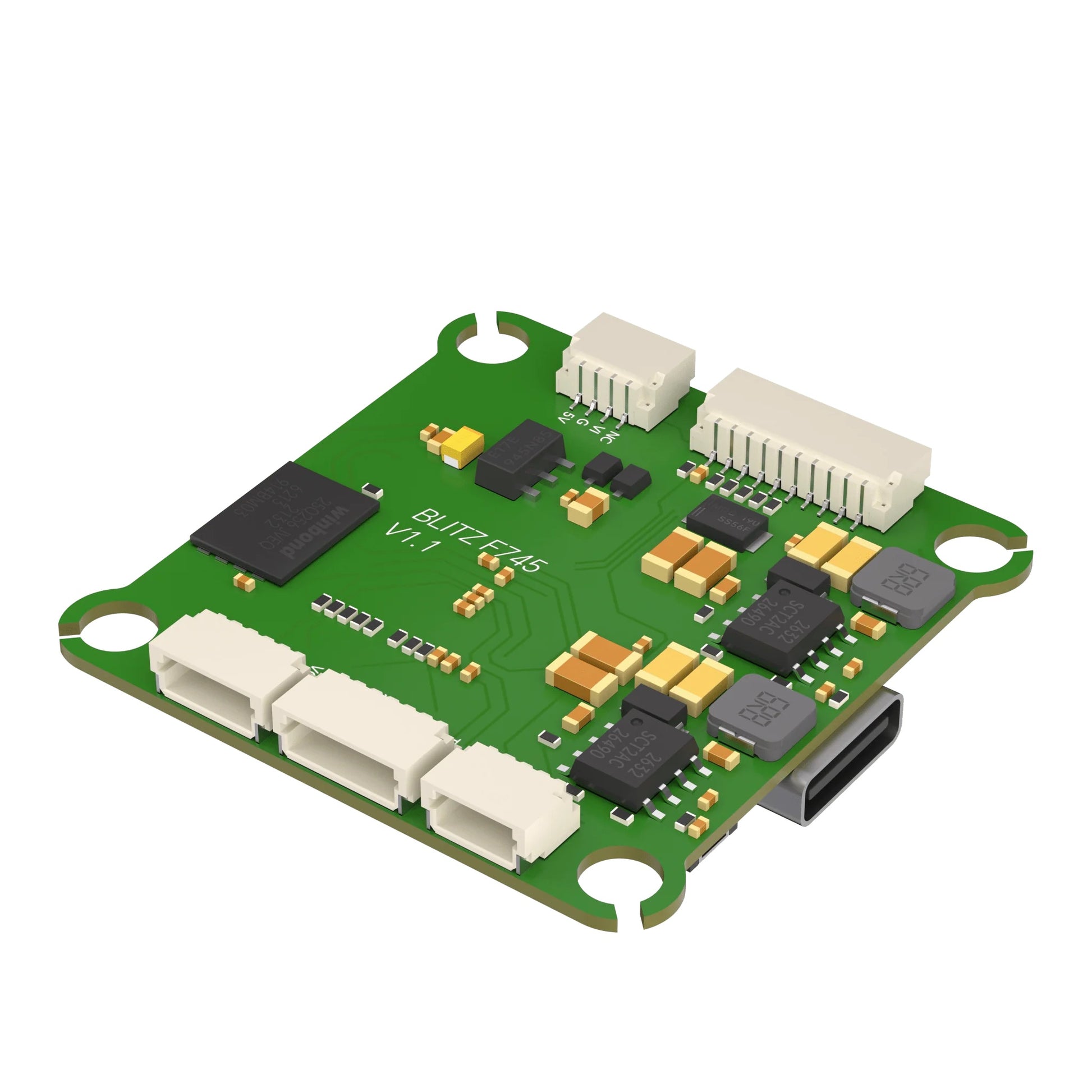

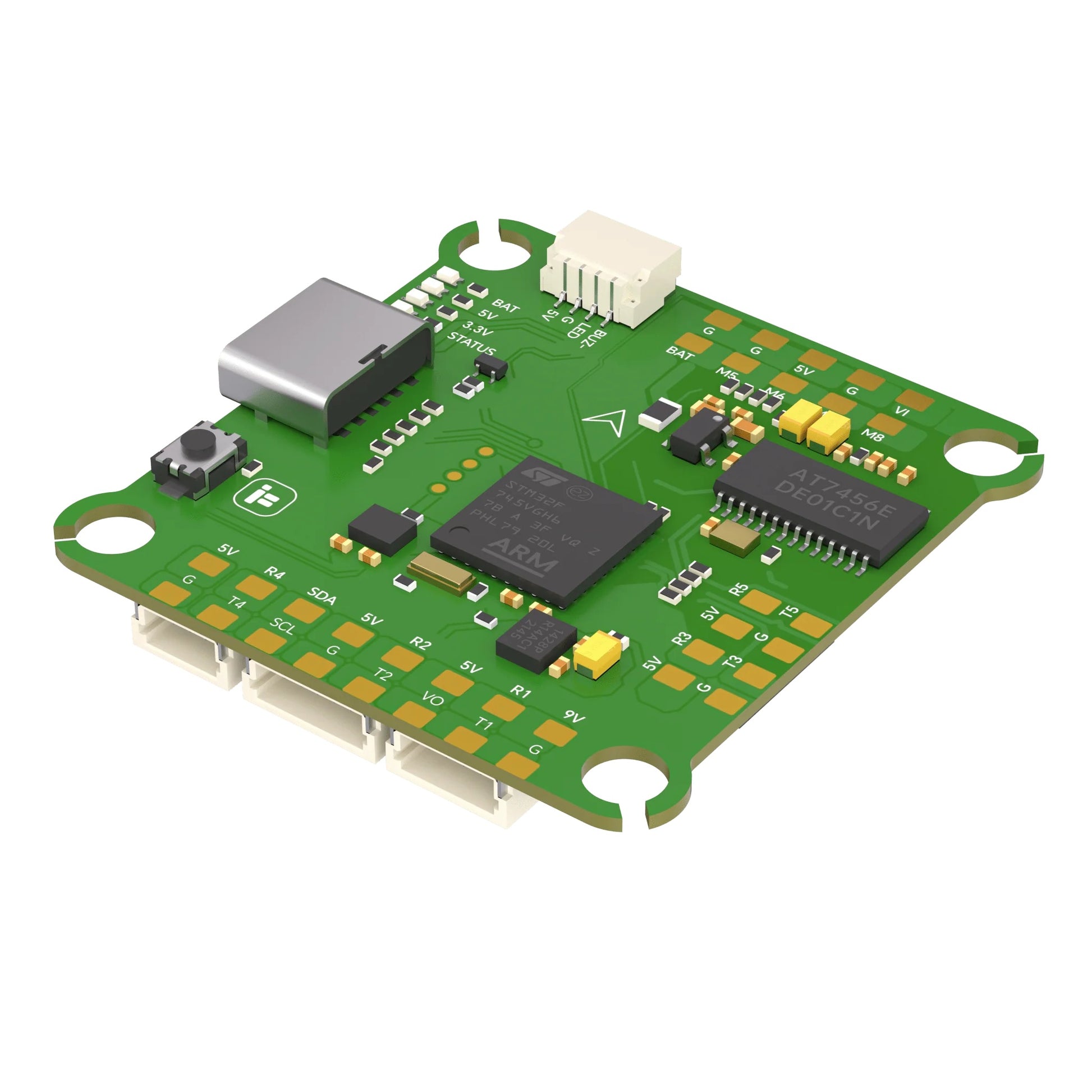

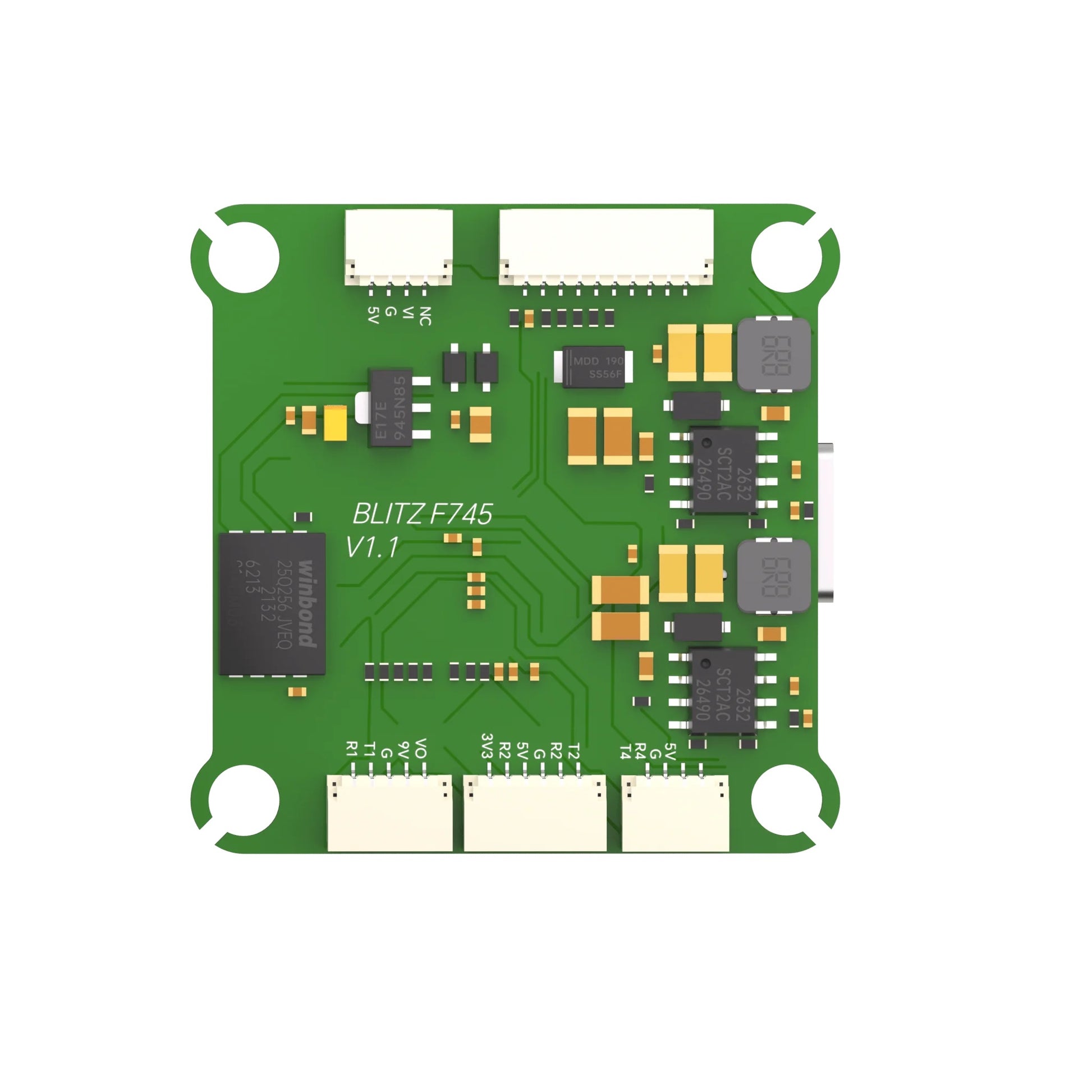

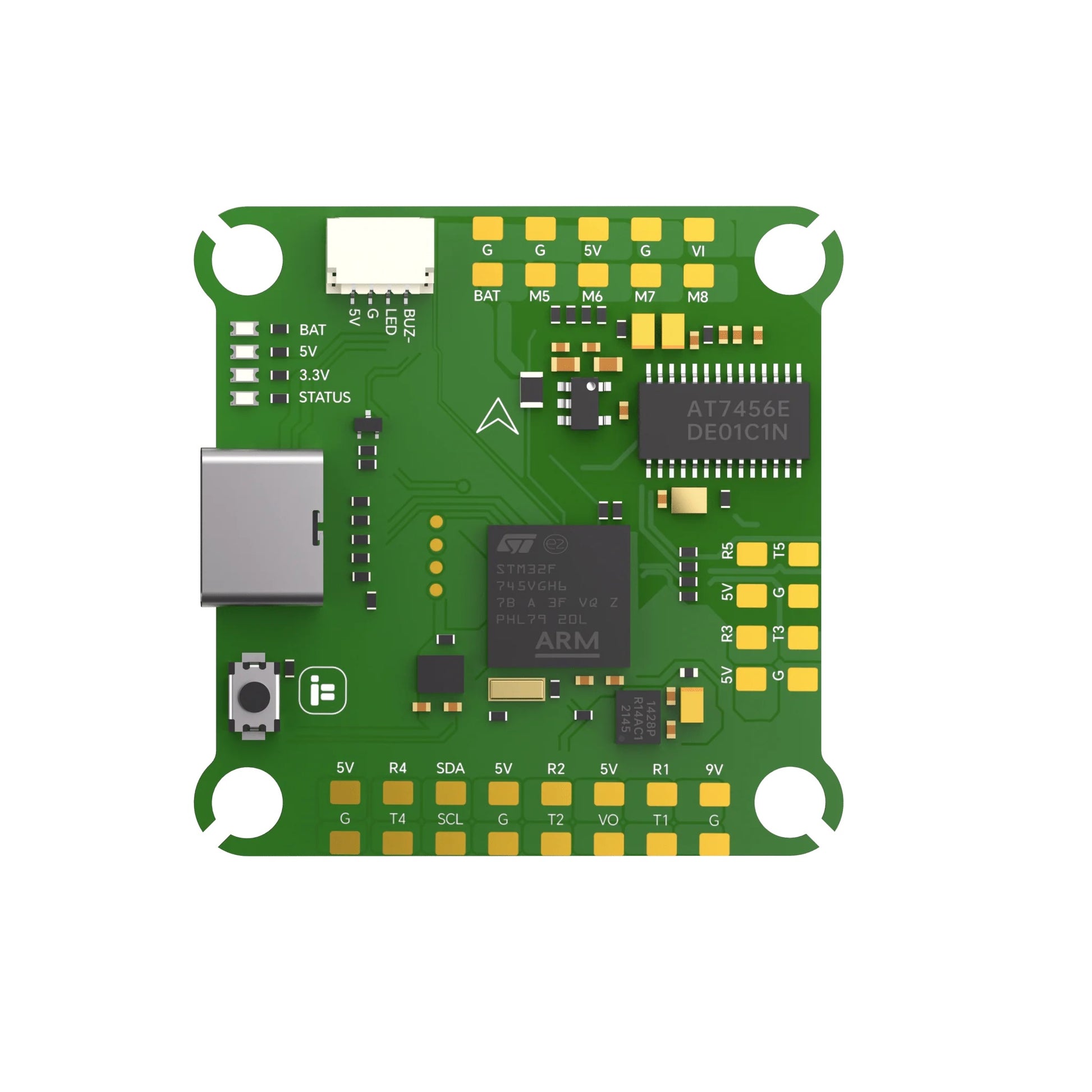

    BLITZ F745 Flight Controller

Function:

- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning
- Betaflight, INAV, Ardupilot firmware support

Specifications:

MCU: STM32F745
Gyroscope: ICM42688
Barometer: DPS310
OSD chip: AT7456E
Flash: 32 MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED driver: Yes
Buzzer: Yes
Mounting pattern: 30.5 x 30.5 mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
BF Target Firmware: IFLIGHT_BLITZ_F7_AIO
Ardupilot firmware: arduplane_with_bl

Wiring design:

UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

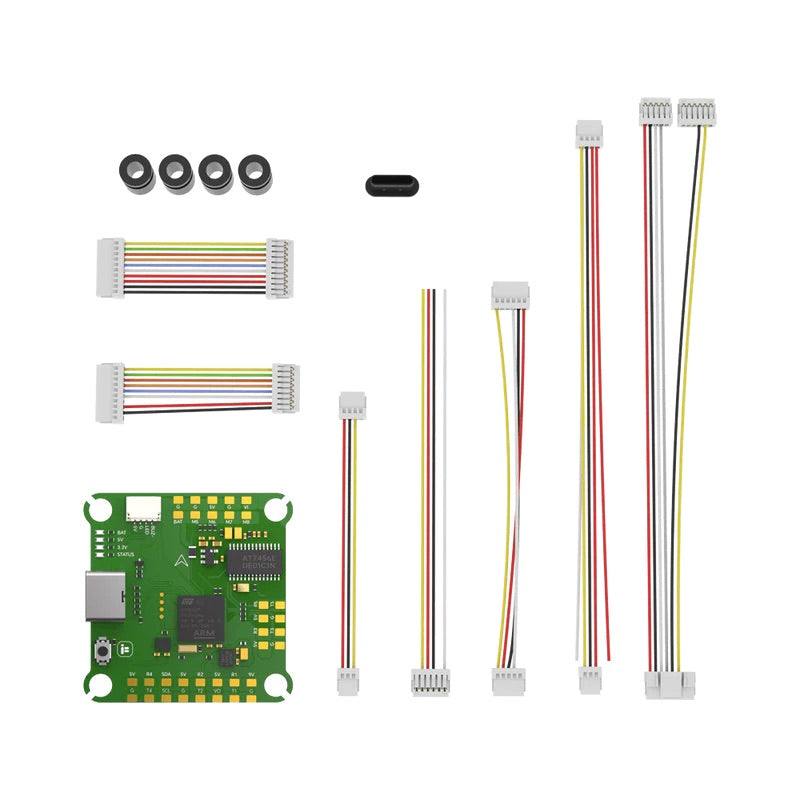

The package contains
1 x BLITZ F745 Flight Controller
