    FC Holybro Kakute H743 Wing

    FC Holybro Kakute H743 Wing

    Brand: Holybro

    €97,16
    €88,32 €97,16
    --10% View Product

    sku: 11063

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

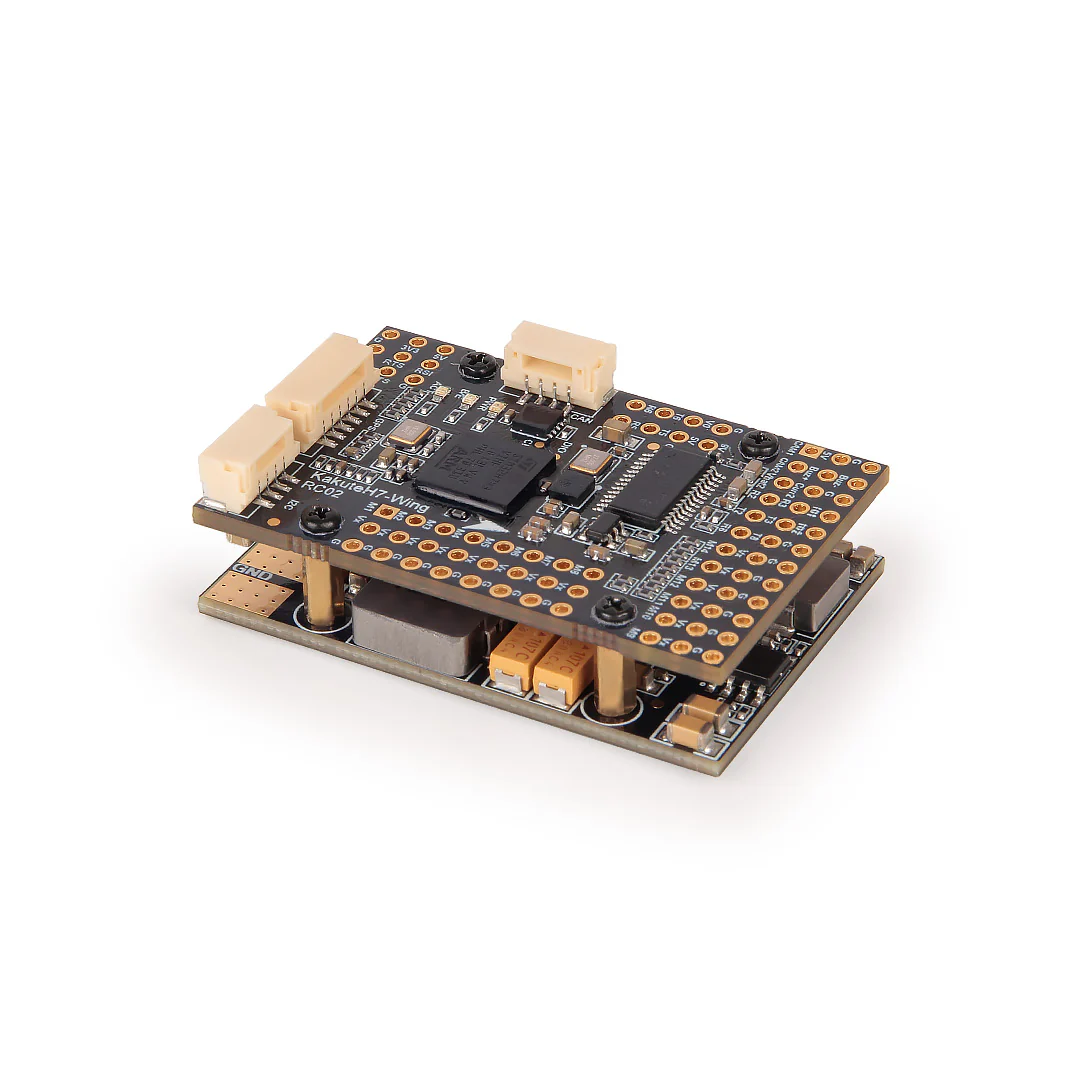

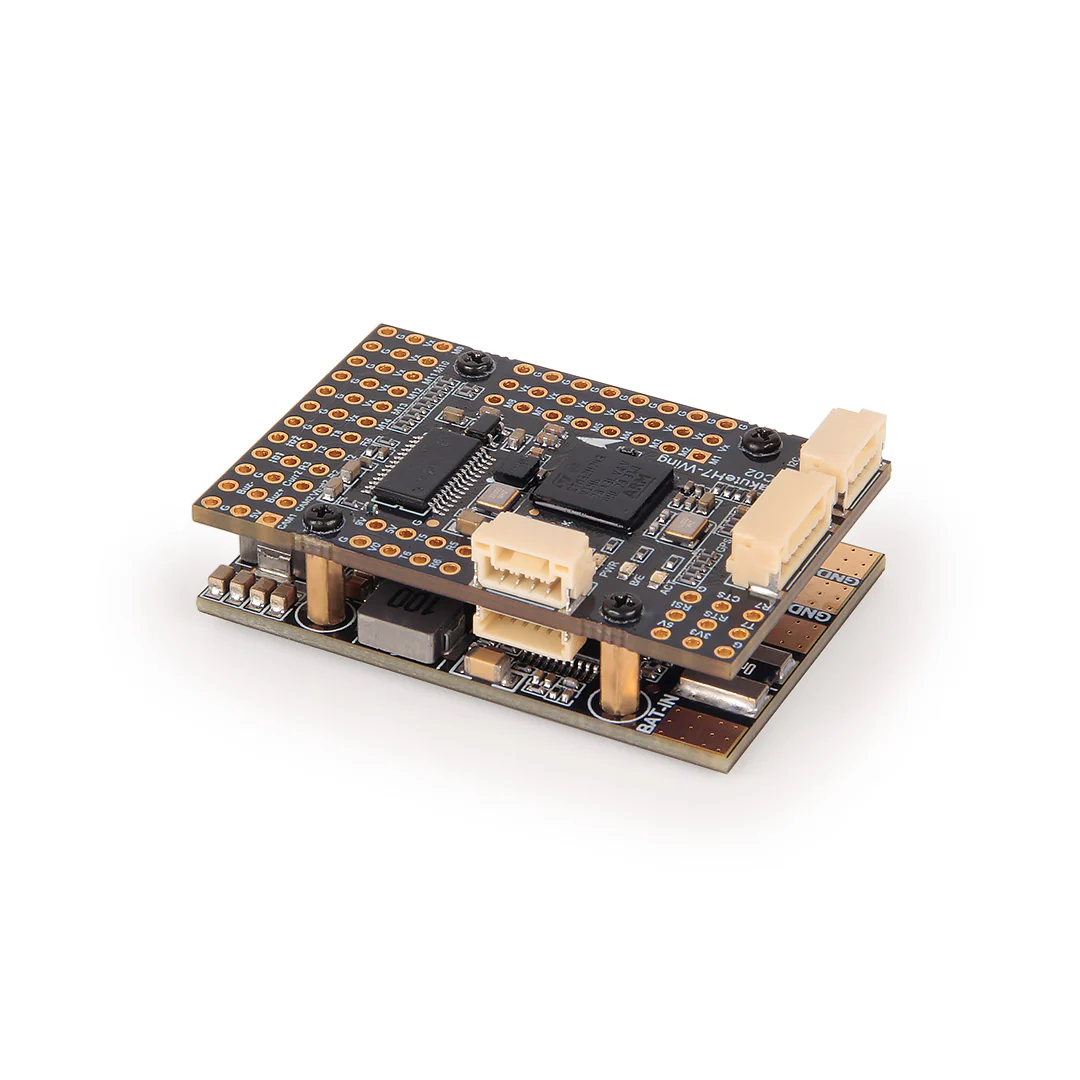

    FC Holybro Kakute H743 Wing

    The Holybro Kakute H743 Wing is a fully featured flight controller with a layout specific to fixed wing and VTOL (vertical take off and landing) applications. It is equipped with an STM32 H743 processor with a frequency of 480 MHz and CAN Bus support, as well as support for two cameras and a switch, ON/OFF Pit switch, BEC with 5V, 6V/8V, 9V/12V outputs and plug-and-play GPS, CAN and I2C ports.

    Properties

    • MCU STM32H743 with a frequency of 480 MHz
    • High precision / low noise IMU ICM-42688-P
    • CAN Bus support
    • Switch for dual camera inputs
    • 3 integrated BECs with 5V, 6V/8V and 9V/12V outputs
    • ON/OFF Pit switch for 9V/12V
    • Integrated voltage and current sensor
    • Integrated barometer BMP280
    • Plug-and-play GPS, CAN, I2C ports
    • Small and low-profile design suitable for compact frames
    • Supports INAV (version 6.1.1 and above), Ardupilot (version 4.4 and above)

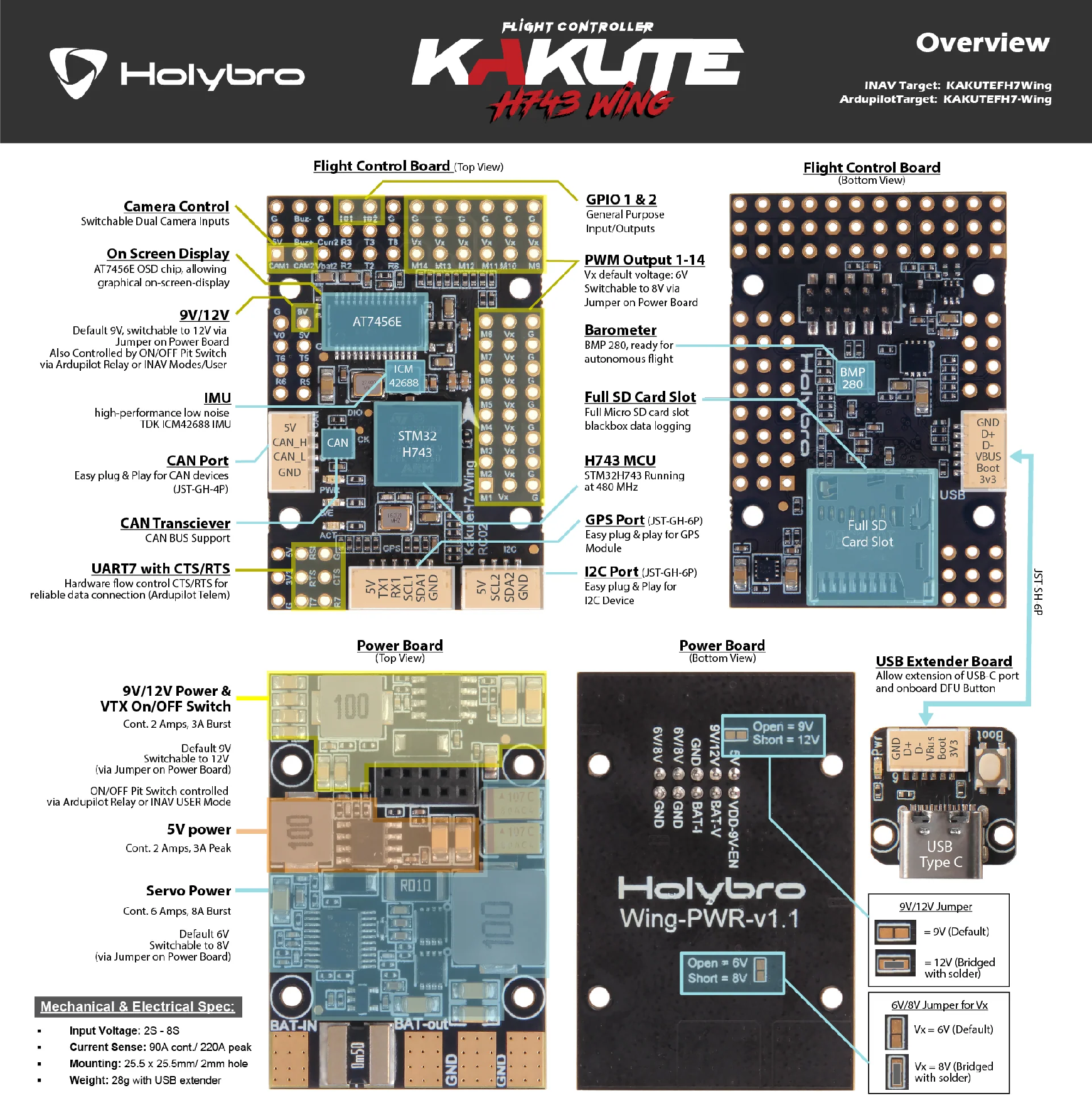

    Specifications

    • MCU: STM32H743, 480 MHz, 1 MB RAM, 2 MB Flash
    • IMU: ICM-42688P (SPI3)
    • Barometer: BMP280 (I2C4)
    • OSD: AT7456E (SPI2)
    • Blackbox: SDMMC2 MicroSD card slot
    • 7x Uarts (1,2,3,5,6,7,8) with built-in inversion
    • 14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)
    • 3x I2C (I2C1 and I2C2 for external devices, I2C4 for internal sensors)
    • 3x LEDs for FC status (Blue, Red) and 3.3V indicator (Green)
    • USB/DFU extender with USB Type-C
    • Switch for dual camera inputs
    • 5V/9V(12V) power switch for camera/VTX
    • Highly accurate current measurement (90A continuous, 220A peak)
    • Battery voltage sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
    • Static consumption 160mA@5V

    PDB

    • Input voltage range: 1036V (38S LiPo)
    • 1x power pads for ESC
    • Current measurement: 90A continuous, 220A peak. (Scale 275 in INAV, 36 A/V in ArduPilot)
    • BEC 5V output

    Designed for FC, receiver, OSD, camera, 2812 LED strips, buzzer, GPS, air speed sensor, etc.

    • Output 5.15 +/- 0.1V DC
    • Continuous current 2 Amps, 3A peak
    • BEC 9V /12V output

    Designed for video transmitter, camera, gimbal, etc.

    • Continuous current 2 Amps, 3A peak
    • 12V option with connection pad
    • BEC Vx output

    Designed for servos

    • Adjustable voltage, 6V default, 8V option with connection pad
    • Continuous current 6 Amps, 8A peak
    • BEC 3.3V output

    Linear controller

    • Continuous current: 200mA

    Mechanical properties

    • Mounting: 25 x 25mm, M2 hole
    • Dimensions: 45 x 30 x 13.5 mm
    • Weight: 28g with USB extender
