    FC BetaFPV Air Brushless (4 IN 1)

    FC BetaFPV Air Brushless (4 IN 1)

    Brand: BETAFPV

    €54,44
    €54,44 €54,44
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: 01040016_1
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

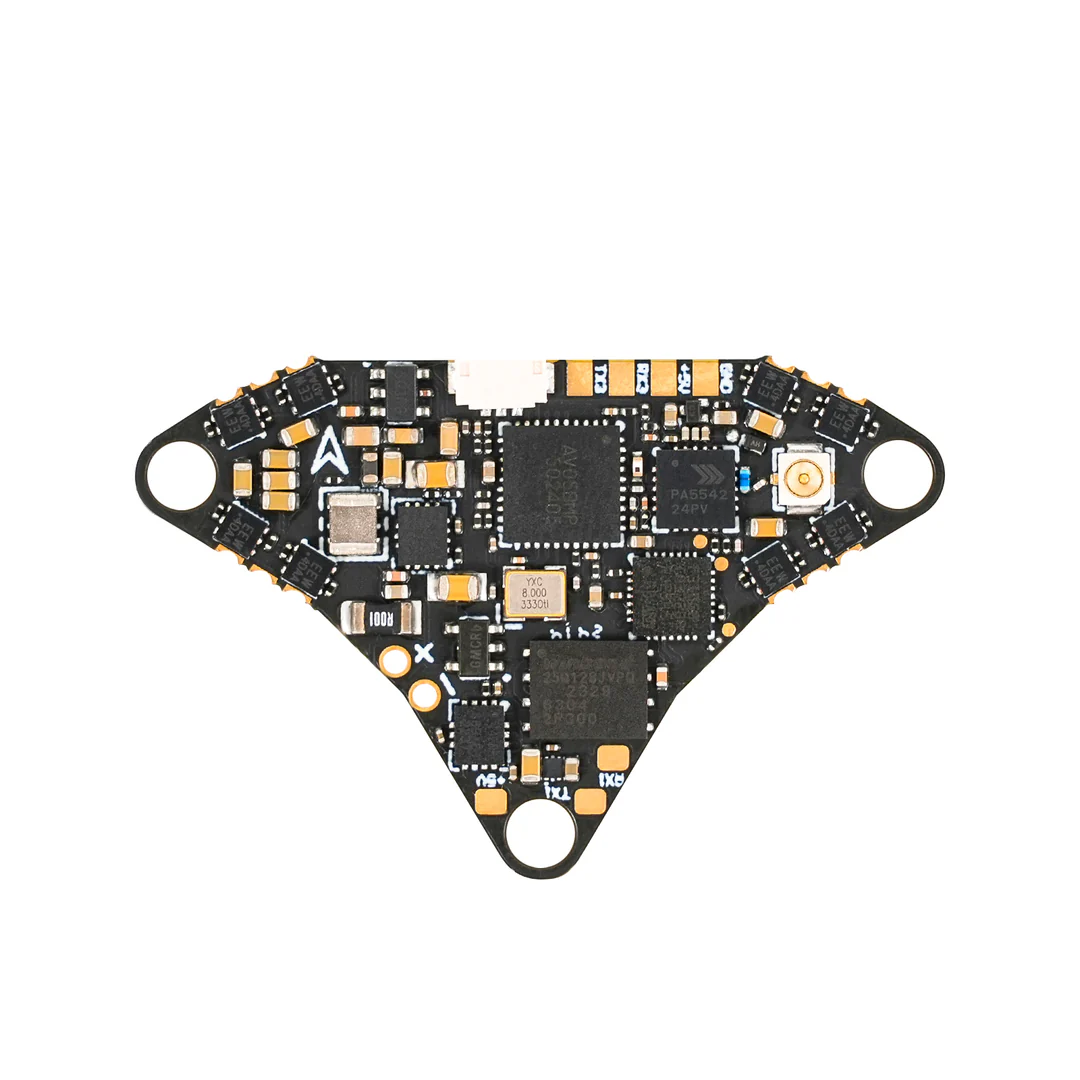

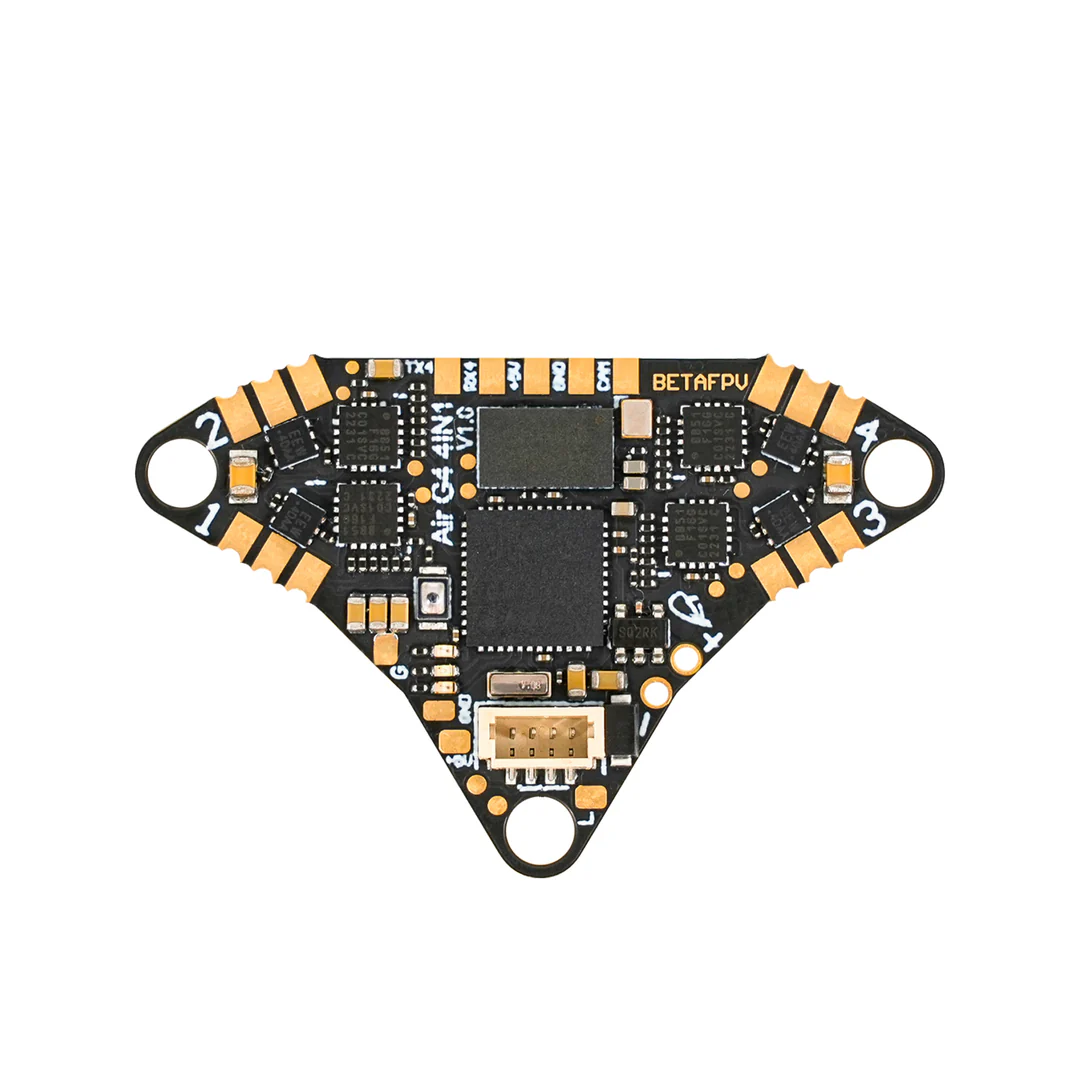

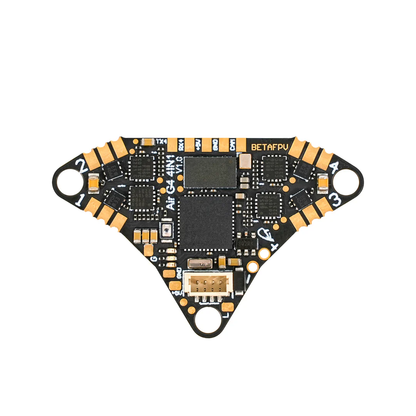

    Air Brushless Flight Controller is an advanced 1S control module that takes the performance of ultra-light drones to a new level. Thanks to the STM32G473CEU6 processor, it achieves a remarkable 55% increase in calculation speed compared to the F411, enabling lightning-fast response and extremely smooth control. Coupled with a state-of-the-art ICM42688P gyroscope and an integrated 5.8G VTX (with output power options from 25mW up to 400mW), this module accurately tracks the drone's movements and provides a unique level of control and stability.

    Designed for 1S whoop drones, it is available in 4IN1 (2.9g) and 5IN1 (3.6g) versions, making it the ideal choice for powerful, ultra-lightweight builds that require precision and quick response. Thanks to compact and high-quality components and the possibility of fingertip control, this control module is a promising solution for the ultralight drones of the future.

    Specifications

    Control Module (FC)

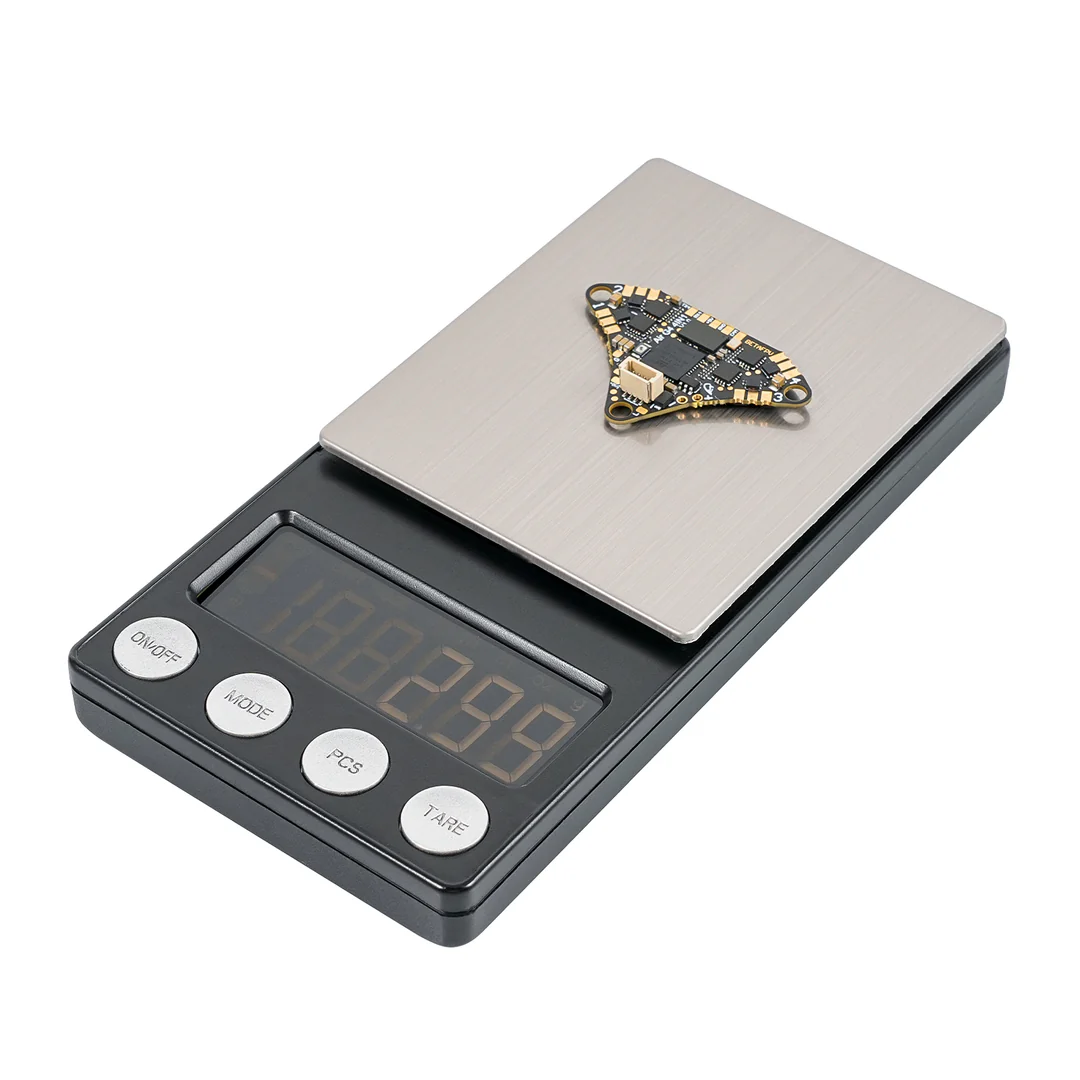

    • Weight: 2.9g
    • Mounting Hole Size: 26mm x 26mm
    • CPU: STM32G473CEU6 (168 MHz)
    • Six-Axis Gyroscope: ICM42688P (SPI Connection)
    • Blackbox Memory: 16 MB
    • Sensors: Voltage and Current
    • 5V BEC: 5V 3A
    • USB Port: SH1.0 4-Pin
    • Integrated ESC: 5A continuous
    • Receiver (RX): Serial ELRS 2.4G
    • 4IN1 version: FC + ESC + OSD + VTX

    Electronic Speed ​​Controller (ESC)

    • Input Voltage: 1S
    • Firmware FC: Betaflight_4.5.0_BETAFPVG473
    • ESC firmware: A_X_5_96KHz_V0.19.hex (BB51 Bluejay hardware)
    • Supported Signals: D-shot300, D-shot600

    Video Transmitter (VTX)

    • Output Power: 25/100/200/400/PIT
    • Frequency: 5.8 GHz, 48 channels (Raceband: 5658~5917 MHz)
    • Channel Selection: SmartAudio2.0
    • Modulation: FM
    • Frequency Control: PLL
    • Frequency Stability: ±100 kHz (Typ.)
    • Frequency Accuracy: ±200 kHz (Typ.)
    • Channel Carrier Deviation: ±1.5 dB
    • Antenna Port: 50 Ω
    • Operating Temperature: -10 ℃ to +80 ℃

    Package Contents

    • 1 x Air Brushless Flight Controller
    • 1 x Type-C to SH1.0 Adapter
    • 1 x SH1.0 4-Pin Adapter Cable
    • 1 x 5.8G VTX Antenna
    • 1 x BT2.0 U Whoop Cable Pigtail (40mm)
    • 4 x Self-tapping screws M1.4*4
    • 4 x Dampers
