    ExpressLRS Recovery Dongle BETAFPV

    ExpressLRS Recovery Dongle BETAFPV

    Brand: BETAFPV

    €9,67
    €9,67 €9,67
    -0% View Product

    sku: 01120009

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

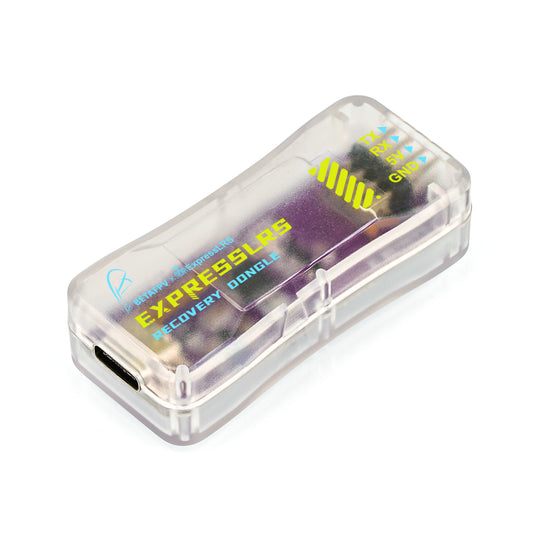

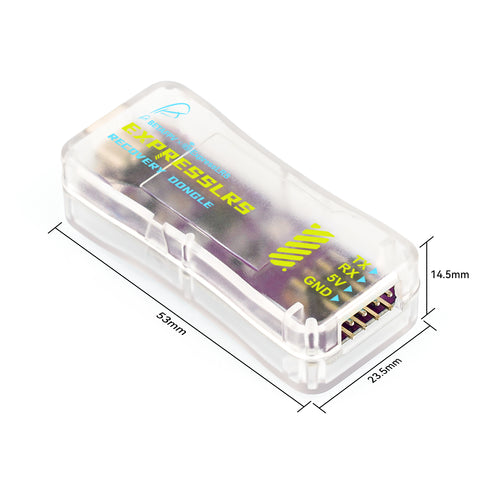

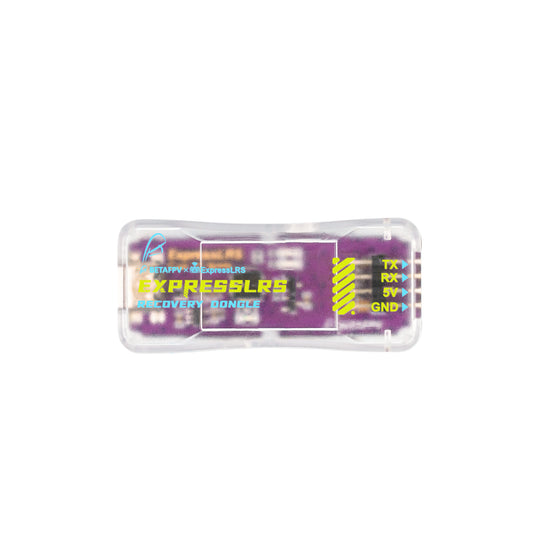

    ExpressLRS Recovery Dongle

    ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on CP2102 bridge controller, used for firmware upgrade for ESP32&ESP8XX chip. It will be useful to unlock the ELRS receiver when updating or flashing the firmware using UART fails.

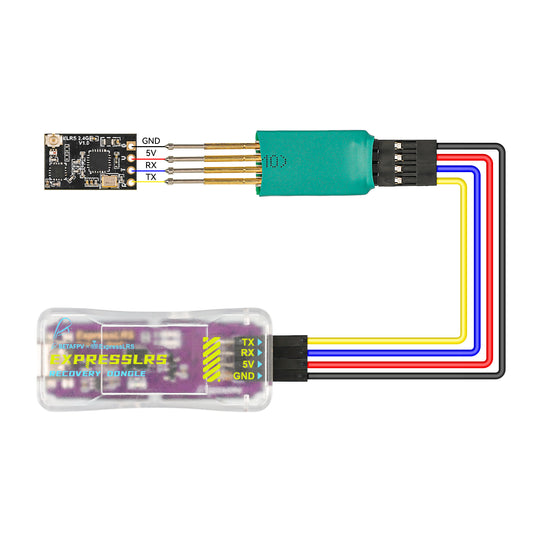

    - Includes spring-loaded probe pins for more convenient use. The direct connection to the ELRS receiver does not need to be soldered. - The ExpressLRS Recovery Dongle FTDI USB to TTL module is cased and more durable and portable than the bare board version on the market. - Windows, MAC and Linux support. This module uses a USB Type-C port to connect to a computer.

    Specifications: USB interface: USB Type C male connector Operating voltage: 5V. Logic voltage: 5V. Output current of the 3.3V source: 400mA Pin output method: 2x4P-2.54mm pin header Serial baud rate: up to 921,600 bps. Support USB 1.1, USB 2.0 USB to Serial Chip (CP2102) supports XP, win7 / win8 32bit, 64bit, win10 / 11 32bit, 64bit, Linux, MAC

    Compatible receivers: ELRS Lite receiver ELRS nano receiver ELRS micro receiver Other ELRS receivers with ESP32&ESP8XX chip.

    Package: 1 x ExpressLRS Recovery Dongle 1x 4-pin cable 1 x Probe Transducer Board
