ESC iFlight BLITZ E80 Single
ESC iFlight BLITZ E80 Single
Brand: iFlight
sku: SKU:BE13420
Out of stockCouldn't load pickup availability
- Description

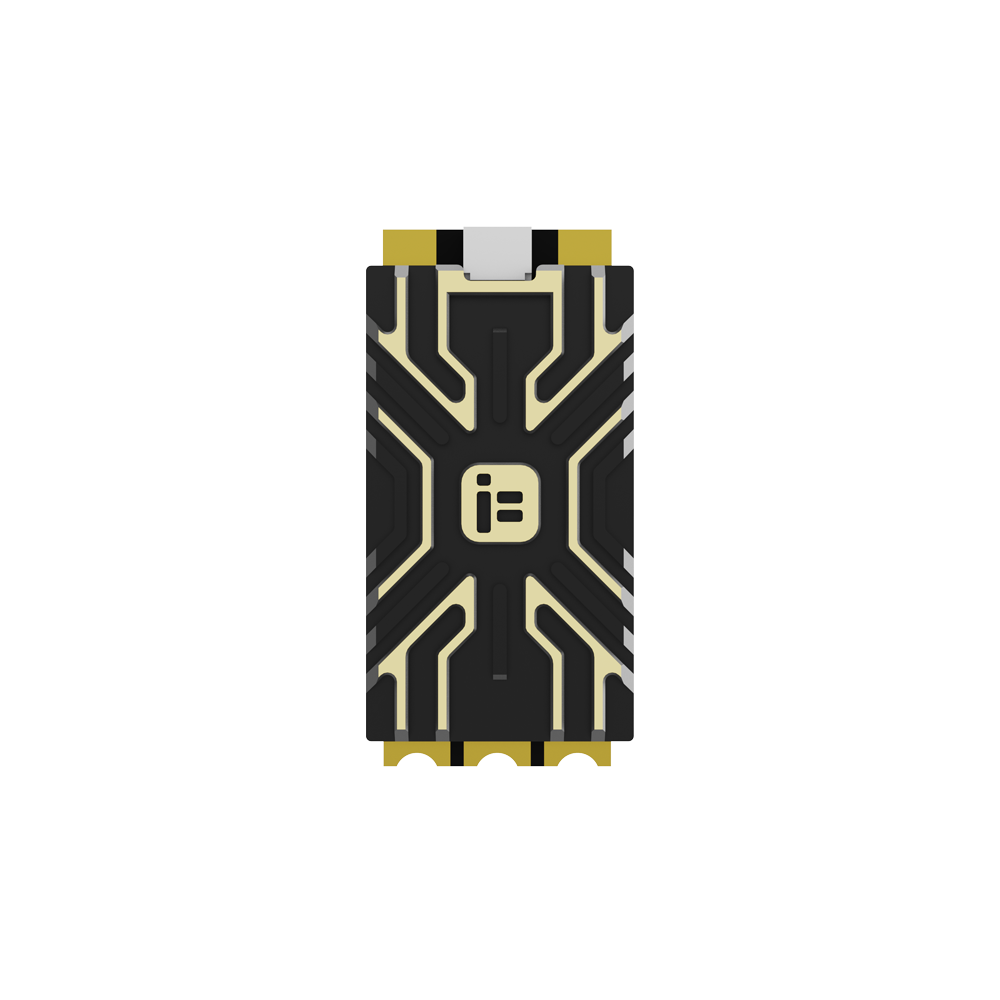

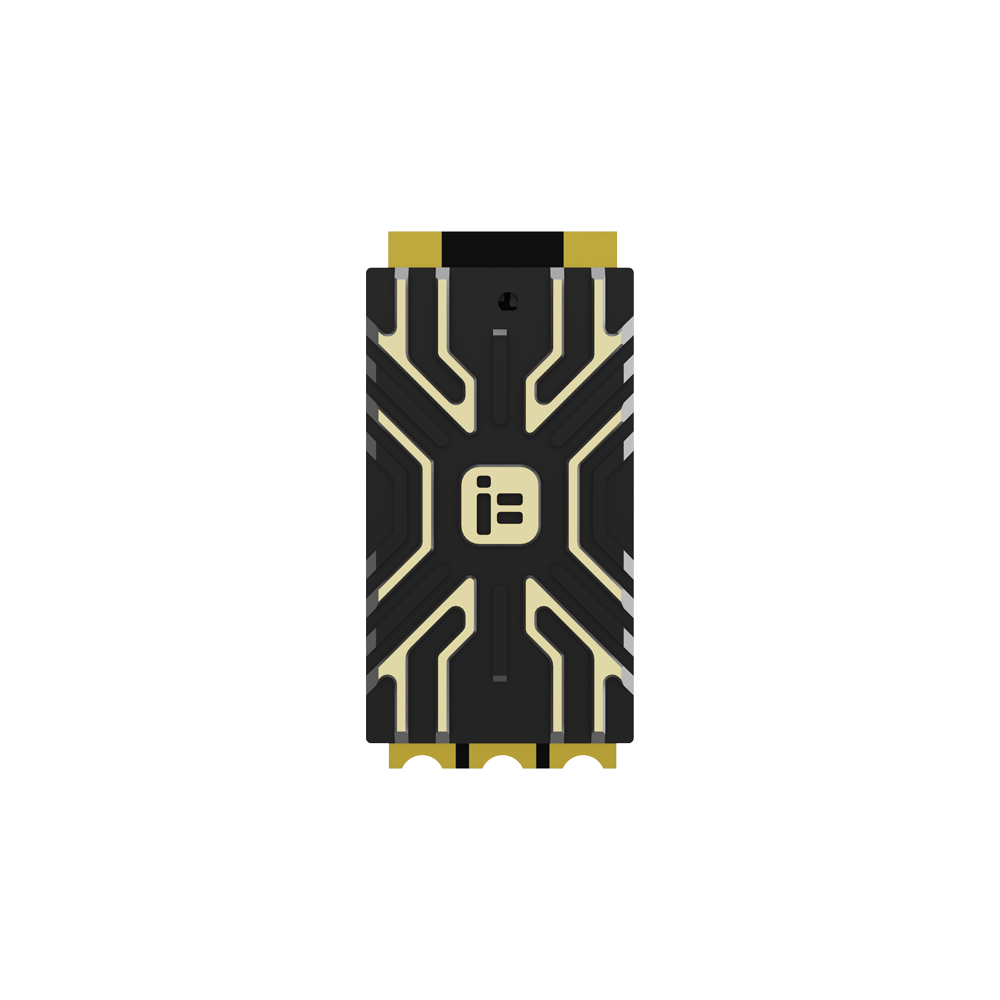

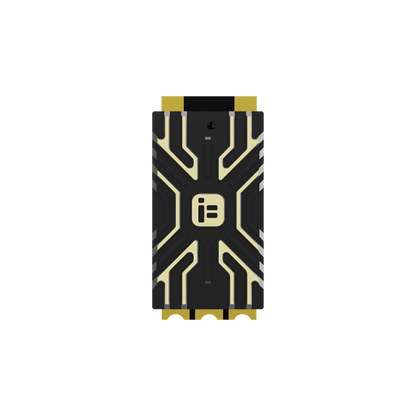

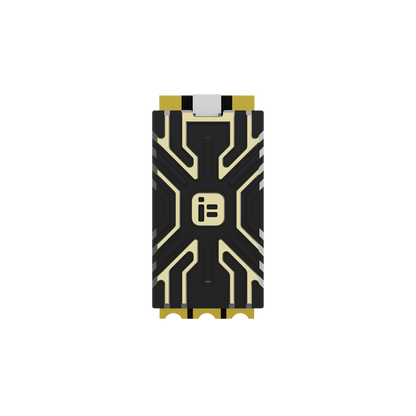

BLITZ E80 Single ESC
The BLITZ E80 BLHeli Dshot600 Single ESC has been designed to give the motors smooth performance with great stability and durability. 32-bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster response and smoother flying experience.
Function: - input 2-8S (max 8S); - 80A 8 layers 4OZ copper PCB, better operational load capacity; - 11 pcs TDK MLCC total 420UF low ESR capacitors, lower ripple and more stable; - Top MOSFET NTMFS5C430NL, stable and reliable; - 1 * 3528 LED for power-on display; - Rational layout, large solder pad, recesses and semi-circular holes allow each layer to be energized when powered on.
Specifications Product name: BLITZ E80 Single ESC Input voltage: 2-8S Max. Continuous current: 80A Max. Explosive current: 100A MCU: G071 BEC: No Firmware: BLHeli32 Current sensor: Yes Telemetry: Supported Target: IFLIGHT_BLITZ_G2 Dimensions: L40 x W17 x W10 mm Weight: 14.5g (±2) Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
Support, support: - Current sensor - Telemetry output - Engine timing - Brake to a stop
Electrical diagram: https://drive.google.com/drive/folders/1l10mEOXwERfLqRun0bbHMEJoxXV2RKN2
The package includes: 1 x BLITZ E80 Single ESC 1 x 50V 470UF capacitor 1 x ESC power cables and signal wires
