    ESC Flycolor X-Cross HV3 120A 5-12S

    ESC Flycolor X-Cross HV3 120A 5-12S

    Brand: Flycolor

    €119,79
    €119,79 €119,79
    -0% View Product

    sku: X-FW120012-D1D1-01

    In stock (16)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

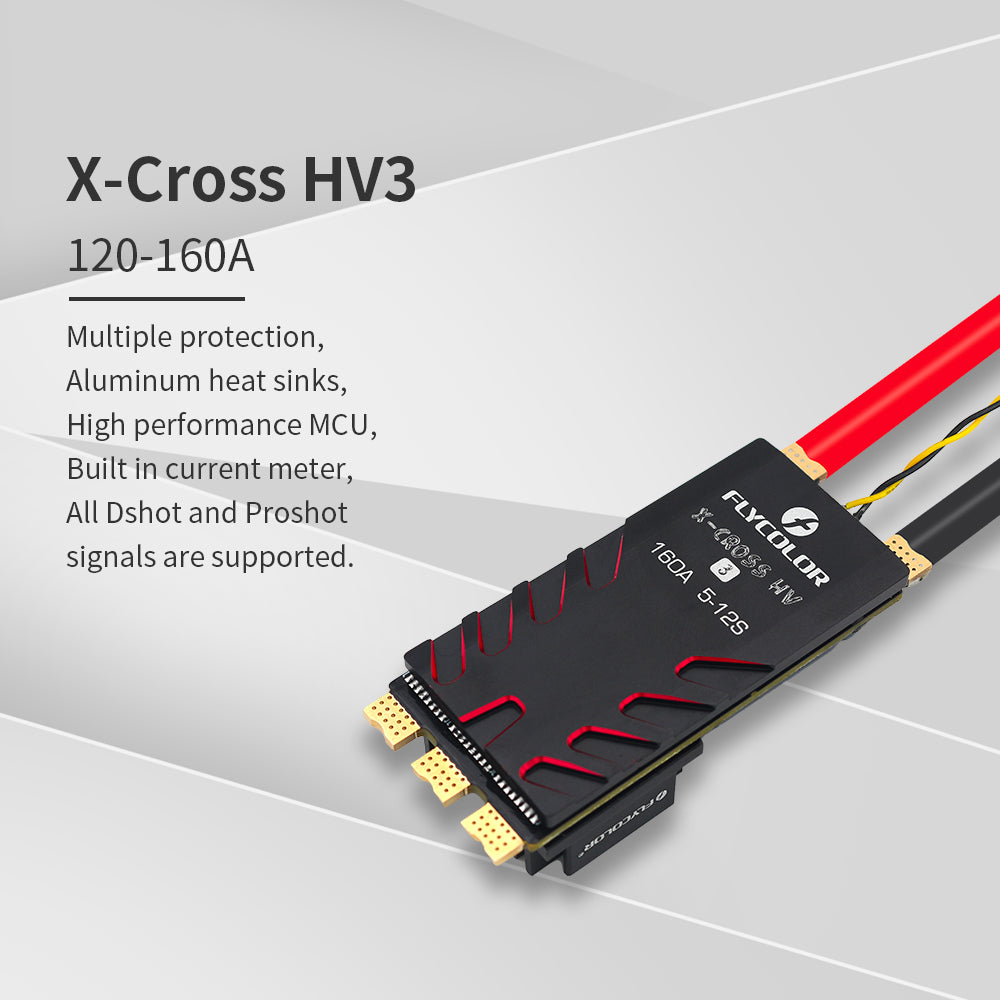

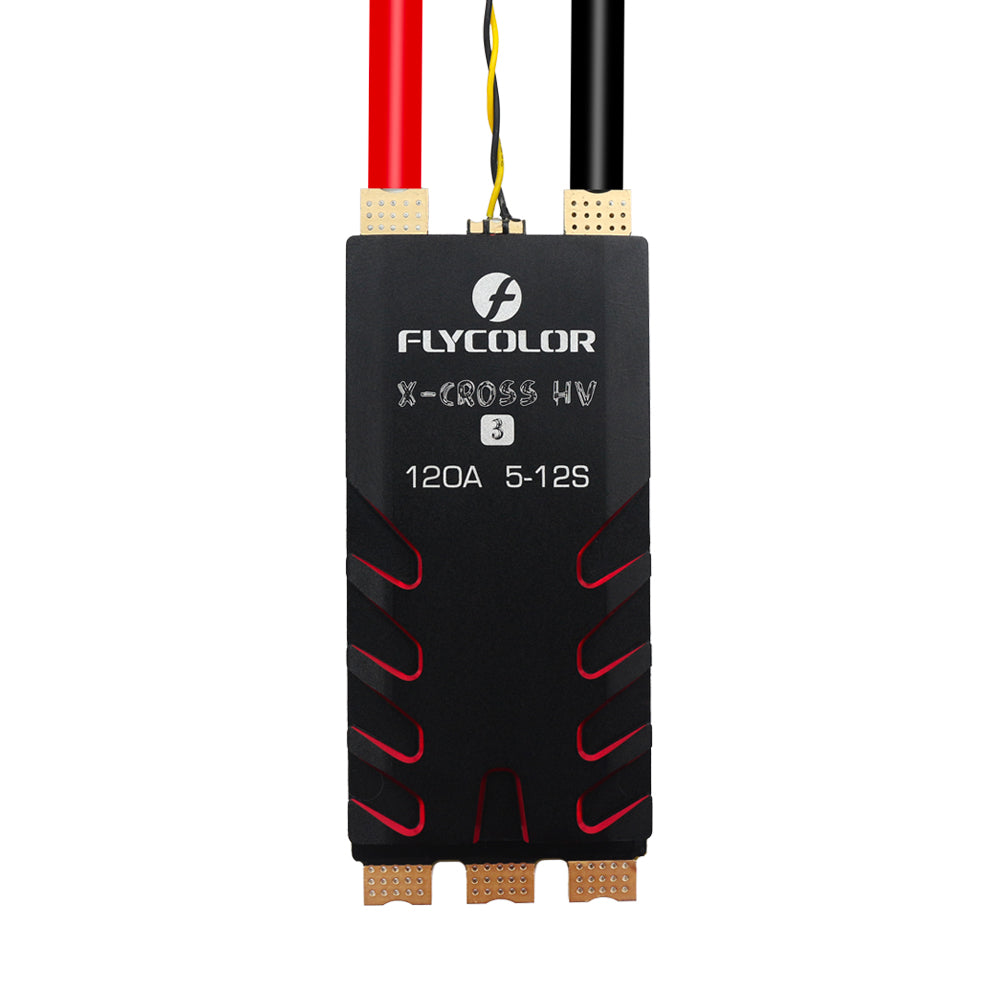

    ESC Flycolor X-Cross HV3 120A 5-12S

Flycolor's X-Cross HV3 120A 5-12S ESC includes quality MOSFETs, BLHeli_32 firmware, ARM 32-bit Cortex MCU, telemetry and more!

Function:

- ARM 32-bit Cortex MCU, frequency up to 48MHz
- International well-known MOSFET brand with high power and low ESR, not afraid of large current
- BL Heli_32 firmware, u0 to 12S Lipo, suitable for X-class frame drone
- Supports common 1-2ms pulse width input as well as Oneshot125, Oneshot42 and Multishot.
- The input signal is automatically detected by the ESC after power-up
- Small size, light weight, suitable for drone with narrow arms
- Dimmed light performs regenerative braking, which causes very rapid engine deceleration and naturally also active idling
- The silicone twisted pair of the throttle signal cable effectively reduces the crosstalk caused by the signal transmission and makes the flight more stable
- The aluminum heatsink effectively slows down the temperature rise

Specifications:
Model: HV3-120A
Current: 120A
Discharge: 150A
Voltage: 5-12S
BEC: No
Weight: 132g
Dimensions: 82 x 34 x 21.1 mm

The package includes:
1x ESC Flycolor X-Cross HV3 120A 5-12S
