ESC Flycolor X-Cross 2 50A 3-6S
ESC Flycolor X-Cross 2 50A 3-6S
Brand: Flycolor
sku: SKU:X-FW050006-F1F1-01
Limited Available - order soonCouldn't load pickup availability
- Description

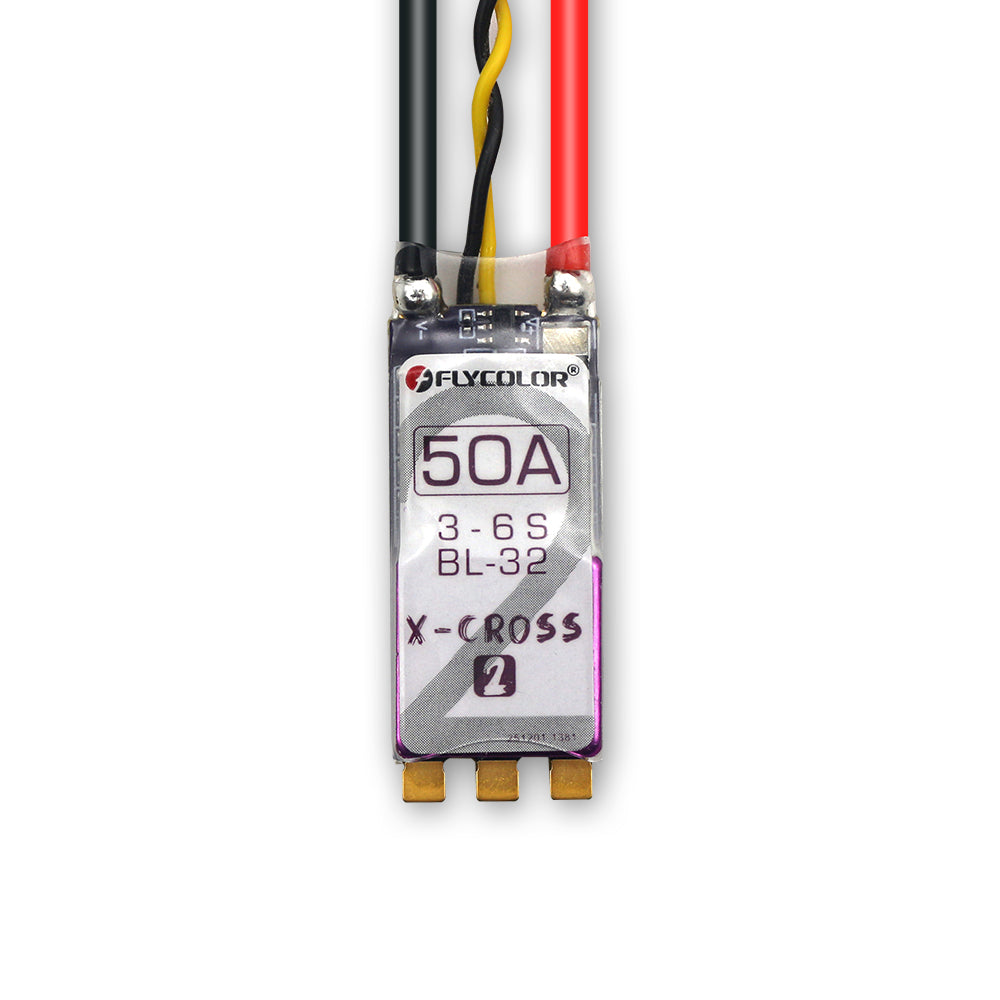

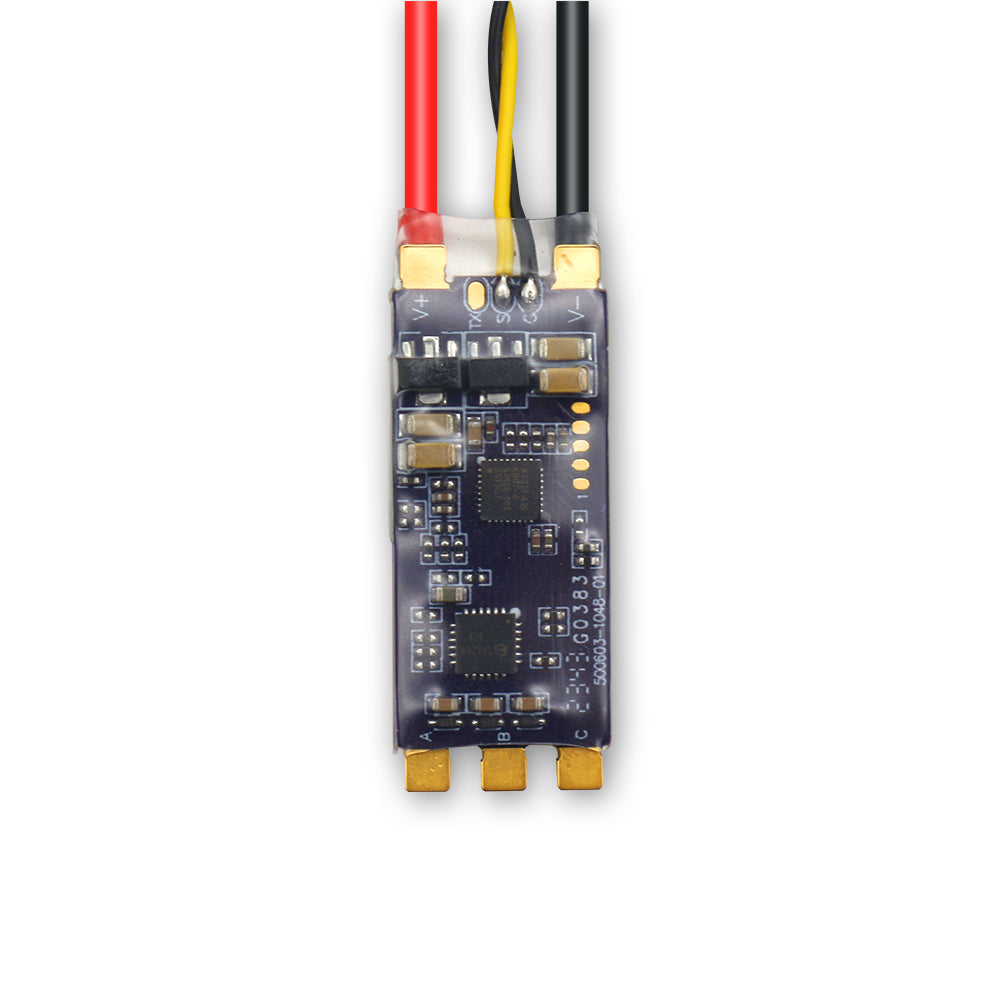

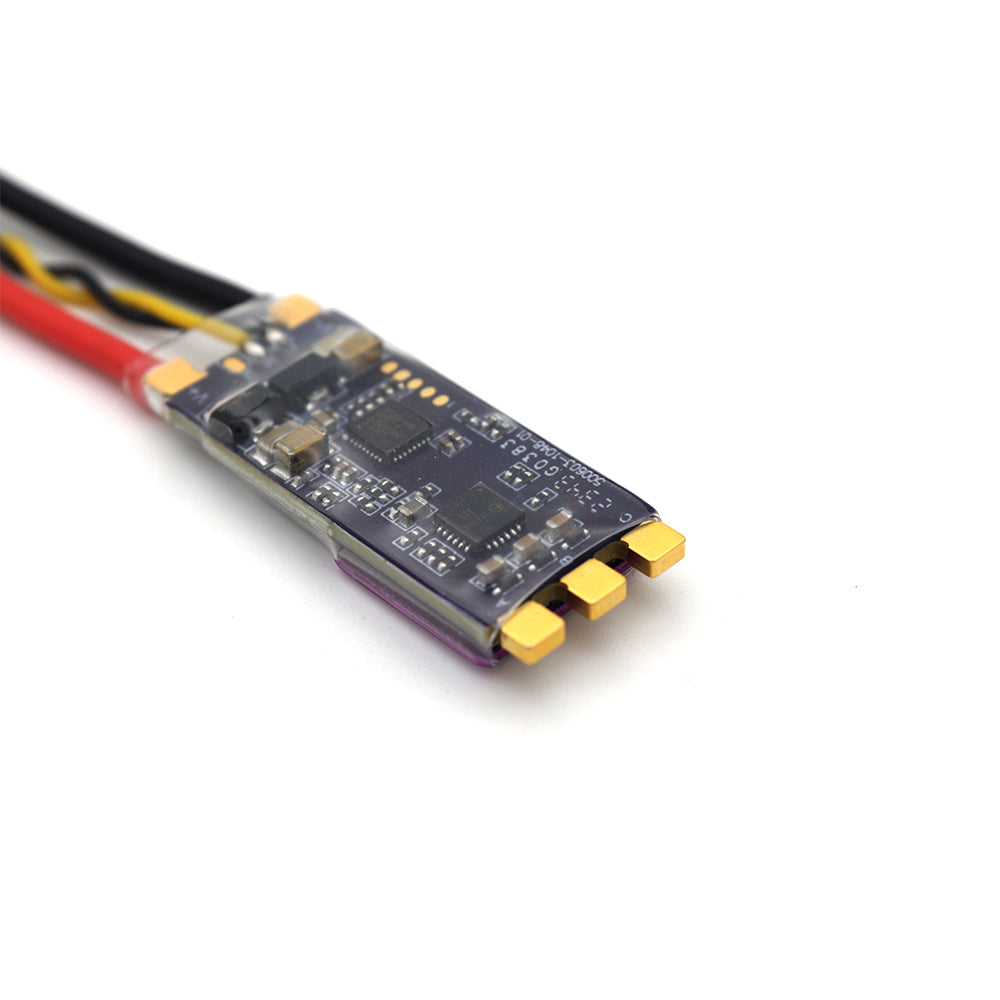

ESC Flycolor X-Cross 2 50A 3-6S
High performance ESC supporting 50A continuous current and 3-6S LiPo battery. Includes advanced BLHeli_32 firmware and compatibility with Dshot and Proshot signals. Designed with a compact form factor for efficient power management in demanding drone setups.
Function:
- ARM 32-bit Cortex-M4 MCU, frequency up to 150 MHz, 57% higher than previous generation MCU. - PWM frequency up to 128k, high frequency for higher throttle allows smoother running. - ESC firmware is optimized, allowing for smoother throttle linearity and faster response. - Built-in current sensor, has better routing and component layout. - Multiple protections, support user-defined settings and meet the needs of multiple scenarios. - Supports common 1-2ms pulse width input as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5-25us). The input signal is automatically detected by the ESC after power-up. - All Dshot and Proshot signals are supported. - Supports higher power load, more suitable for violent racing drone flight. - Supports telemetry and provides digital data such as temperature, voltage, current, speed, etc. (It is required for additional connection of the TX port on the PCB). - They do not support Smart Port data loading.
Specifications: Model: X-Cross 2 - 50A Current: 50A Discharge: 60A Voltage: 3-6S BEC: No Weight: 10.2g Dimensions: 37 x 14.5 x 6 mm LED: No
The package includes: 1x ESC Flycolor X-Cross 2 50A 3-6S
