    ESC Flycolor Trinx G5 60A 4-in-1

    ESC Flycolor Trinx G5 60A 4-in-1

    Brand: Flycolor

    €104,88
    €104,88 €104,88
    -0% View Product

    sku: W4-FW060006-G1G1-TX1

    Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

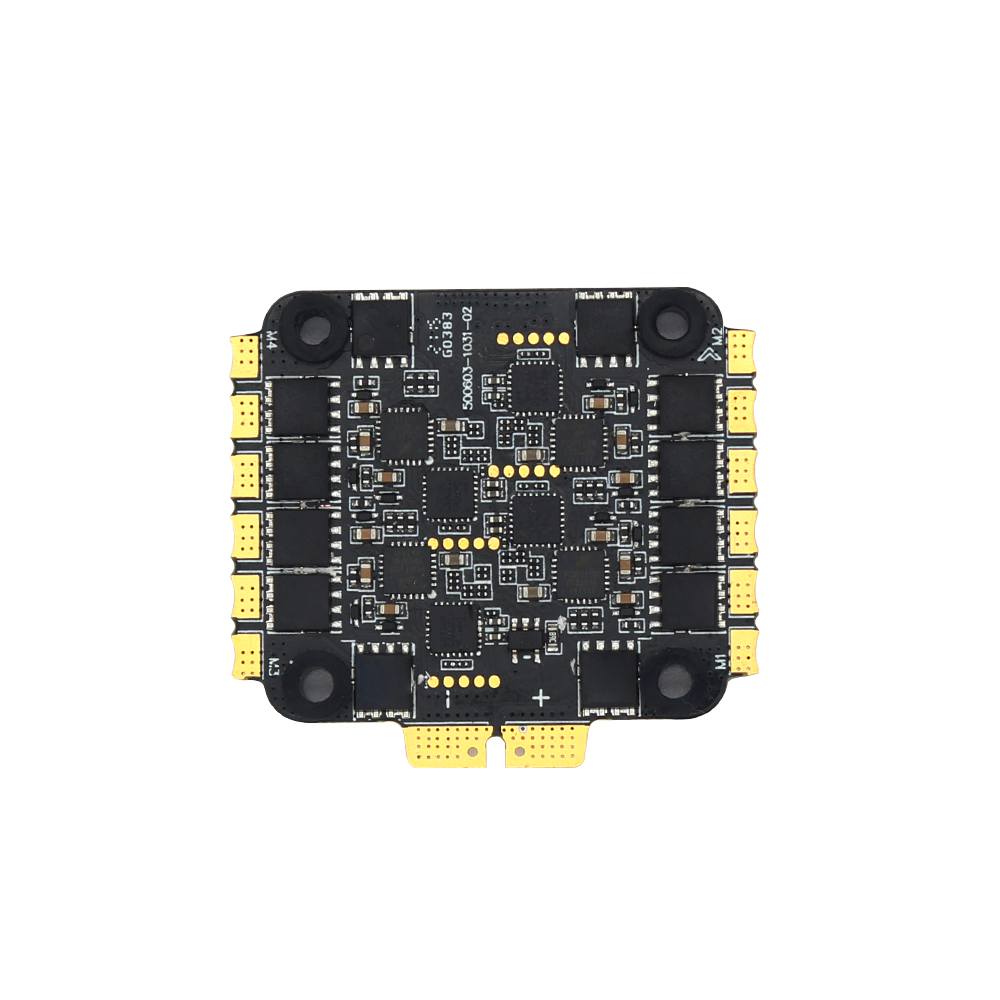

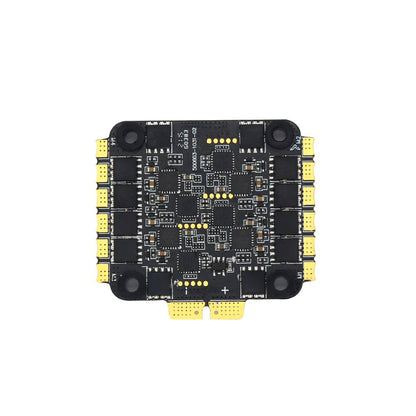

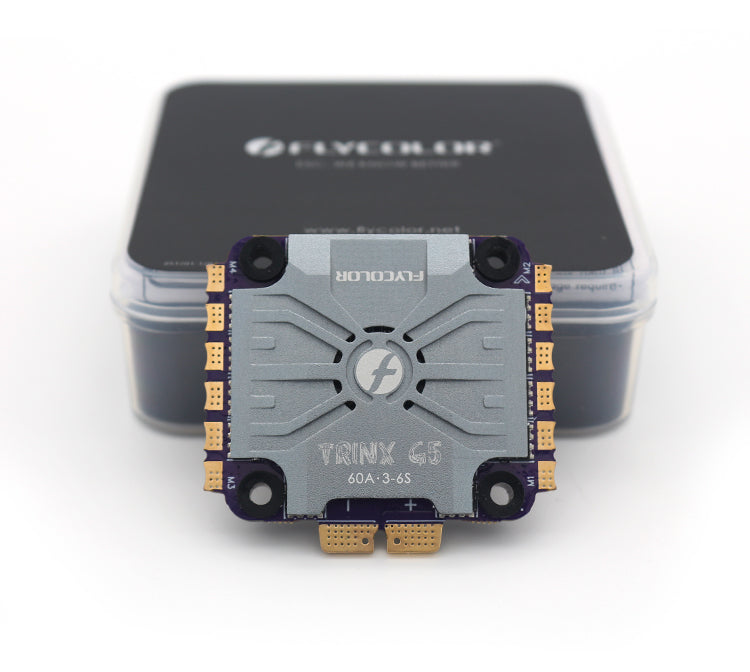

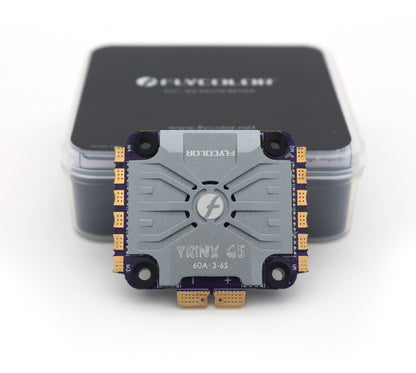

    ESC Flycolor Trinx G5 60A 4-in-1

    The Flycolor Trinx G5 60A 4-in-1 ESC is a high-performance electronic speed controller designed for demanding quadcopter setups. It supports 60A continuous current and 70A surge current, making it ideal for power-hungry drones. The ESC runs on 3-6S LiPo batteries and is equipped with BLHeli32 firmware, which ensures fast response and minimal latency. With a compact design weighing only 19.6g, it is suitable for various drone configurations

    Function: - PWM frequency up to 128K. - More logs. - Built-in 4in1 ESC current sensor and VBAT output. - Longer and better performance thanks to the large surface area of ??the aluminum radiator. - Damping design to reduce the effect of vibration on the flight controller. - Supports higher power loads. - Large soldering tabs.

    Specifications: Model: Trinx G5 4in1 Con. Current: 60A Explosive current (10S): 70A BEC: NO LiPo cells: 3-6S Weight: 19.6 g (with cooler) Dimensions: 45 x 41 x 8.3 mm Mounting: 30.5x30.5 (M3) Configurator: BLHeliSuite32 Firmware: Flycolor_Raptor_5 All D-shot, Pro-shot MCU: STM32G07

    The package includes: 1x Trinx G5 4in1- 60A ESC
